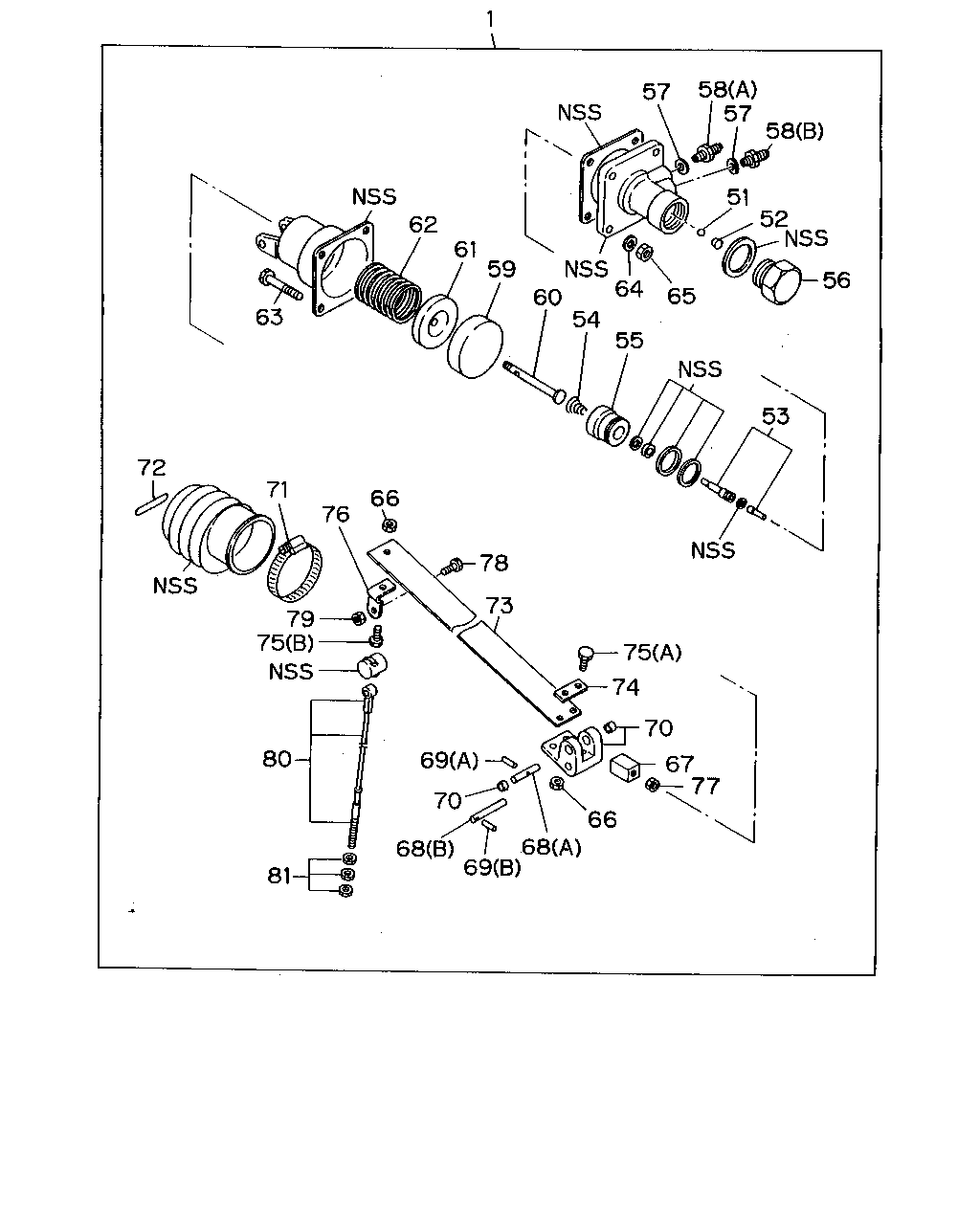

3-45 — LOAD SENSING PROPORTIONING VALVE (#1608) — 52 parça
çizim 29083
1 57 58 58 57 51 52 56 65 64 53 55 54 60 59 61 62 63 72 71 66 76 78 73 75 74 70 67 77 66 68 69 68 69 81 70 80 75 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; LOAD SENSING PROPORTIONING
LSPV(JR7) 		1-47710-014-0 01 1 9207- ● ● ● ●
51 BALL; LSPV
LSPV(JR7) 		1-47719-010-0 01 1 9207- ● ● ● ●
52 SPRING; BALL
LSPV(JR7) 		1-47714-001-0 01 1 9207- ● ● ● ●
53 PLUNGER; LSPV
LSPV(JR7) 		1-47719-012-0 01 1 9207- ● ● ● ●
54 SPRING; RET,LSPV
LSPV(JR7) 		1-47714-002-0 01 1 9207- ● ● ● ●
55 RETAINER; LSPV
LSPV(JR7) 		1-47719-015-0 01 1 9207- ● ● ● ●
56 PLUG; LSPV
LSPV(JR7) 		1-47719-011-0 01 1 9207- ● ● ● ●
57 GASKET; CONNECTOR
LSPV(JR7) 		1-47719-039-0 02 1 9207- ● ● ● ●
58 CONNECTOR; LSPV
LSPV(JR7) (A) 		1-47719-035-0 01 1 9207- ● ● ● ●
58 CONNECTOR; LSPV
LSPV(JR7) (B) 		1-47719-040-0 01 1 9207- ● ● ● ●
59 SPACER; LSPV
LSPV(JR7) 		1-47719-019-0 01 1 9207- ● ● ● ●
60 ROD; ACTUATOR
LSPV(JR7) 		1-47719-020-0 01 1 9207- ● ● ● ●
61 RETAINER; SPRING
LSPV(JR7) 		1-47719-021-0 01 1 9207- ● ● ● ●
62 SPRING; LSPV
LSPV(JR7) 		1-47714-003-0 01 1 9207- ● ● ● ●
63 BOLT; LSPV
LSPV(JR7) 		1-31829-015-0 04 1 9207- ● ● ● ●
64 WASHER; LSPV
LSPV(JR7) ID=8.2 		9-09150-508-0 04 1 9207- ● ● ● ●
65 NUT; LSPV
LSPV(JR7) 		9-83315-085-0 04 1 9207- ● ● ● ●
66 NUT; LEAF SPR,LSPV
LSPV(JR7) 		1-47819-021-0 03 1 9207- ● ● ● ●
67 CLEVIS; LSPV
LSPV(JR7) 		1-47719-023-0 01 1 9207- ● ● ● ●
68 PIN; LEVER
LSPV(JR7) (A) 		1-47719-024-0 01 1 9207- ● ● ● ●
68 PIN; LEVER
LSPV(JR7) (B) 		1-47719-026-0 01 1 9207- ● ● ● ●
69 PIN; SPR
LSPV(JR7) (A) 		1-47719-025-0 01 1 9207- ● ● ● ●
69 PIN; SPR
LSPV(JR7) (B) 		1-47719-027-0 01 1 9207- ● ● ● ●
70 LEVER; LSPV
LSPV(JR7) 		1-47711-001-0 01 1 9207- ● ● ● ●
71 CLAMP; BOOT
LSPV(JR7) 		9-44519-012-0 01 1 9207- ● ● ● ●
72 CLIP; BOOT
LSPV(JR7) 		1-47719-029-0 01 1 9207- ● ● ● ●
73 SPRING; LEAF,LSPV
LSPV(JR7) 		1-47714-004-0 01 1 9207- ● ● ● ●
74 PLATE; LEAF SPRING
LSPV(JR7) 		1-47719-030-0 01 1 9207- ● ● ● ●
75 BOLT; LEAF SPRING
LSPV(JR7) (A) 		1-47719-031-0 02 1 9207- ● ● ● ●
75 BOLT; LEAF SPRING
LSPV(JR7) (B) 		9-88510-122-0 01 1 9207- ● ● ● ●
76 BRACKET; WIRE
LSPV(JR7) 		1-47719-032-0 01 1 9207- ● ● ● ●
77 NUT; CLEVIS
LSPV(JR7) 		1-47819-021-0 01 1 9207- ● ● ● ●
78 BOLT; WIRE BRKT
LSPV(JR7) 		1-47719-033-0 01 1 9207- ● ● ● ●
79 NUT; WIRE BRKT
LSPV(JR7) 		1-47819-021-0 01 1 9207- ● ● ● ●
80 WIRE; LSPV
LSPV(JR7) 		1-47719-043-0 01 1 9207- ● ● ● ●
81 NUT; WIRE
LSPV(JR7) 		9-83315-085-0 03 1 9207- ● ● ● ●

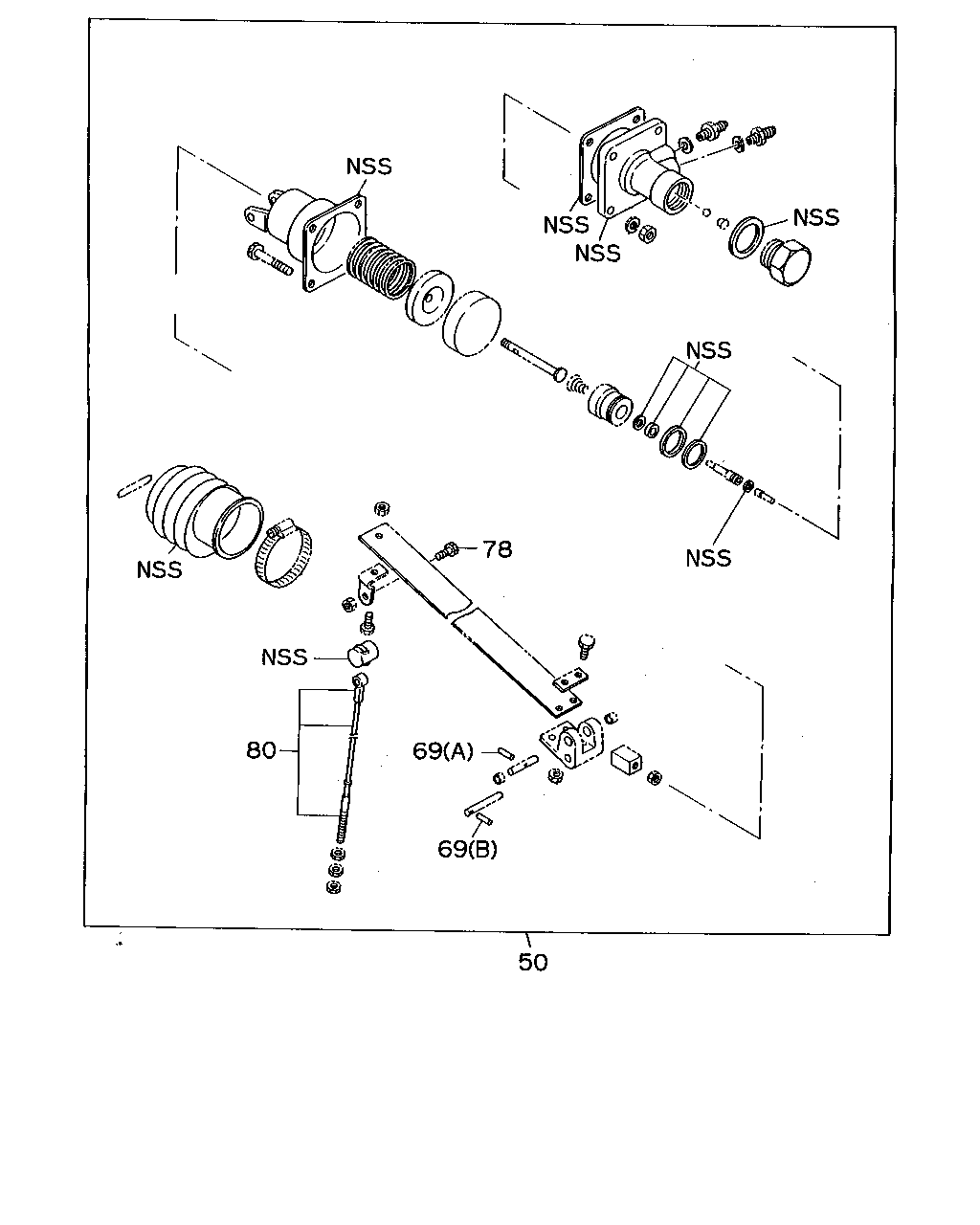

çizim 29603
78 80 69 69 50
BalonParca AdiParca NoAdetTipApplied Date A B C D
50 REPAIR KIT; LSPV
LSPV(JR7) 		1-85576-010-0 01 1 9207- ● ● ● ●
69 PIN; SPR
LSPV(JR7) (A) 		1-47719-025-0 01 1 9207- ● ● ● ●
69 PIN; SPR
LSPV(JR7) (B) 		1-47719-027-0 01 1 9207- ● ● ● ●
78 BOLT; WIRE BRKT
LSPV(JR7) 		1-47719-033-0 01 1 9207- ● ● ● ●
80 WIRE; LSPV
LSPV(JR7) 		1-47719-043-0 01 1 9207- ● ● ● ●

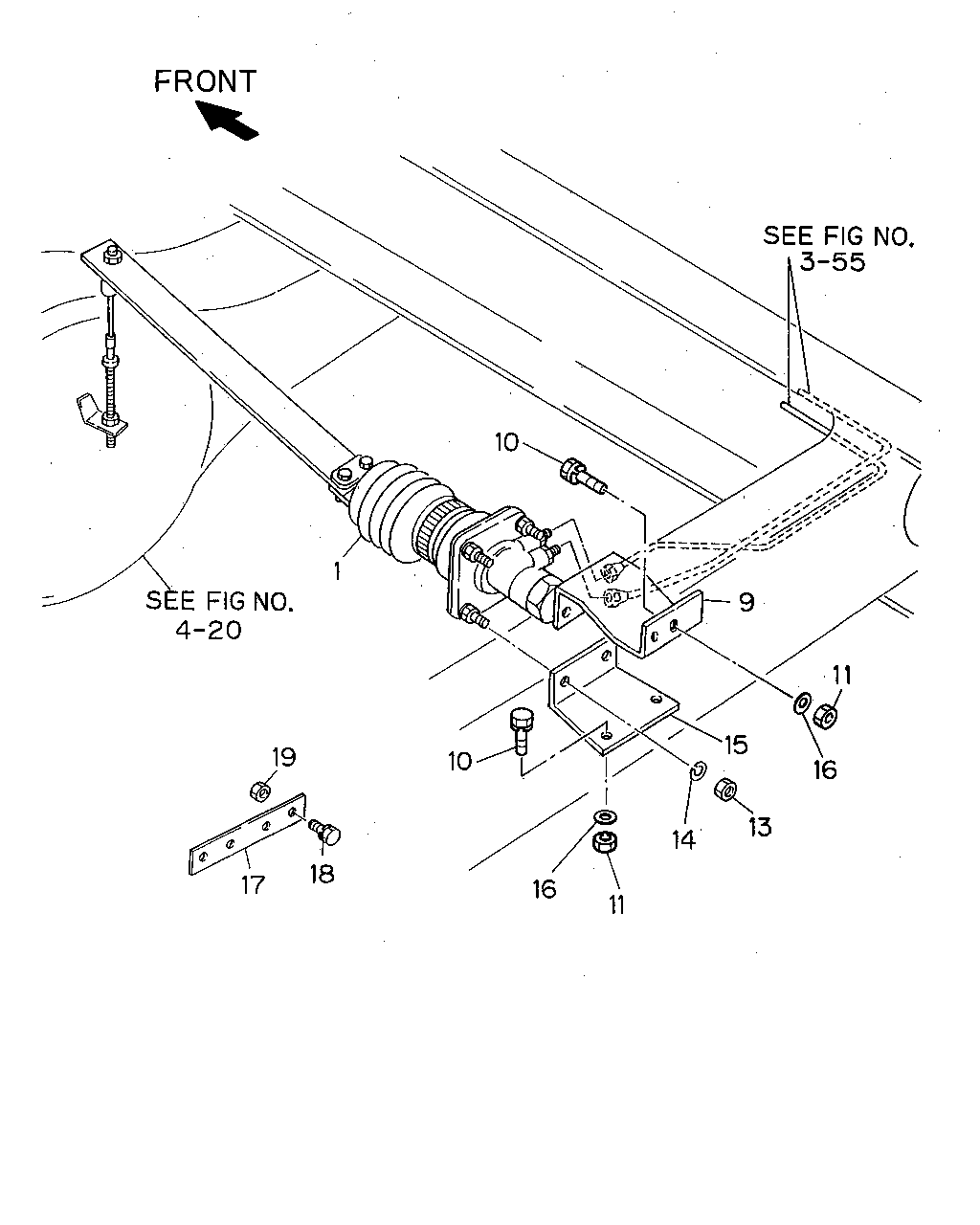

çizim 94694
1 10 9 11 15 16 13 14 11 16 10 18 17 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 VALVE ASM; LOAD SENSING PROPORTIONING
LSPV(JR7) 		1-47710-014-0 01 1 9207- ● ● ● ●
9 BRACKET; UPR,LSPV
LSPV(JR7) 		1-47475-469-0 01 1 9207- ● ● ● ●
10 BOLT; BRKT
LSPV(JR7) M8X25 FLANGE 		0-28080-825-0 04 1 9207- ● ● ● ●
11 NUT; BRKT
LSPV(JR7) M8 		9-09110-408-0 04 1 9207- ● ● ● ●
13 NUT; LSPV TO BRKT
LSPV(JR7) M8 		9-09110-408-0 04 1 9207- ● ● ● ●
14 WASHER; LK,LSPV TO BRKT
LSPV(JR7) ID=8.2 		9-09150-508-0 04 1 9207- ● ● ● ●
15 BRACKET; LWR,LSPV
LSPV(JR7) 		1-47465-585-1 01 1 9207- ● ● ● ●
16 WASHER; PL,BRKT
LSPV(JR7) ID=8.4 OD=22 		9-09160-708-0 04 1 9207- ● ● ● ●
17 STAY; BRKT,LSPV
LSPV(JR7) 		1-47719-037-0 01 1 9207- ● ● ●
18 BOLT; BRKT STAY
LSPV(JR7) M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ● ●
19 NUT; BRKT STAY
LSPV(JR7) M8 		9-09110-408-0 02 1 9207- ● ● ●
