Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11199 - CYZ NEW ZEALAND EURO4
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#16069) — 91 parça
◀
[326A] FIXING;CAB SIDE (20 parça)
[326A] FRAME SIDE (14 parça)
[326A] REPAIR KIT;HAND CONT VALVE (1 parça)
[326A] HAND BRAKE VALVE (25 parça)
[326A] HAND CONT VALVE (30 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
▶

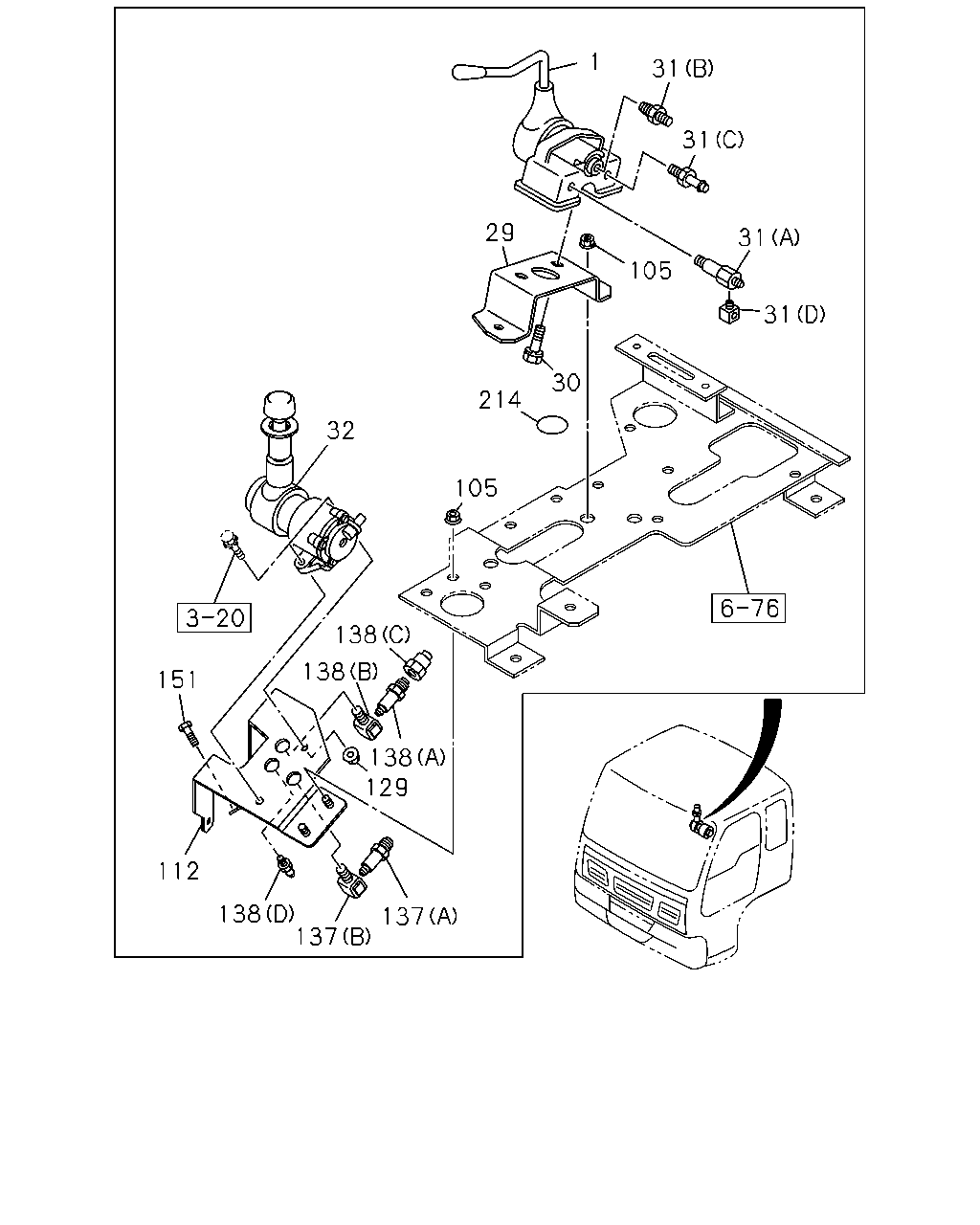

1
31
31
29
31
105
31
30
214
32
105
138
138
151
138
129
112
138
137
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
1-48100-859-0
01
1
0904-
29
BRACKET; HAND BRK
1-79997-357-1
01
1
0904-
30
BOLT; BRKT,HAND BRK VLV
M10X20 W/LK WASHER
0-50541-020-0
02
1
0904-
31
CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
0904-
31
CONNECTOR; HAND BRK VLV
(A) M14
1-09656-391-2
01
1
0904-
31
CONNECTOR; HAND BRK VLV
(D) PT1/4 2WAY
1-09660-693-0
01
1
0904-
31
CONNECTOR; HAND BRK VLV
(C) L=45
8-94338-874-0
01
1
0904-
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
0904-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0904-
112
BRACKET; CONT VLV
1-79996-336-1
01
1
0904-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
0904-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
05
1
0904-
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
0904-
137
CONNECTOR; SUPPLY
(A) DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0904-
138
CONNECTOR; DELIVERY
(A) M14
1-09656-391-2
01
1
0904-
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
01
1
0904-
138
CONNECTOR; DELIVERY
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0904-
138
CONNECTOR; DELIVERY
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0904-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0904-
214
SEAL; COVER,HAND BRK
OD=25 BLACK
1-76798-019-0
01
1
0904-

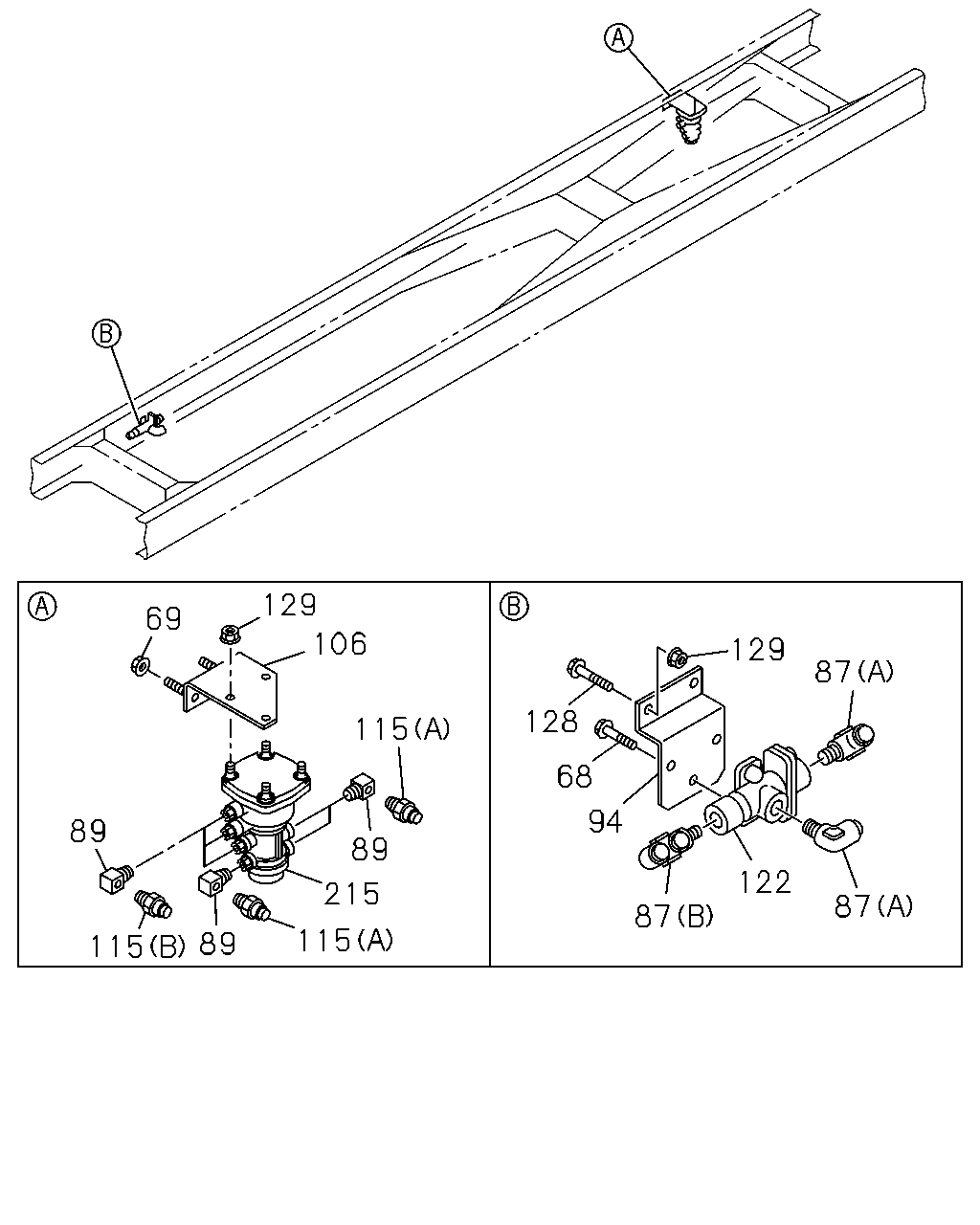

129
69
106
129
87
128
115
68
94
89
89
122
215
87
87
115
89
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; DOUBLE CHECK VLV
M8X14 FLANGE
0-28080-814-0
02
1
0904-
69
NUT; VLV BRKT
M10 FLANGE
0-91180-210-0
02
1
0904-
87
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0904-
87
CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
0904-
89
CONNECTOR; FLARE
PT3/8 ELBOW
1-09660-696-0
06
1
0904-
94
BRACKET; CHECK VLV
1-47479-367-0
01
1
0904-
106
BRACKET; VLV
8-98110-679-1
01
1
0904-
115
CONNECTOR; DUAL RELAY VLV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
03
1
0904-
115
CONNECTOR; DUAL RELAY VLV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
03
1
0904-
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
0904-
128
BOLT; VLV
M8X25 FLANGE
0-28650-825-0
02
1
0904-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
0904-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
05
1
0904-
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
0904-

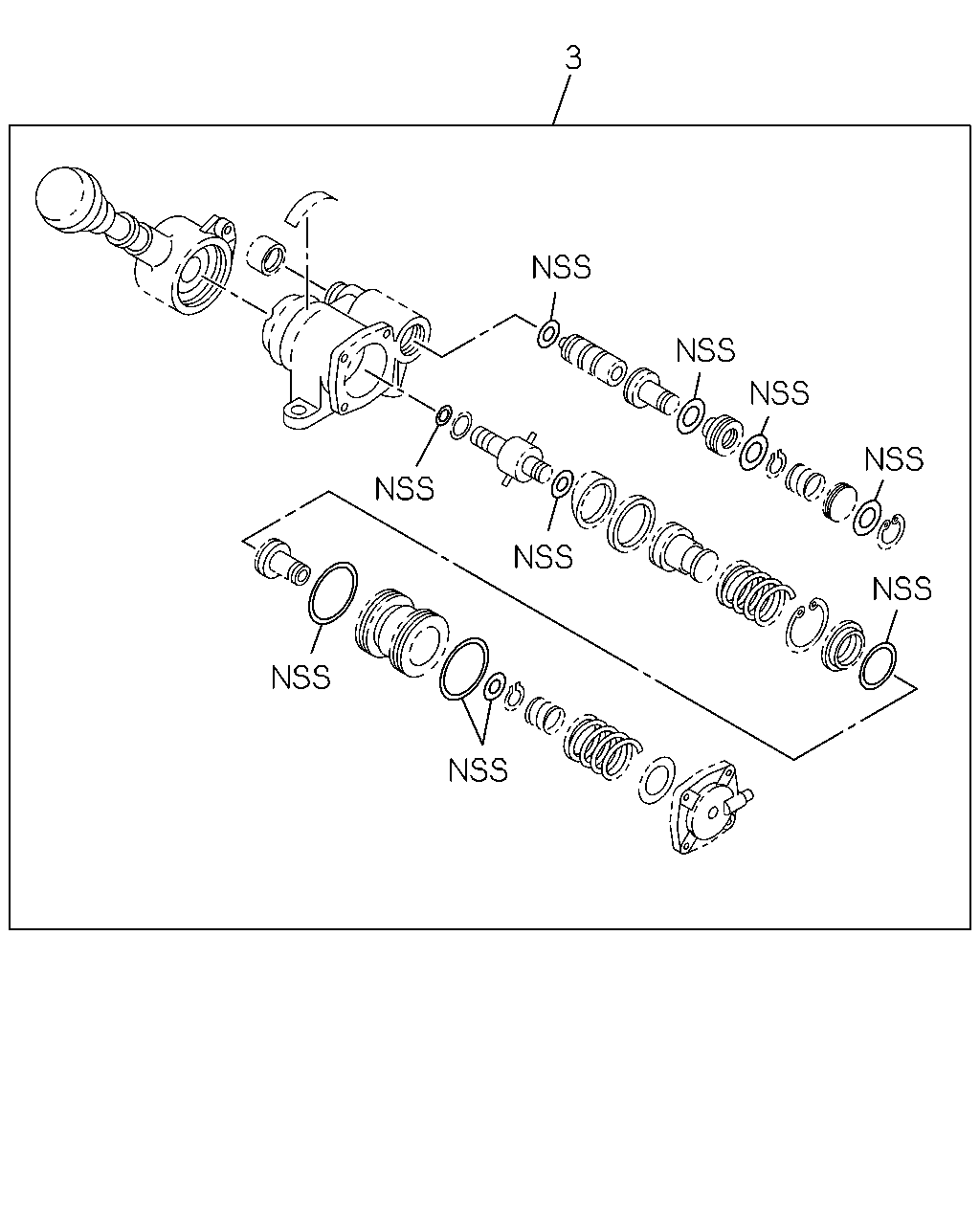

3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-083-0
01
1
0904-

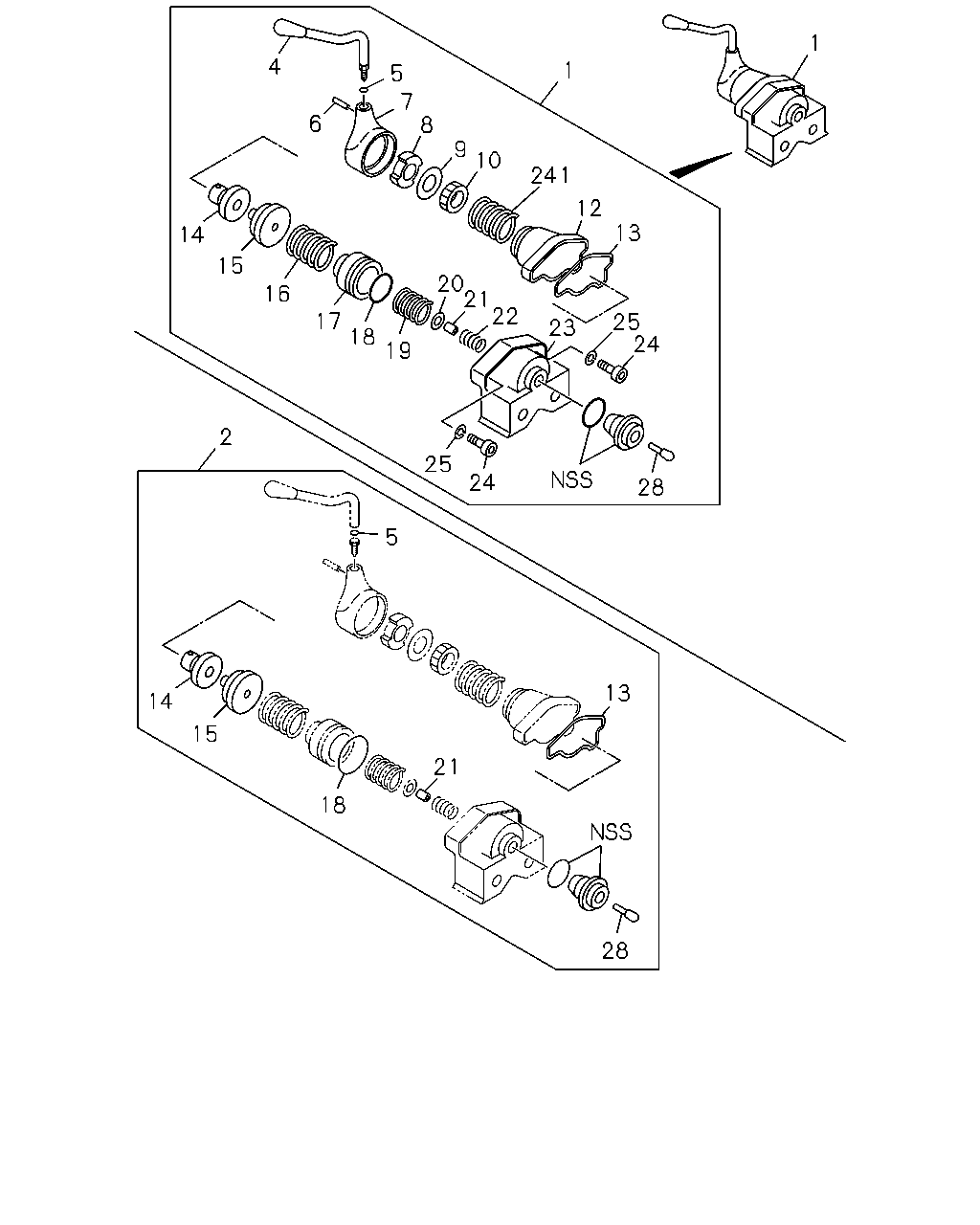

1
4
1
5
7
8
6
9
10
241
12
13
14
15
20
21
22
16
23
17
25
24
18
19
2
25
24
28
5
13
14
15
21
18
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
1-48100-859-0
01
1
0904-
2
REPAIR KIT; HAND BRK VLV
1-85576-305-0
01
1
0904-
4
HANDLE ASM; BRK VLV
1-48119-580-1
01
1
0904-
5
GASKET; HANDLE
1-48119-128-0
01
1
0904-
6
PIN; SPR
1-48119-143-0
01
1
0904-
7
HEAD; BRK VLV
1-48119-577-1
01
1
0904-
8
STOPPER; BRK VLV
1-48119-327-0
01
1
0904-
9
WASHER; LK,ADJ
1-48119-123-0
01
1
0904-
10
RING; ADJ
1-48119-122-0
01
1
0904-
12
COVER; BRK VLV
1-48129-319-1
01
1
0904-
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
0904-
14
FOLLOWER; CAM
1-48129-135-0
01
1
0904-
15
CAM; FOLLOWER
1-48129-134-0
01
1
0904-
16
SPRING; GRUDUATING
1-48129-101-0
01
1
0904-
17
PISTON; SPR
1-48129-095-0
01
1
0904-
18
GASKET; BODY
1-48129-096-0
01
1
0904-
19
SPRING; PISTON
1-48129-094-0
01
1
0904-
20
GUIDE; VLV
1-48129-090-0
01
1
0904-
21
VALVE; IN & EXH
1-48121-017-0
01
1
0904-
22
SPRING; VLV
1-48123-024-0
01
1
0904-
23
BODY; BRK VLV
1-48111-060-1
01
1
0904-
24
BOLT; EXH VLV
1-48129-092-0
02
1
0904-
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
0904-
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
0904-
241
SPRING; RETURN
1-48119-576-0
01
1
0904-

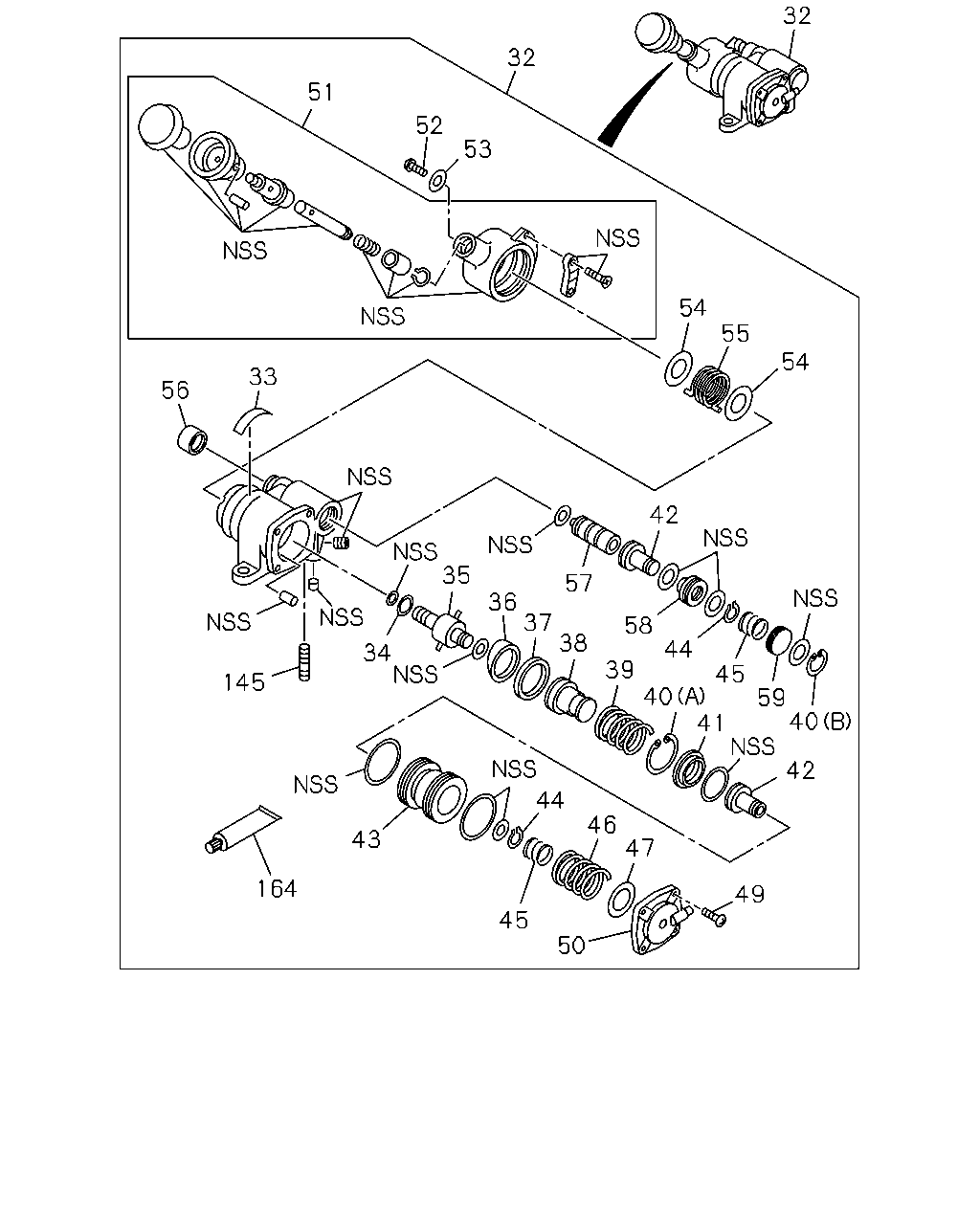

32
32
51
52
53
54
55
54
33
56
42
35
57
36
37
38
58
44
34
39
40
45
41
42
145
59
40
44
46
47
43
164
49
45
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
0904-
33
PLATE; CAUTION
1-48469-121-0
01
1
0904-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0904-
35
HOLDER; CAM
1-48469-054-0
01
1
0904-
36
RING; CAM
1-48469-056-0
01
1
0904-
37
GUIDE; CAM RING
1-48469-058-0
01
1
0904-
38
SEAT; EXH VLV
1-48469-057-0
01
1
0904-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0904-
40
RING; SNAP
(A)
1-48469-067-0
01
1
0904-
40
RING; SNAP
(B)
1-48469-079-0
01
1
0904-
41
SEAT; FEED VLV
1-48469-066-0
01
1
0904-
42
VALVE; FEED
1-48469-065-0
02
1
0904-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0904-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
0904-
45
SPRING; FEED VLV
1-48469-070-0
02
1
0904-
46
SPRING; MAIN,PISTON
1-48469-119-0
01
1
0904-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0904-
49
SCREW; COVER
1-48469-120-0
04
1
0904-
50
COVER; HAND BRK VLV
1-48469-073-0
01
1
0904-
51
HANDLE ASM; HAND BRK VLV
1-48469-060-0
01
1
0904-
52
SCREW; HANDLE
1-48469-062-0
01
1
0904-
53
WASHER; HANDLE
1-48469-061-0
01
1
0904-
54
SEAT; SPRING
1-48469-082-0
02
1
0904-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0904-
56
BOOT; PLUNGER
1-48469-080-0
01
1
0904-
57
PLUNGER; HAND BRK VLV
1-48469-076-0
01
1
0904-
58
HOLDER; FEED VLV
1-48469-077-0
01
1
0904-
59
HOLDER; SPRING
1-48469-078-0
01
1
0904-
145
STUD; HAND BRK VLV
1-48469-069-0
01
1
0904-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0904-

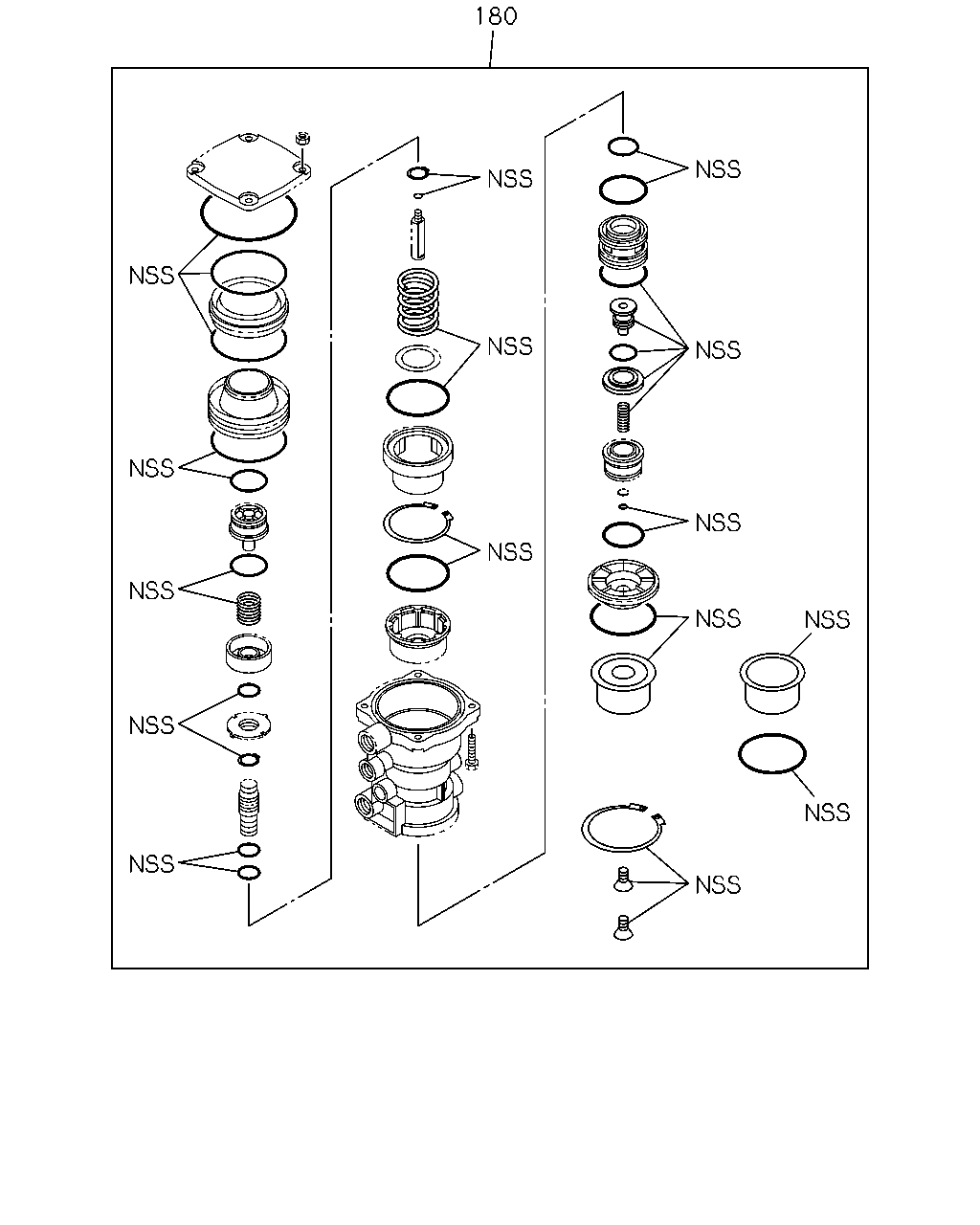

180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
0904-
