3-34 — BRAKE VALVE; AIR (#1606) — 35 parça

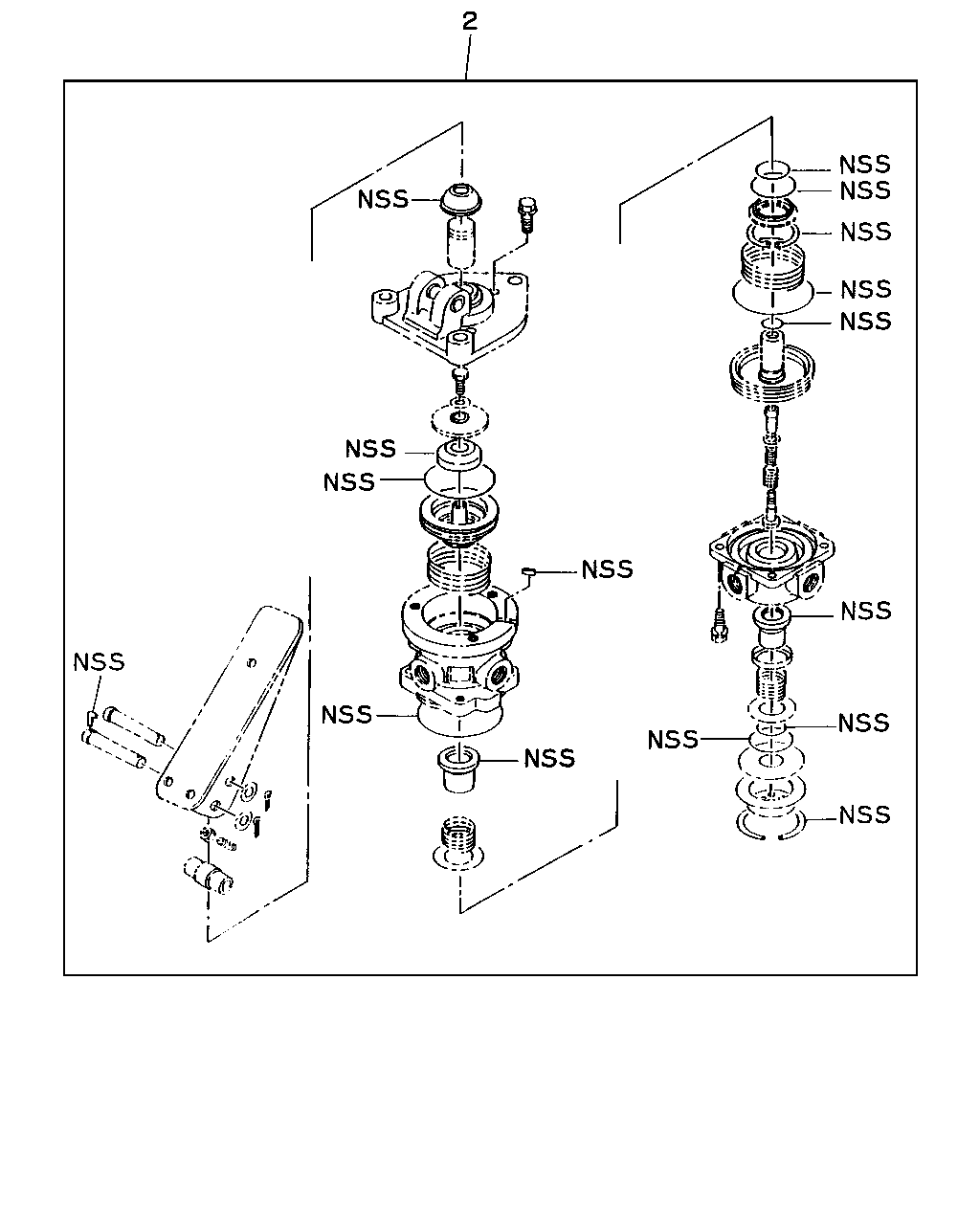

çizim 29371
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 REPAIR KIT; BRK VLV 1-85576-053-0 01 1 9207- ● ● ● ● ●

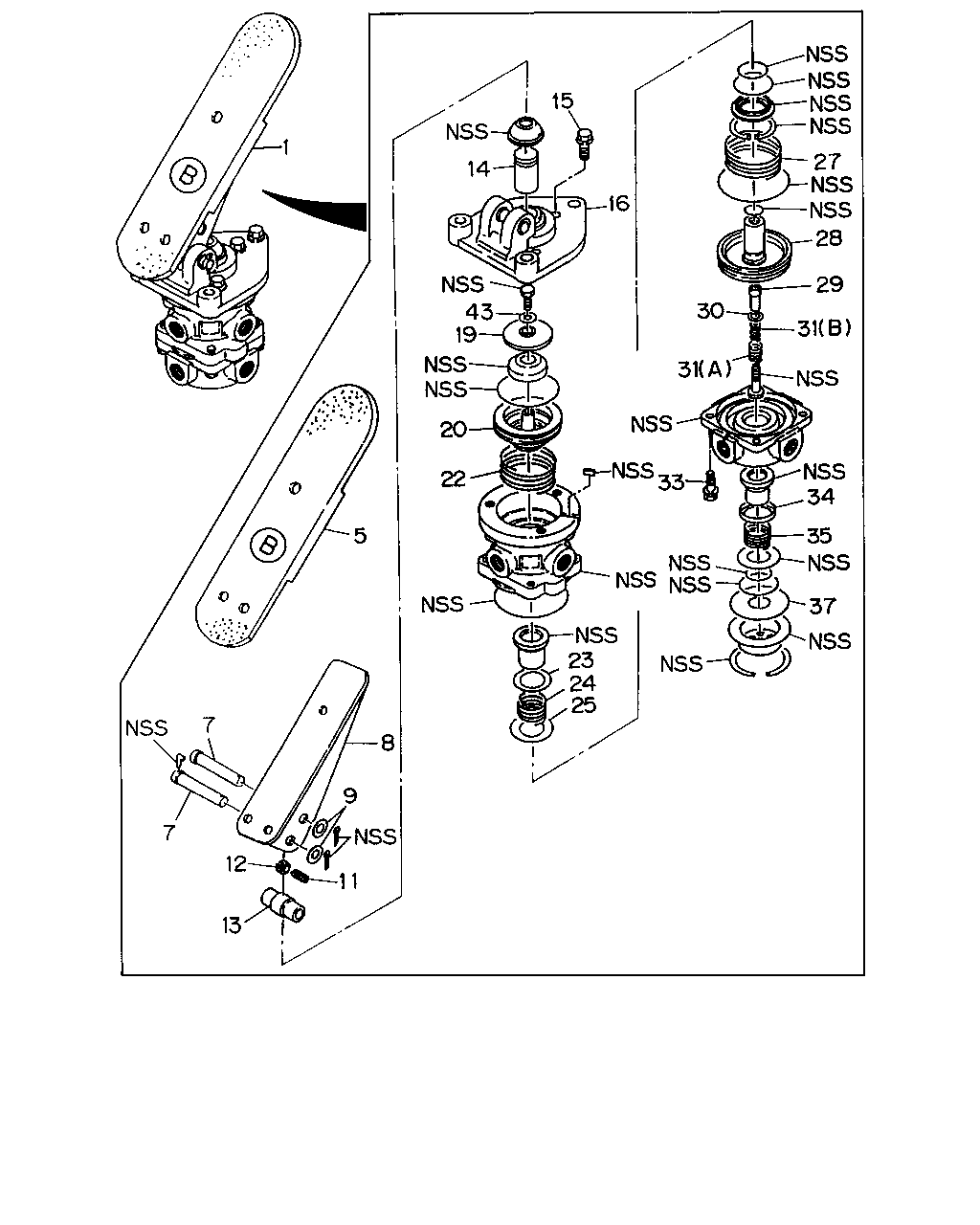

çizim 94061
1 5 7 7 13 12 11 9 8 25 23 24 22 20 19 43 14 15 16 33 31 30 37 35 34 31 29 28 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 VALVE; BRK 1-48100-611-1 01 1 9207-9501 ● ● ● ● ●
1 VALVE; BRK 1-48100-601-0 01 1 9502- ● ● ● ● ●
5 COVER; PEDAL,BRK VLV 1-48119-246-0 01 1 9207-9501 ● ● ● ● ●
5 COVER; PEDAL,BRK VLV 1-48119-359-0 01 1 9502- ● ● ● ● ●
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 9207- ● ● ● ● ●
8 PEDAL; BRK VLV 1-48129-174-0 01 1 9207-9501 ● ● ● ● ●
8 PEDAL; BRK VLV 1-48119-357-0 01 1 9502- ● ● ● ● ●
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9207- ● ● ● ● ●
11 SCREW; SET,BRK VLV 1-48119-300-0 01 1 9207- ● ● ● ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9207- ● ● ● ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9207- ● ● ● ● ●
14 PLUNGER; BRK VLV 1-48119-277-0 01 1 9207- ● ● ● ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9207- ● ● ● ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9207- ● ● ● ● ●
19 SEAT; SPRING,BRK VLV 1-48119-270-0 01 1 9207- ● ● ● ● ●
20 PISTON; UPR,BRK VLV 1-48119-272-0 01 1 9207- ● ● ● ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9207- ● ● ● ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 9207- ● ● ● ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9207- ● ● ● ● ●
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9207-9501 ● ● ● ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9502- ● ● ● ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9207- ● ● ● ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9207- ● ● ● ● ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9207- ● ● ● ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9207- ● ● ● ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9207- ● ● ● ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-064-0 01 1 9207-9501 ● ● ● ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9502- ● ● ● ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9207- ● ● ● ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9207- ● ● ● ● ●
35 SPRING; VLV,BRK VLV 1-48129-019-0 01 1 9207-9501 ● ● ● ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9502- ● ● ● ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9207- ● ● ● ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48419-002-0 01 1 9207- ● ● ● ● ●
