2-07 — CLUTCH BOOSTER; MINIPACK (#16052) — 52 parça

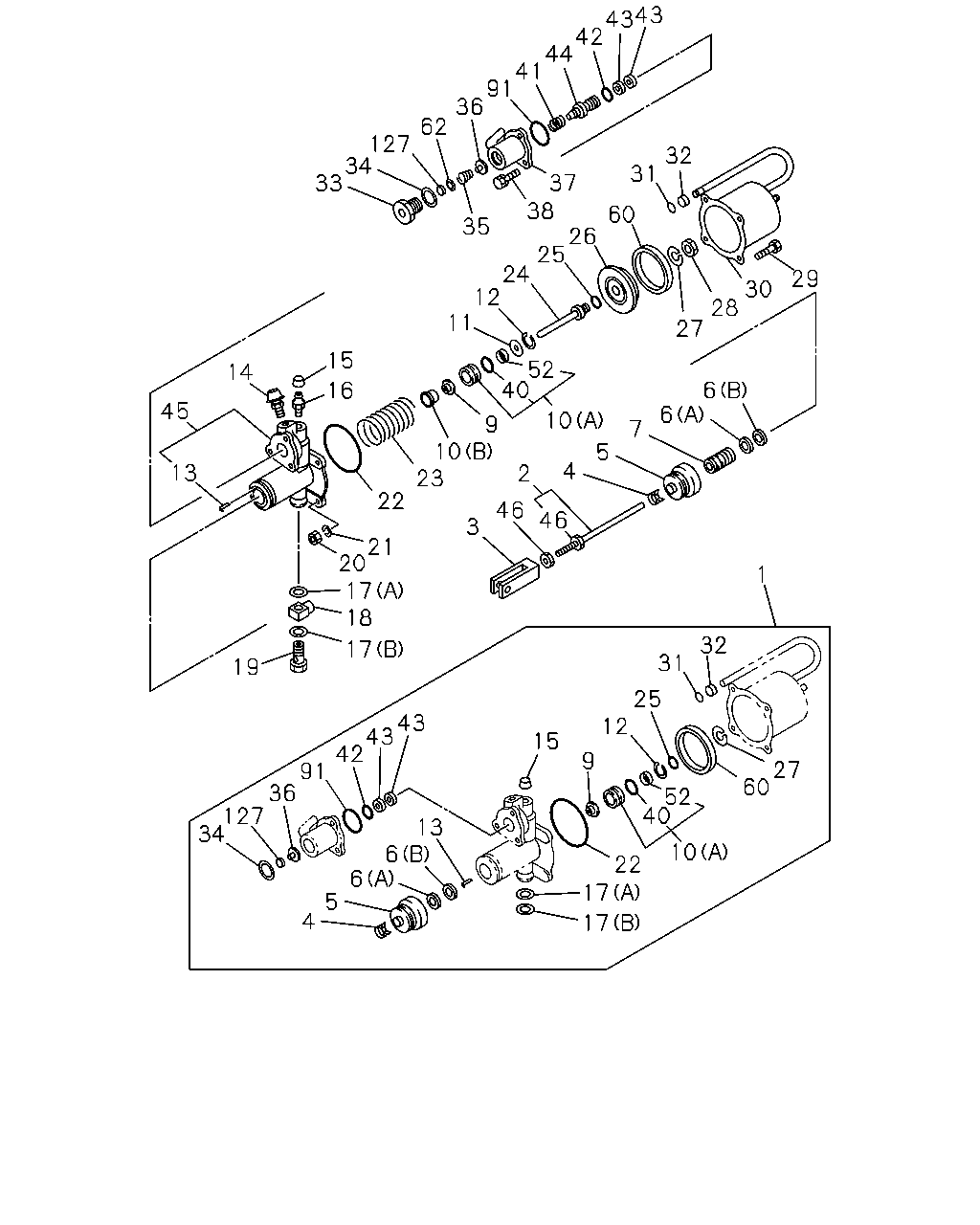

çizim 102107
43 43 42 44 41 91 36 62 127 34 33 32 31 37 38 60 35 26 25 24 12 11 29 30 28 27 52 40 15 14 6 16 45 6 10 9 10 23 7 5 4 13 2 22 46 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 9 91 36 127 34 52 40 13 6 10 22 17 6 5 4 17
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0904-
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0904-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0904-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0904-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0904-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0904-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0904-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0904-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0904-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0904-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0904-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0904-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0904-
13 PIN; SPR 1-31829-109-0 01 1 0904-
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0904-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0904-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0904-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0904-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0904-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0904-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0904-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0904-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0904-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0904-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0904-
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0904-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0904-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0904-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0904-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0904-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0904-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0904-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0904-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0904-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0904-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0904-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0904-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0904-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0904-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0904-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0904-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0904-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0904-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0904-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0904-
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0904-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0904-
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0904-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0904-
62 RETAINER; POPPET 1-31829-489-0 01 1 0904-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0904-
127 FILTER; POPPET 1-31829-495-0 01 1 0904-
