Sayfa 3-33 - Isuzu EPC

3-33 — AIR MASTER (#1605) — 254 parça

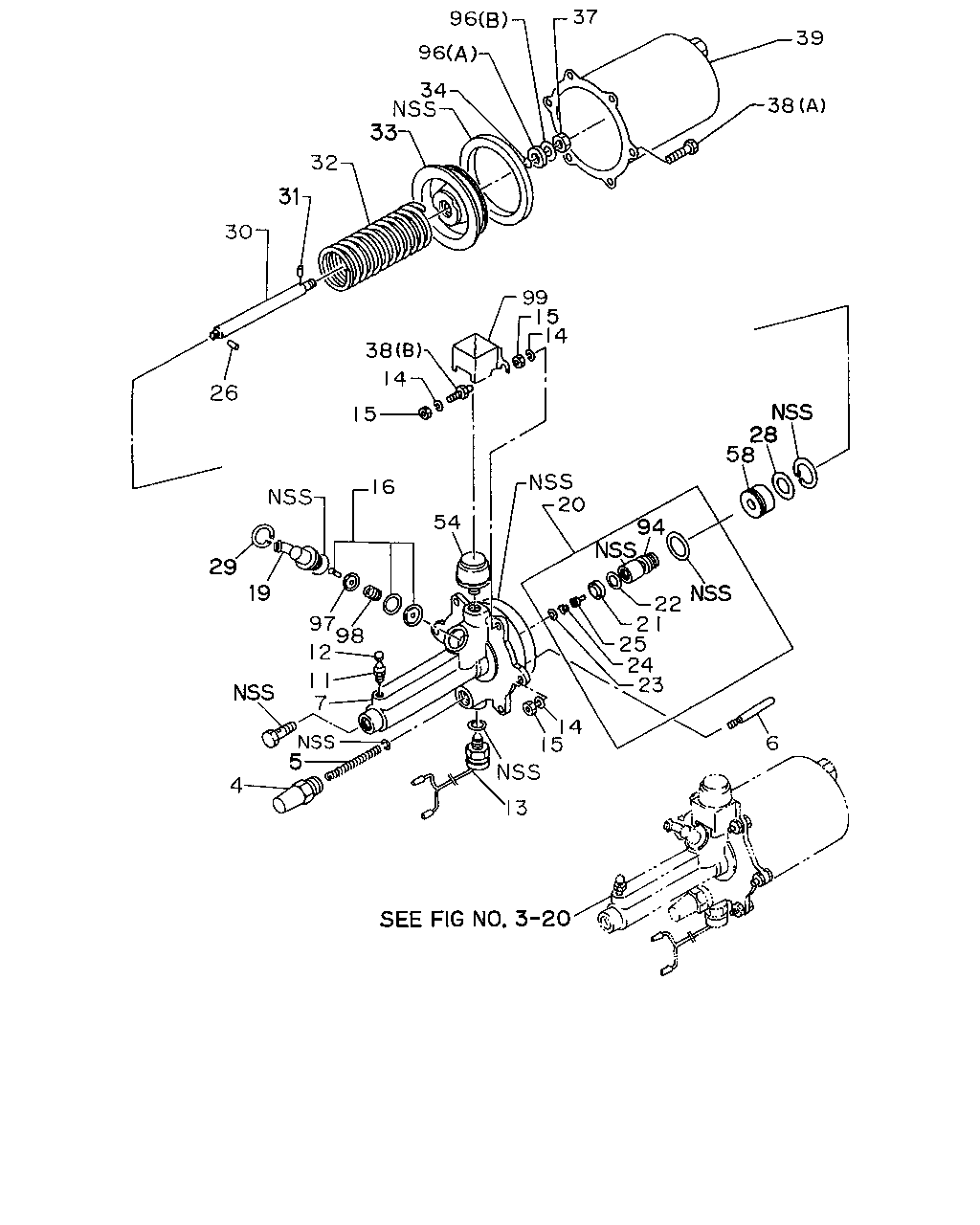

39 38 37 96 96 34 33 32 31 30 26 14 15 38 99 14 15 16 29 19 54 97 98 12 11 7 5 4 13 15 14 6 23 24 21 25 22 58 28 94 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-022-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-052-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47824-019-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47824-021-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-043-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, G = 1-47800-508-1	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-396-2, D = 1-47800-397-2, H = 1-47800-509-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47841-052-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-151-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47819-157-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=8.2 ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-09150-508-0	07	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	9-09150-510-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	9-83315-080-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-085-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47849-025-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-413-0	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: E = 1-47800-398-1	1-47821-026-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-46366-111-0	01	1	-
23	RING; RET ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	1-47829-058-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47819-139-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: F = 1-47800-413-0	1-47819-160-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-164-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47825-022-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-054-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47824-020-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47821-028-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47822-006-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	5-44529-005-0	01	1	-
34	GASKET ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: E = 1-47800-398-1	9-09111-412-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-31829-159-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: E = 1-47800-398-1	1-47811-095-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: F = 1-47800-413-0	1-47811-116-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-039-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47829-052-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1	1-47829-059-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-064-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47824-024-0	01	1	-
98	SPRING; VALVE ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47819-123-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-128-0	01	1	-

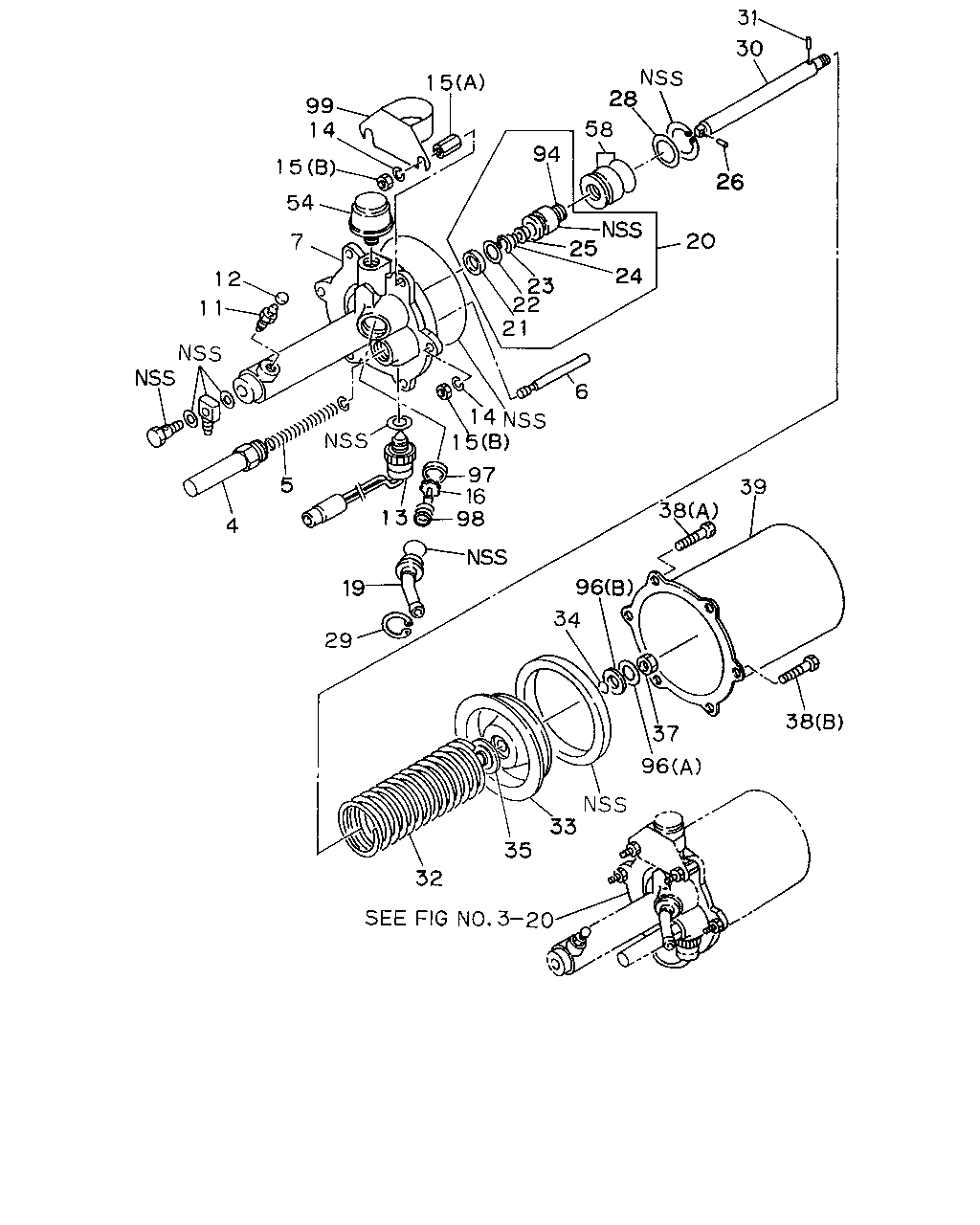

31 30 26 20 28 58 94 15 99 25 23 22 21 24 6 14 15 13 97 16 98 39 38 96 34 38 37 96 33 35 32 29 19 4 5 11 12 7 54 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-022-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-052-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47824-019-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47824-021-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-043-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, G = 1-47800-508-1	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-396-2, D = 1-47800-397-2, H = 1-47800-509-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47841-052-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-151-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47819-157-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=8.2 ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-09150-508-0	07	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	9-09150-510-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	9-83315-080-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-085-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47849-025-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-413-0	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: E = 1-47800-398-1	1-47821-026-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-46366-111-0	01	1	-
23	RING; RET ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-038-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	1-47829-058-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47819-139-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: F = 1-47800-413-0	1-47819-160-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-164-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47825-021-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47825-022-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-054-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47824-018-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47824-020-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47821-028-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47822-006-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	5-44529-005-0	01	1	-
34	GASKET ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	9-09561-111-0	01	1	-
35	WASHER; PLATE,PUSH ROD ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-079-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: E = 1-47800-398-1	9-09111-412-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-31829-015-0	05	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-31829-159-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: E = 1-47800-398-1	1-47811-095-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47811-107-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: F = 1-47800-413-0	1-47811-116-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-039-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47829-052-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1	1-47829-059-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-064-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47824-024-0	01	1	-
98	SPRING; VALVE ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47819-123-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47819-128-0	01	1	-

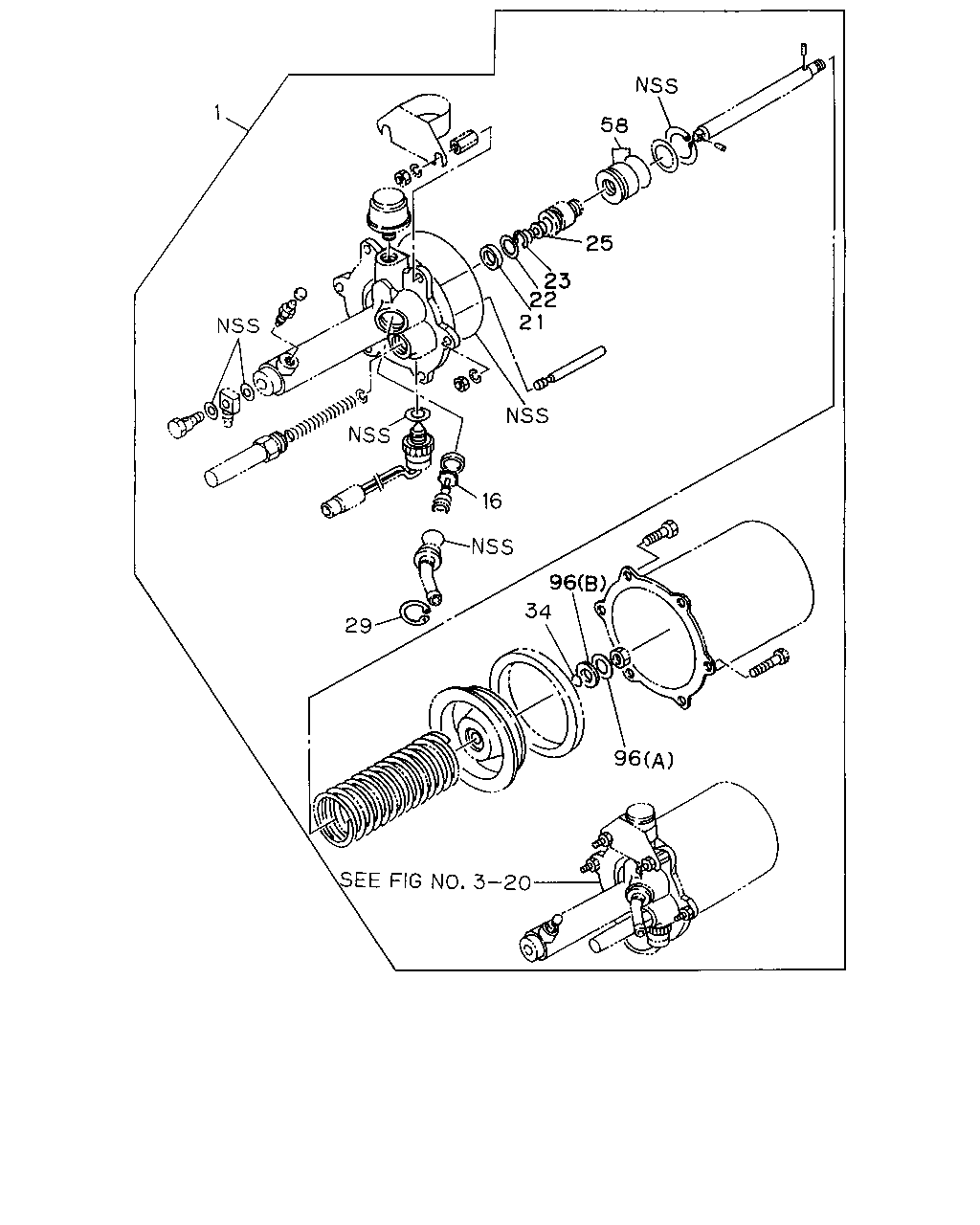

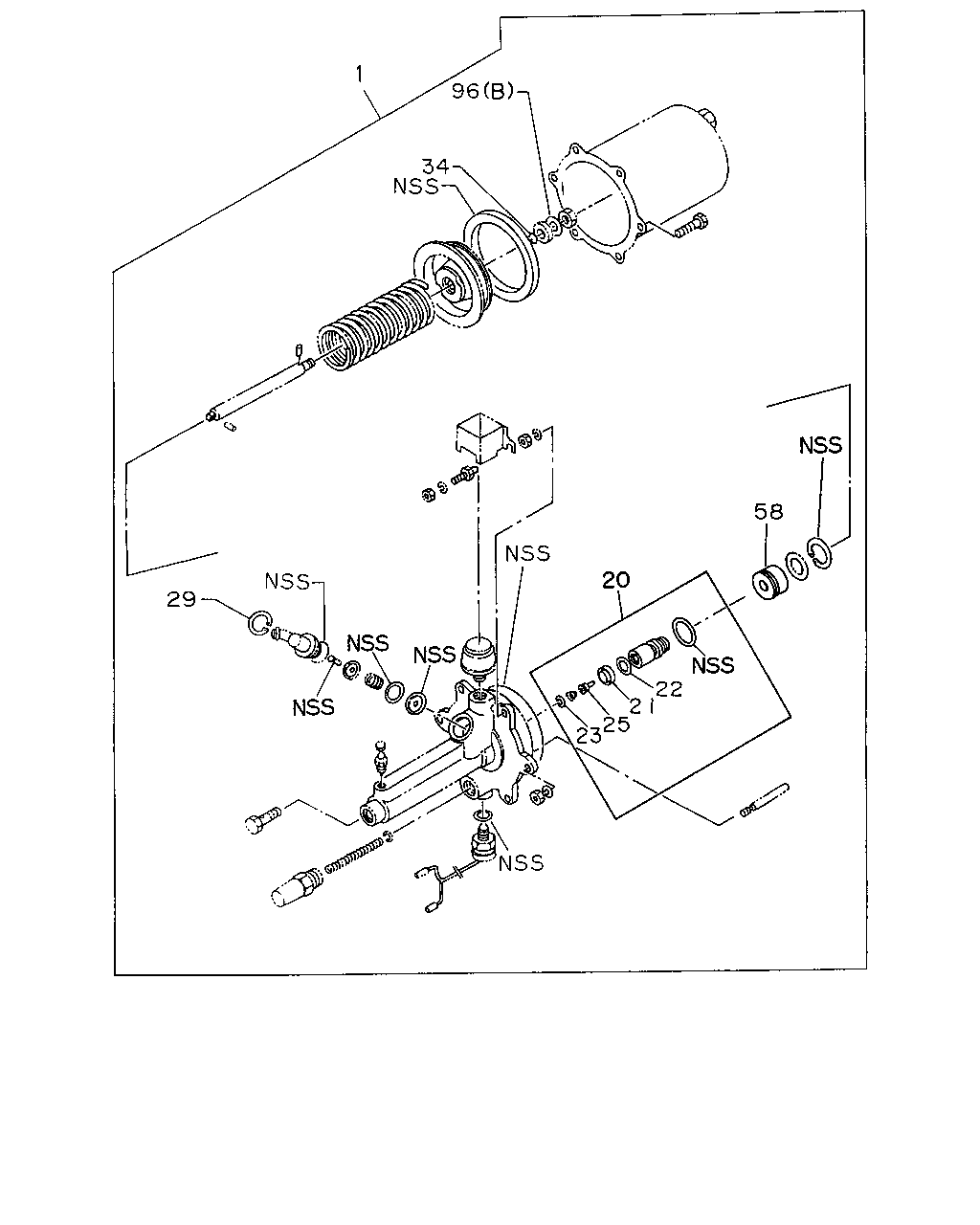

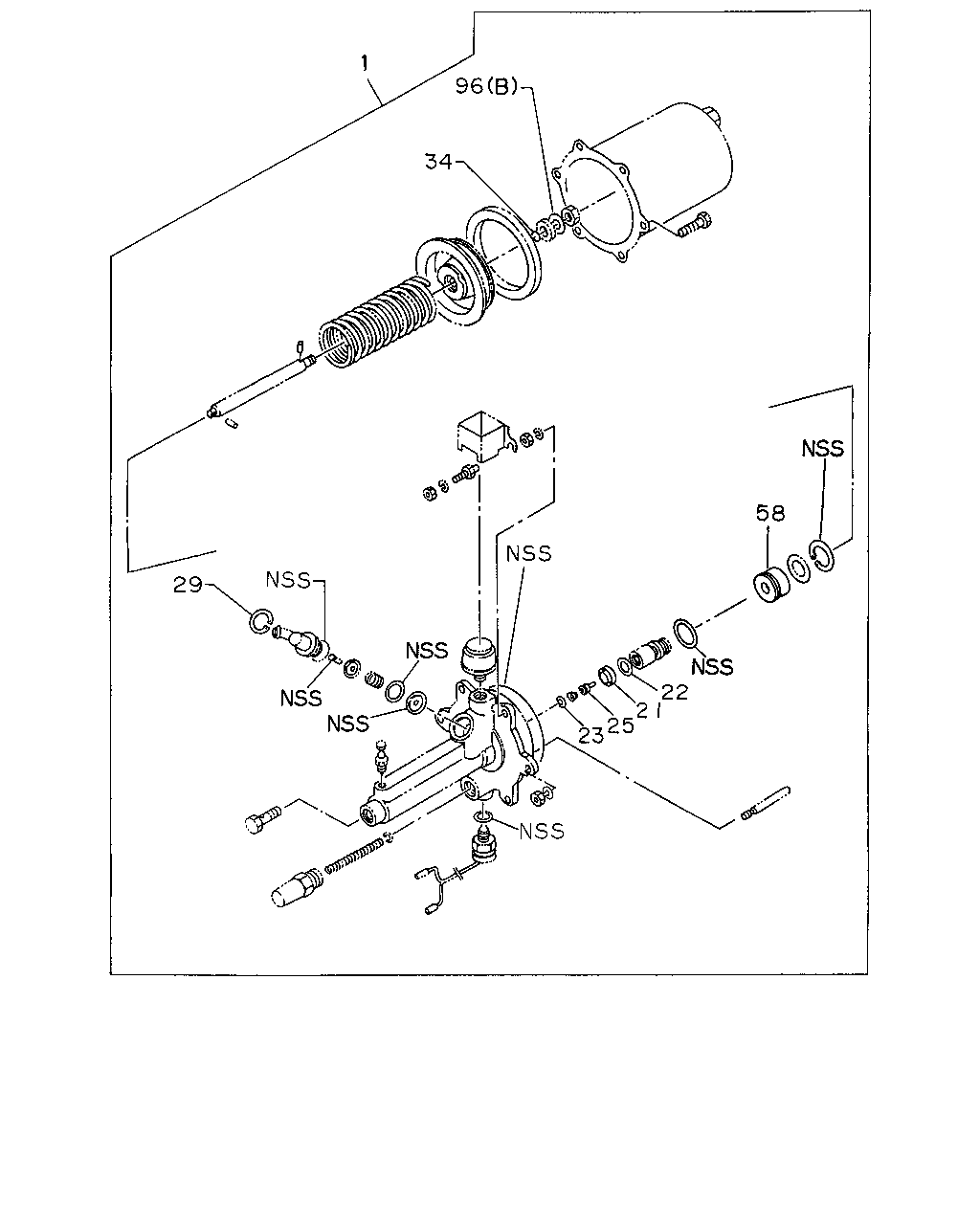

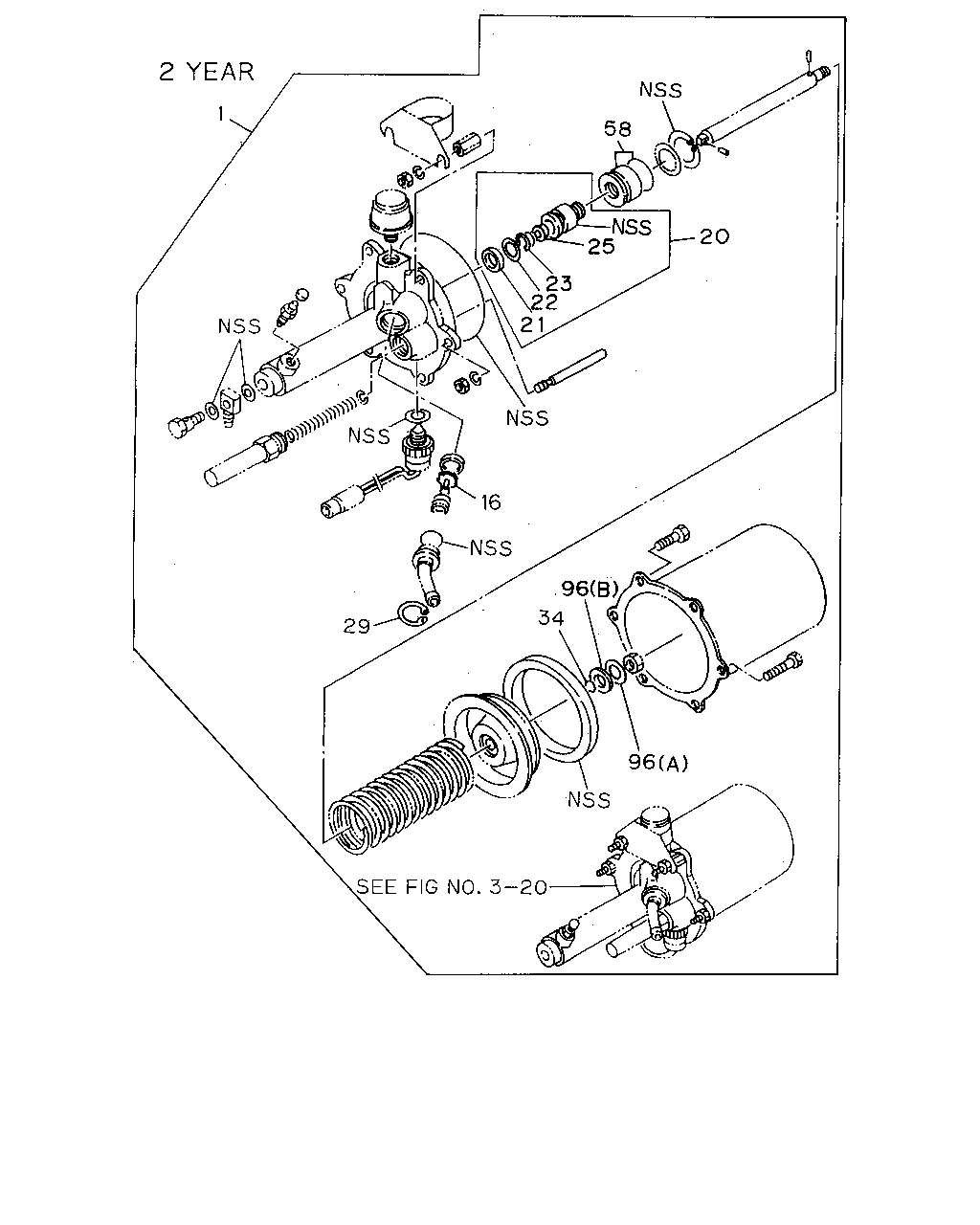

1 96 34 29 23 25 21 22 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-398-1	1-47810-044-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-398-1	1-47810-045-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-046-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-047-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-207-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: F = 1-47800-413-0	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-413-0	1-87830-394-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-46366-111-0	01	1	-
23	RING; RET ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-102-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-038-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-057-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	5-44529-005-0	01	1	-
34	GASKET ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47829-052-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-064-0	01	1	-

1 58 20 25 23 22 21 16 29 34 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-398-1	1-47810-044-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-398-1	1-47810-045-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-046-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-047-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-207-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: F = 1-47800-413-0	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-413-0	1-87830-394-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-413-0	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: E = 1-47800-398-1	1-47821-026-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-46366-111-0	01	1	-
23	RING; RET ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-102-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-038-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-057-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	5-44529-005-0	01	1	-
34	GASKET ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47829-052-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-064-0	01	1	-

1 96 34 29 20 23 25 21 22 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-398-1	1-47810-044-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-398-1	1-47810-045-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-046-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-047-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-207-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: F = 1-47800-413-0	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-413-0	1-87830-394-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: F = 1-47800-413-0	1-47821-019-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-021-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: E = 1-47800-398-1	1-47821-026-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-027-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-46366-111-0	01	1	-
23	RING; RET ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-102-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-038-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-057-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	5-44529-005-0	01	1	-
34	GASKET ASM PART: B = 1-47800-395-2, C = 1-47800-396-2, G = 1-47800-508-1, H = 1-47800-509-1	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47829-052-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-064-0	01	1	-

1 58 25 23 22 21 16 29 24 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: E = 1-47800-398-1	1-47810-044-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: E = 1-47800-398-1	1-47810-045-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-046-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: B = 1-47800-395-2, C = 1-47800-396-2	1-47810-047-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-077-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: G = 1-47800-508-1, H = 1-47800-509-1	1-47829-078-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-87520-207-0	01	1	-
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: F = 1-47800-413-0	1-87830-393-0	01	1	-
1	REPAIR KIT; AIR MASTER 2 YEAR ASM PART: F = 1-47800-413-0	1-87830-394-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47842-009-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47821-009-0	01	1	-
21	GASKET; CUP ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-037-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-011-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-036-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-46366-111-0	01	1	-
23	RING; RET ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-2, D = 1-47800-397-2	1-47821-024-0	01	1	-
25	SEAL; VALVE ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-038-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-057-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: E = 1-47800-398-1	1-47829-052-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-056-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, E = 1-47800-398-1, F = 1-47800-413-0, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-2, B = 1-47800-395-2, C = 1-47800-396-2, D = 1-47800-397-2, G = 1-47800-508-1, H = 1-47800-509-1	1-47829-053-0	01	1	-
96	WASHER (A) ASM PART: E = 1-47800-398-1, F = 1-47800-413-0	1-47829-064-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
