8-90 — RADIO AND TV (#160491) — 27 parça

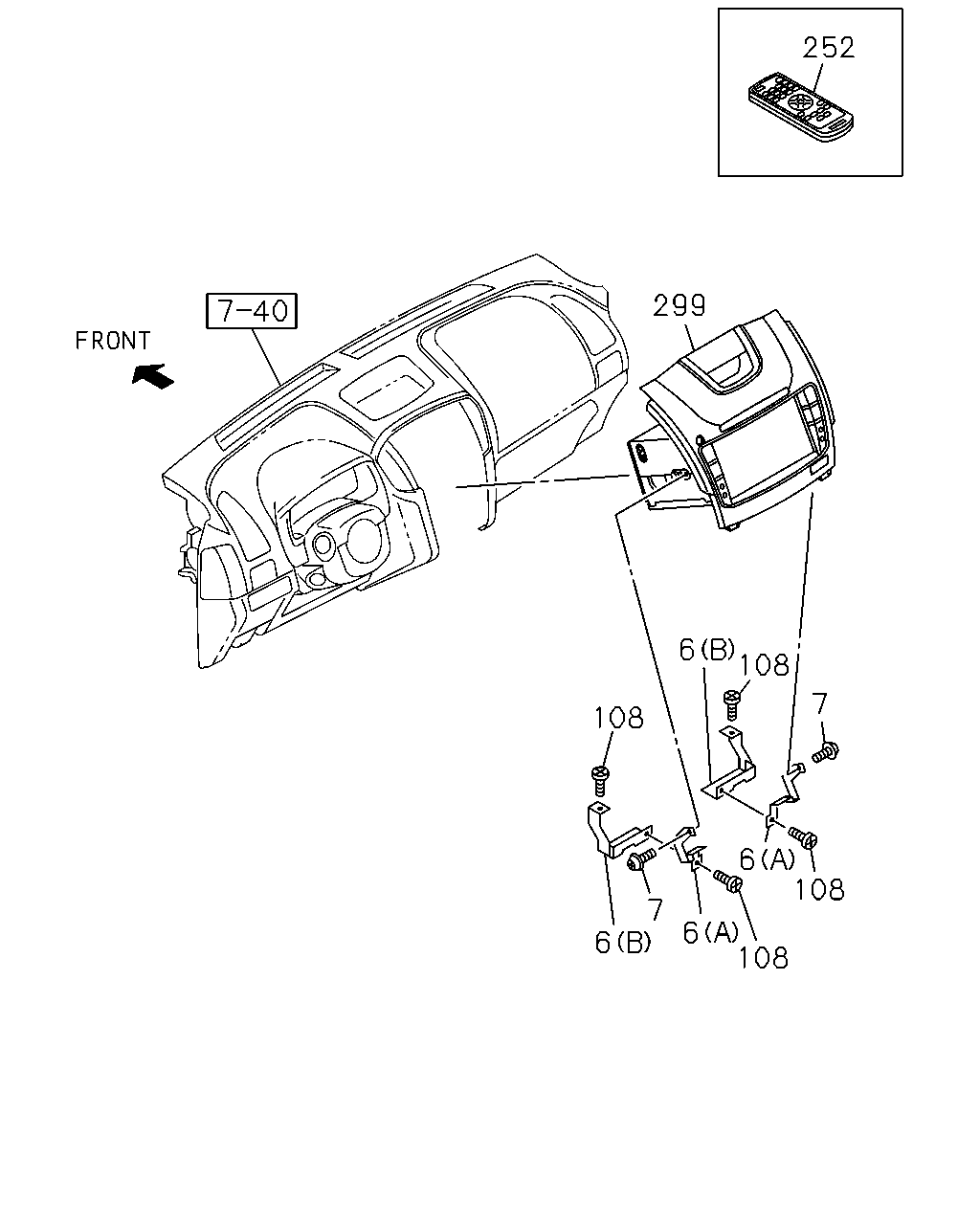

çizim 471369
299 6 108 7 108 7 6 6 108 108 6 252
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL
(A) 		8-98102-186-2 01 1 1504- ● ●
6 BRACKET; RADIO TO PANEL
(B) 		8-98102-187-3 01 1 1504- ● ●
6 BRACKET; RADIO TO PANEL
(B) 		8-98106-390-3 01 1 1504- ● ●
6 BRACKET; RADIO TO PANEL
(A) 		8-98109-822-2 01 1 1504- ● ●
7 SCREW; RADIO
M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1504- ● ●
108 SCREW; BRKT
M5X16 TAPPING 		8-98167-449-0 04 1 1504- ● ●
252 REMOTE CONTROL UNIT; AUDIO
2ND SEAT DVD MONITOR<U48> 		8-98243-897-0 01 1 1504- ● ●
299 DISPLAY; MULTI 8-98287-433-0 01 1 1504-1504 ● ●
299 DISPLAY; MULTI 8-98309-242-0 01 1 1505-1508 ● ●
299 DISPLAY; MULTI 8-98322-822-0 01 1 1509- ● ●

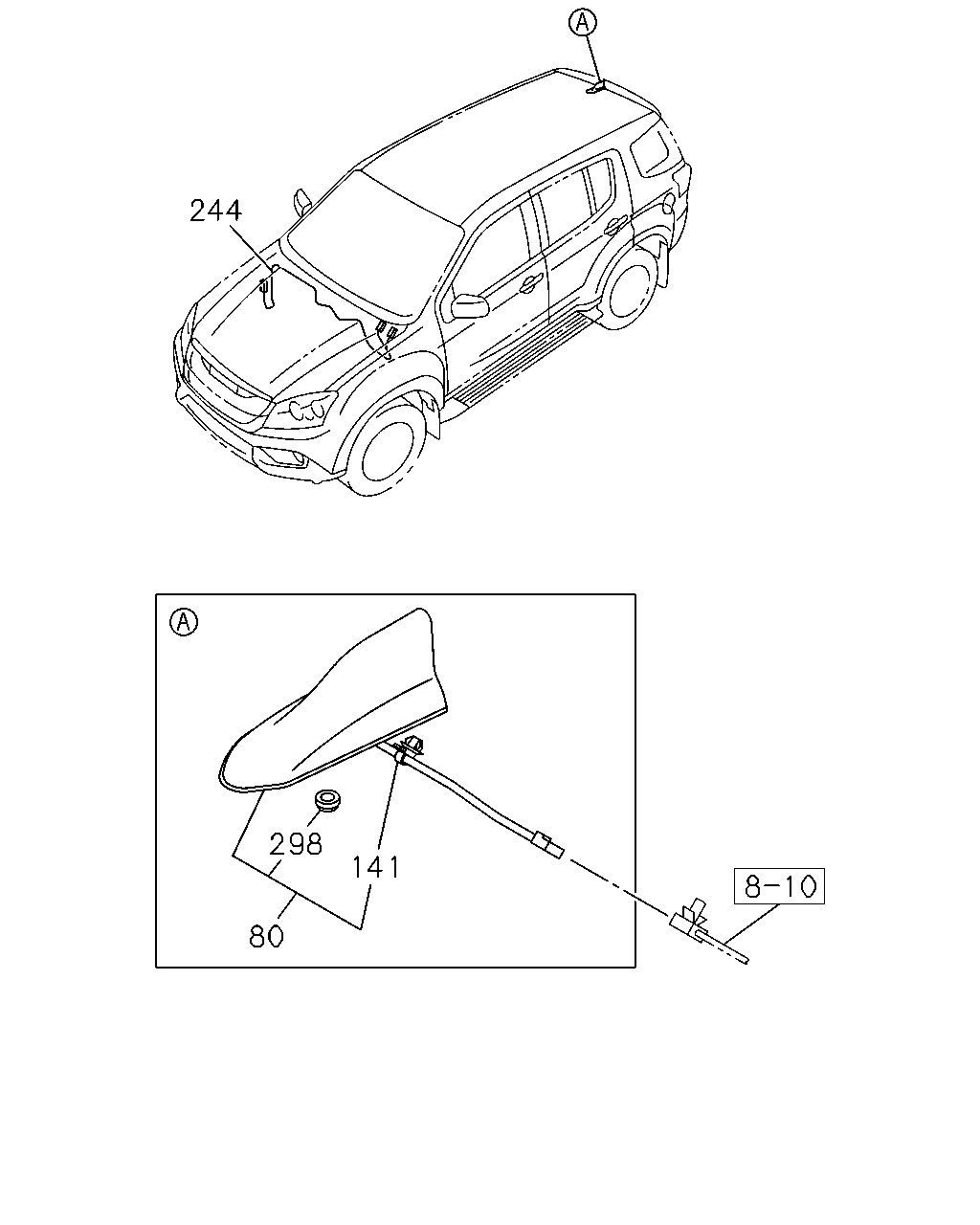

çizim 471378
244 298 141 80
BalonParca AdiParca NoAdetTipApplied Date A B
80 ANTENNA
BODY COLOR COSMIC BLACK MICA(523) BLACK 		8-97424-303-1 01 1 1504- ● ●
80 ANTENNA
BODY COLOR SPLASH WHITE(527) WHITE 		8-97424-304-1 01 1 1504- ● ●
80 ANTENNA
BODY COLOR TITANIUM SILVER MET(529) SILVER 		8-97424-305-1 01 1 1504- ● ●
80 ANTENNA
BODY COLOR SILKY WHITE PEARL(531) WHITE 		8-97424-306-1 01 1 1504- ● ●
80 ANTENNA
BODY COLOR ULURU BROWN MET(544) BROWN 		8-97424-307-1 01 1 1504- ● ●
80 ANTENNA
BODY COLOR FJORD BLUE MET(545) LIGHT BLUE 		8-97424-308-1 01 1 1504- ● ●
141 CLIP; ANTENNA CABLE 8-98224-054-0 01 1 1504- ● ●
244 CABLE; FEEDER 8-98192-896-2 01 1 1504- ● ●
298 NUT; ANTENNA 8-98219-125-0 01 1 1504- ● ●

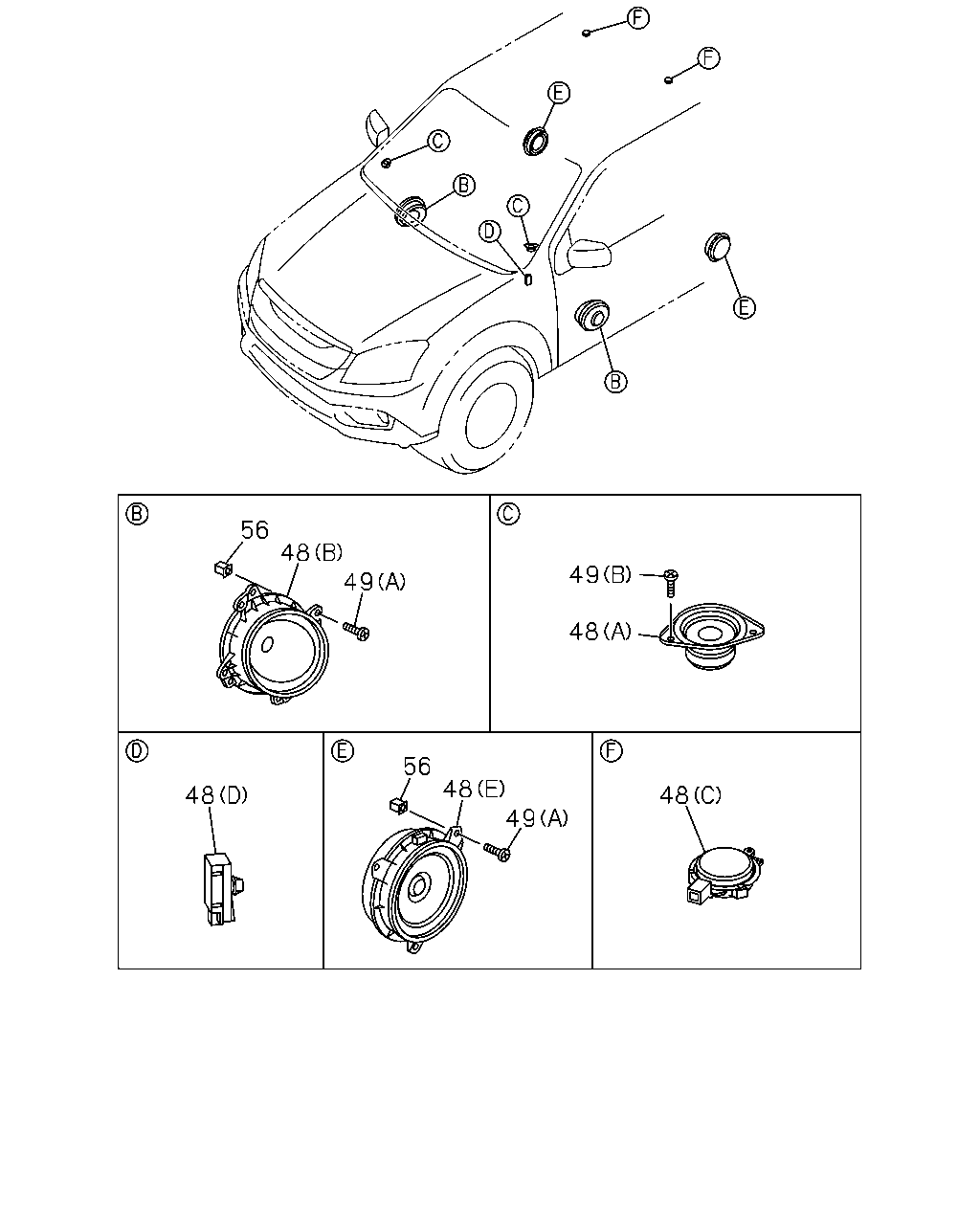

çizim 472045
49 48 48 49 48 56 48 49 48 56
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
(B) 		8-98052-937-0 02 1 1504- ● ●
48 SPEAKER; AUDIO
(A) 		8-98052-940-0 02 1 1504- ● ●
48 SPEAKER; AUDIO
(E) 		8-98052-941-0 02 1 1504- ● ●
48 SPEAKER; AUDIO
8-SPEAKER SYSTEM CUSTOM<U87> (C) 		8-98052-942-0 02 1 1504- ● ●
48 SPEAKER; AUDIO
8-SPEAKER SYSTEM CUSTOM<U87> (D) 		8-98064-704-0 01 1 1504- ● ●
49 SCREW; SPEAKER
(B) M5X16 TAPPING 		8-98167-449-0 04 1 1504- ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING 		8-98184-363-0 14 1 1504- ● ●
56 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 14 1 1504- ● ●
