8-73 — BLOWER UNIT (#160487) — 90 parça

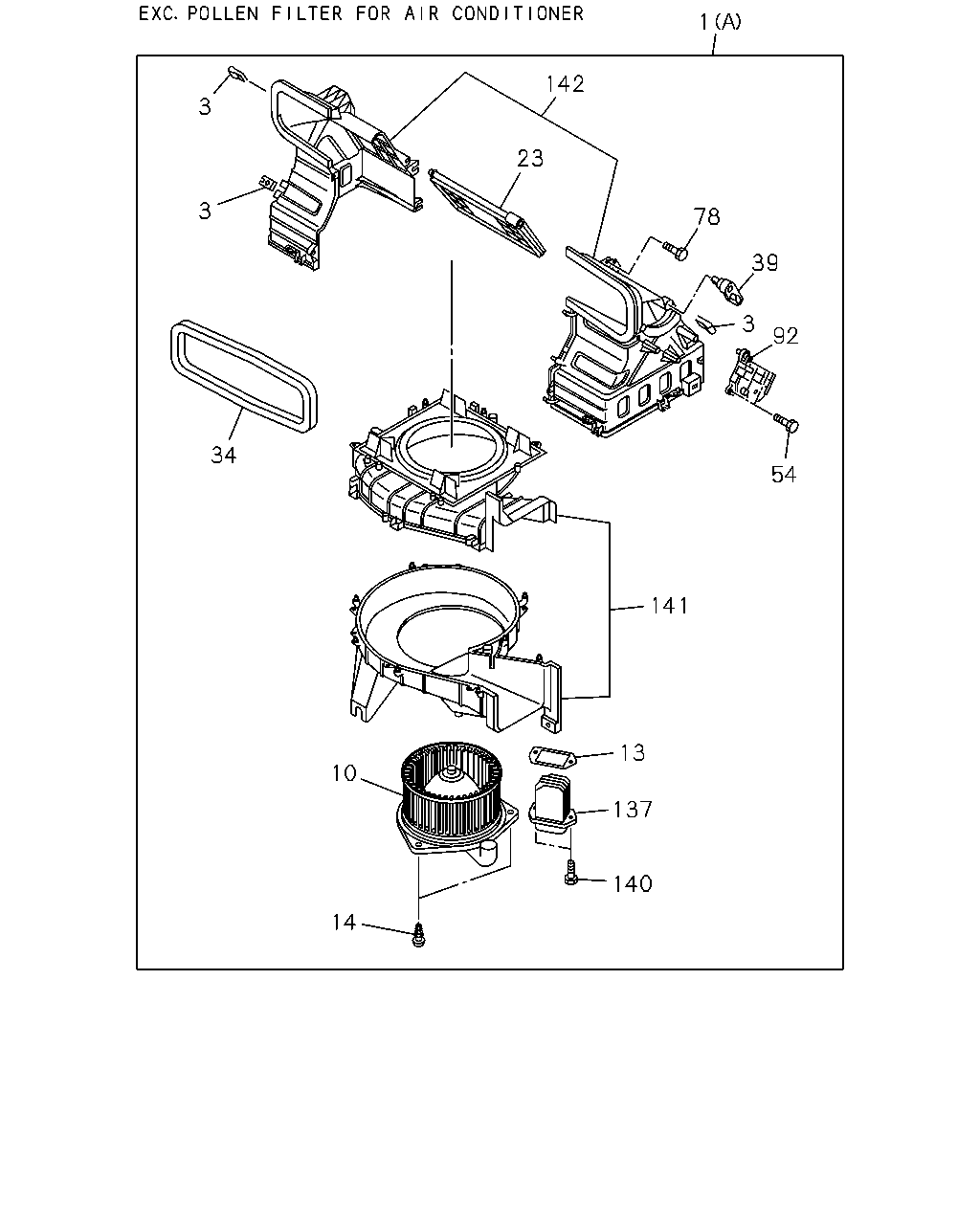

3 142 1 78 92 39 3 54 141 13 137 140 14 10 34 3 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-047-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C)	8-98233-042-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-048-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-043-1	01	1	1504-	●	●
3	NUT; CASE	8-98139-394-1	03	1	1504-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1504-	●	●
13	LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1504-	●	●
14	SCREW; COVER TO CASE	8-98139-395-1	03	1	1504-	●	●
23	SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1504-	●	●
34	LINING; BLOWER UNIT	8-98139-426-1	01	1	1504-	●	●
39	LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1504-	●	●
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-395-1	02	1	1504-	●	●
78	SCREW; CASE TO CASE	8-98139-395-1	01	1	1504-	●	●
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1504-	●	●
137	MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1504-	●	●
140	SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-653-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-654-0	01	1	1504-	●	●

3 3 50 23 142 1 78 39 3 54 92 141 13 137 140 14 10 34 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-047-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C)	8-98233-042-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-048-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-043-1	01	1	1504-	●	●
3	NUT; CASE	8-98139-394-1	03	1	1504-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1504-	●	●
13	LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1504-	●	●
14	SCREW; COVER TO CASE	8-98139-395-1	03	1	1504-	●	●
23	SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1504-	●	●
34	LINING; BLOWER UNIT	8-98139-426-1	01	1	1504-	●	●
39	LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1504-	●	●
42	FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1504-	●	●
50	COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1504-	●	●
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-395-1	02	1	1504-	●	●
78	SCREW; CASE TO CASE	8-98139-395-1	01	1	1504-	●	●
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1504-	●	●
137	MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1504-	●	●
140	SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-653-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-654-0	01	1	1504-	●	●

3 3 50 23 142 1 78 39 38 3 37 141 104 105 14 10 34 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-047-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C)	8-98233-042-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-048-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-043-1	01	1	1504-	●	●
3	NUT; CASE	8-98139-394-1	03	1	1504-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1504-	●	●
14	SCREW; COVER TO CASE	8-98139-395-1	03	1	1504-	●	●
23	SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1504-	●	●
34	LINING; BLOWER UNIT	8-98139-426-1	01	1	1504-	●	●
37	LEVER; MODE LEVER AIR CONDITIONER MANUAL CONT(C60)	8-98165-410-0	01	1	1504-	●	●
38	CLIP; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-422-1	01	1	1504-	●	●
39	LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1504-	●	●
42	FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1504-	●	●
50	COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1504-	●	●
78	SCREW; CASE TO CASE	8-98139-395-1	01	1	1504-	●	●
104	RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98183-234-0	01	1	1504-	●	●
105	SCREW; RESISTOR AIR CONDITIONER MANUAL CONT(C60)	8-98139-395-1	02	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-653-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-654-0	01	1	1504-	●	●

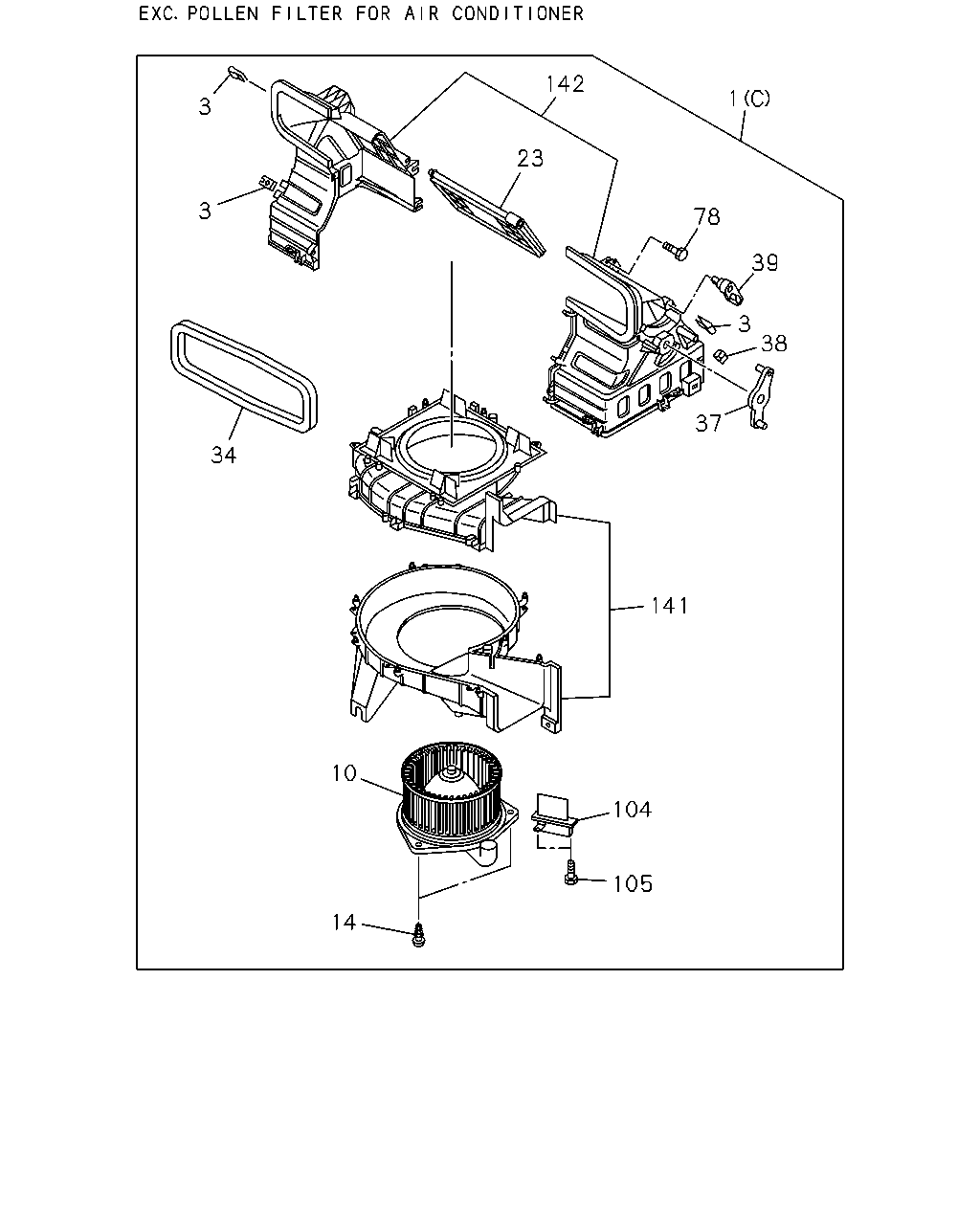

3 3 34 23 142 1 78 39 38 3 37 141 104 105 14 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-047-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C)	8-98233-042-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-048-1	01	1	1504-	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-043-1	01	1	1504-	●	●
3	NUT; CASE	8-98139-394-1	03	1	1504-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1504-	●	●
14	SCREW; COVER TO CASE	8-98139-395-1	03	1	1504-	●	●
23	SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1504-	●	●
34	LINING; BLOWER UNIT	8-98139-426-1	01	1	1504-	●	●
37	LEVER; MODE LEVER AIR CONDITIONER MANUAL CONT(C60)	8-98165-410-0	01	1	1504-	●	●
38	CLIP; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-422-1	01	1	1504-	●	●
39	LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1504-	●	●
78	SCREW; CASE TO CASE	8-98139-395-1	01	1	1504-	●	●
104	RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98183-234-0	01	1	1504-	●	●
105	SCREW; RESISTOR AIR CONDITIONER MANUAL CONT(C60)	8-98139-395-1	02	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-651-0	01	1	1504-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-653-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1504-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-654-0	01	1	1504-	●	●
