8-72 — COOLER UNIT (#160486) — 29 parça

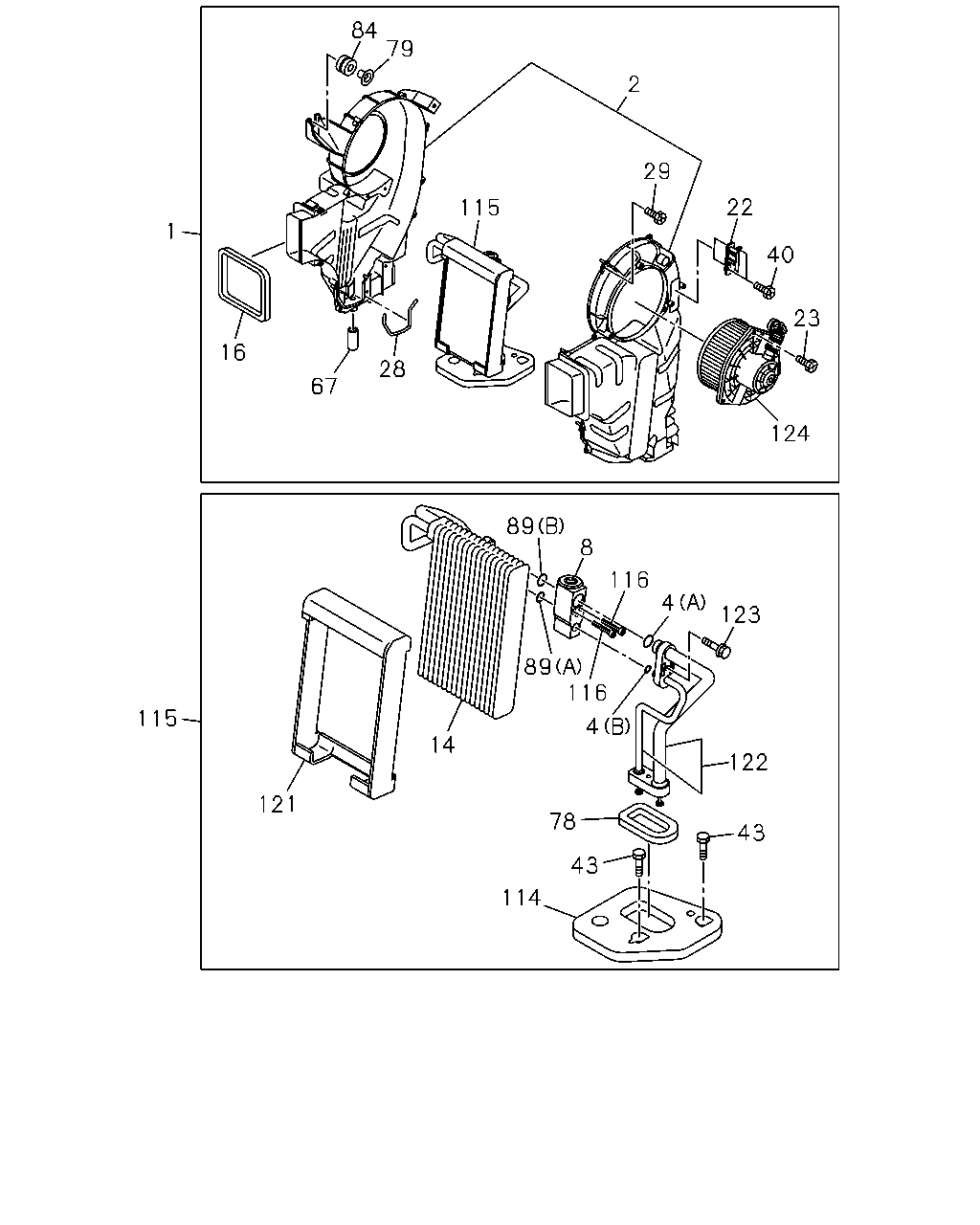

çizim 471423
84 2 29 40 23 22 124 115 28 67 16 1 115 121 14 89 89 8 116 4 123 122 43 43 78 114 4 116 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR 8-98192-297-3 01 1 1504- ● ●
2 CASE; RR COOLER 8-98249-810-0 01 1 1504- ● ●
4 GASKET; VLV TO PIPE
(A) ID=13.6 		8-98249-825-0 01 1 1504- ● ●
4 GASKET; VLV TO PIPE
(B) ID=6.8 		8-98249-826-0 01 1 1504- ● ●
8 VALVE; EXPANSION 8-98249-821-0 01 1 1504- ● ●
14 EVAPORATOR; RR COOLER 8-98249-820-0 01 1 1504- ● ●
16 LINING; CASE 8-98249-817-0 01 1 1504- ● ●
22 RESISTOR; RR COOLER 8-97321-273-0 01 1 1504- ● ●
23 SCREW; CASE TO MOTOR 8-98249-818-0 03 1 1504- ● ●
28 LINING; CASE 8-98249-815-0 01 1 1504- ● ●
29 SCREW; CASE 8-98249-818-0 13 1 1504- ● ●
40 SCREW; RESISTOR FIX,COOLER UNIT 8-98249-818-0 02 1 1504- ● ●
43 BOLT; COOLER UNIT 8-98249-830-0 02 1 1504- ● ●
67 HOSE; DRAIN 8-98249-814-0 01 1 1504- ● ●
78 GROMMET; COOLER UNIT 8-98249-827-0 01 1 1504- ● ●
79 COLLAR; COOLER UNIT 8-98249-813-0 01 1 1504- ● ●
84 RUBBER 8-98249-812-0 01 1 1504- ● ●
89 GASKET; EVAP TO VLV
(A) ID=10.7 		8-98249-823-0 01 1 1504- ● ●
89 GASKET; EVAP TO VLV
(B) ID=14.3 		8-98249-824-0 01 1 1504- ● ●
114 SEAL; CASE 8-98249-816-0 01 1 1504- ● ●
115 EVAPORATOR ASM; COOLING UNIT 8-98249-819-0 01 1 1504- ● ●
116 BOLT; EXPANSION VALVE 8-98249-822-0 02 1 1504- ● ●
121 INSULATOR; EVAP 8-98251-842-0 01 1 1504- ● ●
122 PIPE ASM; EVAP 8-98251-843-0 01 1 1504- ● ●
123 SCREW 8-98249-828-0 01 1 1504- ● ●
124 BLOWER ASM 8-98249-829-0 01 1 1504- ● ●

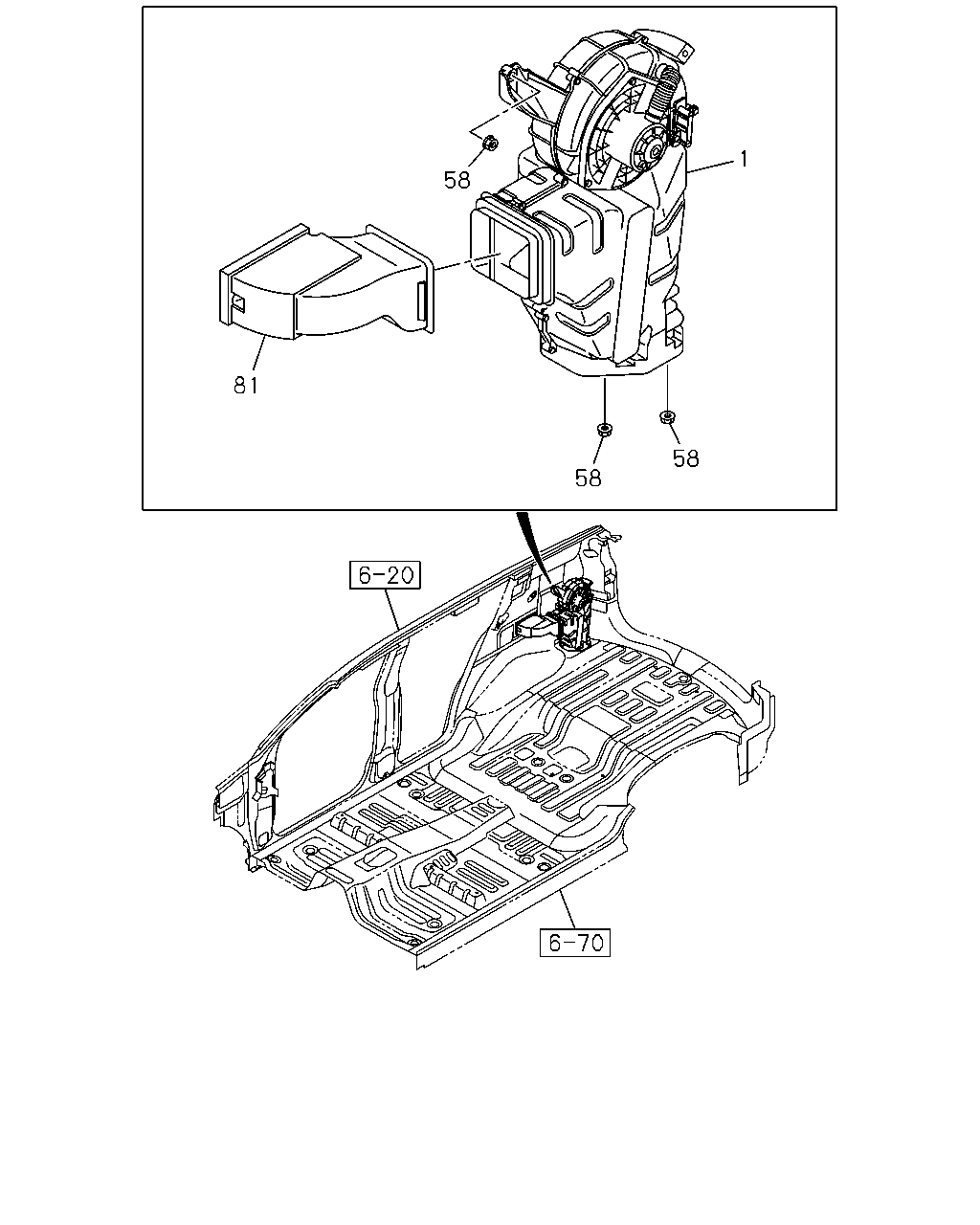

çizim 472040
58 1 58 58 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR 8-98192-297-3 01 1 1504- ● ●
58 NUT; CASE
M6 FLANGE 		8-98055-704-0 03 1 1504- ● ●
81 DUCT; RR COOLER 8-98192-306-1 01 1 1504- ● ●
