◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#160484) — 35 parça
çizim 471414
23 69 69 103 105 94 103
BalonParca AdiParca NoAdetTipApplied Date A B
23 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-146-4 01 1 1504- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B) 		8-98120-140-4 01 1 1504- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98129-548-5 01 1 1504- ● ●
23 BEZEL; CONT LEVER
(C) 		8-98198-067-0 01 1 1504- ● ●
23 BEZEL; CONT LEVER
(D) 		8-98250-024-0 01 1 1504- ● ●
69 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1504- ● ●
94 PANEL; BEZEL
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98164-669-0 01 1 1504- ● ●
94 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98141-789-0 01 1 1504- ● ●
103 CLIP
(B) 		8-97386-832-0 02 1 1504- ● ●
103 CLIP
(A) 		8-98164-677-0 04 1 1504- ● ●
105 SWITCH ASM; A/C
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-679-0 01 1 1504- ● ●

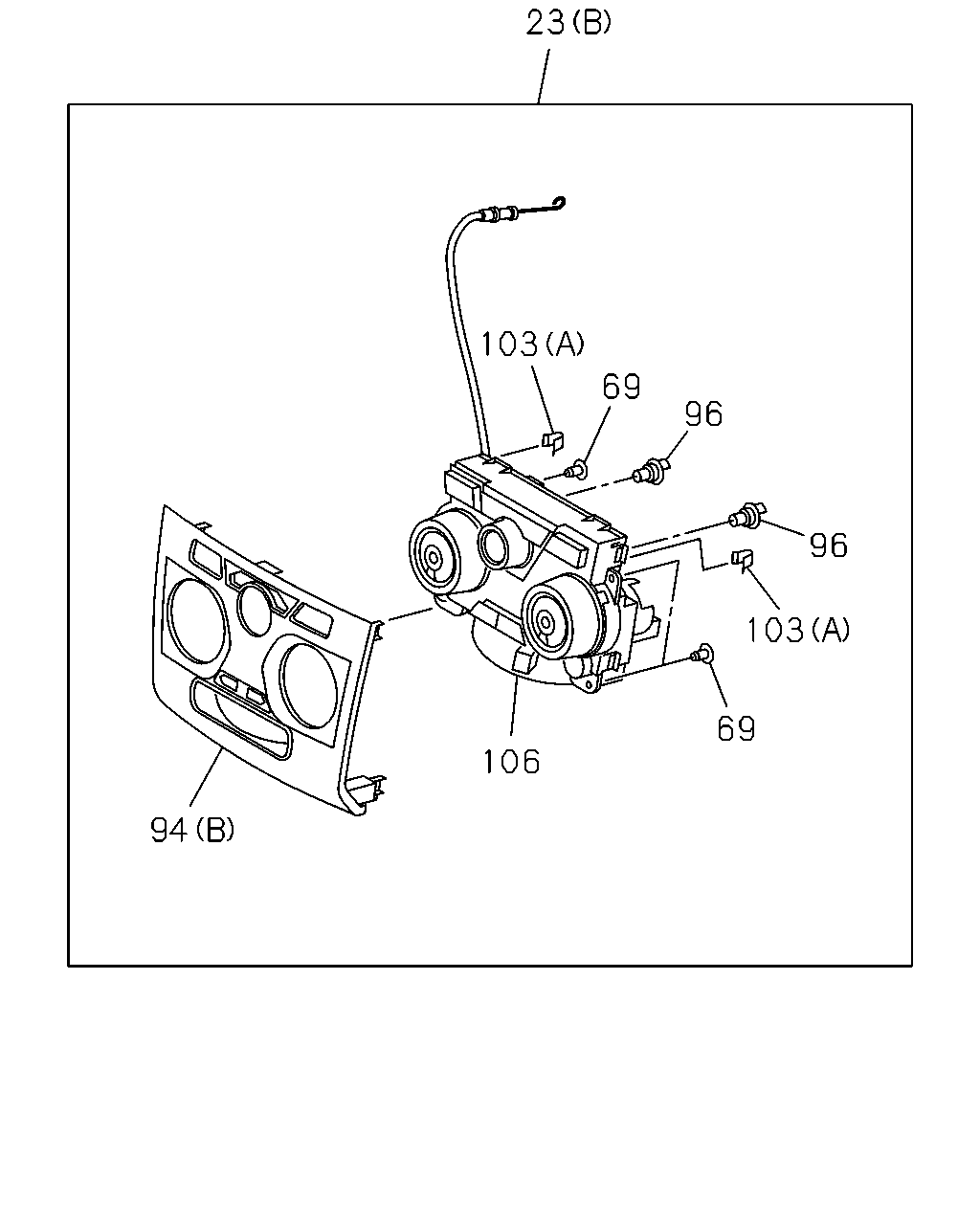

çizim 471415
23 103 96 96 69 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B
23 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-146-4 01 1 1504- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B) 		8-98120-140-4 01 1 1504- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98129-548-5 01 1 1504- ● ●
23 BEZEL; CONT LEVER
(C) 		8-98198-067-0 01 1 1504- ● ●
23 BEZEL; CONT LEVER
(D) 		8-98250-024-0 01 1 1504- ● ●
69 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1504- ● ●
94 PANEL; BEZEL
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98164-669-0 01 1 1504- ● ●
94 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98141-789-0 01 1 1504- ● ●
96 BULB ASM; BEZEL
AIR CONDITIONER MANUAL CONT(C60) 		8-98156-188-0 02 1 1504- ● ●
103 CLIP
(B) 		8-97386-832-0 02 1 1504- ● ●
103 CLIP
(A) 		8-98164-677-0 04 1 1504- ● ●
106 CONTROL SUB ASM; HTR & A/C
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) 		8-98156-908-0 01 1 1504- ● ●
106 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> 		8-98156-902-0 01 1 1504- ● ●
çizim 471418
61 61 68 103 73 23 23 50 103
BalonParca AdiParca NoAdetTipApplied Date A B
23 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-146-4 01 1 1504- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B) 		8-98120-140-4 01 1 1504- ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98129-548-5 01 1 1504- ● ●
23 BEZEL; CONT LEVER
(C) 		8-98198-067-0 01 1 1504- ● ●
23 BEZEL; CONT LEVER
(D) 		8-98250-024-0 01 1 1504- ● ●
50 KNOB; CONT PANEL 8-98250-549-0 01 1 1504- ● ●
61 BOLT; CONT LEVER
M6X16 FLANGE 		0-28650-616-0 02 1 1504- ● ●
68 BRACKET; BEZEL 8-98198-068-0 01 1 1504- ● ●
73 SWITCH; FAN,CONT PANEL 8-97386-830-0 01 1 1504- ● ●
103 CLIP
(B) 		8-97386-832-0 02 1 1504- ● ●
103 CLIP
(A) 		8-98164-677-0 04 1 1504- ● ●
