◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#160483) — 61 parça

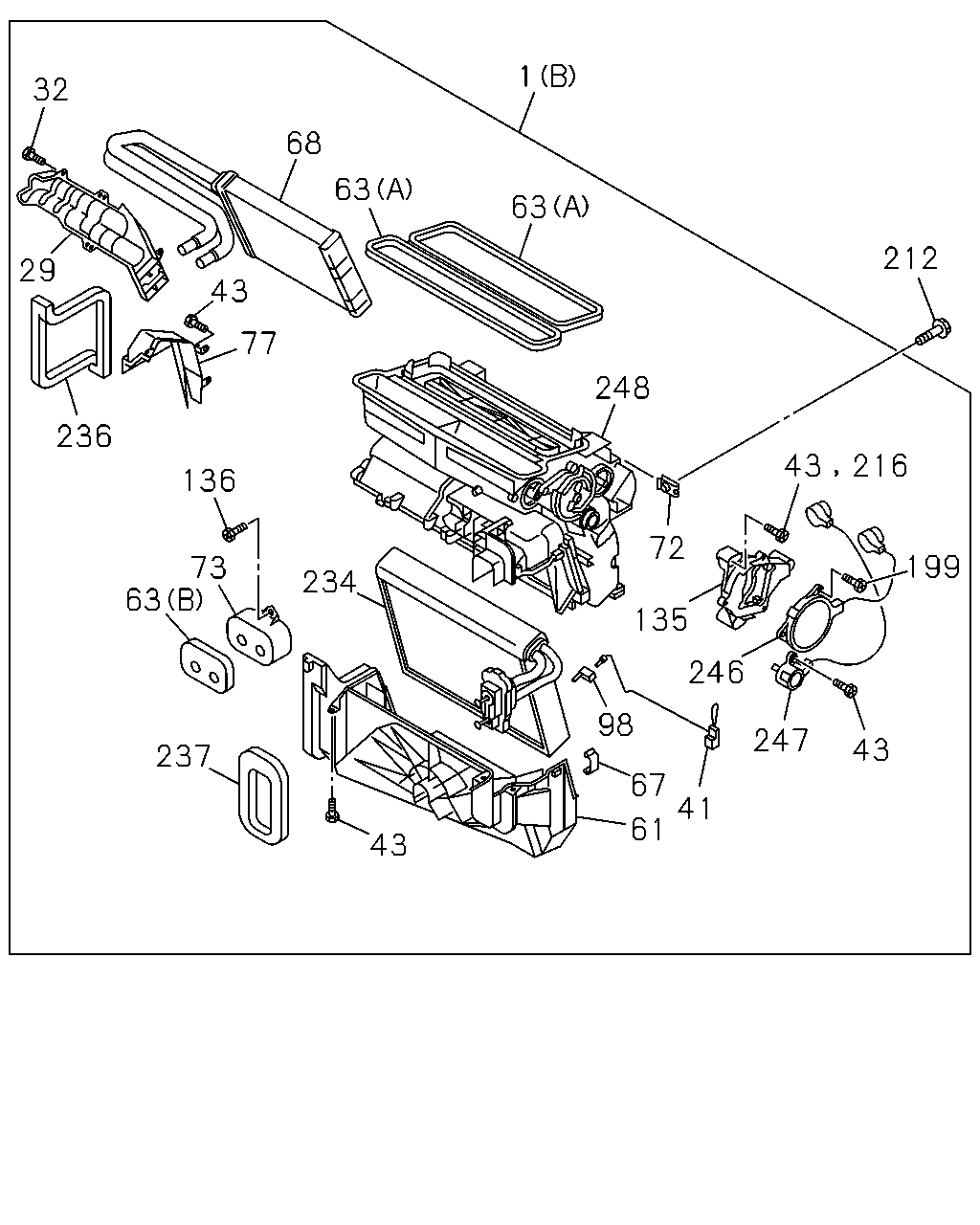

çizim 471139
1 212 63 63 68 32 248 216 43 199 43 247 246 135 72 98 41 61 43 237 63 234 67 136 73 77 43 236 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98233-038-1 01 1 1504- ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98233-039-1 01 1 1504- ● ●
29 COVER; HTR UNIT 8-98233-590-0 01 1 1504- ● ●
32 SCREW; HTR UNIT 8-98233-593-0 04 1 1504- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1504- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1504- ● ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 18 1 1504- ● ●
61 CASE; HTR UNIT 8-98233-581-0 01 1 1504- ● ●
63 LINING; HTR UNIT
(A) 		8-98139-358-1 02 1 1504- ● ●
63 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1504- ● ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1504- ● ●
68 CORE; HTR UNIT 8-98139-374-0 01 1 1504- ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1504- ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1504- ● ●
77 COVER; HTR CASE 8-98233-589-0 01 1 1504- ● ●
98 CLIP; HTR UNIT 8-98157-122-0 01 1 1504- ● ●
135 COVER; HTR 8-98139-377-0 01 1 1504- ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1504- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 05 1 1504- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-593-0 04 1 1504- ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1504- ● ●
216 SCREW; COVER,HEATER UNIT 8-98233-593-0 03 1 1504- ● ●
234 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1504- ● ●
236 GASKET; HEATER 8-98139-357-1 01 1 1504- ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1504- ● ●
246 ACTUATOR; MODE
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1504- ● ●
247 ACTUATOR; TEMP
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1504- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-579-0 01 1 1504- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-580-0 01 1 1504- ● ●

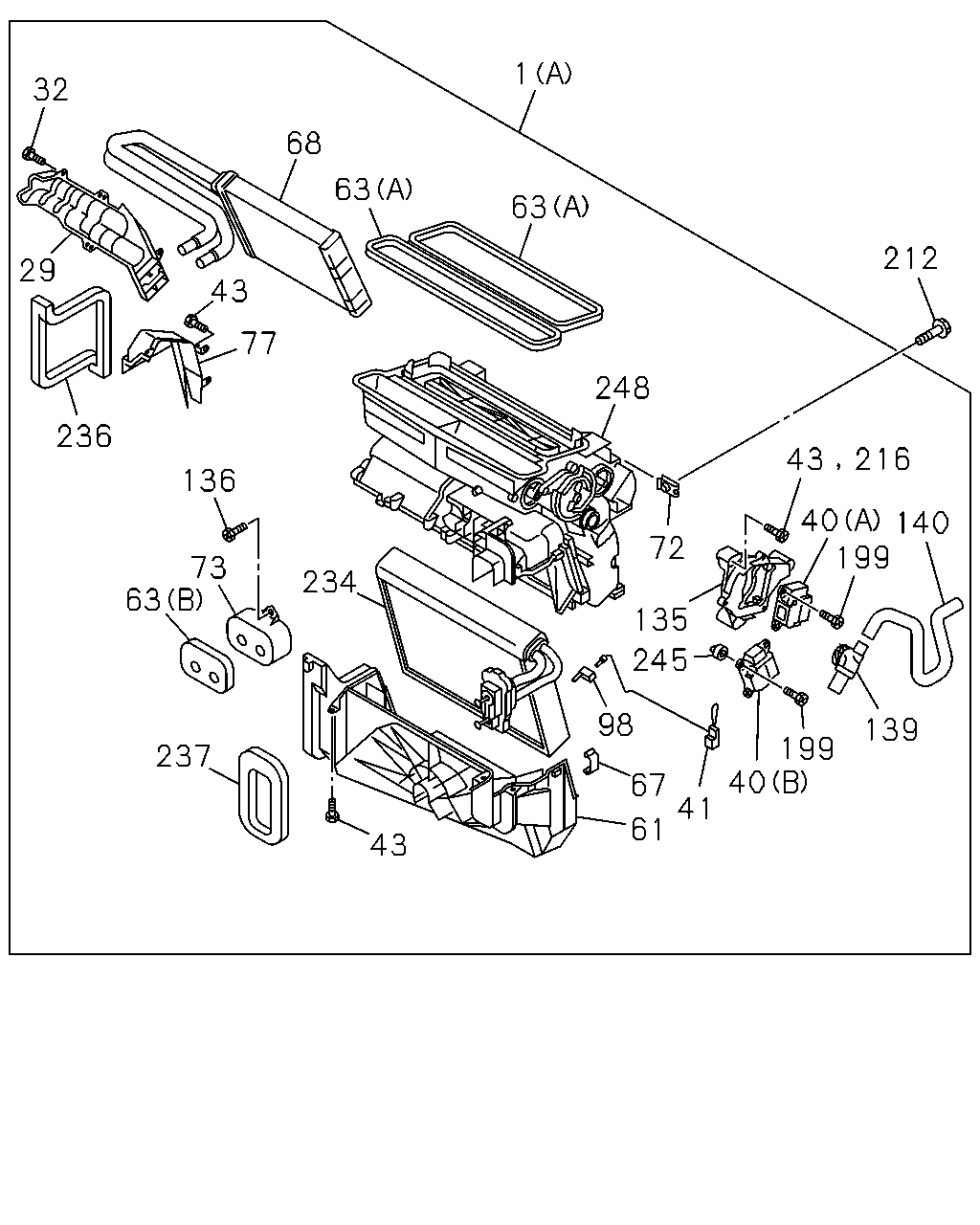

çizim 471159
1 32 68 63 63 212 248 43 77 43 29 236 216 136 63 234 73 237 43 72 140 40 135 199 139 199 245 40 41 61 98 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98233-038-1 01 1 1504- ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98233-039-1 01 1 1504- ● ●
29 COVER; HTR UNIT 8-98233-590-0 01 1 1504- ● ●
32 SCREW; HTR UNIT 8-98233-593-0 04 1 1504- ● ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-385-0 01 1 1504- ● ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-386-0 01 1 1504- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1504- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1504- ● ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 18 1 1504- ● ●
61 CASE; HTR UNIT 8-98233-581-0 01 1 1504- ● ●
63 LINING; HTR UNIT
(A) 		8-98139-358-1 02 1 1504- ● ●
63 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1504- ● ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1504- ● ●
68 CORE; HTR UNIT 8-98139-374-0 01 1 1504- ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1504- ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1504- ● ●
77 COVER; HTR CASE 8-98233-589-0 01 1 1504- ● ●
98 CLIP; HTR UNIT 8-98157-122-0 01 1 1504- ● ●
135 COVER; HTR 8-98139-377-0 01 1 1504- ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1504- ● ●
139 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-392-1 01 1 1504- ● ●
140 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-408-0 01 1 1504- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 05 1 1504- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-593-0 04 1 1504- ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1504- ● ●
216 SCREW; COVER,HEATER UNIT 8-98233-593-0 03 1 1504- ● ●
234 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1504- ● ●
236 GASKET; HEATER 8-98139-357-1 01 1 1504- ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1504- ● ●
245 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-390-0 01 1 1504- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-579-0 01 1 1504- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-580-0 01 1 1504- ● ●
