Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#160482) — 32 parça
Tümü
A - UCB6VC
B - UCS6VC
◀
[852A] PIPING;REAR (4 parça)
[852A] COMPONENT;FRONT (15 parça)

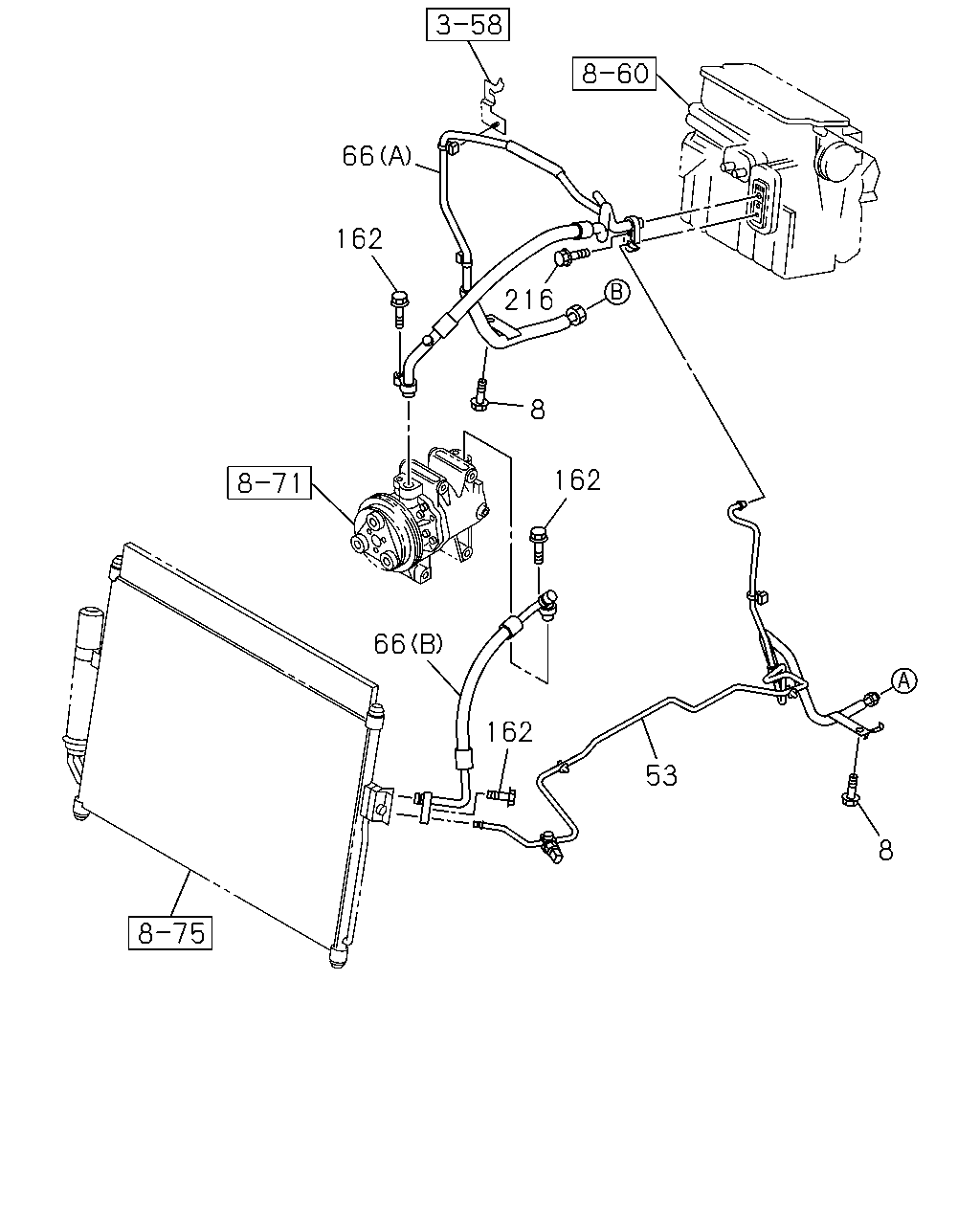

[852A] PIPING;FRONT (7 parça)
[852A] COMPONENT;REAR (6 parça)
▶
8
185
185
8
8
8
8
8
8
8
8
109
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
BOLT; CLIP
M6X20 FLANGE
0-28650-620-0
10
1
1504-
●
●
109
PIPE; PIPE TO PIPE
8-98197-727-0
01
1
1504-
●
●
185
PIPE; EVAP TO FLEX HOSE,PRESS LO
(A)
8-98197-725-1
01
1
1504-
●
●
185
PIPE; EVAP TO FLEX HOSE,PRESS LO
(B)
8-98197-726-1
01
1
1504-
●
●
123
123
146
146
146
202
122
123
53
66
150
147
67
67
67
150
147
67
67
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE
8-98197-724-1
01
1
1504-
●
●
66
HOSE; FLEX,A/C
(B) HIGH PRESSURE
8-98129-345-1
01
1
1504-
●
●
66
HOSE; FLEX,A/C
(A) LOW PRESSURE
8-98197-721-1
01
1
1504-
●
●
67
GASKET; FLEX HOSE
(D) SCAL
8-97919-270-0
01
1
1504-
●
●
67
GASKET; FLEX HOSE
(B)
8-98164-687-0
01
1
1504-
●
●
67
GASKET; FLEX HOSE
(C)
8-98164-688-0
01
1
1504-
●
●
67
GASKET; FLEX HOSE
(A)
8-98193-624-0
02
1
1504-
●
●
122
GASKET
8-98164-690-0
01
1
1504-
●
●
123
GASKET; RECEIVER PIPE
8-98164-689-0
03
1
1504-
●
●
146
CLIP; RECEIVER PIPE
(A)
8-97370-357-0
01
1
1504-
●
●
146
CLIP; RECEIVER PIPE
(B)
8-98193-622-0
02
1
1504-
●
●
147
CAP; FLEX HOSE
(A)
8-98193-623-0
01
1
1504-
●
●
147
CAP; FLEX HOSE
(B)
8-98193-625-0
01
1
1504-
●
●
150
CLIP; HOSE
8-97370-357-0
02
1
1504-
●
●
202
SWITCH; PRESSURE
CHI
8-98164-691-1
01
1
1504-
●
●
66
162
216
8
162
162
53
8
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
BOLT; CLIP
M6X20 FLANGE
0-28650-620-0
10
1
1504-
●
●
53
PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE
8-98197-724-1
01
1
1504-
●
●
66
HOSE; FLEX,A/C
(B) HIGH PRESSURE
8-98129-345-1
01
1
1504-
●
●
66
HOSE; FLEX,A/C
(A) LOW PRESSURE
8-98197-721-1
01
1
1504-
●
●
162
BOLT; FLEX HOSE
M8X25 FLANGE CHI
0-28650-825-0
01
1
1504-
●
●
162
BOLT; FLEX HOSE
M8X25 FLANGE CHI
0-28650-825-0
02
1
1504-
●
●
216
BOLT; HOSE FIX
M6X20 FLANGE
0-28650-620-0
01
1
1504-
●
●
116
109
116
116
116
116
185
185
116
116
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
109
PIPE; PIPE TO PIPE
8-98197-727-0
01
1
1504-
●
●
116
GASKET; PIPE
(A)
8-97321-351-0
01
1
1504-
●
●
116
GASKET; PIPE
(B)
8-97321-353-0
03
1
1504-
●
●
116
GASKET; PIPE
(C) SCAL
8-97919-270-0
04
1
1504-
●
●
185
PIPE; EVAP TO FLEX HOSE,PRESS LO
(A)
8-98197-725-1
01
1
1504-
●
●
185
PIPE; EVAP TO FLEX HOSE,PRESS LO
(B)
8-98197-726-1
01
1
1504-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
