8-28 — CHASSIS ELECTRICAL (#160477) — 24 parça

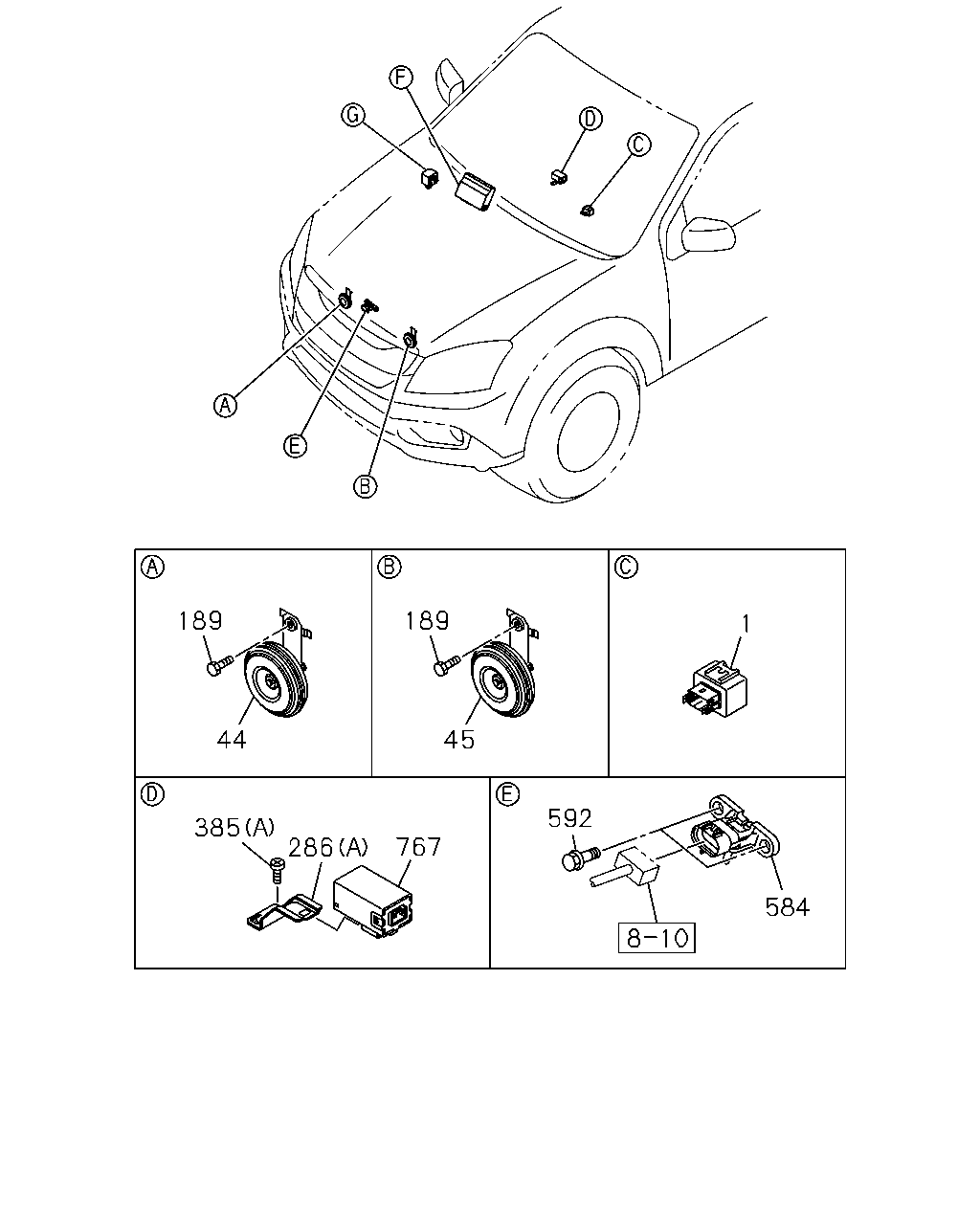

çizim 471363
189 45 592 584 1 189 385 286 44 767
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98080-978-0 01 1 1504- ● ●
44 HORN; HIGH NOTE 8-98219-100-0 01 1 1504- ● ●
45 HORN; LOW NOTE 8-98219-102-1 01 1 1504- ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1504- ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1504- ● ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98102-502-2 01 1 1504- ● ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) 		8-98102-503-0 01 1 1504- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING 		8-98167-449-0 02 1 1504- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) M5X16 TAPPING 		8-98167-449-0 01 1 1504- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1504- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1504- ● ●
592 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 1504- ● ●
767 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98076-337-1 01 1 1504-1506 ● ●
767 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98306-421-0 01 1 1507- ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98076-338-1 01 1 1504- ● ●

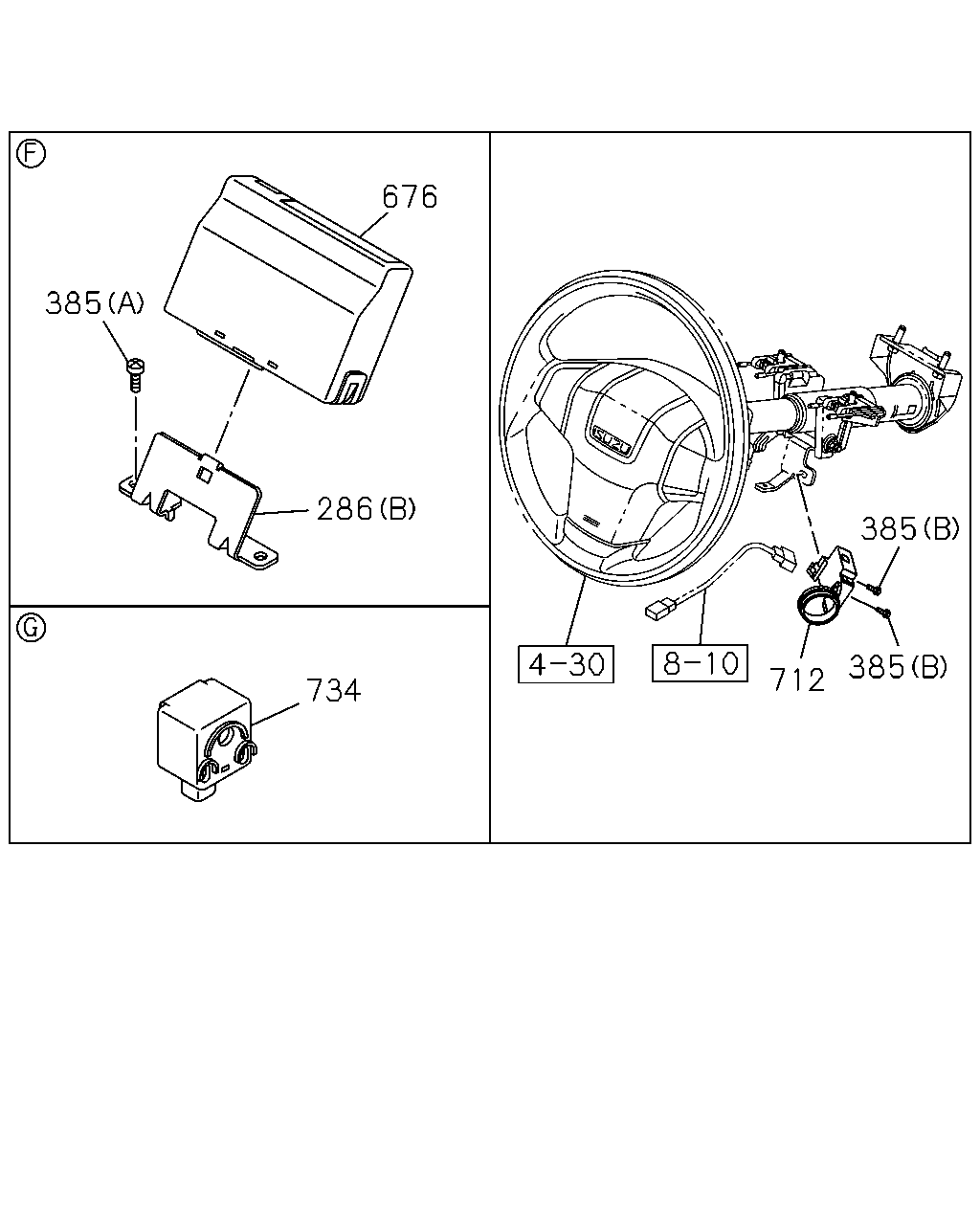

çizim 471926
286 385 734 676 712 385 385
BalonParca AdiParca NoAdetTipApplied Date A B
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98102-502-2 01 1 1504- ● ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) 		8-98102-503-0 01 1 1504- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING 		8-98167-449-0 02 1 1504- ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) M5X16 TAPPING 		8-98167-449-0 01 1 1504- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1504- ● ●
676 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98290-820-0 01 1 1504-1504 ● ●
676 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98306-213-0 01 1 1505- ● ●
712 CONTROL UNIT; ANTI THEFT
REMOTE CONT DOOR LOCK<AP5> 		8-98123-260-5 01 1 1504- ● ●
734 ALARM; MULTI
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98192-897-0 01 1 1504- ● ●
