◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#160476) — 14 parça
çizim 471434
23 54 53 52
BalonParca AdiParca NoAdetTipApplied Date A B
23 AIR BAG UNIT
(B) BLACK 		8-97424-332-0 01 1 1504- ● ●
23 AIR BAG UNIT
(A) BLACK 		8-97429-724-0 01 1 1504- ● ●
23 AIR BAG UNIT
(C) 		8-98187-777-0 01 1 1504- ● ●
23 AIR BAG UNIT
(C) 		8-98187-778-0 01 1 1504- ● ●
52 BOLT; AIR BAG
M6X20 FLANGE 		0-28650-620-0 06 1 1504- ● ●
53 PAD; PILLAR 8-98232-399-0 01 1 1504- ● ●
53 PAD; PILLAR 8-98232-400-0 01 1 1504- ● ●
54 CLIP; PAD
BLACK 		8-97416-699-0 02 1 1504- ● ●

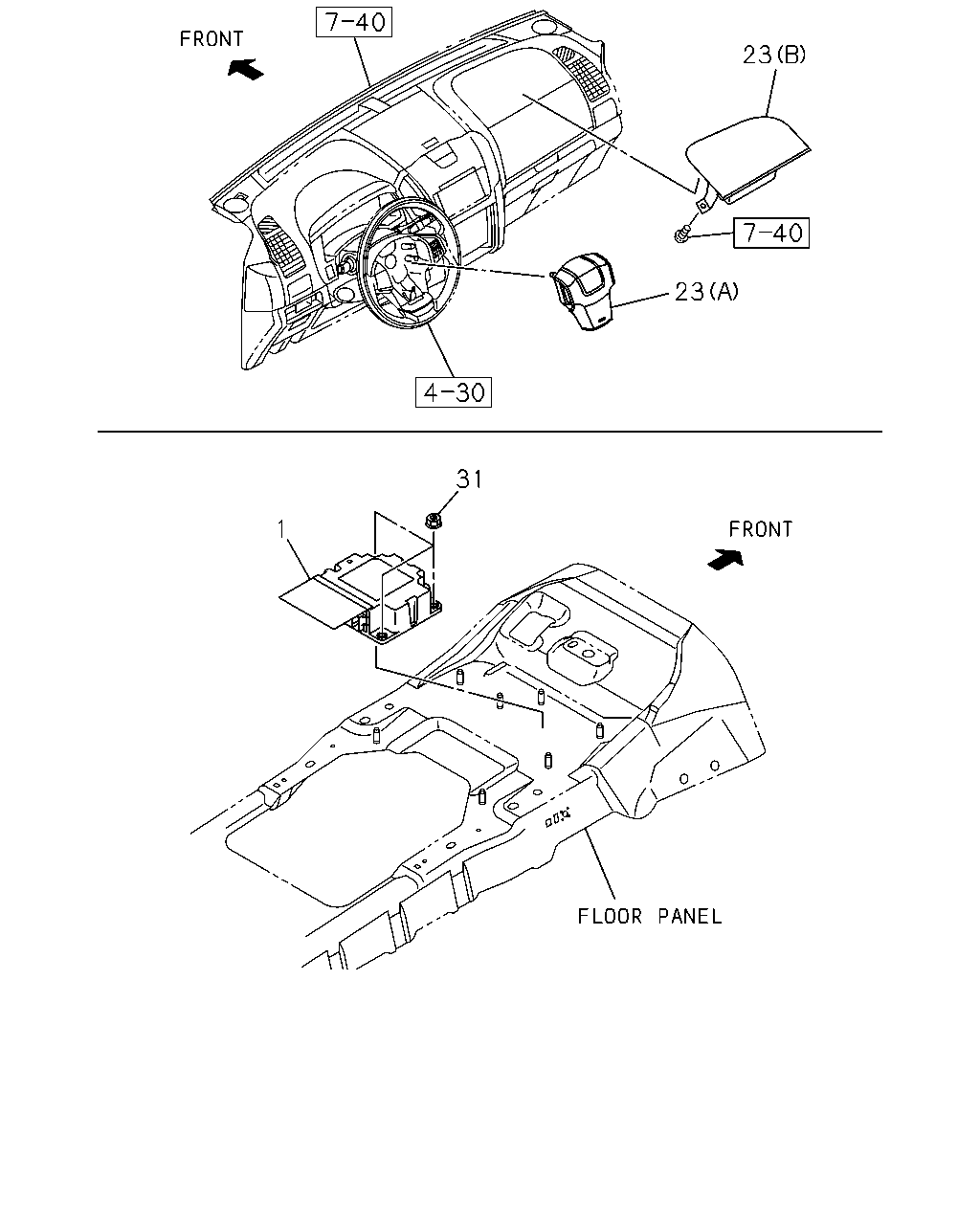

çizim 471770
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR 8-98261-127-0 01 1 1504- ● ●
23 AIR BAG UNIT
(B) BLACK 		8-97424-332-0 01 1 1504- ● ●
23 AIR BAG UNIT
(A) BLACK 		8-97429-724-0 01 1 1504- ● ●
23 AIR BAG UNIT
(C) 		8-98187-777-0 01 1 1504- ● ●
23 AIR BAG UNIT
(C) 		8-98187-778-0 01 1 1504- ● ●
31 NUT
M6 FLANGE 		0-91180-206-0 03 1 1504- ● ●
