◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#160475) — 35 parça

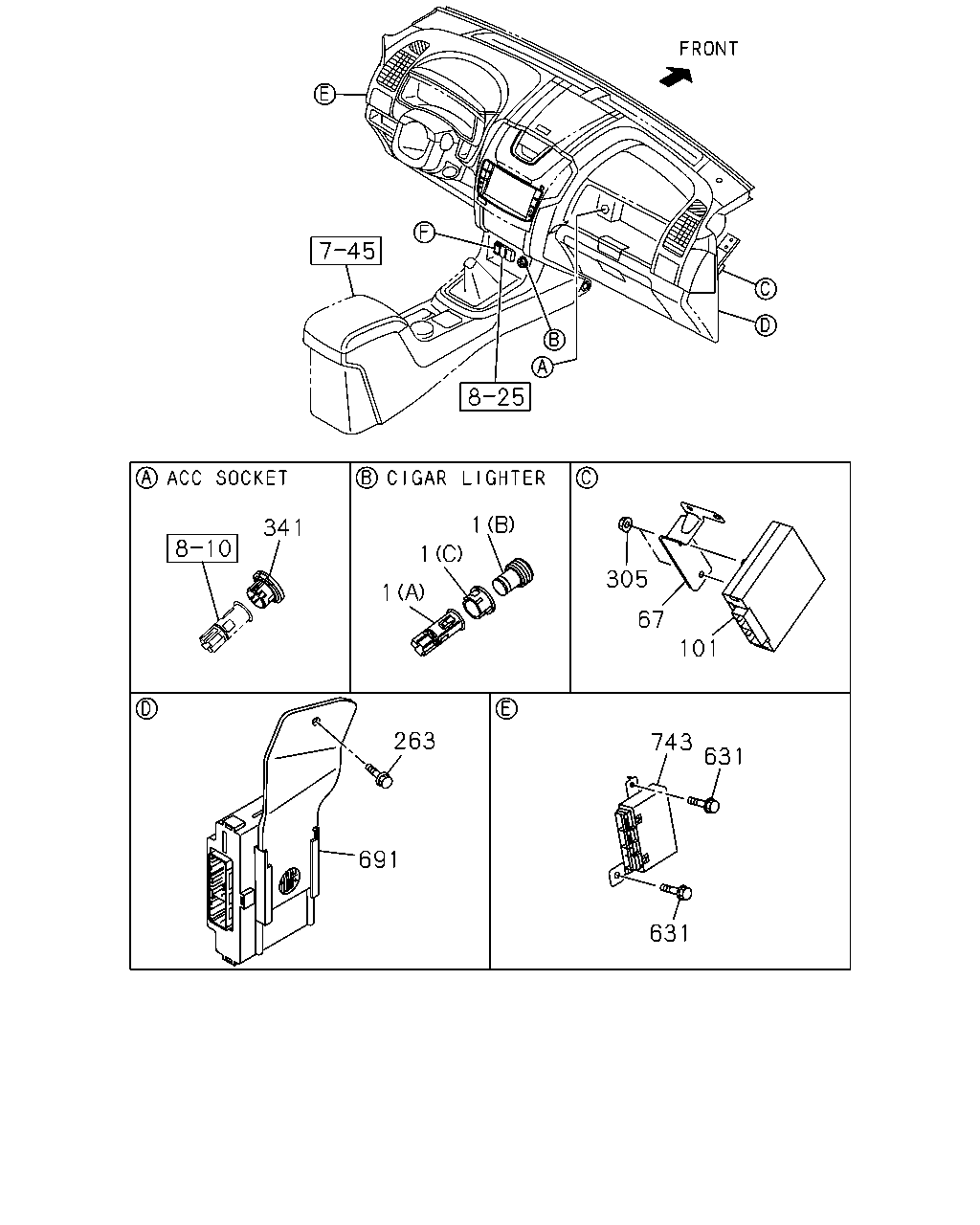

çizim 471313
1 1 1 341 67 305 101 631 743 631 691 263
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1504- ● ●
1 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1504- ● ●
1 LIGHTER; CIGAR
(C) 		8-98123-118-0 01 1 1504- ● ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98117-178-0 01 1 1504- ● ●
101 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98239-694-0 01 1 1504- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98239-696-0 01 1 1504- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1504- ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) M6 FLANGE 		0-91180-106-0 02 1 1504- ● ●
341 COVER ASM 8-98123-123-0 01 1 1504- ● ●
631 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> M6X16 FLANGE 		0-28450-616-0 02 1 1504- ● ●
691 CONTROLLER; TRANSFER 8-98186-110-0 01 1 1504- ●
743 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-503-1 01 1 1504- ● ●
743 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98190-501-1 01 1 1504- ● ●
çizim 471413
483 331 194 194 194
BalonParca AdiParca NoAdetTipApplied Date A B
194 CABLE; EXT,SOUND PLAY BOX
(C) 		8-98235-372-0 01 1 1504- ● ●
194 CABLE; EXT,SOUND PLAY BOX
(B) 		8-98209-263-0 01 1 1504- ● ●
194 CABLE; EXT,SOUND PLAY BOX
(A) 		8-98209-351-0 01 1 1504- ● ●
331 COVER; SW 8-98217-463-0 01 1 1504- ● ●
483 SWITCH 8-98209-259-1 01 1 1504- ● ●

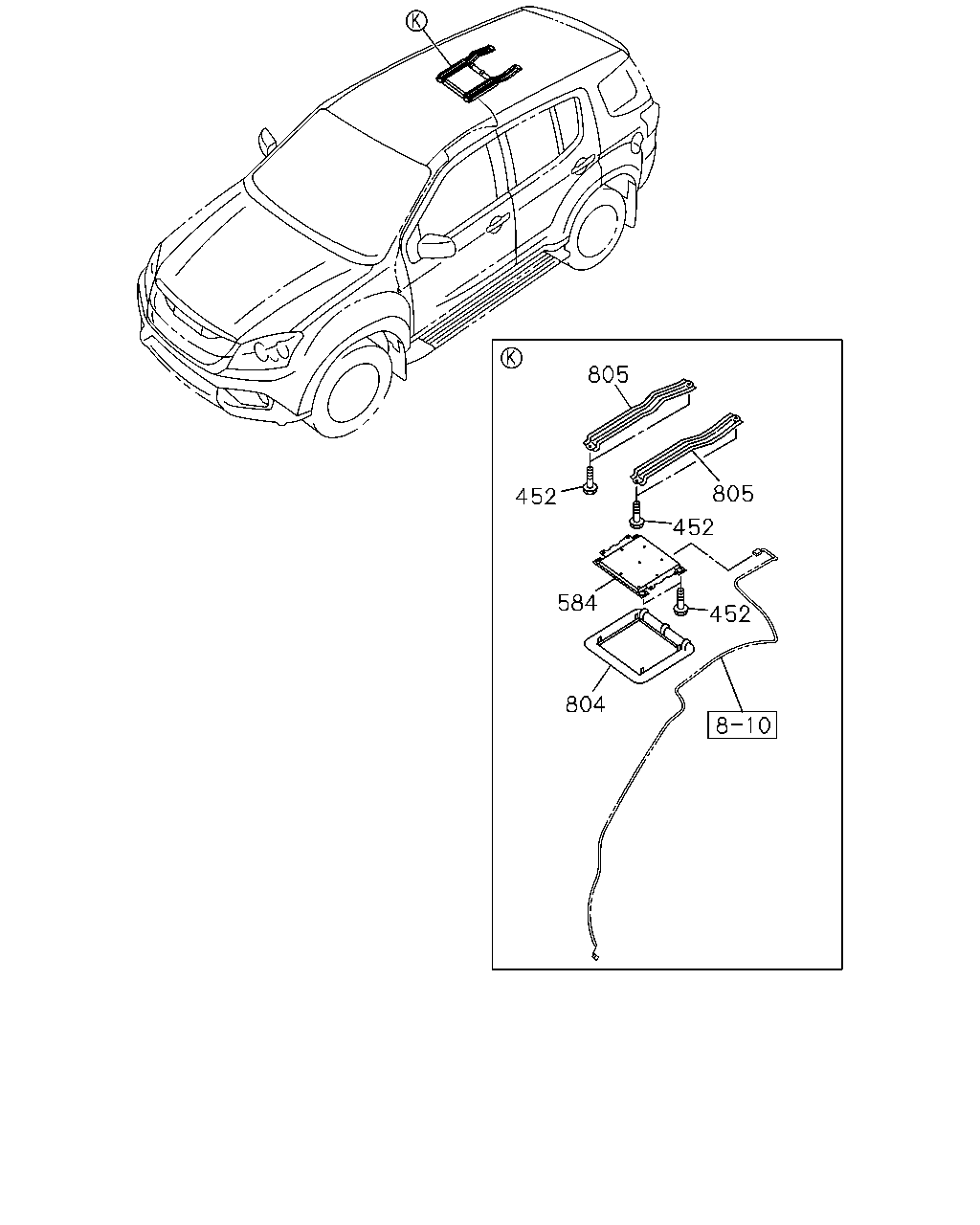

çizim 471426
805 452 452 805 452 584 804
BalonParca AdiParca NoAdetTipApplied Date A B
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1504- ● ●
452 BOLT; BRKT
2ND SEAT DVD MONITOR<U48> M6X16 FLANGE 		0-28650-616-0 04 1 1504- ● ●
584 DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98291-255-0 01 1 1504- ● ●
804 BEZEL; DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98197-957-1 01 1 1504- ● ●
805 BRACKET; DISPLAY 8-98197-956-1 01 1 1504- ● ●
805 BRACKET; DISPLAY 8-98211-399-1 01 1 1504- ● ●

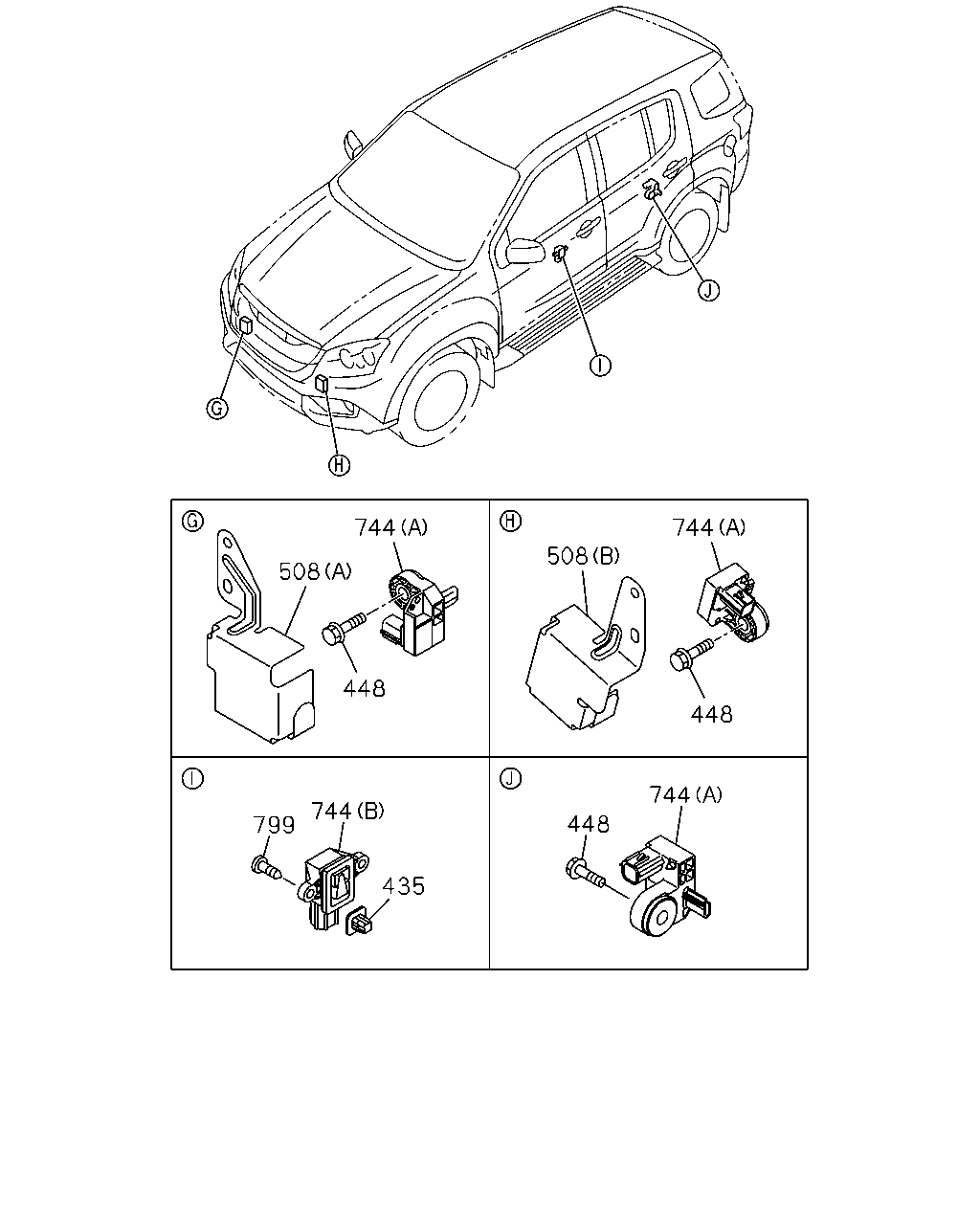

çizim 471877
744 508 508 744 448 744 448 744 799 435 448
BalonParca AdiParca NoAdetTipApplied Date A B
435 GROMMET
D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1504- ● ●
448 BOLT; SENSOR
M6X25 FLANGE 		0-28650-625-0 04 1 1504- ● ●
508 PROTECTOR
(A) 		8-98165-179-0 01 1 1504- ● ●
508 PROTECTOR
(B) 		8-98165-180-0 01 1 1504- ● ●
744 SENSOR; AIR BAG
(B) 		8-98146-939-1 02 1 1504- ● ●
744 SENSOR; AIR BAG
(A) 		8-98156-002-0 04 1 1504- ● ●
799 SCREW; SENSOR
M5X16 TAPPING 		8-98167-449-0 04 1 1504- ● ●

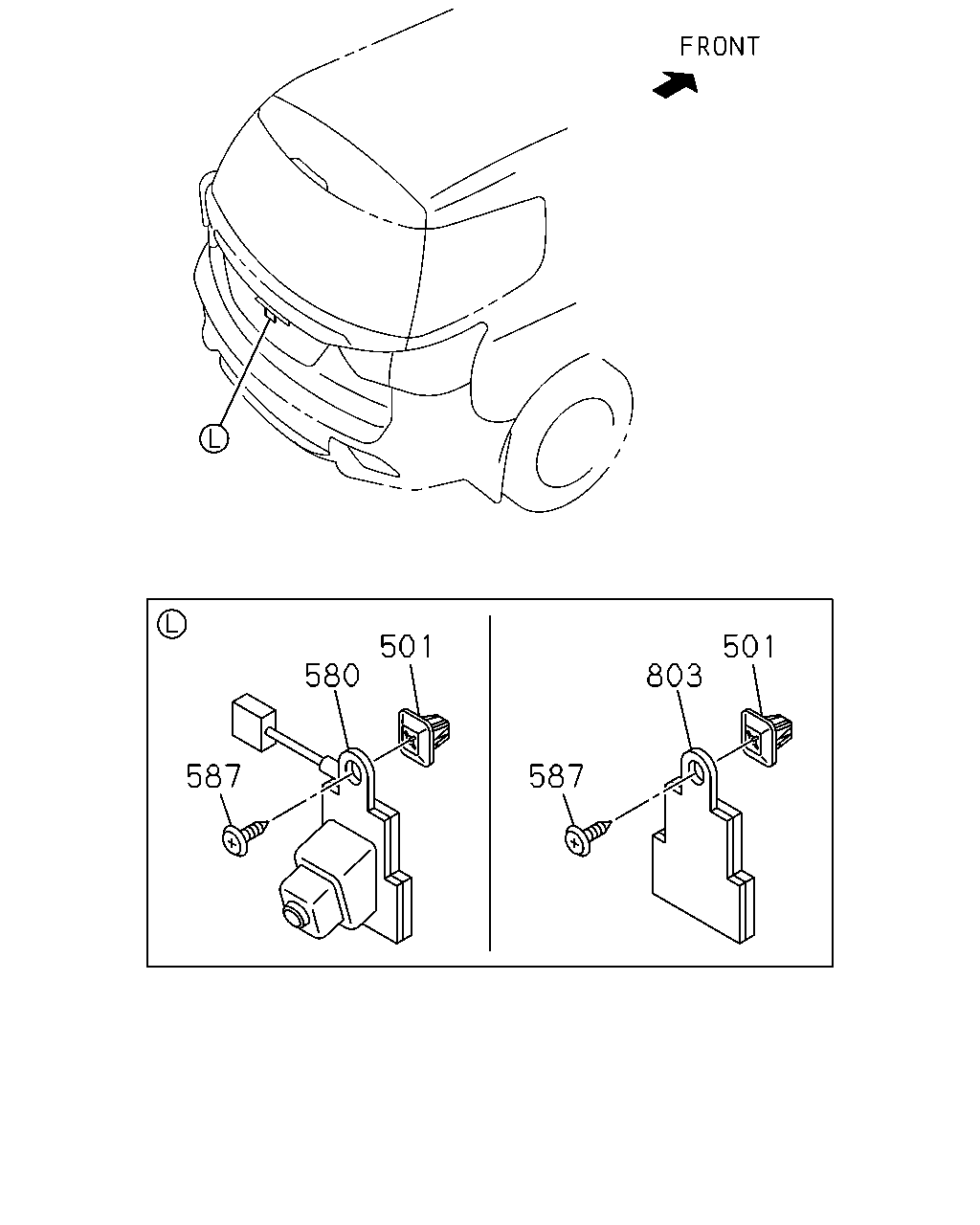

çizim 498290
580 501 587 803 587 501
BalonParca AdiParca NoAdetTipApplied Date A B
501 GROMMET; SCREW 8-98163-895-0 01 1 1504- ● ●
580 CAMERA; REAR
2ND SEAT DVD MONITOR<U48> 		8-98210-822-0 01 1 1504- ● ●
587 SCREW; CAMERA
M5X14 		8-94152-495-0 01 1 1504- ● ●
803 COVER; CAMERA
EXC. 2ND SEAT DVD MONITOR<U48> 		8-98210-821-0 01 1 1504- ● ●
