Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶
8-15 — FIXING PARTS; WIRING HARNESS
(#160472) — 32 parça
Tümü
A - UCB6VC
B - UCS6VC
◀

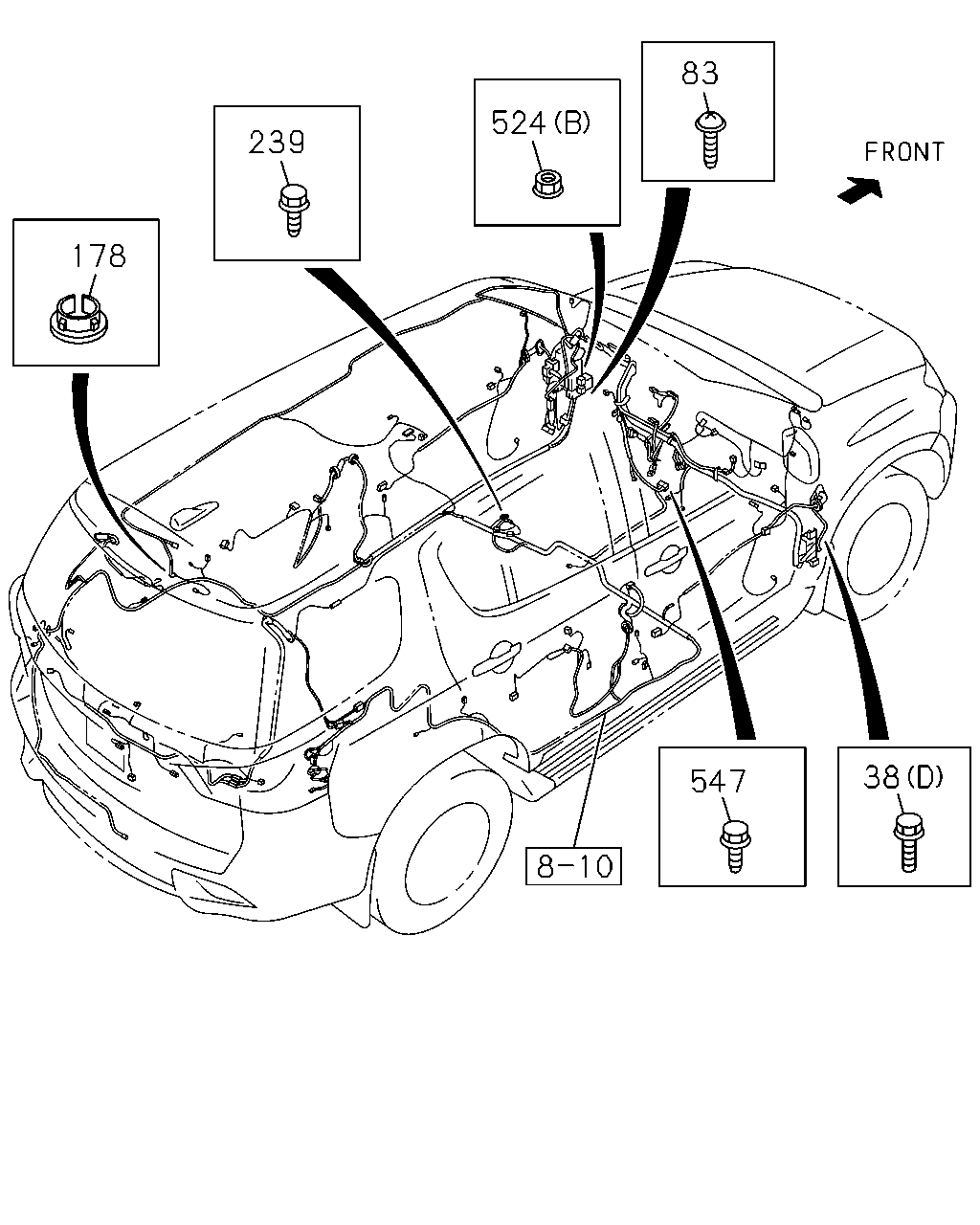

[815A] BODY,ROOF AND CHASSIS HARNESS (12 parça)

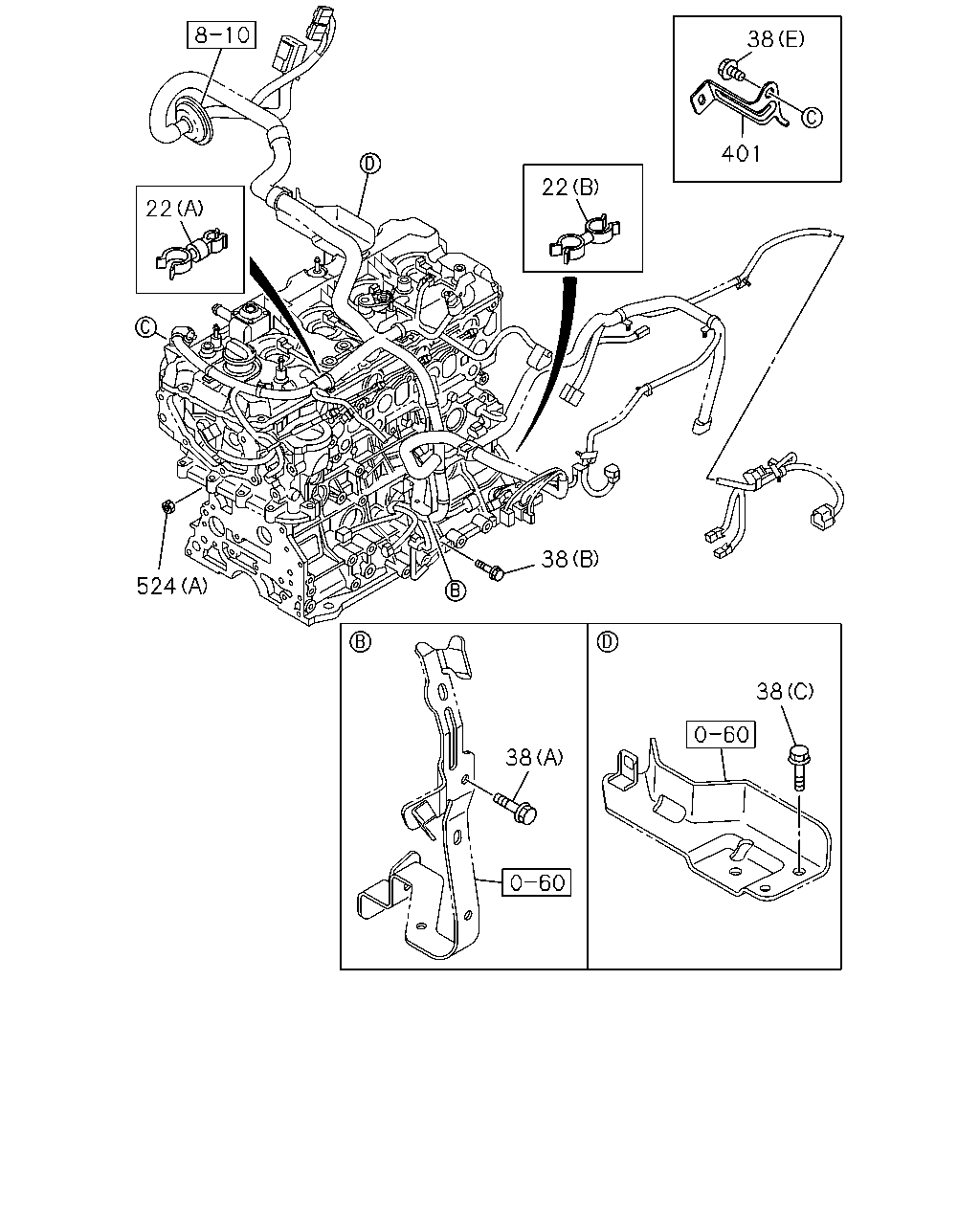

[815A] ENG BRACKET (11 parça)

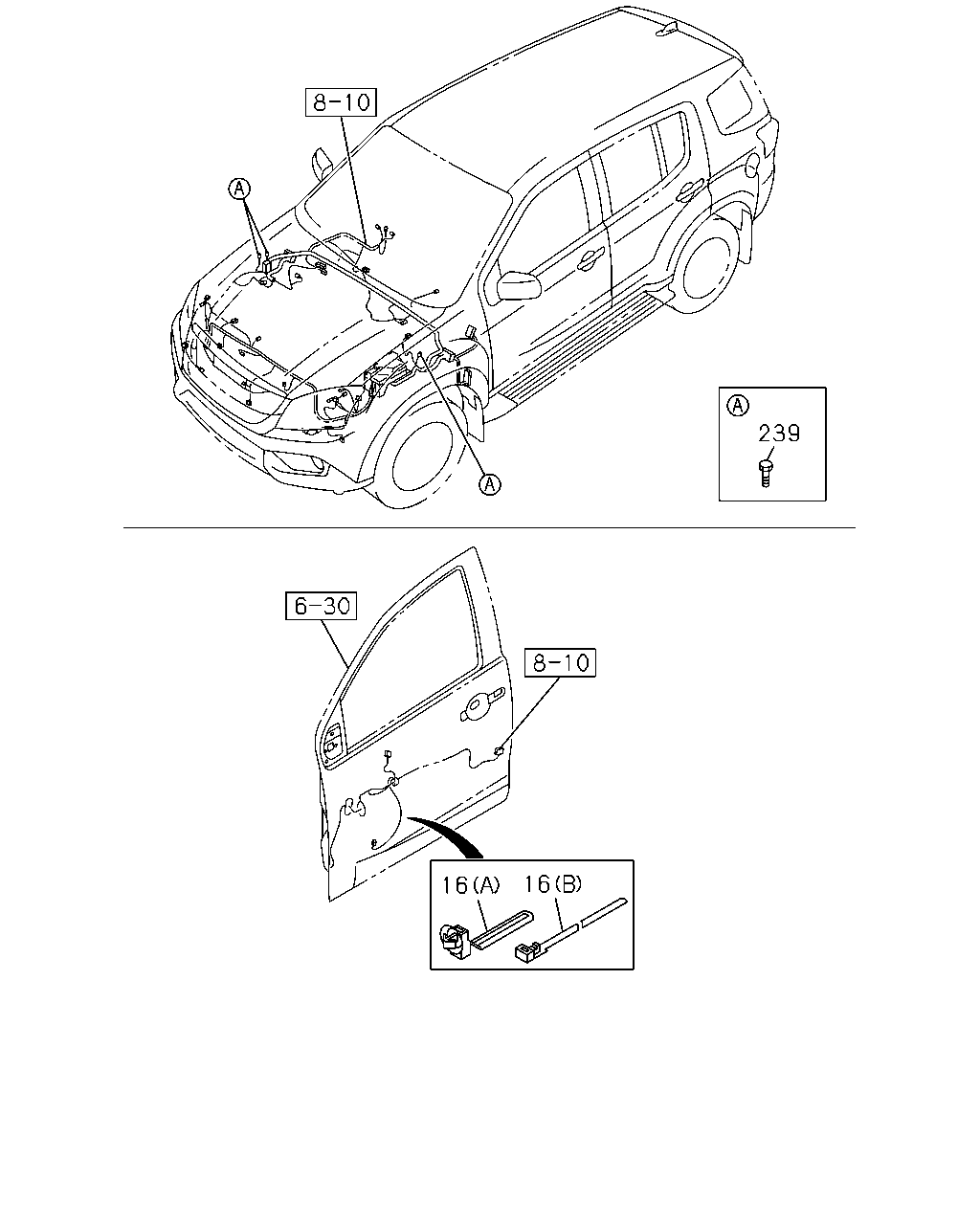

[815A] ENG ROOM AND DOOR HARNESS (3 parça)

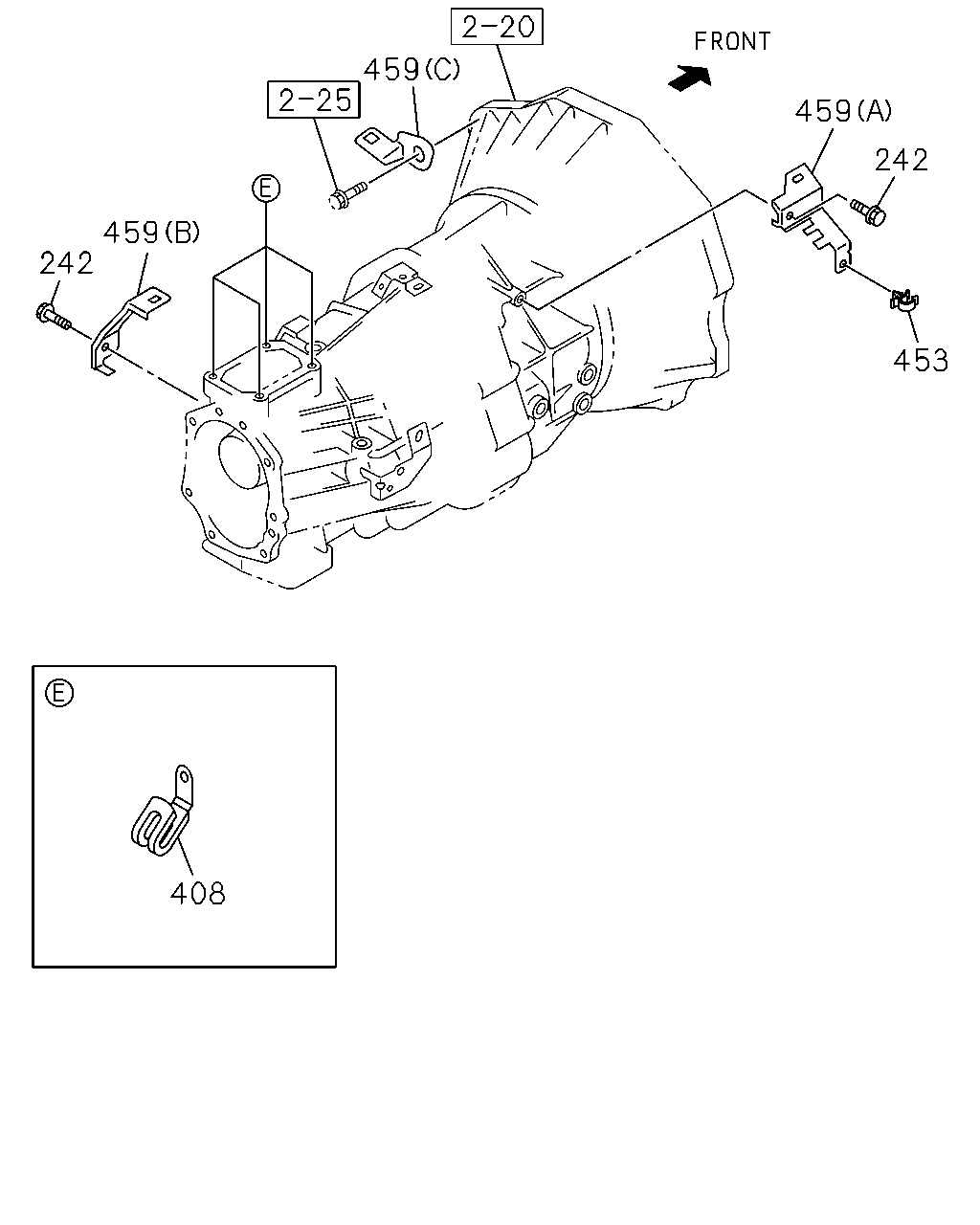

[815A] TRANSMISSION BRACKET (6 parça)
▶
178
239
524
83
547
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
38
BOLT; CLIP,HARNESS
(A) M6X12 FLANGE
0-28050-612-0
02
1
1504-
●
●
38
BOLT; CLIP,HARNESS
(B) M8X12 FLANGE
0-28050-812-0
01
1
1504-
●
●
38
BOLT; CLIP,HARNESS
(C) M8X20 FLANGE
0-28050-820-0
02
1
1504-
●
●
38
BOLT; CLIP,HARNESS
(E) M10X12 FLANGE
0-28151-012-0
01
1
1504-
●
●
38
BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (D) M6X16 FLANGE
0-28650-616-0
05
1
1504-
●
38
BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (D) M6X16 FLANGE
0-28650-616-0
05
1
1504-
●
83
SCREW; HARNESS
M5X25 TAPPING W/PL WASHER
0-74360-525-0
01
1
1504-
●
●
178
GROMMET; HARNESS
CHI
8-97027-381-0
01
1
1504-
●
●
239
BOLT; GRAND
M6X14 W/PL WASHER
8-98164-836-0
07
1
1504-
●
●
524
NUT; HARNESS
(A) M8 FLANGE
0-91180-108-0
01
1
1504-
●
●
524
NUT; HARNESS
(B) M6 FLANGE
0-91180-106-0
01
1
1504-
●
●
547
BOLT
M6X14 W/PL WASHER
8-98164-836-0
01
1
1504-
●
●
22
22
38
401
524
38
38
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
CLIP; ENG HARNESS
(B) ID=7.5 & 7.5
8-98212-981-0
01
1
1504-
●
●
22
CLIP; ENG HARNESS
(A) ID=11.8 & 7.5
8-98212-982-0
01
1
1504-
●
●
38
BOLT; CLIP,HARNESS
(A) M6X12 FLANGE
0-28050-612-0
02
1
1504-
●
●
38
BOLT; CLIP,HARNESS
(B) M8X12 FLANGE
0-28050-812-0
01
1
1504-
●
●
38
BOLT; CLIP,HARNESS
(C) M8X20 FLANGE
0-28050-820-0
02
1
1504-
●
●
38
BOLT; CLIP,HARNESS
(E) M10X12 FLANGE
0-28151-012-0
01
1
1504-
●
●
38
BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (D) M6X16 FLANGE
0-28650-616-0
05
1
1504-
●
38
BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (D) M6X16 FLANGE
0-28650-616-0
05
1
1504-
●
401
BRACKET; HARNESS,GEN
8-98224-801-0
01
1
1504-
●
●
524
NUT; HARNESS
(A) M8 FLANGE
0-91180-108-0
01
1
1504-
●
●
524
NUT; HARNESS
(B) M6 FLANGE
0-91180-106-0
01
1
1504-
●
●
16
16
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) L=155 CHI
8-97173-307-0
04
1
1504-
●
●
16
CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) L=140
8-97378-707-0
06
1
1504-
●
●
239
BOLT; GRAND
M6X14 W/PL WASHER
8-98164-836-0
07
1
1504-
●
●
459
459
242
459
453
242
408
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
242
BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) M8X16 FLANGE
0-28050-816-0
02
1
1504-
●
408
CLIP; TRANS HARNESS
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ID=12 VINYL CHLORIDE
8-97367-984-1
04
1
1504-
●
453
CLIP; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ID=6.5
5-09709-117-0
01
1
1504-
●
459
BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ) (C)
8-98050-882-0
01
1
1504-
●
459
BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (A)
8-98035-740-0
01
1
1504-
●
459
BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)
8-98035-741-0
01
1
1504-
●
