8-10 — WIRING HARNESS AND FUSE (#160471) — 112 parça

366 736 738 739 741 743 742 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-510-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98270-512-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> ELECTRONIC TRACTION CONTROL<NW9>	8-98270-514-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> EXC. ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-516-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-509-5	01	1	1504-		●
366	HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98270-511-5	01	1	1504-		●
366	HARNESS; CABLE,ENG ROOM REMOTE CONT DOOR LOCK<AP5> ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-513-5	01	1	1504-		●
366	HARNESS; CABLE,ENG ROOM REMOTE CONT DOOR LOCK<AP5> EXC. ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-515-5	01	1	1504-		●
736	RELAY; STARTER CUT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-292-0	01	1	1504-	●	●
737	RELAY; DIMMER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-292-0	01	1	1504-	●	●
738	RELAY; HEADLAMP PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
739	RELAY; TAIL LAMP PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
741	RELAY; HORN PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
742	RELAY; THERMO PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
743	RELAY; A/C COMPRESSOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
745	RELAY; HEATER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) 12V YAZAKI	8-97309-292-0	01	1	1504-	●	●
745	RELAY; HEATER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) 12V YAZAKI	8-98146-834-0	01	1	1504-	●	●
746	RELAY; ECM,MAIN PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-98146-834-0	01	1	1504-	●	●
747	RELAY; GLOW PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-98146-837-0	01	1	1504-	●	●
748	RELAY; STARTER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-98146-837-0	01	1	1504-	●	●

174 174 583 4 1 11 662 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

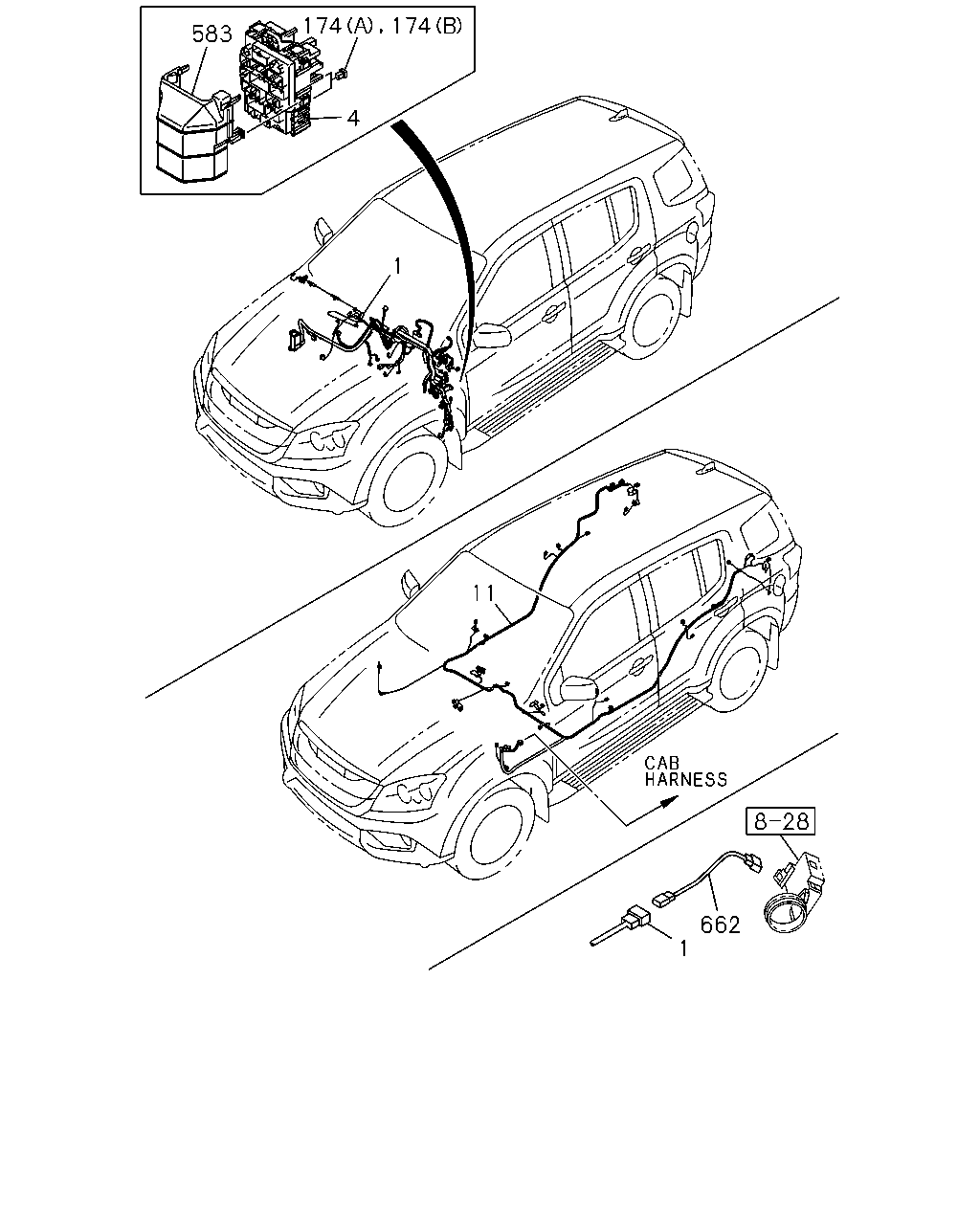

1	HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER MANUAL CONT(C60)	8-98270-518-3	01	1	1504-	●	●
1	HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AIR CONDITIONER AUTOMATIC CONT(C61) CHI	8-98270-517-3	01	1	1504-	●	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER MANUAL CONT(C60)	8-98247-761-2	01	1	1504-	●	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AIR CONDITIONER AUTOMATIC CONT(C61)	8-98247-759-2	01	1	1504-	●	●
4	BOX ASM; FUSE,HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98166-752-0	01	1	1504-	●	●
11	HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> CHI	8-98270-504-2	01	1	1504-	●	●
11	HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98270-505-2	01	1	1504-	●	●
11	HARNESS; BODY REMOTE CONT DOOR LOCK<AP5> FRONT SEAT BUCKET POWER ASSIST<AQ9> CHI	8-98270-506-1	01	1	1504-	●	●
11	HARNESS; BODY REMOTE CONT DOOR LOCK<AP5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> CHI	8-98270-507-1	01	1	1504-	●	●
174	FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 30A PINK CHI	8-98079-191-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN CHI	8-98079-192-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 50A RED CHI	8-98079-193-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1504-	●	●
583	COVER; HARNESS M/T MUA 5 SPEED 5H(MWQ)	8-98179-407-0	01	1	1504-	●
583	COVER; HARNESS M/T MUX 5 SPEED 5S(MZJ)	8-98179-407-0	01	1	1504-		●
662	HARNESS; IMMOBILIZER 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5>	8-98163-074-0	01	1	1504-	●
662	HARNESS; IMMOBILIZER REMOTE CONT DOOR LOCK<AP5>	8-98163-074-0	01	1	1504-		●

430 588

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	430	COVER ASM; SOCKET,ACCESSORY	8-98123-123-0	01	1	1504-	●	●
	588	SEAL; LOCATION HOLE REMOTE CONT DOOR LOCK<AP5> OD=25 BLACK CHI	1-76798-019-0	03	1	1504-	●	●

734 745 750 749 762 761 764 763 758 759 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98166-752-0	01	1	1504-	●	●
734	RELAY; ACC SOCKET PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
745	RELAY; HEATER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) 12V YAZAKI	8-97309-292-0	01	1	1504-	●	●
745	RELAY; HEATER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) 12V YAZAKI	8-98146-834-0	01	1	1504-	●	●
749	RELAY; POWER WINDOW PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
750	RELAY; RR DEFOGGER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
758	RELAY; RR WIPER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-292-0	01	1	1504-	●	●
759	RELAY; RR COOLER PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V YAZAKI	8-97309-293-0	01	1	1504-	●	●
761	RELAY; ACC PASSIVE ENTRY AND START SYSTEM<AP3> 12V YAZAKI	8-97309-292-0	01	1	1504-	●	●
762	RELAY; IG2 PASSIVE ENTRY AND START SYSTEM<AP3> 12V YAZAKI	8-97309-292-0	01	1	1504-	●	●
763	RELAY; IG1 PASSIVE ENTRY AND START SYSTEM<AP3> 12V YAZAKI	8-98146-837-0	01	1	1504-	●	●
764	RELAY; FRT WIPER PASSIVE ENTRY AND START SYSTEM<AP3> 12V YAZAKI	8-98146-837-0	01	1	1504-	●	●

83 483 687 12 290 101 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

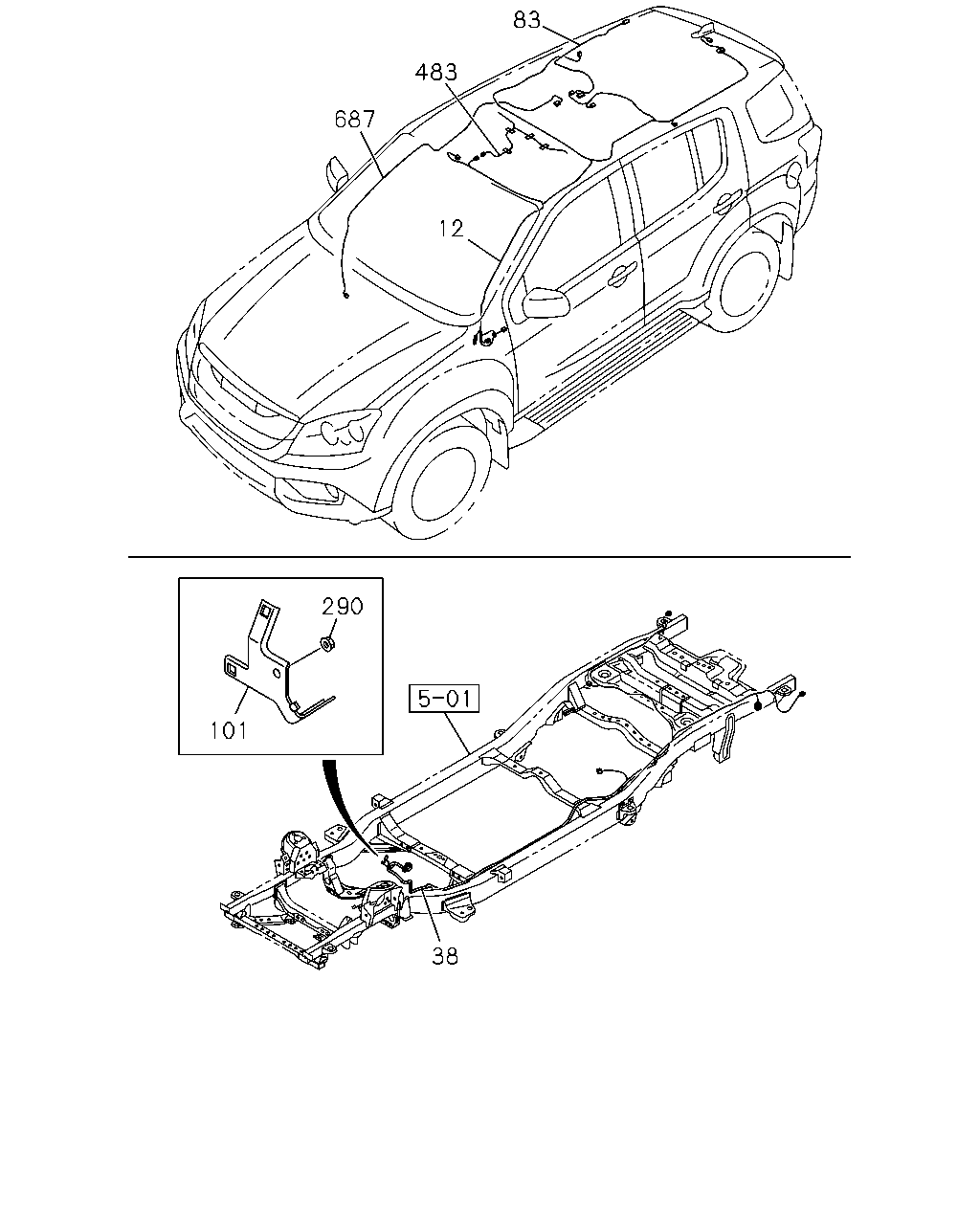

12	HARNESS; ROOF 6-SPEAKER SYSTEM BASE<UW5> CHI	8-98270-519-1	01	1	1504-	●	●
12	HARNESS; ROOF 8-SPEAKER SYSTEM CUSTOM<U87> CHI	8-98270-520-1	01	1	1504-	●	●
38	HARNESS; CHAS	8-98198-065-2	01	1	1504-	●	●
83	HARNESS; AIR CONDITIONER	8-98198-188-2	01	1	1504-	●	●
101	BRACKET; HARNESS CONNECTOR	8-98102-999-0	01	1	1504-	●	●
290	NUT; BRKT 4JK1-TCX ENG(LR0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M6 FLANGE	0-91180-106-0	01	1	1504-	●
290	NUT; BRKT BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M6 FLANGE	0-91180-106-0	01	1	1504-		●
483	HARNESS; EXT,RADIO 8-SPEAKER SYSTEM CUSTOM<U87>	8-98201-891-0	01	1	1504-	●	●
687	HARNESS; VIDEO DISC PLYR 2ND SEAT DVD MONITOR<U48>	8-98248-854-1	01	1	1504-	●	●

366 541 14 366 2 41 2 27 174 174 174 28 184 35 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

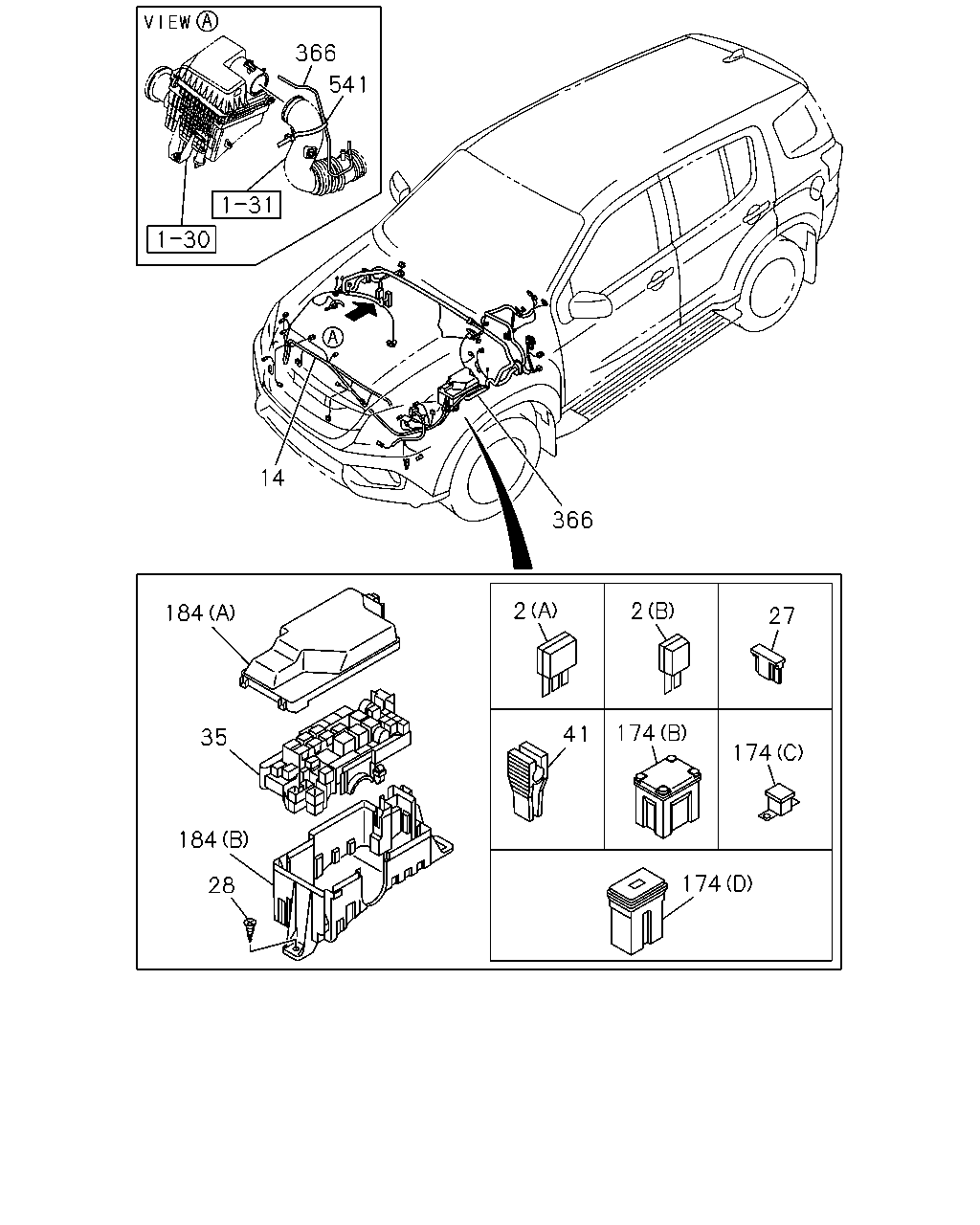

2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A CHI	8-94422-639-1	AR	1	1504-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A CHI	8-94422-640-1	AR	1	1504-	●	●
14	HARNESS; HEADLAMP	8-98159-348-1	01	1	1504-	●	●
27	FUSE UNIT 10A RED CHI	8-98054-257-0	AR	1	1504-	●	●
27	FUSE UNIT 15A BLUE CHI	8-98054-258-0	AR	1	1504-	●	●
27	FUSE UNIT 20A YELLOW CHI	8-98054-259-0	AR	1	1504-	●	●
27	FUSE UNIT 5A ORANGE	8-98281-195-0	AR	1	1504-	●	●
28	SCREW; FUSE BOX PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> CHI	8-97249-192-0	02	1	1504-	●	●
35	BOX; RELAY & FUSE PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98113-097-0	01	1	1504-	●	●
41	PULLER; FUSE PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> CHI	8-98054-260-0	01	1	1504-	●	●
174	FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 30A PINK CHI	8-98079-191-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN CHI	8-98079-192-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 50A RED CHI	8-98079-193-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	1504-	●	●
174	FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1504-	●	●
184	COVER; RELAY & FUSE BOX PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-98113-098-0	01	1	1504-	●	●
184	COVER; RELAY & FUSE BOX PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-98113-099-0	01	1	1504-	●	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-510-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98270-512-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> ELECTRONIC TRACTION CONTROL<NW9>	8-98270-514-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> EXC. ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-516-5	01	1	1504-	●
366	HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-509-5	01	1	1504-		●
366	HARNESS; CABLE,ENG ROOM PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98270-511-5	01	1	1504-		●
366	HARNESS; CABLE,ENG ROOM REMOTE CONT DOOR LOCK<AP5> ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-513-5	01	1	1504-		●
366	HARNESS; CABLE,ENG ROOM REMOTE CONT DOOR LOCK<AP5> EXC. ELECTRONIC TRACTION CONTROL<NW9> CHI	8-98270-515-5	01	1	1504-		●
541	CLIP 4JK1-TCX ENG(LR0) PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> L=500 CHI	1-09707-082-1	01	1	1504-	●
541	CLIP PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> L=500 CHI	1-09707-082-1	01	1	1504-		●

13 547 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

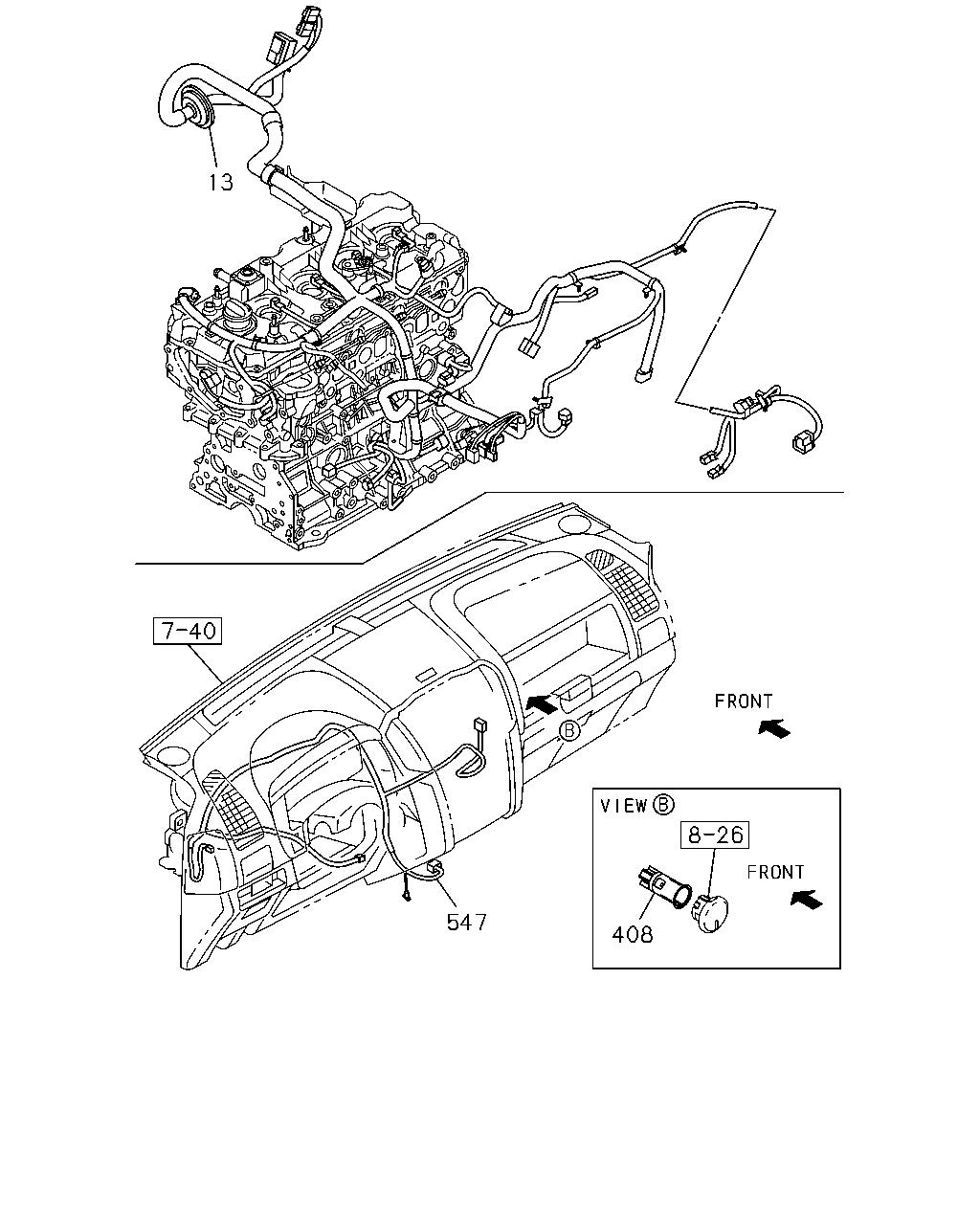

13	HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98259-825-2	01	1	1504-	●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98259-821-2	01	1	1504-	●
13	HARNESS; ENG 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ)	8-98259-824-2	01	1	1504-		●
13	HARNESS; ENG A/T 5 SPEED-AISIN(MA1)	8-98259-826-2	01	1	1504-		●
408	SOCKET ASM; ACCESSORY	8-98123-115-0	02	1	1504-	●	●
547	HARNESS; CABLE,SRS CHI	8-98270-521-0	01	1	1504-	●	●

18 226 226 18 100 189 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

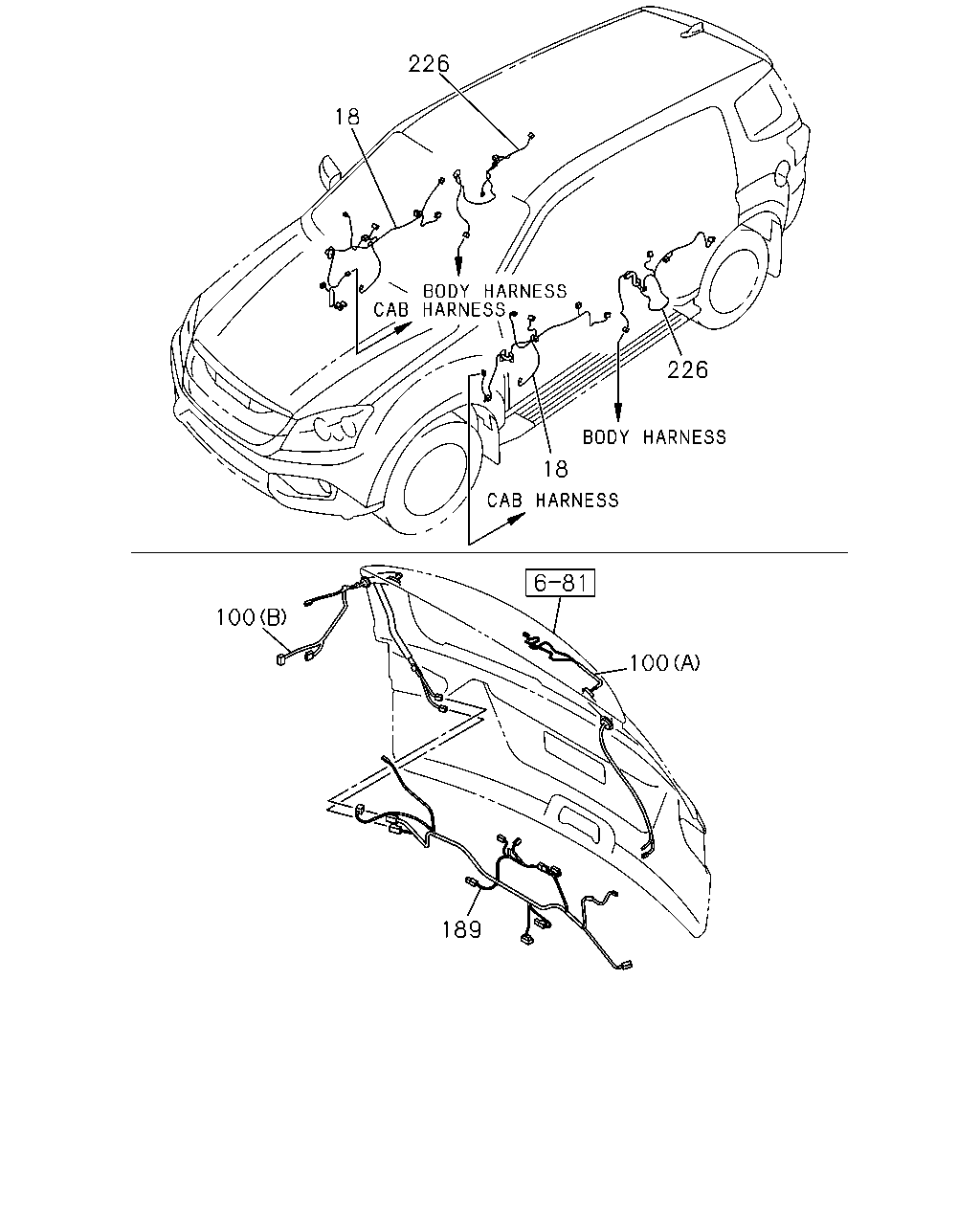

18	HARNESS; DOOR PASSIVE ENTRY AND START SYSTEM<AP3>	8-98159-493-3	01	1	1504-	●	●
18	HARNESS; DOOR PASSIVE ENTRY AND START SYSTEM<AP3> CHI	8-98270-508-1	01	1	1504-	●	●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5>	8-98225-360-0	01	1	1504-	●	●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5>	8-98159-495-3	01	1	1504-	●	●
100	HARNESS; RR GATE PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-98198-222-2	01	1	1504-	●	●
100	HARNESS; RR GATE PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B)	8-98200-686-1	01	1	1504-	●	●
189	HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> 2ND SEAT DVD MONITOR<U48>	8-98198-218-1	01	1	1504-	●	●
189	HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-219-1	01	1	1504-	●	●
189	HARNESS; EXT REMOTE CONT DOOR LOCK<AP5> 2ND SEAT DVD MONITOR<U48>	8-98198-220-1	01	1	1504-	●	●
189	HARNESS; EXT REMOTE CONT DOOR LOCK<AP5> EXC. 2ND SEAT DVD MONITOR<U48>	8-98198-221-1	01	1	1504-	●	●
226	HARNESS; RR DOOR PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-213-3	01	1	1504-	●	●
226	HARNESS; RR DOOR PASSIVE ENTRY AND START SYSTEM<AP3>	8-98198-215-3	01	1	1504-	●	●
226	HARNESS; RR DOOR REMOTE CONT DOOR LOCK<AP5>	8-98198-212-3	01	1	1504-	●	●
226	HARNESS; RR DOOR REMOTE CONT DOOR LOCK<AP5>	8-98198-214-3	01	1	1504-	●	●
