7-60 — SEAT BELT (#160467) — 52 parça

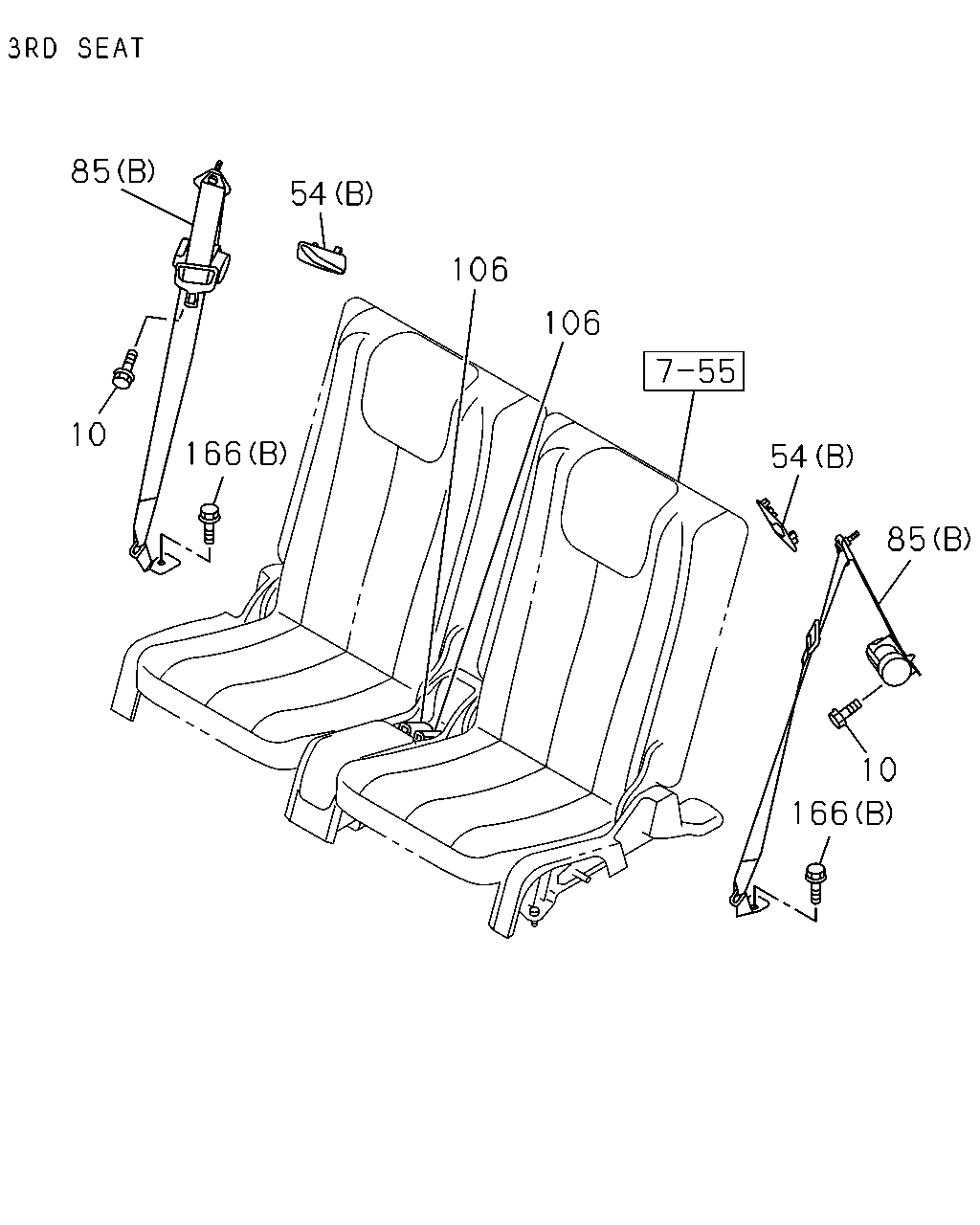

166 85 10 54 106 106 54 85 166 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; RETRACTOR THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT M12X27.5 W/PL WASHER	8-98050-319-0	02	1	1504-	●	●
10	BOLT; RETRACTOR 2ND SEAT M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
54	BEZEL; SEAT BELT THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-353-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-354-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT (A) GRAY	8-97424-343-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT (A) GRAY	8-97424-344-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-355-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-356-0	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) DARK GRAY	8-97466-246-0	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) DARK GRAY	8-97466-247-0	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY	8-97424-345-1	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY	8-97424-346-1	01	1	1504-	●	●
106	BELT; SEAT,3RD SEAT,BUCKLE SIDE THIRD ROW FOLDING TUMBLE SEAT<8PH> BLACK	8-97425-499-1	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (C)	8-98253-633-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (A) M6X16 FLANGE	0-28650-616-0	01	1	1504-	●	●

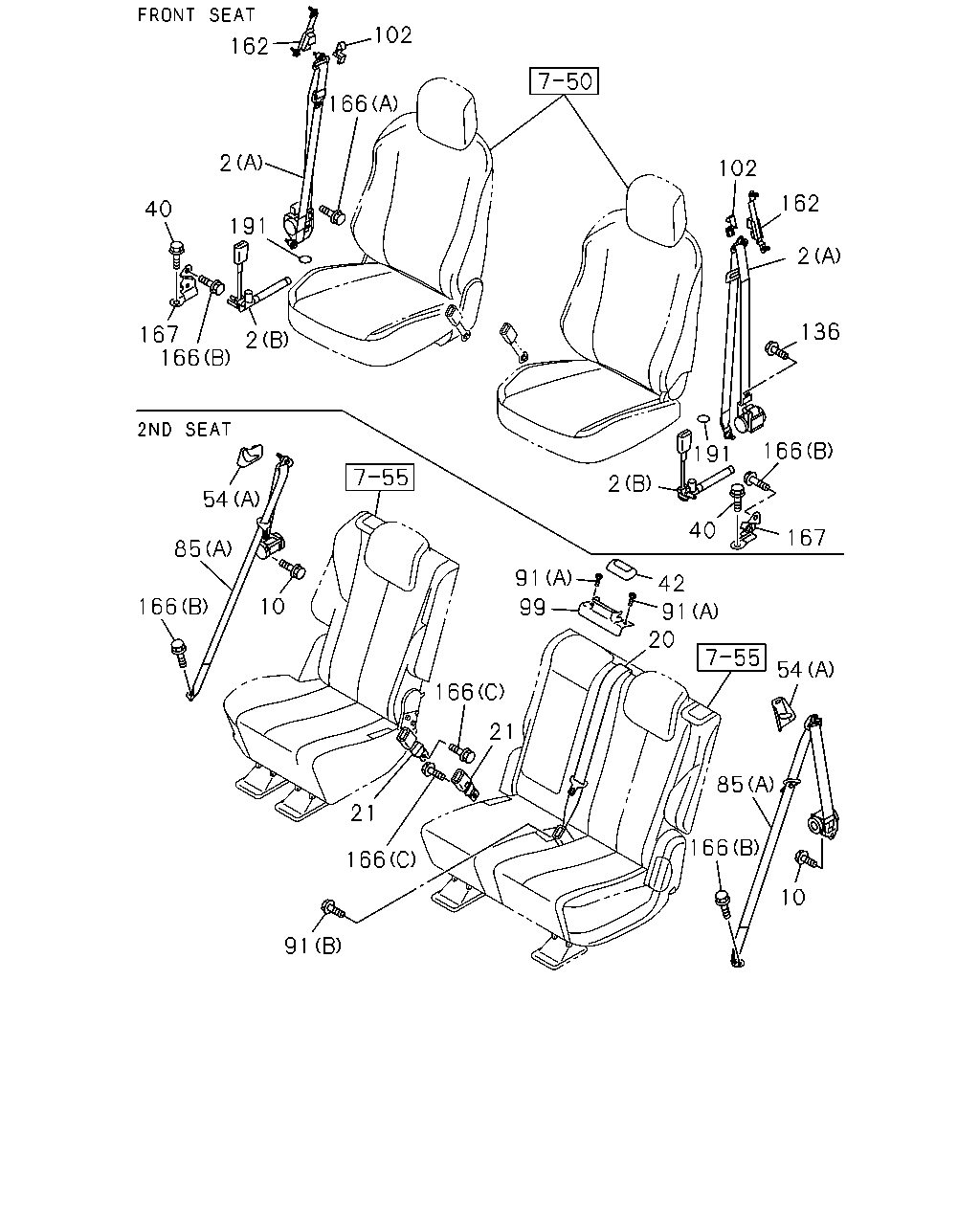

10 166 85 54 20 42 91 167 166 2 91 99 166 21 191 40 136 2 162 102 102 166 21 166 91 166 85 54 10 167 191 166 2 40 2 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BELT; SEAT,TONGUE SIDE (B) PASSENGER SIDE DARK GRAY CHI	8-97429-714-0	01	1	1504-	●	●
2	BELT; SEAT,TONGUE SIDE (A) DRIVER SIDE BLACK	8-97424-334-0	01	1	1504-	●	●
2	BELT; SEAT,TONGUE SIDE (A) PASSENGER SIDE BLACK	8-97424-335-0	01	1	1504-	●	●
2	BELT; SEAT,TONGUE SIDE (B) DRIVER SIDE DARK GRAY CHI	8-97429-713-0	01	1	1504-	●	●
10	BOLT; RETRACTOR THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT M12X27.5 W/PL WASHER	8-98050-319-0	02	1	1504-	●	●
10	BOLT; RETRACTOR 2ND SEAT M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
20	BELT; RR SEAT CTR,TONGUE SIDE DARK GRAY	8-97425-696-1	01	1	1504-	●	●
21	BELT; RR SEAT CTR,BUCKLE SIDE DARK GRAY	8-97425-695-0	02	1	1504-	●	●
40	BOLT; BRKT,ANCHOR M12X27.5 W/PL WASHER	8-98050-319-0	02	1	1504-	●	●
42	COVER; SEAT BELT BLACK	8-97429-757-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-353-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-354-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT (A) GRAY	8-97424-343-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT (A) GRAY	8-97424-344-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-355-0	01	1	1504-	●	●
54	BEZEL; SEAT BELT EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) GRAY	8-97424-356-0	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) DARK GRAY	8-97466-246-0	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) DARK GRAY	8-97466-247-0	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY	8-97424-345-1	01	1	1504-	●	●
85	BELT; SEAT,RR OUTER (A) DARK GRAY	8-97424-346-1	01	1	1504-	●	●
91	BOLT; RR SEAT BELT (B)	8-98253-633-0	01	1	1504-	●	●
91	BOLT; RR SEAT BELT (A)	8-98253-636-0	02	1	1504-	●	●
99	BRACKET; SEAT BELT	8-98253-602-0	01	1	1504-	●	●
102	COVER; SHOULDER ANCHOR BLACK	8-97416-646-2	02	1	1504-	●	●
136	BOLT; SEAT BELT M6X16 FLANGE	0-28650-616-0	01	1	1504-	●	●
162	ADJUSTER; SEAT BELT BLACK	8-97416-645-1	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (C)	8-98253-633-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (B) M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) M14X32 FLANGE	8-98056-276-0	02	1	1504-	●	●
166	BOLT; SEAT BELT ANCHOR (A) M6X16 FLANGE	0-28650-616-0	01	1	1504-	●	●
167	PLATE; ANCHOR	8-98216-137-2	01	1	1504-	●	●
167	PLATE; ANCHOR	8-98216-138-2	01	1	1504-	●	●
191	SEAL; SEAT BELT EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> OD=32 BLACK CHI	8-98031-126-0	02	1	1504-	●	●
