◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#160466) — 207 parça

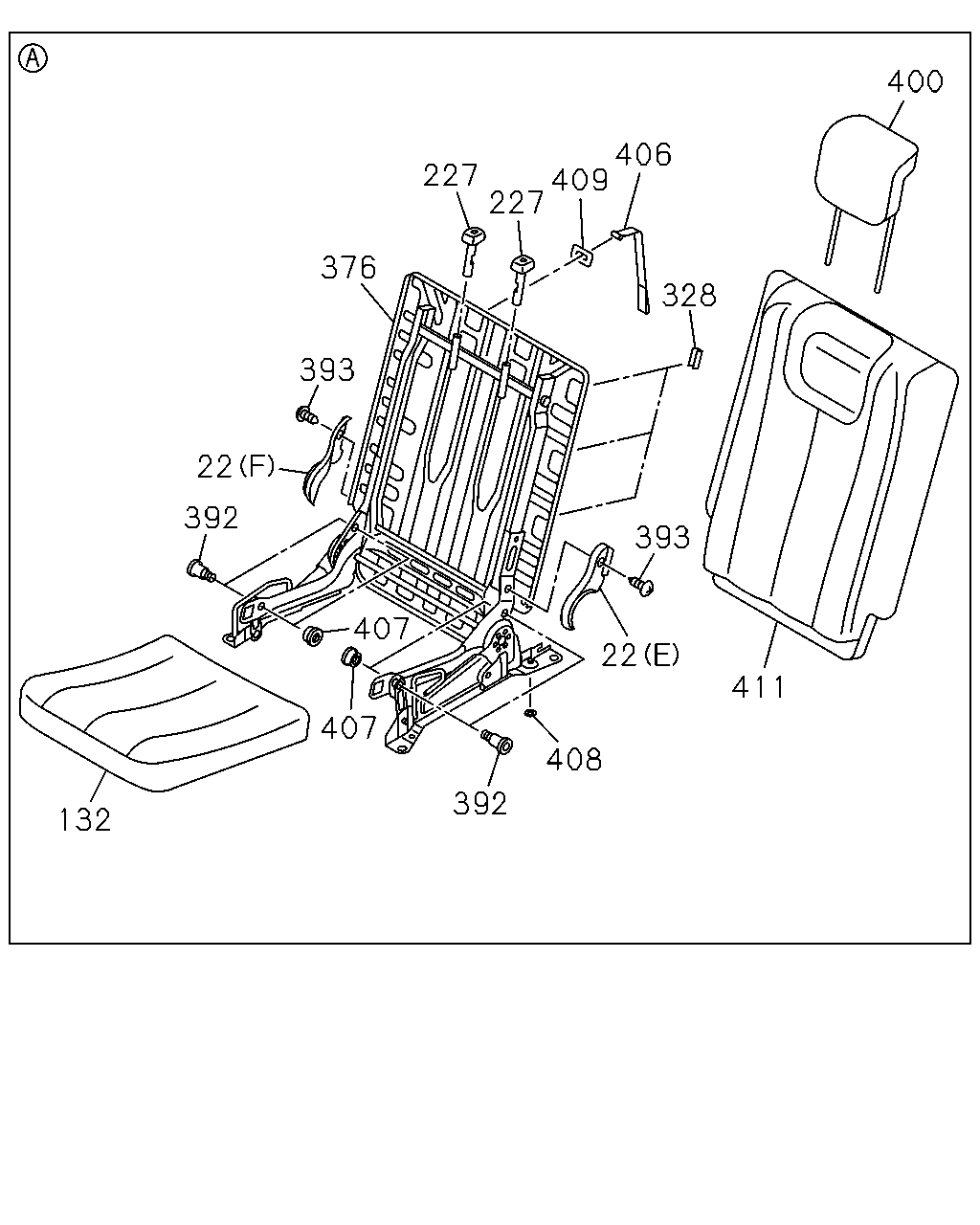

çizim 471670
400 406 409 328 227 227 393 411 22 408 392 407 407 392 22 132 393 376
BalonParca AdiParca NoAdetTipApplied Date A B
22 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
THIRD ROW FOLDING TUMBLE SEAT<8PH> (E) 3RD BLACK 		8-97428-149-0 02 1 1504- ● ●
22 COVER; RECLINING ADJ
THIRD ROW FOLDING TUMBLE SEAT<8PH> (F) 3RD BLACK 		8-97428-150-0 02 1 1504- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-171-0 02 1 1504- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-163-0 02 1 1504- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM HIGH GRADE CLOTH<8LM> THIRD ROW FOLDING TUMBLE SEAT<8PH> BLACK 		8-97428-157-0 02 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1504- ● ●
328 FASTENER; MAGIC
THIRD ROW FOLDING TUMBLE SEAT<8PH> 		8-98253-019-0 12 1 1504- ● ●
376 FRAME ASM; 3RD SEAT BACK
THIRD ROW FOLDING TUMBLE SEAT<8PH> 		8-98253-001-0 01 1 1504- ● ●
376 FRAME ASM; 3RD SEAT BACK
THIRD ROW FOLDING TUMBLE SEAT<8PH> 		8-98253-002-0 01 1 1504- ● ●
392 BOLT; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> 		8-98253-079-0 08 1 1504- ● ●
393 SCREW; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> 		8-98253-008-0 04 1 1504- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-166-0 02 1 1504- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-158-0 02 1 1504- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> THIRD ROW FOLDING TUMBLE SEAT<8PH> BLACK 		8-97428-152-0 02 1 1504- ● ●
406 STRAP
THIRD ROW FOLDING TUMBLE SEAT<8PH> BLACK 		8-97428-139-0 02 1 1504- ● ●
407 COLLAR; CUSHION
THIRD ROW FOLDING TUMBLE SEAT<8PH> FRONT 		8-98253-021-0 04 1 1504- ● ●
407 COLLAR; CUSHION
THIRD ROW FOLDING TUMBLE SEAT<8PH> REAR 		8-98253-022-0 04 1 1504- ● ●
408 SPONGE
THIRD ROW FOLDING TUMBLE SEAT<8PH> 		8-98253-023-0 02 1 1504- ● ●
409 COVER; STRAP
THIRD ROW FOLDING TUMBLE SEAT<8PH> BLACK 		8-97428-151-0 02 1 1504- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-169-0 01 1 1504- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-184-0 01 1 1504- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-161-0 01 1 1504- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> THIRD ROW FOLDING TUMBLE SEAT<8PH> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-181-0 01 1 1504- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> THIRD ROW FOLDING TUMBLE SEAT<8PH> BLACK 		8-97428-155-0 01 1 1504- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> THIRD ROW FOLDING TUMBLE SEAT<8PH> BLACK 		8-97428-178-0 01 1 1504- ● ●

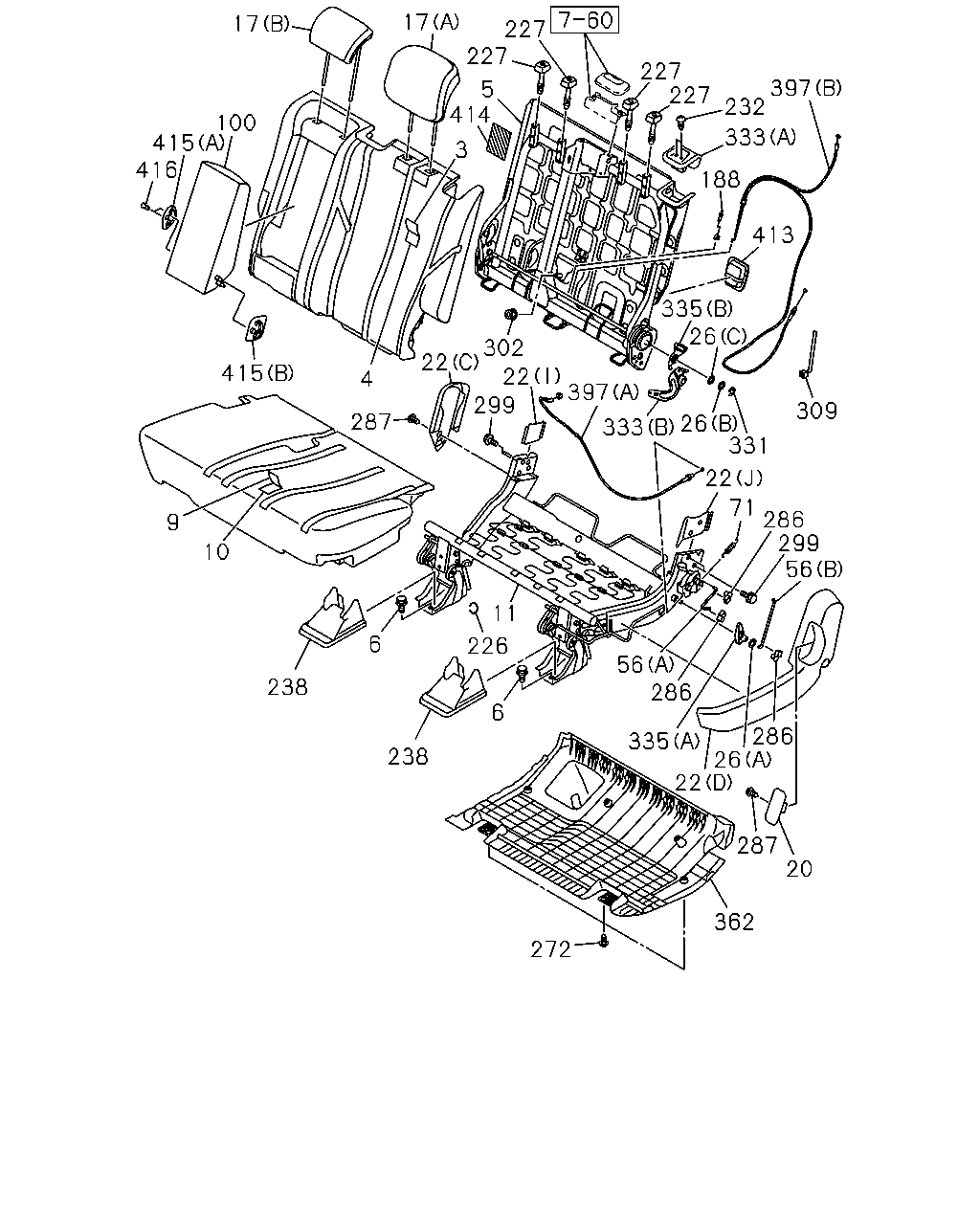

çizim 471972
397 232 333 188 413 335 26 309 26 331 22 71 286 299 56 286 26 22 287 20 362 335 286 56 272 6 226 11 238 238 10 6 9 415 287 22 302 299 22 397 333 4 3 414 5 227 227 227 227 17 17 100 415 416
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-260-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-261-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-243-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-244-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-230-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-231-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-599-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-600-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1504- ● ●
5 FRAME ASM; RR SEAT BACK 8-98253-595-2 01 1 1504- ● ●
5 FRAME ASM; RR SEAT BACK 8-98253-596-2 01 1 1504- ● ●
6 BOLT; RR SEAT
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-215-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-255-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-237-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-238-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-224-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-225-1 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-546-0 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-547-0 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1504- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98253-542-1 01 1 1504- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98288-447-0 01 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 02 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY 		8-97428-268-0 01 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 02 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK 		8-97428-251-0 01 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1504- ● ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-755-0 01 1 1504- ● ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-756-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
THIRD ROW FOLDING TUMBLE SEAT<8PH> (E) 3RD BLACK 		8-97428-149-0 02 1 1504- ● ●
22 COVER; RECLINING ADJ
THIRD ROW FOLDING TUMBLE SEAT<8PH> (F) 3RD BLACK 		8-97428-150-0 02 1 1504- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 02 1 1504- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 02 1 1504- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 02 1 1504- ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 02 1 1504- ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 02 1 1504- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 02 1 1504- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-263-0 01 1 1504- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-246-0 01 1 1504- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97428-209-0 01 1 1504- ● ●
188 WIRE ASM; RR SEAT 8-98253-613-1 01 1 1504- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 27 1 1504- ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 29 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1504- ● ●
232 SCREW; RR SEAT 8-98253-634-0 04 1 1504- ● ●
238 COVER; LEG
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97424-474-1 04 1 1504- ● ●
272 SCREW; COVER 8-98253-634-0 11 1 1504- ● ●
286 COVER; HINGE 8-98253-646-0 06 1 1504- ● ●
287 SCREW; COVER 8-98253-634-0 06 1 1504- ● ●
299 BOLT; LEG 8-98253-643-0 08 1 1504- ● ●
302 NUT; RR SEAT 8-98253-635-0 01 1 1504- ● ●
309 CLIP; SEAT 8-98220-048-0 02 1 1504- ● ●
331 RING; SNAP,PIN 8-98271-945-0 02 1 1504- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 02 1 1504- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-923-0 01 1 1504- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-924-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-647-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-648-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-616-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-617-0 01 1 1504- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-198-0 01 1 1504- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-199-0 01 1 1504- ● ●
397 CABLE; SEAT
(A) 		8-98253-553-0 01 1 1504- ● ●
397 CABLE; SEAT
(A) 		8-98253-554-0 01 1 1504- ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 02 1 1504- ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 03 1 1504- ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 02 1 1504- ● ●
415 COVER; ARM REST
(A) 		8-98253-628-0 01 1 1504- ● ●
415 COVER; ARM REST
(B) 		8-98253-629-0 01 1 1504- ● ●
416 BOLT; ARM REST 8-98253-642-0 02 1 1504- ● ●

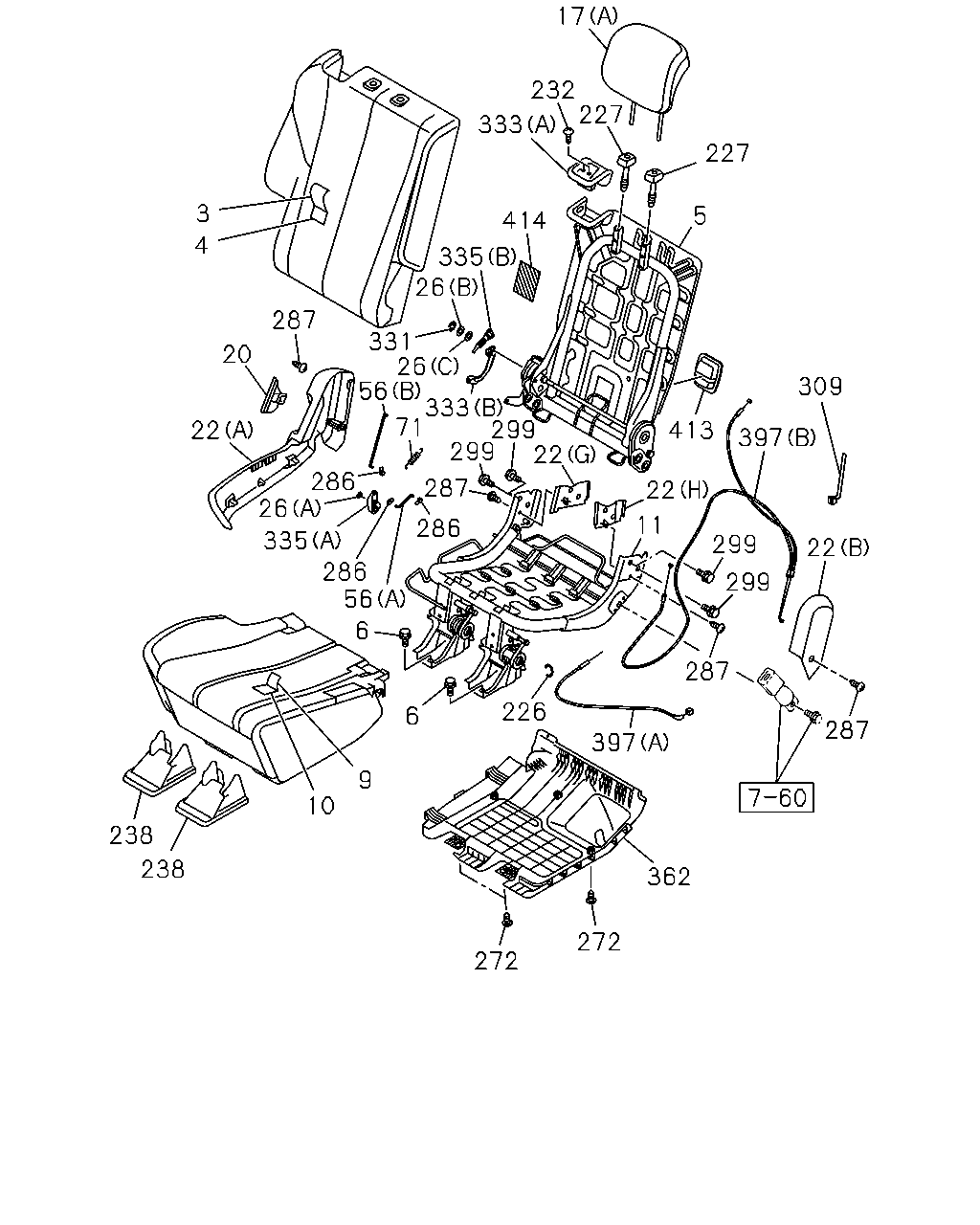

çizim 471976
17 227 227 232 333 5 414 335 26 331 287 20 4 3 309 397 413 22 299 333 26 56 71 287 299 286 22 11 299 299 22 287 397 287 362 272 272 226 6 6 56 286 335 286 26 22 9 10 238 238
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-260-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-261-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-243-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-244-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-230-0 01 1 1504- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-231-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-599-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98253-600-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-597-0 01 1 1504- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-598-0 01 1 1504- ● ●
5 FRAME ASM; RR SEAT BACK 8-98253-595-2 01 1 1504- ● ●
5 FRAME ASM; RR SEAT BACK 8-98253-596-2 01 1 1504- ● ●
6 BOLT; RR SEAT
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-215-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97428-255-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-237-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97428-238-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-224-1 01 1 1504- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97428-225-1 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-546-0 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98253-547-0 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-544-0 01 1 1504- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98253-545-0 01 1 1504- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98253-542-1 01 1 1504- ● ●
11 FRAME ASM; CUSHION,RR SEAT 8-98288-447-0 01 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY 		8-97428-266-0 02 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY 		8-97428-268-0 01 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK 		8-97428-249-0 02 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK 		8-97428-251-0 01 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97428-212-0 02 1 1504- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97428-214-0 01 1 1504- ● ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-755-0 01 1 1504- ● ●
20 KNOB; RECLINING DEVICE
BLACK 		8-97429-756-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(G) 2ND BLACK 		8-97428-192-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK 		8-97428-193-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK 		8-97428-194-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK 		8-97428-195-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK 		8-97428-216-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK 		8-97428-217-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK 		8-97428-218-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK 		8-97428-219-0 01 1 1504- ● ●
22 COVER; RECLINING ADJ
THIRD ROW FOLDING TUMBLE SEAT<8PH> (E) 3RD BLACK 		8-97428-149-0 02 1 1504- ● ●
22 COVER; RECLINING ADJ
THIRD ROW FOLDING TUMBLE SEAT<8PH> (F) 3RD BLACK 		8-97428-150-0 02 1 1504- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) 		8-98253-645-0 02 1 1504- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) 		8-98271-947-0 02 1 1504- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) 		8-98271-948-0 02 1 1504- ● ●
56 WIRE; RELEASE,RR SEAT
(A) 		8-98253-644-0 02 1 1504- ● ●
56 WIRE; RELEASE,RR SEAT
(B) 		8-98271-613-0 02 1 1504- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT 8-98255-645-0 02 1 1504- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 27 1 1504- ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 29 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK 		8-97428-205-0 03 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK 		8-97429-754-0 03 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT FREE BLACK 		8-97428-147-0 02 1 1504- ● ●
227 HOLDER; GUIDE,RR HD REST
THIRD ROW FOLDING TUMBLE SEAT<8PH> 3RD SEAT LOCK BLACK 		8-97428-148-0 02 1 1504- ● ●
232 SCREW; RR SEAT 8-98253-634-0 04 1 1504- ● ●
238 COVER; LEG
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97424-474-1 04 1 1504- ● ●
272 SCREW; COVER 8-98253-634-0 11 1 1504- ● ●
286 COVER; HINGE 8-98253-646-0 06 1 1504- ● ●
287 SCREW; COVER 8-98253-634-0 06 1 1504- ● ●
299 BOLT; LEG 8-98253-643-0 08 1 1504- ● ●
309 CLIP; SEAT 8-98220-048-0 02 1 1504- ● ●
331 RING; SNAP,PIN 8-98271-945-0 02 1 1504- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK 		8-97428-206-0 02 1 1504- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-923-0 01 1 1504- ● ●
333 LEVER ASM; RR SEAT
(B) 		8-98271-924-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-647-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(A) 		8-98253-648-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-616-0 01 1 1504- ● ●
335 LINK ASM; RR SEAT
(B) 		8-98271-617-0 01 1 1504- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-198-0 01 1 1504- ● ●
362 COVER; REAR SEAT LATCH
BLACK 		8-97428-199-0 01 1 1504- ● ●
397 CABLE; SEAT
(A) 		8-98253-553-0 01 1 1504- ● ●
397 CABLE; SEAT
(A) 		8-98253-554-0 01 1 1504- ● ●
397 CABLE; SEAT
(B) 		8-98253-601-0 02 1 1504- ● ●
413 COVER; TETHER
BLACK 		8-97428-208-0 03 1 1504- ● ●
414 INSULATOR; RR SEAT BACK 8-98253-631-0 02 1 1504- ● ●

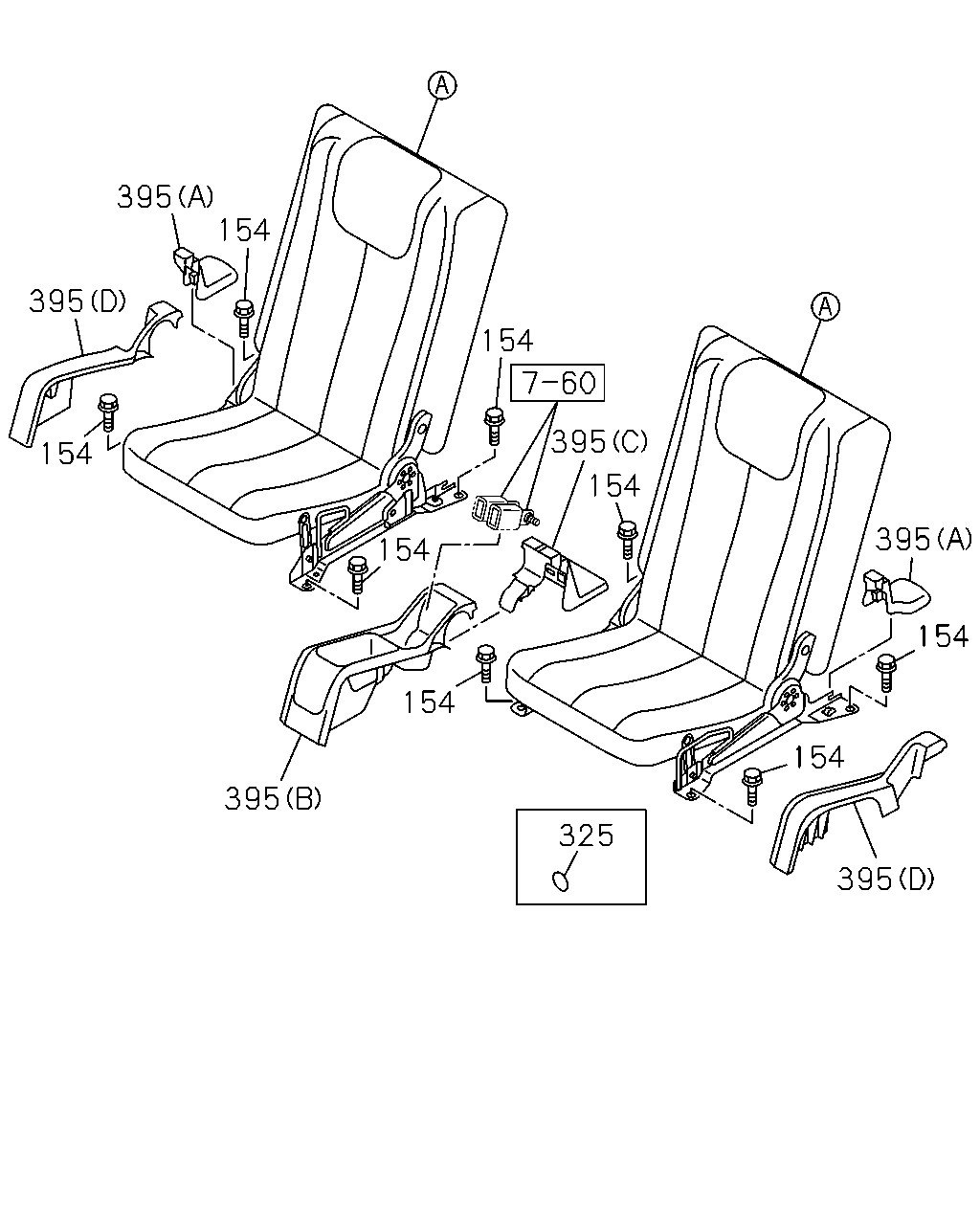

çizim 472041
395 154 154 395 325 154 154 154 154 395 395 395 395 154 154
BalonParca AdiParca NoAdetTipApplied Date A B
154 BOLT; STRIKER TO FLOOR
THIRD ROW FOLDING TUMBLE SEAT<8PH> M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1504- ● ●
325 PLUG; RR SEAT
EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> OD=25 BLACK CHI 		1-76798-019-0 04 1 1504- ● ●
325 PLUG; RR SEAT
EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> CHI 		8-98221-542-0 02 1 1504- ● ●
395 COVER; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> (A) BLACK 		8-97424-468-3 01 1 1504- ● ●
395 COVER; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> (A) BLACK 		8-97424-469-3 01 1 1504- ● ●
395 COVER; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) BLACK 		8-97424-470-2 01 1 1504- ● ●
395 COVER; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> (C) BLACK 		8-97424-471-2 01 1 1504- ● ●
395 COVER; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> (D) BLACK 		8-97424-472-2 01 1 1504- ● ●
395 COVER; 3RD SEAT
THIRD ROW FOLDING TUMBLE SEAT<8PH> (D) BLACK 		8-97424-473-2 01 1 1504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
