◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#160465) — 8 parça

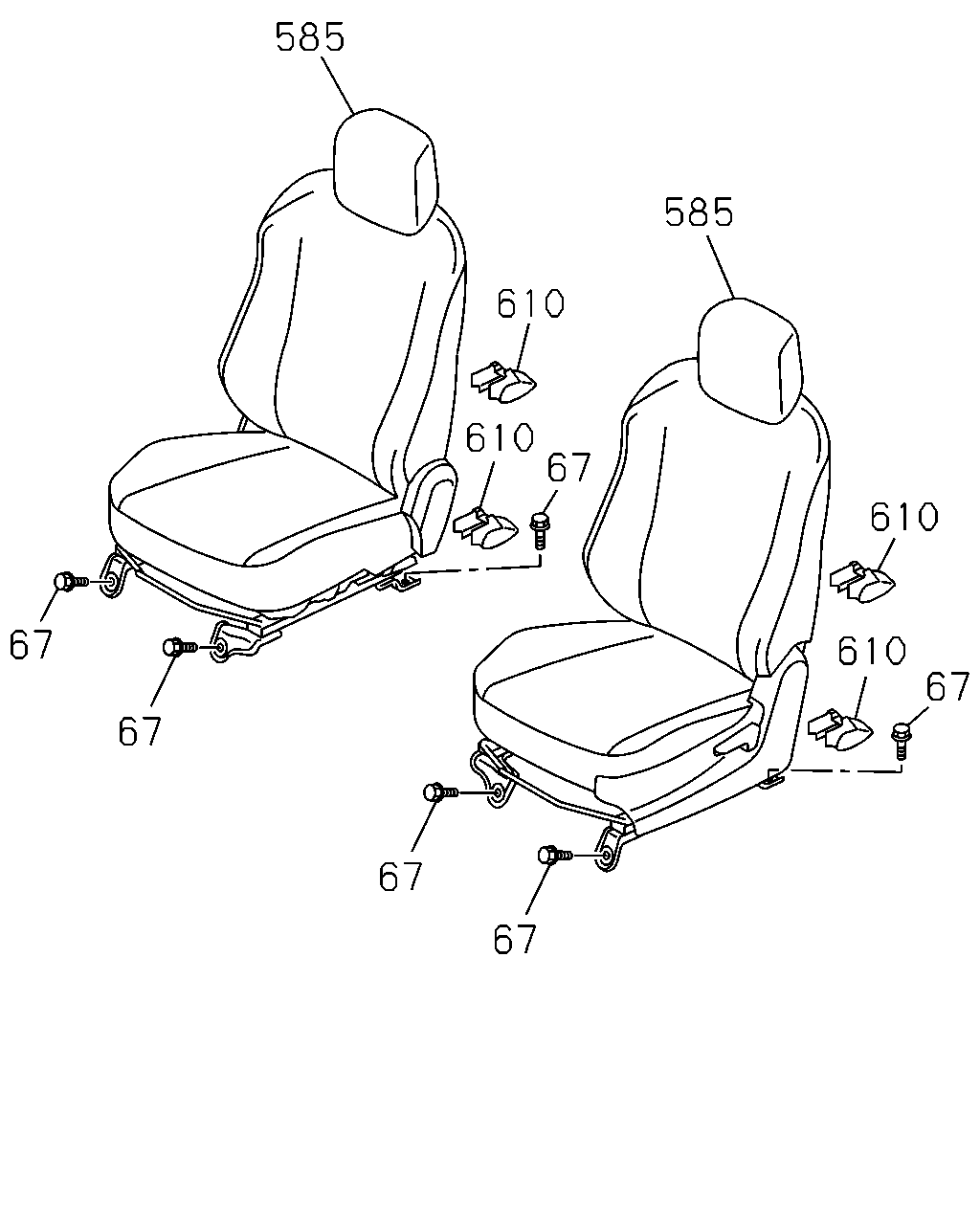

çizim 471683
67 67 67 67 67 610 610 585 610 610 67 585
BalonParca AdiParca NoAdetTipApplied Date A B
67 BOLT; FRT SEAT TO BODY
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1504- ● ●
585 SEAT ASM
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> CHI 		8-97429-718-0 01 1 1504- ● ●
585 SEAT ASM
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> CHI 		8-97429-721-0 01 1 1504- ● ●
585 SEAT ASM
FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> CHI 		8-97429-719-0 01 1 1504- ● ●
585 SEAT ASM
FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> CHI 		8-97429-722-0 01 1 1504- ● ●
585 SEAT ASM
FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> CHI 		8-97429-720-0 01 1 1504- ● ●
585 SEAT ASM
FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> CHI 		8-97429-723-0 01 1 1504- ● ●
610 COVER; LEG,FRT SEAT
BLACK 		8-97416-785-4 04 1 1504- ● ●
