7-43 — SUN VISOR AND ASSIST GRIP (#160463) — 21 parça

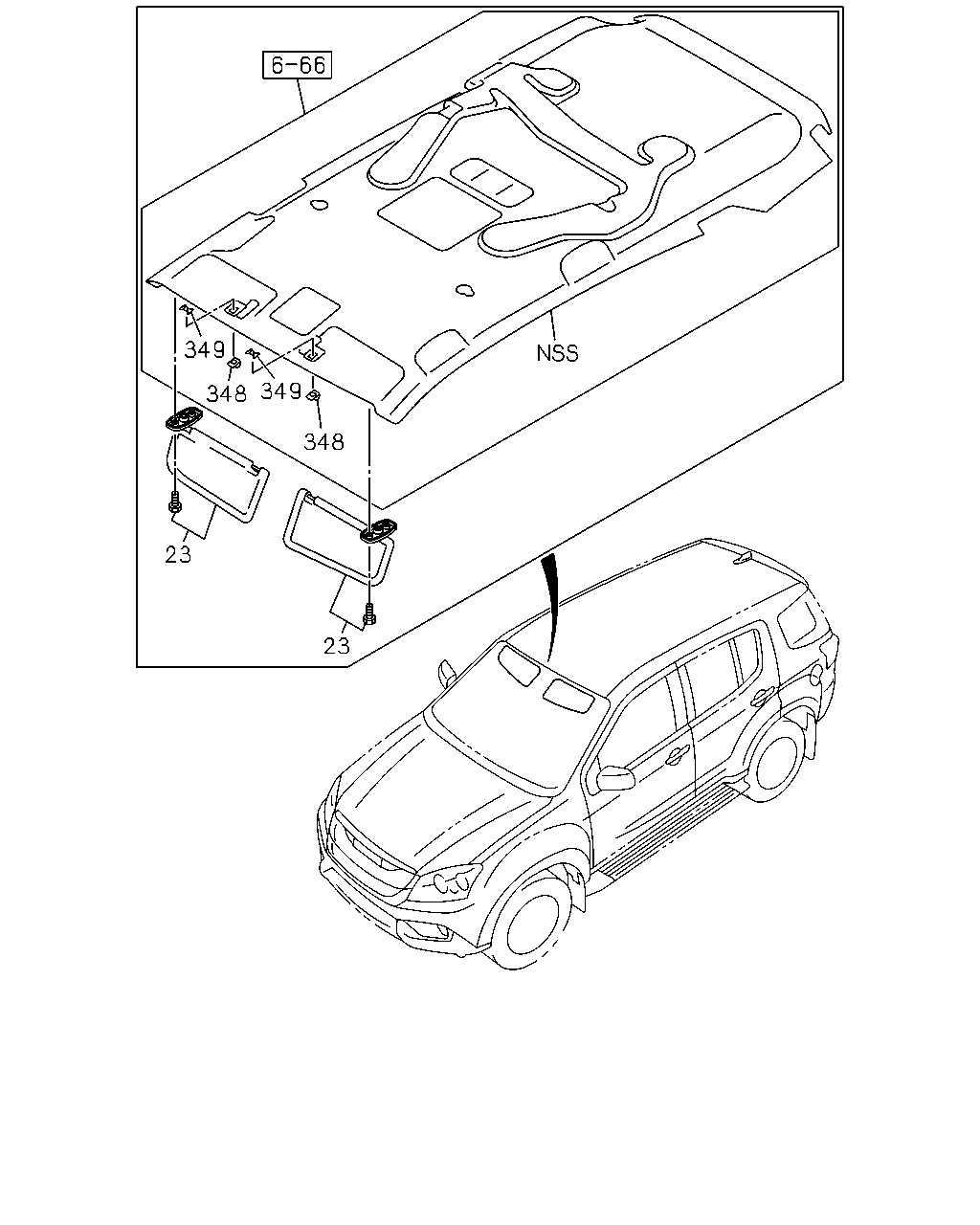

çizim 471247
349 348 349 348 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
GRAY 		8-97417-449-2 01 1 1504- ●
23 SUN VISOR
GRAY CHI 		8-97429-715-0 01 1 1504- ● ●
23 SUN VISOR
GRAY 		8-97417-453-2 01 1 1504- ●
348 RETAINER; SUNSHADE
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97403-990-0 02 1 1504- ● ●
349 CLIP; RETAINER SUNSHADE
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-97307-749-0 02 1 1504- ● ●

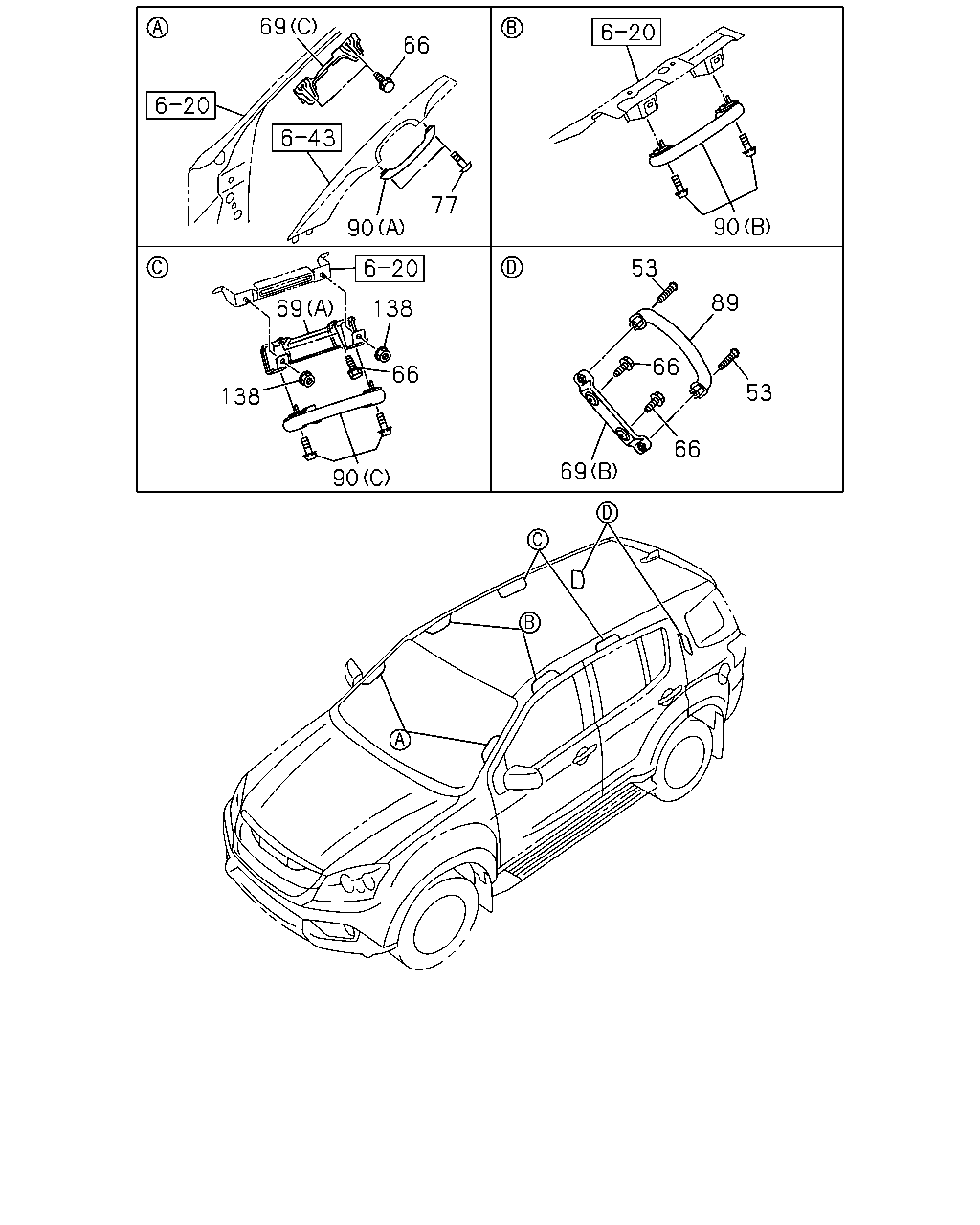

çizim 471666
69 66 53 66 89 53 90 90 66 138 69 138 90 77 66 69
BalonParca AdiParca NoAdetTipApplied Date A B
53 SCREW; ASSIST HANDLE
THIRD ROW FOLDING TUMBLE SEAT<8PH> M6X32 		8-97811-323-0 04 1 1504- ● ●
66 BOLT; ASSIST GRIP BRKT
THIRD ROW FOLDING TUMBLE SEAT<8PH> M6X16 FLANGE 		8-98050-320-0 04 1 1504- ● ●
66 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 08 1 1504- ● ●
66 BOLT; ASSIST GRIP BRKT
EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1504- ● ●
69 BRACKET; ASSIST GRIP
THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) 		8-98198-281-0 01 1 1504- ● ●
69 BRACKET; ASSIST GRIP
THIRD ROW FOLDING TUMBLE SEAT<8PH> (B) 		8-98198-282-0 01 1 1504- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98198-262-0 02 1 1504- ● ●
69 BRACKET; ASSIST GRIP
(C) 		8-98220-691-0 01 1 1504- ● ●
69 BRACKET; ASSIST GRIP
(C) 		8-98220-692-0 01 1 1504- ● ●
77 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1504- ● ●
89 HANDLE; ASSIST
THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY 		8-97424-381-0 02 1 1504- ● ●
90 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1504- ● ●
90 GRIP; ASSIST,ROOF
(B) GRAY 		8-97419-356-5 02 1 1504- ● ●
90 GRIP; ASSIST,ROOF
(C) GRAY 		8-97419-357-6 01 1 1504- ● ●
90 GRIP; ASSIST,ROOF
(C) GRAY 		8-97423-347-4 01 1 1504- ● ●
138 NUT; BRKT,HEADER SHELF
M6 FLANGE 		0-91180-106-0 04 1 1504- ● ●
