Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

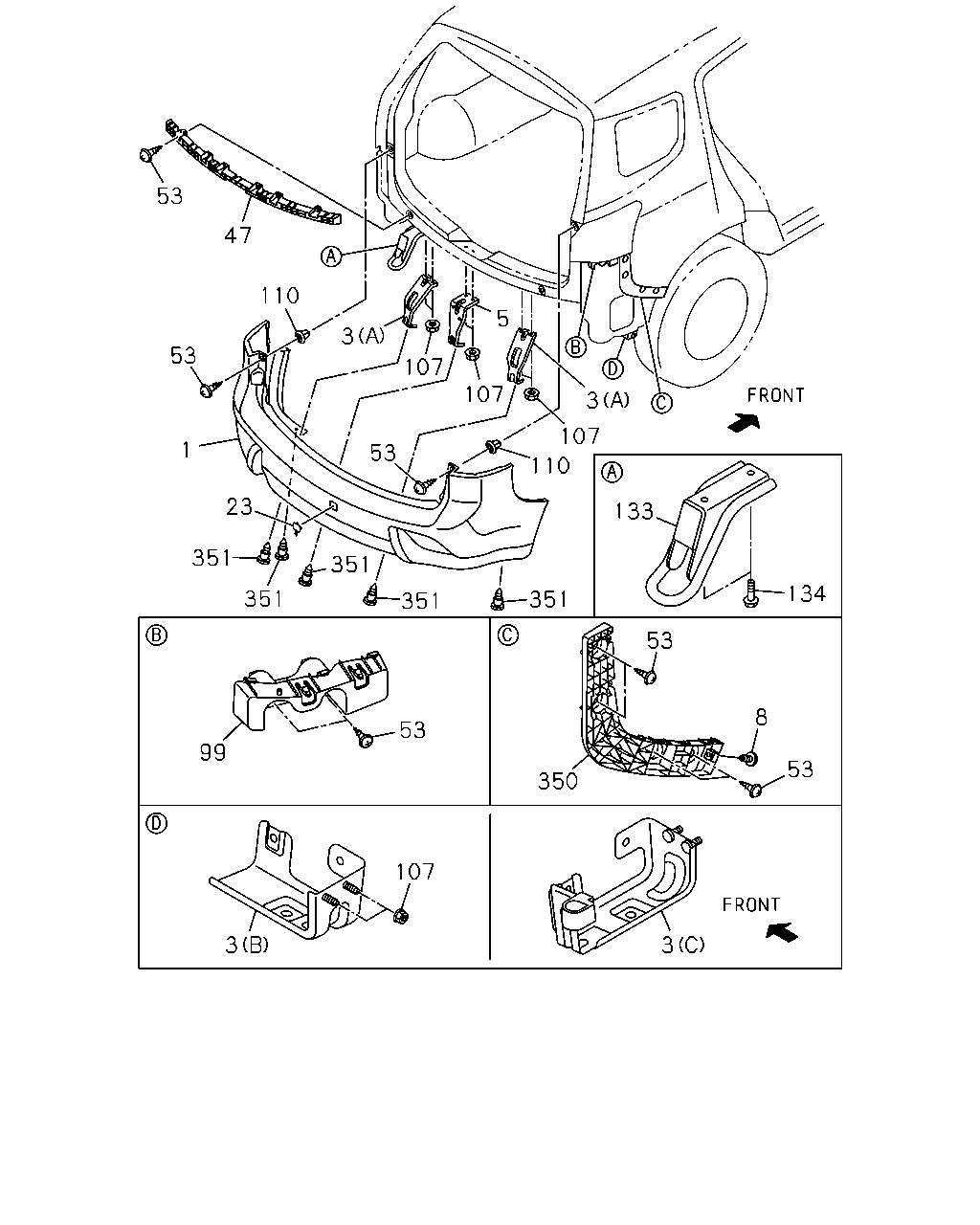

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#160456) — 18 parça
Tümü
A - UCB6VC
B - UCS6VC
53
47
110
3
53
107
5
107
3
107
110
1
23
351
351
351
351
53
351
133
134
53
8
53
350
53
99
107
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
PRIMER
8-98249-952-0
01
1
1504-
●
●
3
BRACKET; BUMPER
(A)
8-98189-786-0
02
1
1504-
●
●
3
BRACKET; BUMPER
(B)
8-98189-903-0
01
1
1504-
●
●
3
BRACKET; BUMPER
(C)
8-98250-619-0
01
1
1504-
●
●
5
SUPPORT; RR BUMPER
8-98189-785-0
01
1
1504-
●
●
8
BOLT; RR SIDE BUMPER
M6X20 TAPPING W/PL WASHER
8-98167-444-0
02
1
1504-
●
●
23
COVER; RR BUMPER,HOLE
PRIMER
8-98249-953-0
01
1
1504-
●
●
47
RETAINER; BUMPER RR CENTER
8-98188-351-2
01
1
1504-
●
●
53
BOLT; BUMPER SUPPORT
M6X16 TAPPING W/PL WASHER
0-74160-616-0
20
1
1504-
●
●
99
RETAINER; RR BUMPER,UPR
8-98188-352-2
01
1
1504-
●
●
99
RETAINER; RR BUMPER,UPR
8-98188-353-2
01
1
1504-
●
●
107
NUT; SUPPORT
M6 FLANGE
0-91180-106-0
10
1
1504-
●
●
110
GROMMET; BUMPER
8-97801-635-1
02
1
1504-
●
●
133
HOOK
8-98253-334-0
01
1
1504-
●
●
134
BOLT; HOOK
M10X30 FLANGE
0-28661-030-0
02
1
1504-
●
●
350
RETAINER; BUMPER RR LWR
8-98188-354-2
01
1
1504-
●
●
350
RETAINER; BUMPER RR LWR
8-98188-355-2
01
1
1504-
●
●
351
RETAINER; BUMPER SUPPORT
8-97301-188-0
05
1
1504-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
