6-81 — BACK DOOR AND HINGE (#160450) — 20 parça

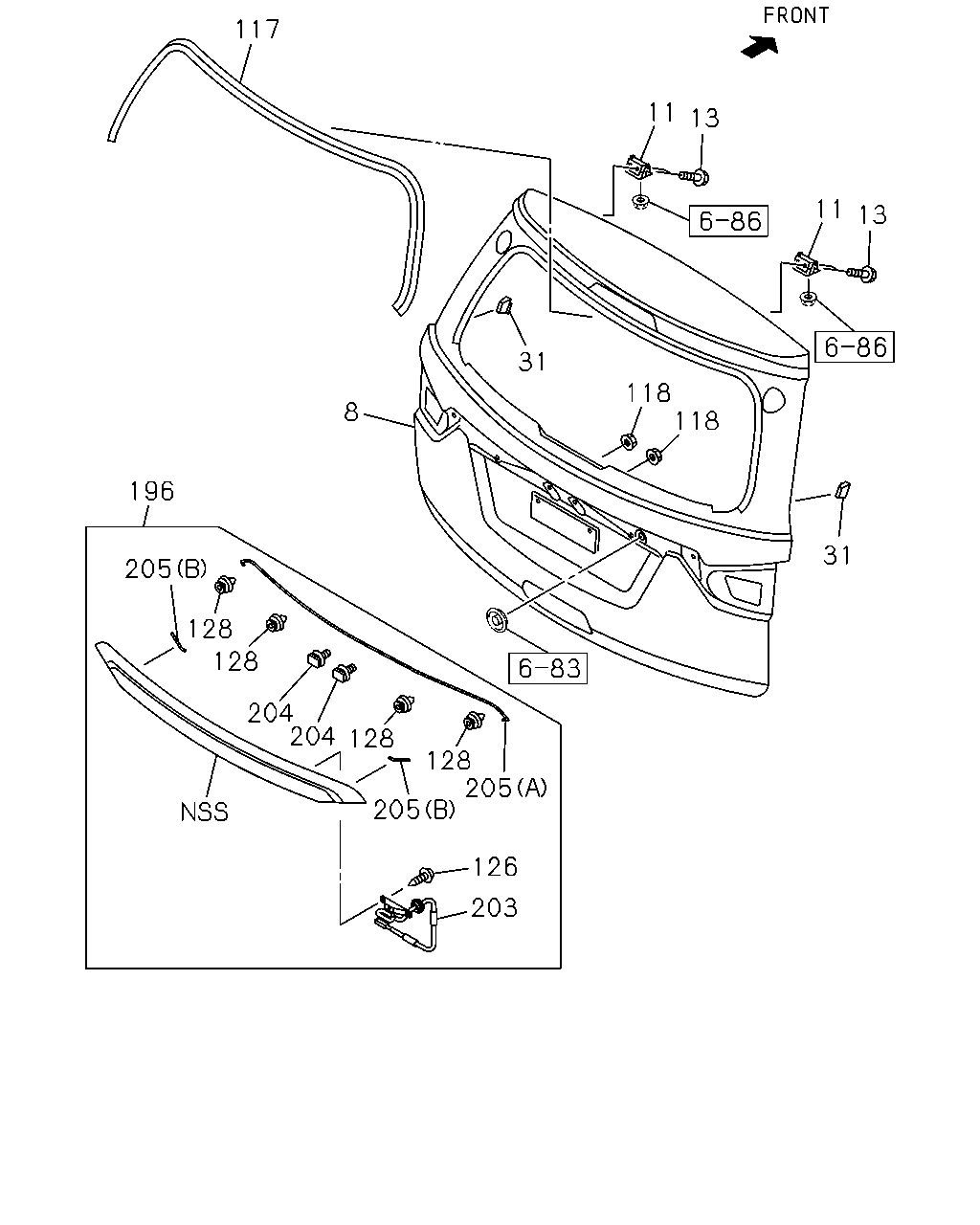

çizim 471664
117 8 196 31 118 118 31 11 13 13 11 128 205 205 126 203 128 204 204 128 128 205
BalonParca AdiParca NoAdetTipApplied Date A B
8 PANEL; TAIL GATE 8-98208-954-2 01 1 1504- ● ●
11 HINGE; TAIL GATE 8-98189-934-0 01 1 1504- ● ●
11 HINGE; TAIL GATE 8-98189-935-0 01 1 1504- ● ●
13 BOLT; HINGE TO TAIL GATE
M8X20 FLANGE 		0-28650-820-0 04 1 1504- ● ●
31 BUFFER; BACK DOOR 8-98239-418-0 01 1 1504- ● ●
31 BUFFER; BACK DOOR 8-98239-419-0 01 1 1504- ● ●
117 GARNISH 8-98200-429-2 01 1 1504- ● ●
118 NUT; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> M6 FLANGE 		8-97065-431-0 02 1 1504- ● ●
126 SCREW; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3> M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1504- ● ●
128 CLIP; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 		8-97359-942-0 04 1 1504- ● ●
196 MOLDING; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98220-291-2 01 1 1504-1511 ● ●
196 MOLDING; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> CHI 		8-98295-831-0 01 1 1512- ● ●
196 MOLDING; TAIL GATE
REMOTE CONT DOOR LOCK<AP5> 		8-98188-916-2 01 1 1504-1511 ● ●
196 MOLDING; TAIL GATE
REMOTE CONT DOOR LOCK<AP5> CHI 		8-98295-830-0 01 1 1512- ● ●
203 SWITCH; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98190-563-2 01 1 1504- ● ●
204 STUD; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 		8-98250-593-0 02 1 1504- ● ●
205 SPONGE; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) 		8-98250-590-0 01 1 1504-1511 ● ●
205 SPONGE; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) CHI 		8-98296-179-0 01 1 1512- ● ●
205 SPONGE; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) 		8-98250-591-0 02 1 1504-1511 ● ●
205 SPONGE; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) CHI 		8-98296-180-0 02 1 1512- ● ●
