6-78 — FLOOR HOLE PLUG (#160448) — 17 parça

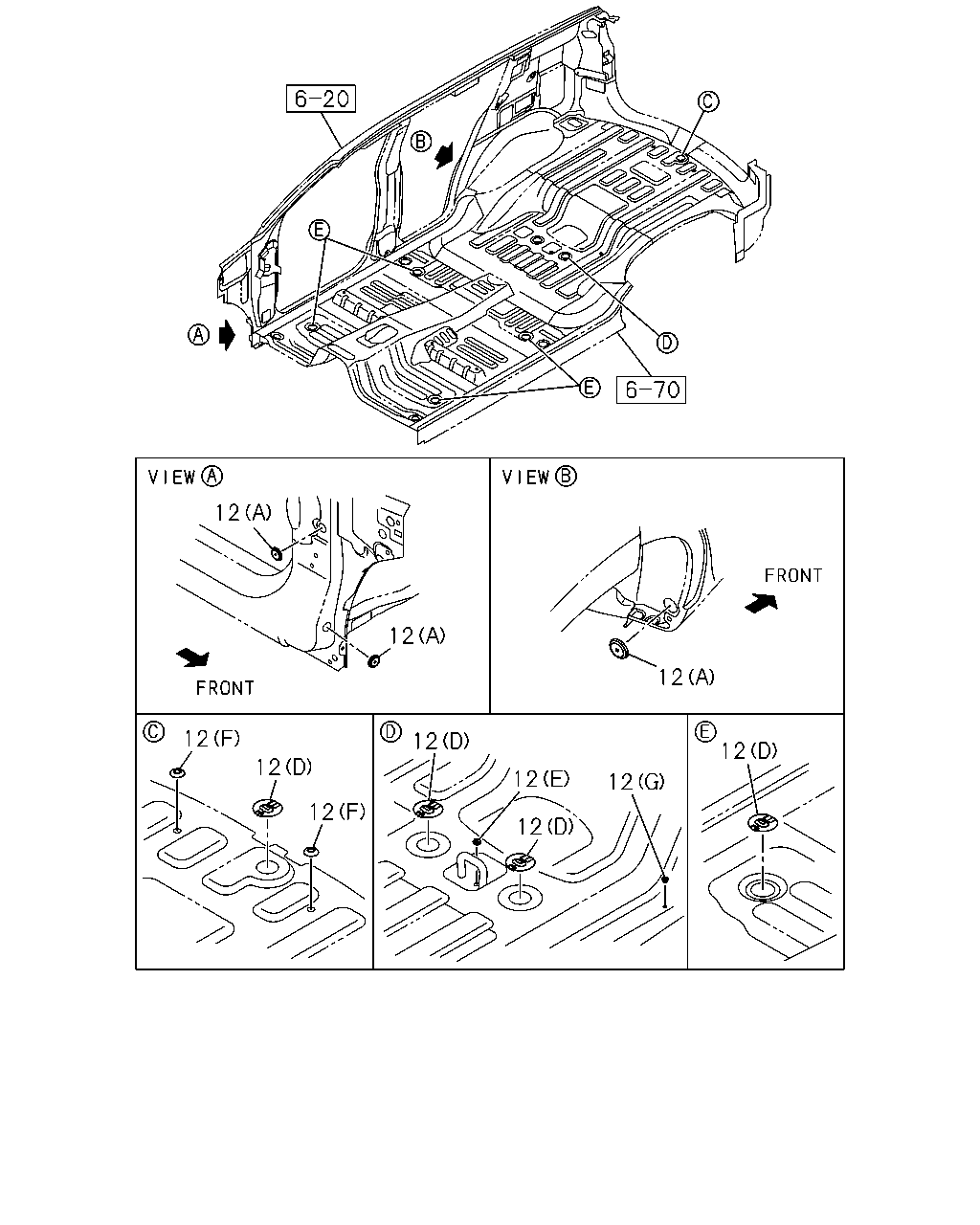

çizim 471186

12 12 12 12 12 12 12 12 12 12 12

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	12	GROMMET; DRAIN HOLE,ROCKER RR (B) OD=15.0 CHI	8-94279-040-0	04	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (C) OD=35	8-97320-908-0	10	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (D)	8-97324-563-0	07	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (E)	8-98233-151-0	01	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (F)	8-98233-595-1	02	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (G) OD=12 CHI	9-09956-122-0	01	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35	8-97320-908-0	06	1	1504-	●	●

çizim 471836

12 12

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	12	GROMMET; DRAIN HOLE,ROCKER RR (B) OD=15.0 CHI	8-94279-040-0	04	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (C) OD=35	8-97320-908-0	10	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (D)	8-97324-563-0	07	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (E)	8-98233-151-0	01	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (F)	8-98233-595-1	02	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (G) OD=12 CHI	9-09956-122-0	01	1	1504-	●	●
	12	GROMMET; DRAIN HOLE,ROCKER RR (A) OD=35	8-97320-908-0	06	1	1504-	●	●

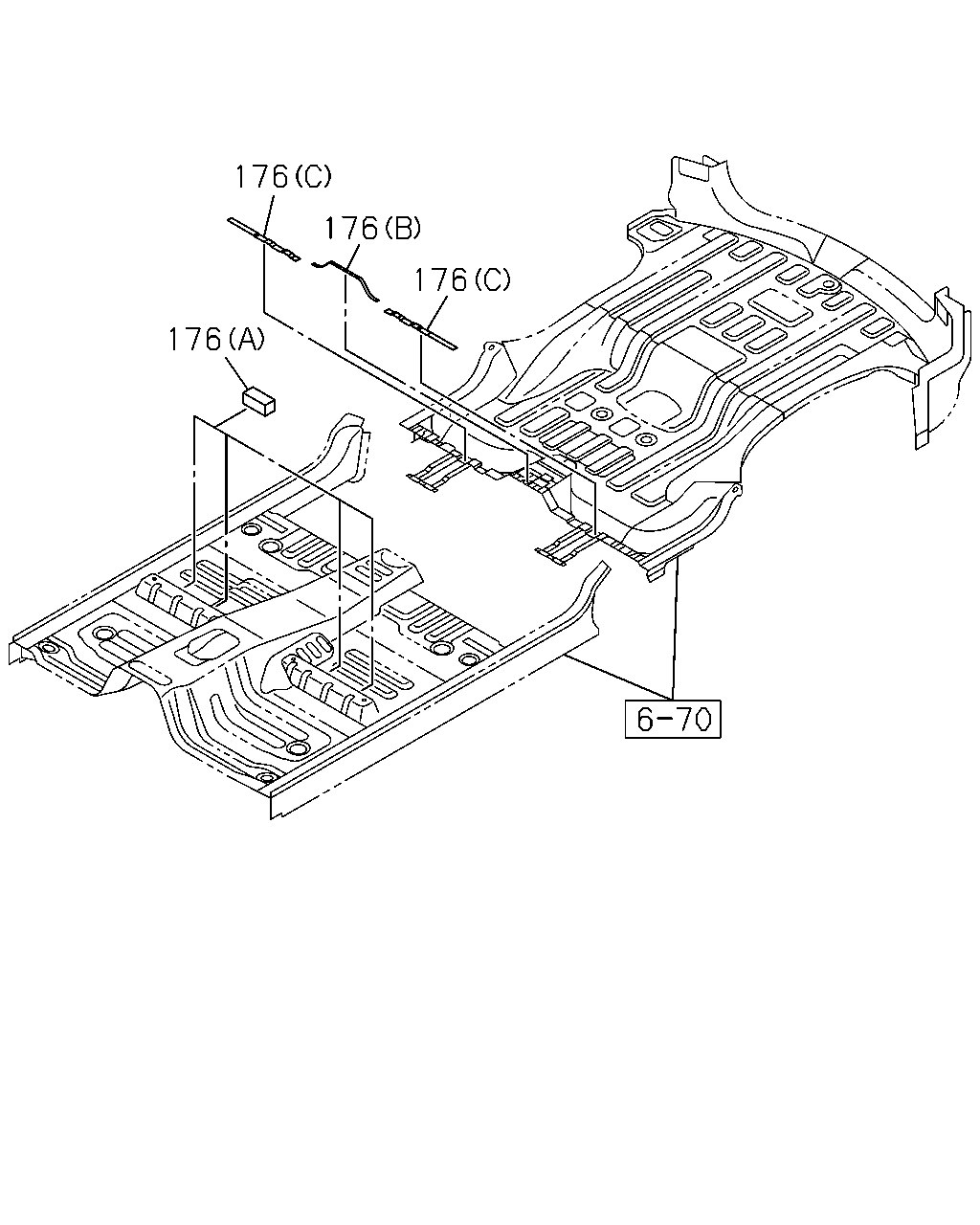

çizim 472077

176 176 176 176

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	176	SEAL; FLOOR PANEL (B)	8-94336-915-0	01	1	1504-	●	●
	176	SEAL; FLOOR PANEL (C)	8-98178-885-0	02	1	1504-	●	●
	176	SEAL; FLOOR PANEL (A)	8-98244-503-0	04	1	1504-	●	●
