◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#160445) — 45 parça

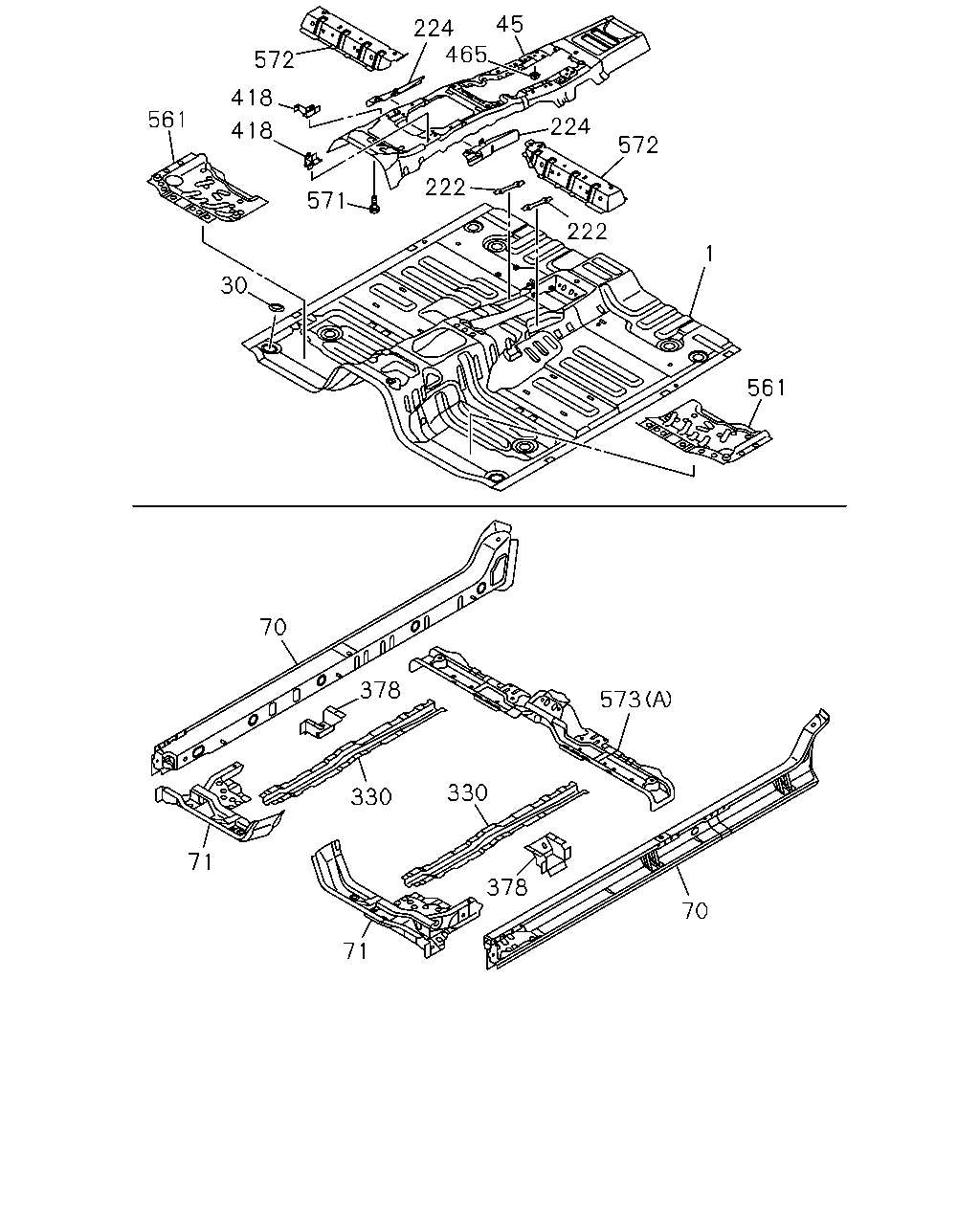

çizim 471553
70 378 330 330 71 378 70 71 573 561 1 222 572 224 45 465 224 222 571 418 418 572 561 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-98199-516-0 01 1 1504- ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1504- ● ●
45 REINFORCEMENT; TUNNEL,FRT 8-98101-032-5 01 1 1504- ● ●
70 PANEL; ROCKER INNER 8-98198-996-0 01 1 1504- ● ●
70 PANEL; ROCKER INNER 8-98198-998-0 01 1 1504- ● ●
71 BRACKET; CAB MTG,CENTER 8-98199-785-3 01 1 1504- ● ●
71 BRACKET; CAB MTG,CENTER 8-98199-786-3 01 1 1504- ● ●
222 PATCH; BRKT 8-98136-850-0 02 1 1504- ● ●
224 PATCH; FLOOR PANEL FRT
A/T 5 SPEED-AISIN(MA1) 		8-98241-943-0 01 1 1504- ● ●
224 PATCH; FLOOR PANEL FRT
A/T 5 SPEED-AISIN(MA1) 		8-98241-944-0 01 1 1504- ● ●
330 REINFORCEMENT; FLOOR 8-98199-922-1 02 1 1504- ● ●
378 GASSET; LWR 8-98101-037-0 02 1 1504- ● ●
418 BRACKET; CONSOLE 8-98110-695-0 01 1 1504- ● ●
418 BRACKET; CONSOLE 8-98110-696-0 01 1 1504- ● ●
465 NUT; REINFORCEMENT
M6 		9-09114-086-0 06 1 1504- ● ●
561 REINFORCEMENT; FLOOR FRT 8-98199-929-0 01 1 1504- ● ●
561 REINFORCEMENT; FLOOR FRT 8-98199-930-0 01 1 1504- ● ●
571 STUD
M6X18 		8-98154-159-0 07 1 1504- ● ●
572 SILL; FLOOR,FRT 8-98101-019-3 01 1 1504- ● ●
572 SILL; FLOOR,FRT 8-98101-020-3 01 1 1504- ● ●
573 SILL; FLOOR,RR
(A) 		8-98220-501-1 01 1 1504- ● ●
573 SILL; FLOOR,RR
(B) 		8-98199-823-1 01 1 1504- ● ●
573 SILL; FLOOR,RR
(C) 		8-98199-825-0 01 1 1504- ● ●
573 SILL; FLOOR,RR
(D) 		8-98199-826-1 01 1 1504- ● ●
573 SILL; FLOOR,RR
(E) 		8-98199-827-2 01 1 1504- ● ●
573 SILL; FLOOR,RR
(F) 		8-98207-470-3 01 1 1504- ● ●

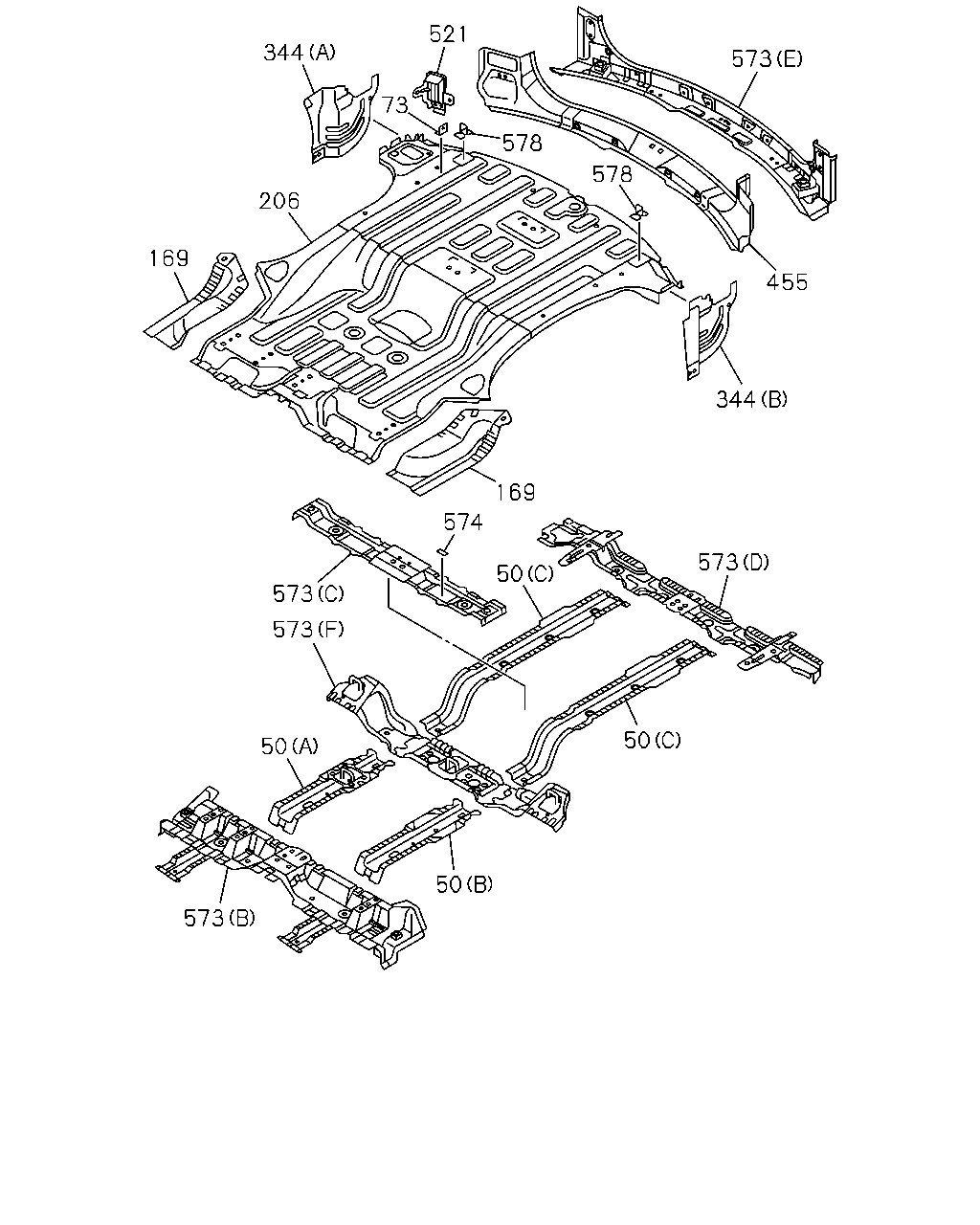

çizim 471569
50 50 573 169 50 574 573 573 50 573 344 455 573 578 578 521 73 344 206 169
BalonParca AdiParca NoAdetTipApplied Date A B
50 RAIL; FLOOR PANEL
(A) 		8-98199-880-3 01 1 1504- ● ●
50 RAIL; FLOOR PANEL
(B) 		8-98199-881-1 01 1 1504- ● ●
50 RAIL; FLOOR PANEL
(C) 		8-98199-882-1 02 1 1504- ● ●
73 BRACKET; SUPPORT,FLOOR PANEL 8-98200-372-0 01 1 1504- ● ●
169 EXTENSION 8-98199-809-0 01 1 1504- ● ●
169 EXTENSION 8-98199-810-0 01 1 1504- ● ●
206 PANEL; FLOOR BOARD RR
CHI 		8-98199-512-5 01 1 1504- ● ●
344 BRACKET; FRT PNL SIDE,LWR
(A) 		8-98199-514-1 01 1 1504- ● ●
344 BRACKET; FRT PNL SIDE,LWR
(B) 		8-98199-515-1 01 1 1504- ● ●
455 BAR; RR FLOOR 8-98199-473-1 01 1 1504- ● ●
521 BRACKET; RR STORAGE 8-98207-966-0 01 1 1504- ● ●
573 SILL; FLOOR,RR
(A) 		8-98220-501-1 01 1 1504- ● ●
573 SILL; FLOOR,RR
(B) 		8-98199-823-1 01 1 1504- ● ●
573 SILL; FLOOR,RR
(C) 		8-98199-825-0 01 1 1504- ● ●
573 SILL; FLOOR,RR
(D) 		8-98199-826-1 01 1 1504- ● ●
573 SILL; FLOOR,RR
(E) 		8-98199-827-2 01 1 1504- ● ●
573 SILL; FLOOR,RR
(F) 		8-98207-470-3 01 1 1504- ● ●
574 TAPE; ADHESIVE 8-98229-444-0 04 1 1504- ● ●
578 LOOP 8-98199-860-0 02 1 1504- ● ●
