◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#160444) — 20 parça

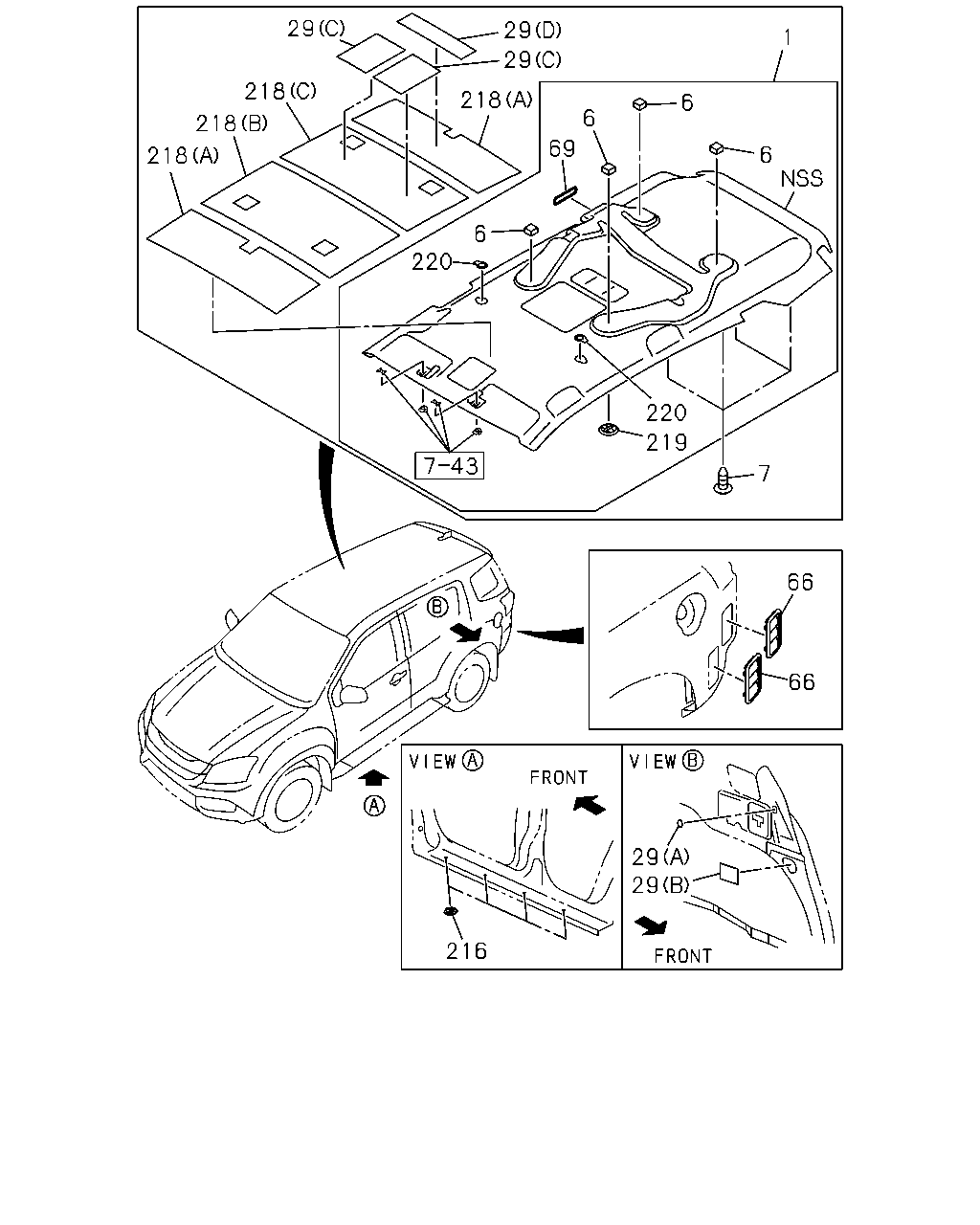

çizim 471530
1 6 6 6 69 29 29 218 29 218 218 218 6 220 220 219 7 66 66 29 29 216
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY 		8-97424-375-5 01 1 1504- ● ●
1 LINING; HD
6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY 		8-97424-374-5 01 1 1504- ● ●
1 LINING; HD
2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97424-376-5 01 1 1504- ● ●
1 LINING; HD
8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY 		8-97424-377-5 01 1 1504- ● ●
6 SPACER; HD LINING
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98244-491-0 04 1 1504- ● ●
7 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 04 1 1504- ● ●
29 DEADENER; ROOF PANEL
(A) 		8-98244-526-0 02 1 1504- ● ●
29 DEADENER; ROOF PANEL
(B) 		8-98244-527-0 02 1 1504- ● ●
29 DEADENER; ROOF PANEL
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) (C) 		8-98253-366-0 02 1 1504-1508 ●
29 DEADENER; ROOF PANEL
(C) 		8-98253-366-0 02 1 1509- ● ●
29 DEADENER; ROOF PANEL
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) (D) 		8-98253-367-0 01 1 1504-1508 ●
29 DEADENER; ROOF PANEL
(D) 		8-98253-367-0 01 1 1509- ● ●
66 GRILLE; AIR OUTLET 8-98190-079-2 02 1 1504- ● ●
69 SEAL; AIR OUTLET DUCT
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98226-169-0 01 1 1504- ● ●
216 GROMMET; HOLE
OD=19 		8-97365-823-0 08 1 1504- ● ●
218 INSULATOR; ROOF
(A) 		8-98228-817-3 02 1 1504- ● ●
218 INSULATOR; ROOF
(B) 		8-98228-818-3 01 1 1504- ● ●
218 INSULATOR; ROOF
(C) 		8-98228-819-3 01 1 1504- ● ●
219 GRILLE; RR COOLER
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97425-070-0 04 1 1504- ● ●
220 BRACKET; SPEAKER
8-SPEAKER SYSTEM CUSTOM<U87> 		8-98128-570-0 02 1 1504- ● ●
