Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

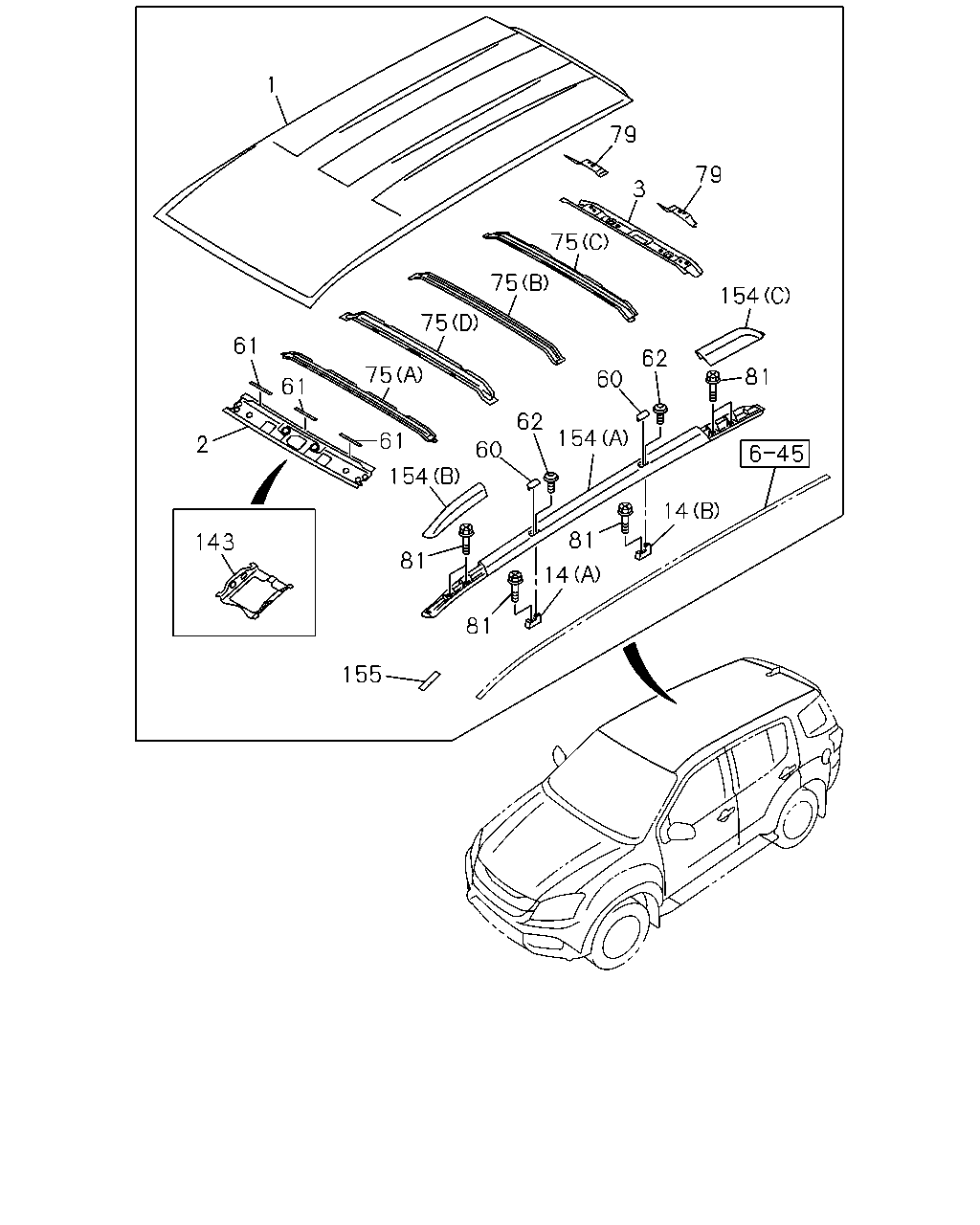

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#160443) — 27 parça
Tümü
A - UCB6VC
B - UCS6VC
1
79
79
3
75
75
75
75
154
62
60
81
154
62
60
154
61
61
61
2
143
81
81
155
81
14
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
ROOF RAIL<7LC>
8-98198-969-1
01
1
1504-
●
●
1
PANEL; ROOF
EXC. ROOF RAIL<7LC>
8-98248-353-1
01
1
1504-
●
●
2
PANEL; ROOF,CENTER
8-98103-964-5
01
1
1504-
●
●
3
PANEL; ROOF,RR
8-98198-975-0
01
1
1504-
●
●
14
SUPPORT; ROOF
ROOF RAIL<7LC> (A)
8-98234-873-1
01
1
1504-
●
●
14
SUPPORT; ROOF
ROOF RAIL<7LC> (A)
8-98234-874-1
01
1
1504-
●
●
14
SUPPORT; ROOF
ROOF RAIL<7LC> (B)
8-98234-875-1
01
1
1504-
●
●
14
SUPPORT; ROOF
ROOF RAIL<7LC> (B)
8-98234-876-1
01
1
1504-
●
●
60
COVER; ROOF
ROOF RAIL<7LC> SILVER
8-97425-942-0
04
1
1504-
●
●
61
SEAL; ROOF COVER
8-98207-100-0
03
1
1504-
●
●
62
BOLT; ROOF COVER
ROOF RAIL<7LC>
8-98241-842-0
04
1
1504-
●
●
75
BOW; ROOF
(A)
8-98199-000-1
01
1
1504-
●
●
75
BOW; ROOF
(B)
8-98199-025-1
01
1
1504-
●
●
75
BOW; ROOF
(C)
8-98199-031-1
01
1
1504-
●
●
75
BOW; ROOF
(D)
8-98204-987-0
01
1
1504-
●
●
79
REINFORCEMENT; ROOF PANEL,RR
8-98198-980-0
01
1
1504-
●
●
79
REINFORCEMENT; ROOF PANEL,RR
8-98198-981-0
01
1
1504-
●
●
81
BOLT; ROOF
ROOF RAIL<7LC> M8X42 W/PL WASHER
8-98247-037-0
12
1
1504-
●
●
143
BRACKET; CONSOLE
8-98103-962-1
01
1
1504-
●
●
154
RAIL; ROOF
ROOF RAIL<7LC> (A) DARK GRAY
8-97425-931-2
01
1
1504-
●
●
154
RAIL; ROOF
ROOF RAIL<7LC> (A) DARK GRAY
8-97425-933-2
01
1
1504-
●
●
154
RAIL; ROOF
ROOF RAIL<7LC> (B) DARK GRAY
8-97425-935-1
01
1
1504-
●
●
154
RAIL; ROOF
ROOF RAIL<7LC> (B) DARK GRAY
8-97425-937-1
01
1
1504-
●
●
154
RAIL; ROOF
ROOF RAIL<7LC> (C) DARK GRAY
8-97425-939-1
01
1
1504-
●
●
154
RAIL; ROOF
ROOF RAIL<7LC> (C) DARK GRAY
8-97425-941-1
01
1
1504-
●
●
155
EXTENSION
ROOF RAIL<7LC>
8-98234-877-2
01
1
1504-
●
●
155
EXTENSION
ROOF RAIL<7LC>
8-98234-878-2
01
1
1504-
●
●
