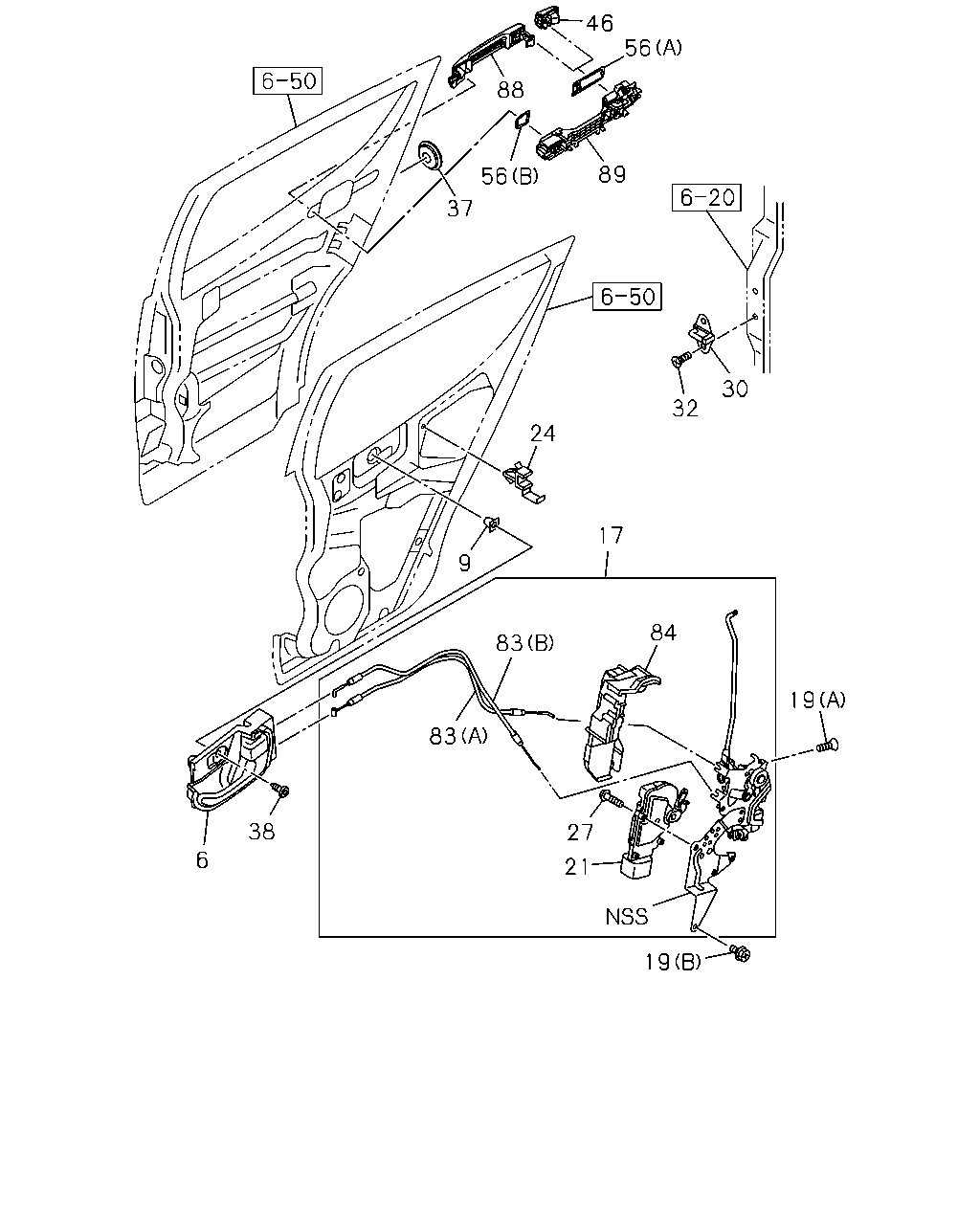

6-52 — REAR DOOR LOCK AND HANDLE (#160441) — 42 parça

46 56 88 56 89 37 30 32 24 9 17 6 38 83 83 84 19 27 21 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BEZEL; INSIDE HANDLE,DOOR LOCK BLACK	8-97416-730-3	01	1	1504-	●	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK BLACK	8-97416-732-3	01	1	1504-	●	●
9	GROMMET; SCREW,INSIDE HANDLE	8-94152-494-0	02	1	1504-	●	●
17	LOCK; DOOR,RR DOOR PASSIVE ENTRY AND START SYSTEM<AP3>	8-98190-064-1	01	1	1506-	●	●
17	LOCK; DOOR,RR DOOR PASSIVE ENTRY AND START SYSTEM<AP3>	8-98190-065-1	01	1	1506-	●	●
17	LOCK; DOOR,RR DOOR	8-98190-062-1	01	1	1504-1505	●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK<AP5>	8-98190-062-1	01	1	1506-	●	●
17	LOCK; DOOR,RR DOOR	8-98190-063-1	01	1	1504-1505	●	●
17	LOCK; DOOR,RR DOOR REMOTE CONT DOOR LOCK<AP5>	8-98190-063-1	01	1	1506-	●	●
19	BOLT; RR DOOR LOCK (A) M6X14.5	8-98004-342-0	06	1	1504-1505	●	●
19	BOLT; RR DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) M6X14.5	8-98004-342-0	06	1	1506-	●	●
19	BOLT; RR DOOR LOCK (B) M6X8 FLANGE	8-98048-996-0	02	1	1504-1505	●	●
19	BOLT; RR DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) M6X8 FLANGE	8-98048-996-0	02	1	1506-	●	●
21	ACTUATOR; RR DOOR LOCK	8-98292-017-0	01	1	1504-1505	●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98292-017-0	01	1	1506-	●	●
21	ACTUATOR; RR DOOR LOCK	8-98292-018-0	01	1	1504-1505	●	●
21	ACTUATOR; RR DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98292-018-0	01	1	1506-	●	●
21	ACTUATOR; RR DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98292-019-0	01	1	1506-	●	●
21	ACTUATOR; RR DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>	8-98292-020-0	01	1	1506-	●	●
24	ANTIRATTLER; DOOR INSIDE HANDLE	8-97251-932-0	02	1	1504-	●	●
27	SCREW; RR DOOR LOCK	8-97349-997-0	04	1	1504-1505	●	●
27	SCREW; RR DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-97349-997-0	04	1	1506-	●	●
30	STRIKER; RR DOOR	8-98012-203-0	02	1	1504-	●	●
32	SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1504-	●	●
37	GROMMET; RR DOOR OD=26	8-94141-484-0	02	1	1504-	●	●
38	SCREW; INSIDE LEVER,RR DOOR LK M5X14 TAPPING	8-98184-363-0	02	1	1504-	●	●
46	COVER; OUTSIDE HANDLE PLATED	8-98176-465-1	02	1	1504-	●	●
56	GASKET; HANDLE,RR DOOR (A)	8-98176-466-0	02	1	1504-	●	●
56	GASKET; HANDLE,RR DOOR (B)	8-98176-467-2	02	1	1504-	●	●
83	CABLE ASM; LOCK CONTROL (B)	8-98248-211-0	01	1	1504-1505	●	●
83	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-98248-211-0	01	1	1506-	●	●
83	CABLE ASM; LOCK CONTROL (A)	8-98248-212-0	02	1	1504-1505	●	●
83	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-98248-212-0	02	1	1506-	●	●
83	CABLE ASM; LOCK CONTROL (B)	8-98248-213-0	01	1	1504-1505	●	●
83	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-98248-213-0	01	1	1506-	●	●
84	COVER; DOOR LOCK	8-97351-079-0	01	1	1504-1505	●	●
84	COVER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-97351-079-0	01	1	1506-	●	●
84	COVER; DOOR LOCK	8-97351-080-0	01	1	1504-1505	●	●
84	COVER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-97351-080-0	01	1	1506-	●	●
88	GRIP; RR DOOR PLATED	8-98176-458-0	02	1	1504-	●	●
89	BRACKET; GRIP,DOOR	8-98229-455-0	01	1	1504-	●	●
89	BRACKET; GRIP,DOOR	8-98229-456-0	01	1	1504-	●	●
