1-41 — FUEL PIPING; CHASSIS (#16044) — 25 parça

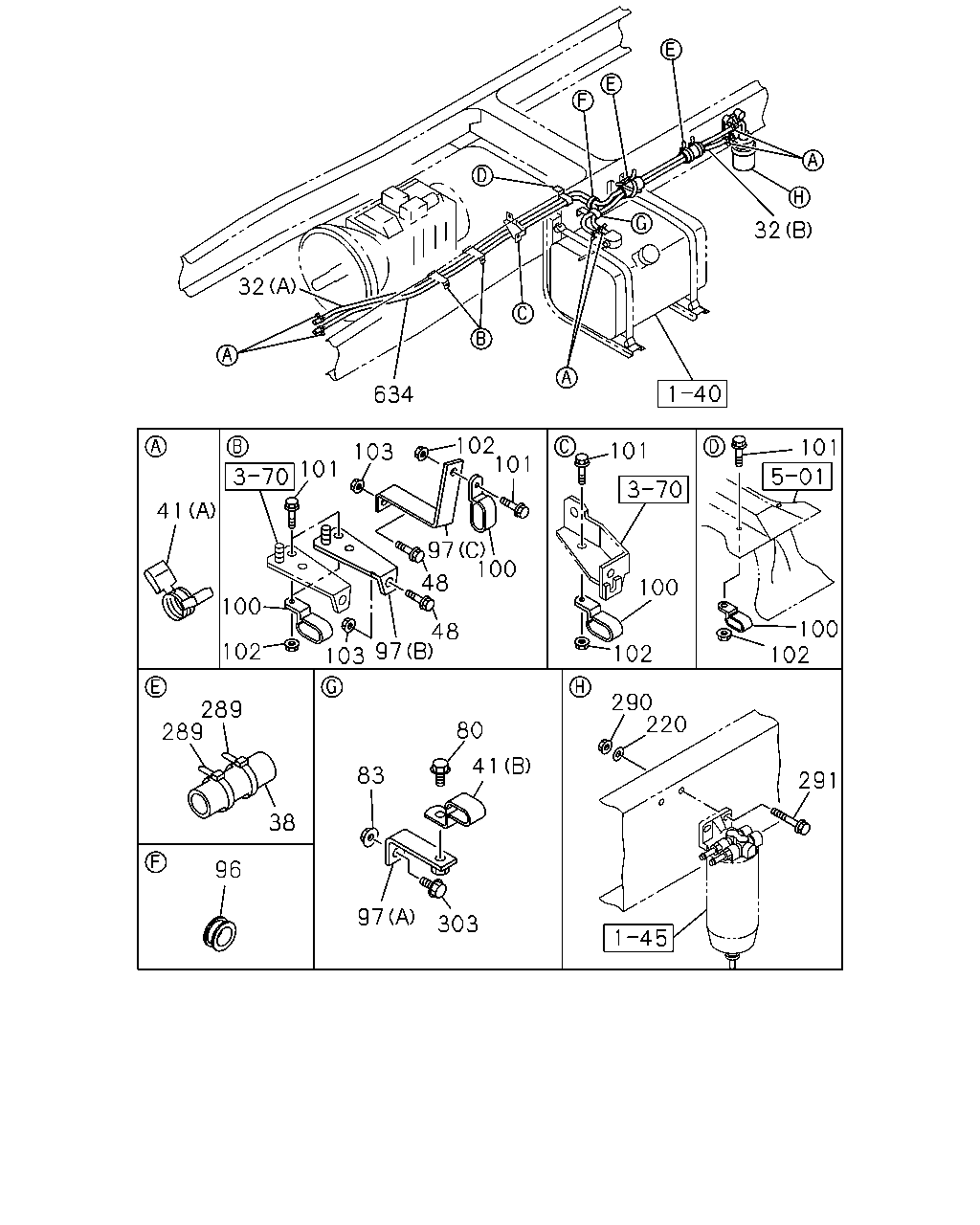

çizim 102081
32 32 634 102 101 101 101 103 101 41 97 100 48 100 100 100 102 48 97 102 102 103 290 220 289 289 80 41 83 291 38 96 97 303
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0904-
32 PIPE; DELIVERY,FUEL TANK
(A) L=2200 SERVICED BY L=3000 		0-01262-300-0 01 1 0904-
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=19 		8-94238-569-0 02 1 0904-
48 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0904-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0904-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0904-
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0904-
97 BRACKET; CLIP
(A) 		1-47475-927-0 01 1 0904-1010
97 BRACKET; CLIP
(A) L=68 		1-47475-525-0 01 1 1011-
97 BRACKET; CLIP
(C) 		1-47479-646-0 01 1 0904-
97 BRACKET; CLIP
(B) 		1-47479-723-0 01 1 0904-
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 04 1 0904-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 03 1 0904-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0904-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 04 1 0904-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0904-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0904-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 0904-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0904-
291 BOLT; FILER TO BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0904-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0904-
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0904-
