6-47 — MUD GUARD AND INSULATOR (#160438) — 35 parça

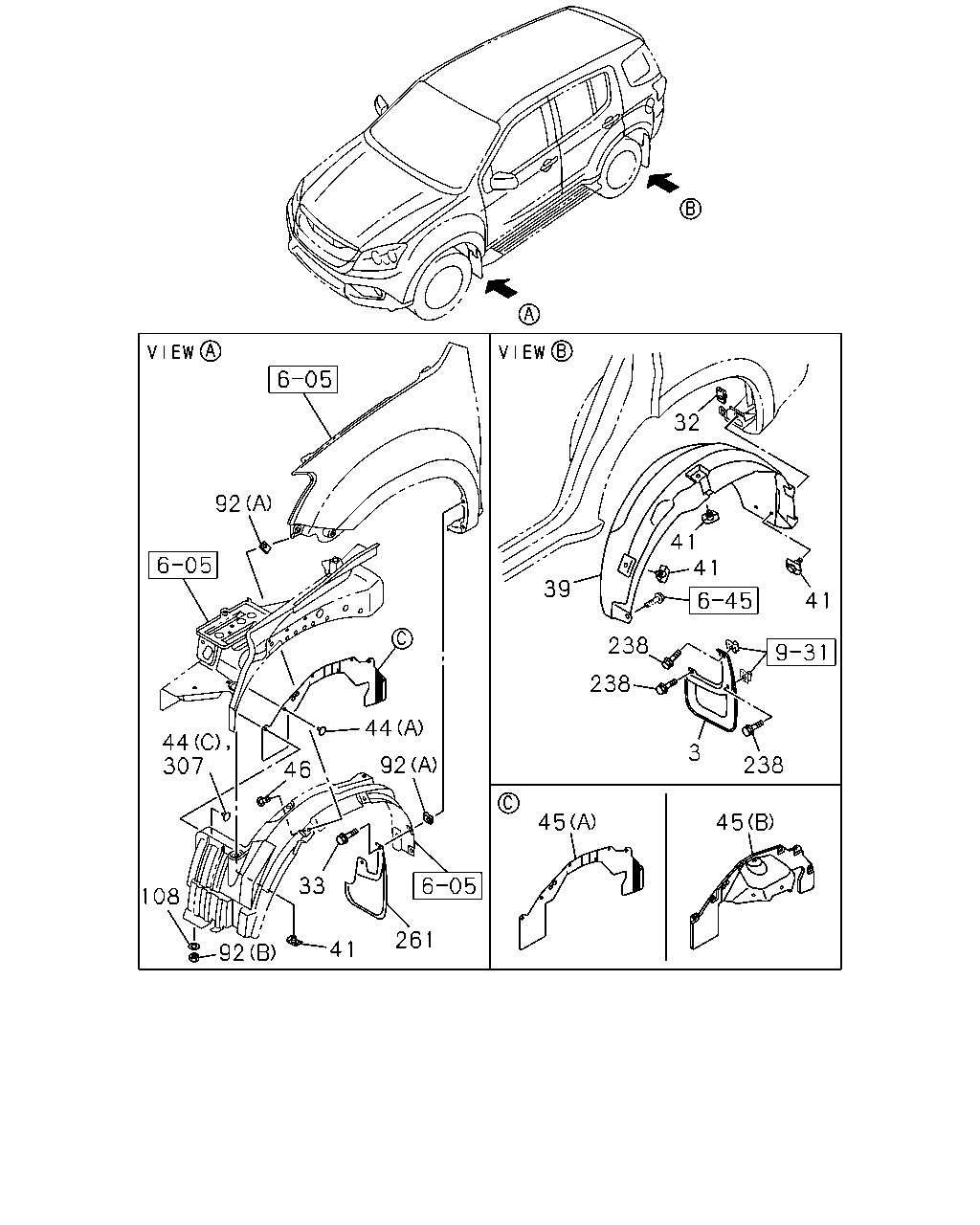

çizim 471579
44 307 46 108 92 41 33 261 92 44 45 45 238 3 238 238 39 41 41 41 32 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 GUARD; MUD,RR 8-98189-866-1 01 1 1504- ● ●
3 GUARD; MUD,RR 8-98189-867-1 01 1 1504- ● ●
32 NUT; MUD GUARD 8-97125-519-0 02 1 1504- ● ●
33 BOLT; MUD COVER
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1504- ● ●
39 LINER; FENDER 8-98190-330-1 01 1 1504- ● ●
39 LINER; FENDER 8-98190-331-1 01 1 1504- ● ●
41 RIVET; INNER LINER 8-94221-150-0 10 1 1504- ● ●
41 RIVET; INNER LINER 8-94221-150-0 14 1 1504- ● ●
44 CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (C) 		8-98226-431-1 12 1 1504- ● ●
44 CLIP; ANCHOR
M/T MUA 5 SPEED 5H(MWQ) (A) OD=22 L=10.7 CHI 		8-94215-211-0 10 1 1504- ●
44 CLIP; ANCHOR
M/T MUX 5 SPEED 5S(MZJ) (A) OD=22 L=10.7 CHI 		8-94215-211-0 10 1 1504- ●
44 CLIP; ANCHOR
(B) OD=12 L=14.8 CHI 		8-94279-921-0 01 1 1504- ● ●
45 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1) (B) 		8-98211-301-3 01 1 1504- ● ●
45 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1) (B) 		8-98211-302-3 01 1 1504- ● ●
45 COVER; MUD,FENDER SKIRT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98077-268-1 01 1 1504- ●
45 COVER; MUD,FENDER SKIRT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98077-268-1 01 1 1504- ●
45 COVER; MUD,FENDER SKIRT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98077-270-0 01 1 1504- ●
45 COVER; MUD,FENDER SKIRT
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98077-270-0 01 1 1504- ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1504- ● ●
92 NUT; MUD COVER
(A) 		8-97125-519-0 10 1 1504- ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1504- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1504- ● ●
238 SCREW; MUD GUARD
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1504- ● ●
261 RUBBER; FRT,MUD GUARD 8-98077-272-0 01 1 1504- ● ●
261 RUBBER; FRT,MUD GUARD 8-98077-274-0 01 1 1504- ● ●
307 RETAINER 8-98050-462-0 02 1 1504- ● ●

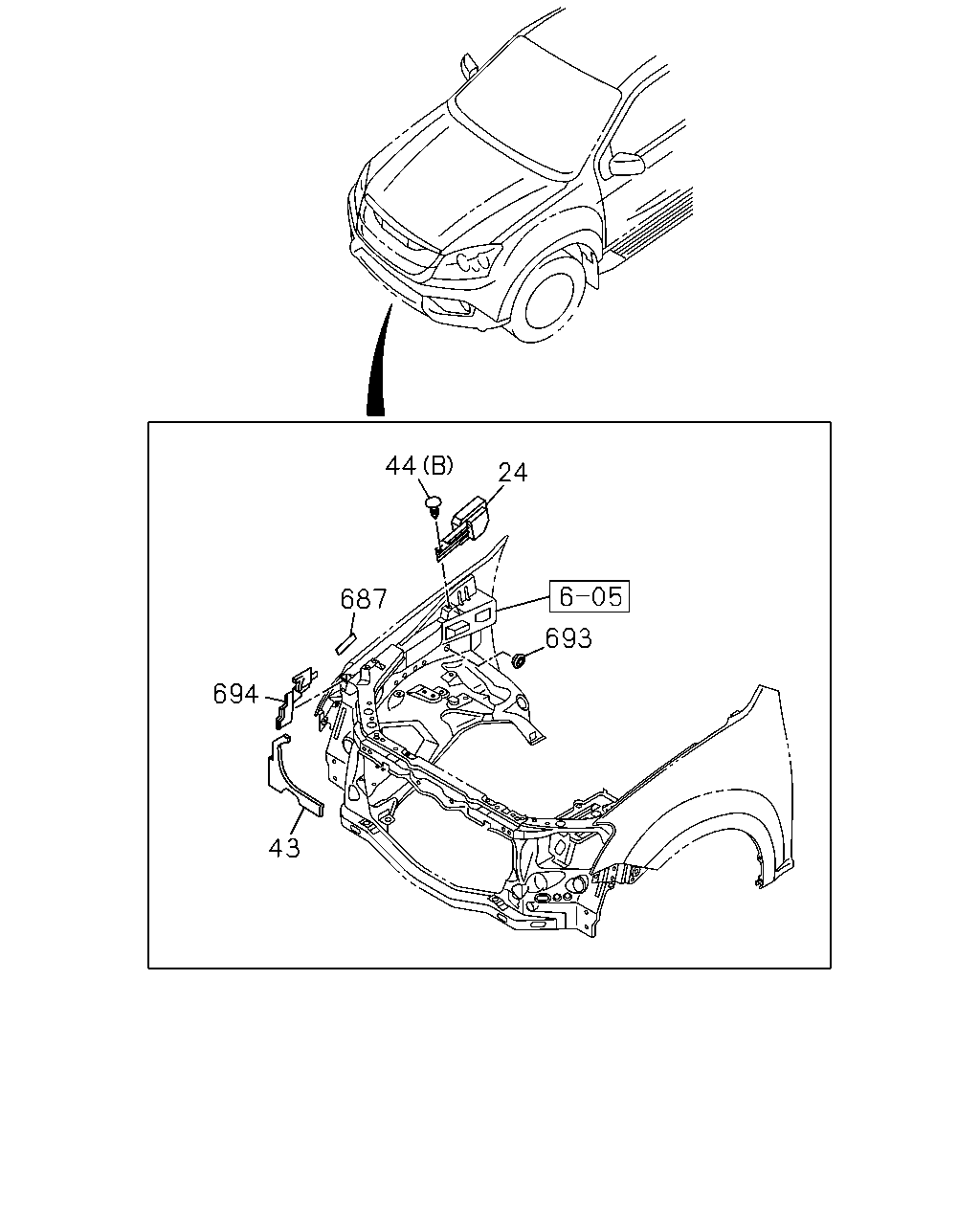

çizim 471902
44 24 687 694 43 693
BalonParca AdiParca NoAdetTipApplied Date A B
24 PLATE; MUD COVER 8-98187-805-0 01 1 1504- ● ●
43 INSULATION; FENDER SIDE 8-98189-338-2 01 1 1504- ● ●
44 CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (C) 		8-98226-431-1 12 1 1504- ● ●
44 CLIP; ANCHOR
M/T MUA 5 SPEED 5H(MWQ) (A) OD=22 L=10.7 CHI 		8-94215-211-0 10 1 1504- ●
44 CLIP; ANCHOR
M/T MUX 5 SPEED 5S(MZJ) (A) OD=22 L=10.7 CHI 		8-94215-211-0 10 1 1504- ●
44 CLIP; ANCHOR
(B) OD=12 L=14.8 CHI 		8-94279-921-0 01 1 1504- ● ●
687 TAPE; PROTECT 8-98191-602-1 01 1 1504- ● ●
693 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1504- ● ●
694 PROTECTOR; WHEEL HOUSE 8-98187-814-0 01 1 1504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
