◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#160436) — 62 parça

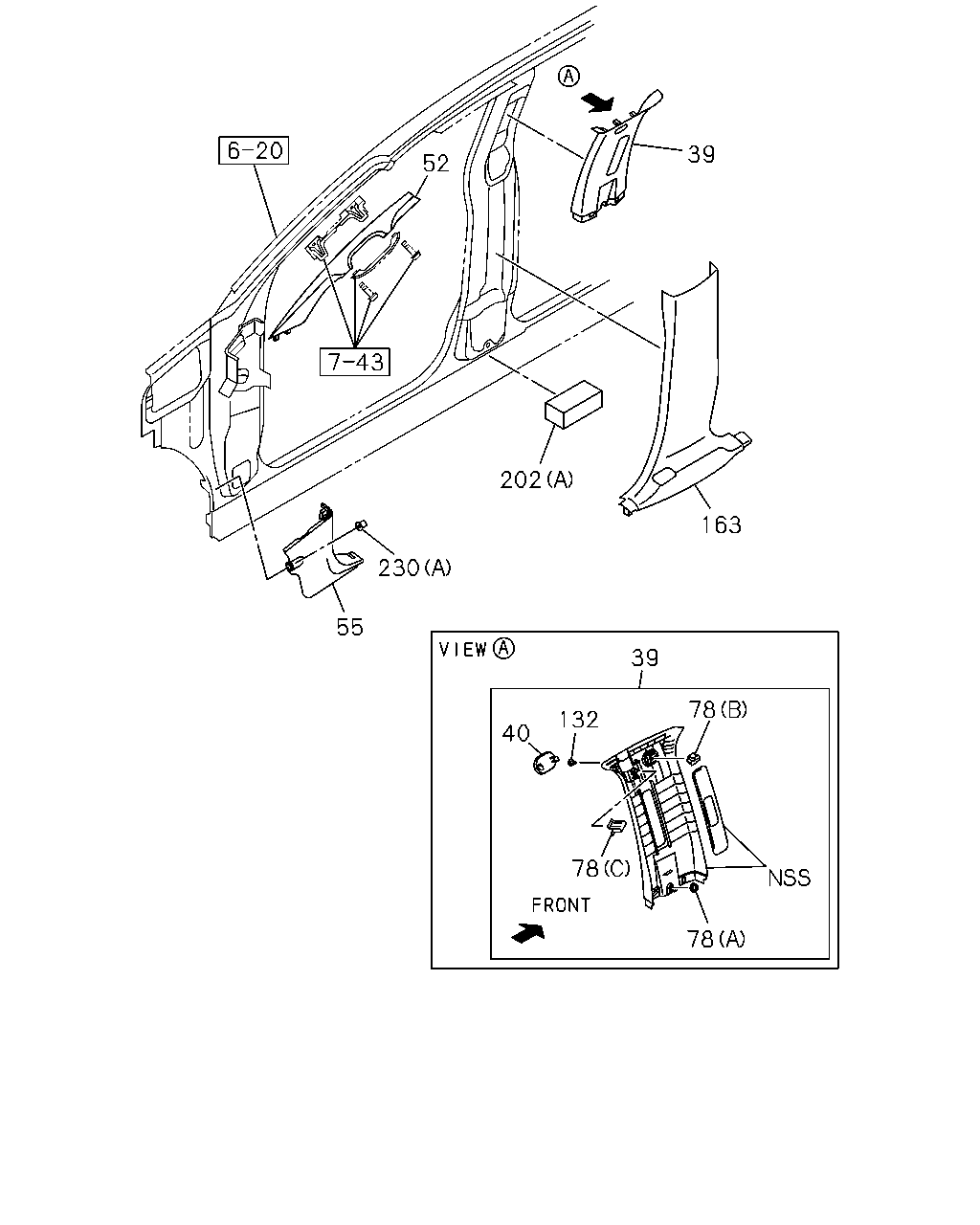

çizim 471539
52 39 202 230 55 40 132 78 78 78 39 163
BalonParca AdiParca NoAdetTipApplied Date A B
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-97424-932-1 01 1 1504- ● ●
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-97424-933-1 01 1 1504- ● ●
40 COVER; TRIM,CENTER PILLAR,CTR
GRAY 		8-97427-707-0 02 1 1504- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97424-370-1 01 1 1504- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97424-371-1 01 1 1504- ● ●
55 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1504- ● ●
55 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1504- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(A) 		8-97351-983-0 02 1 1504- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(B) 		8-98215-475-0 02 1 1504- ● ●
78 CLIP; TRIM PAD,SIDE PANEL
(C) 		8-98215-476-0 02 1 1504- ● ●
132 SCREW; COVER 8-98216-145-0 02 1 1504- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97424-384-1 01 1 1504- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97424-385-1 01 1 1504- ● ●
202 SEAL; CENTER PILLAR
(A) 		8-97350-306-0 02 1 1504- ● ●
202 SEAL; CENTER PILLAR
(C) 		8-98179-381-3 02 1 1504- ● ●
202 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1504- ● ●
230 RETAINER; TRIM
(B) GRAY 		8-97416-696-0 04 1 1504- ● ●
230 RETAINER; TRIM
(A) BLACK 		8-97416-808-0 02 1 1504- ● ●

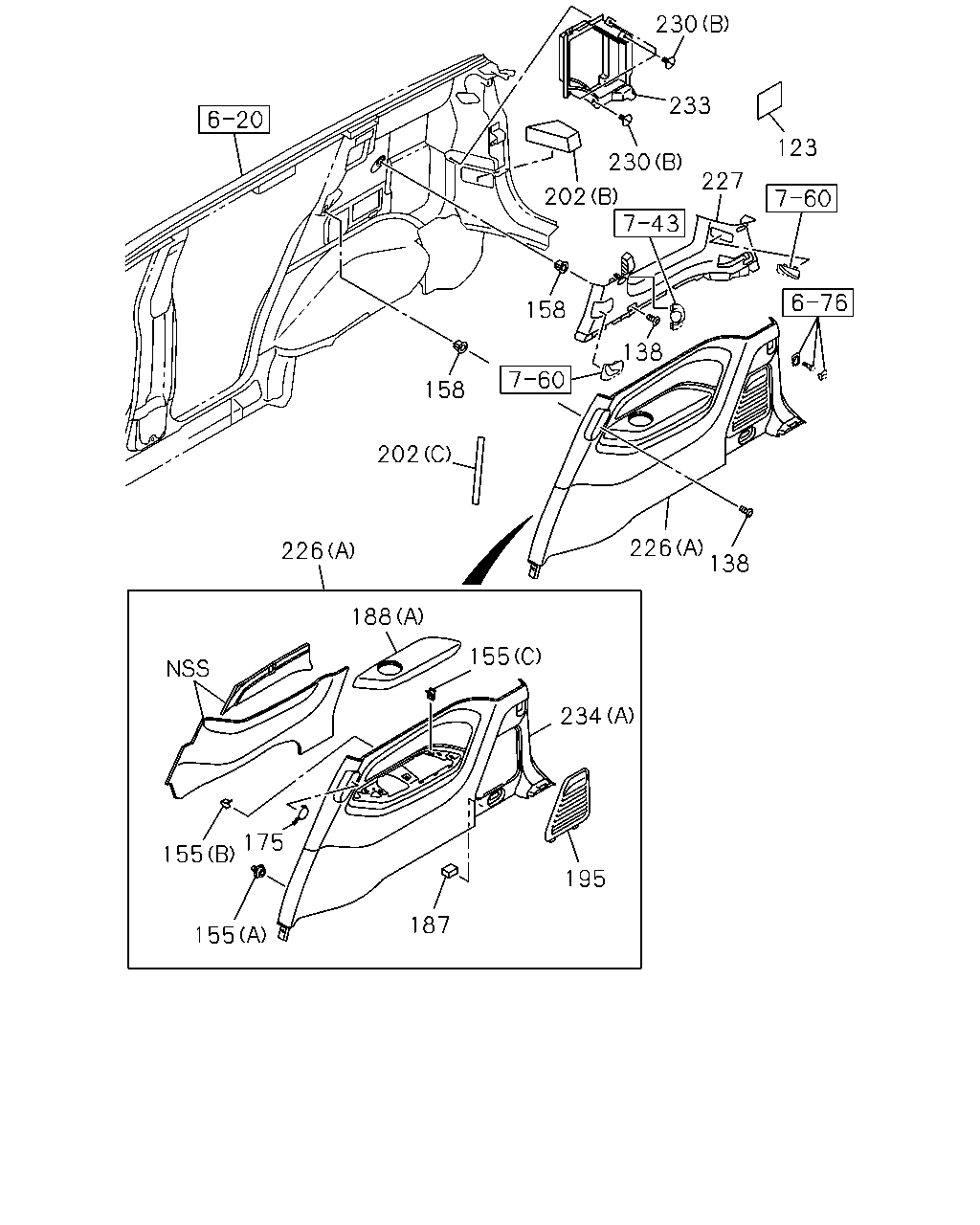

çizim 471540
230 233 230 123 227 202 158 138 226 138 158 202 226 188 155 155 175 187 195 234 155
BalonParca AdiParca NoAdetTipApplied Date A B
123 SEAL; RR QUARTER 8-98317-384-0 01 1 1506- ● ●
138 SCREW; TRIM COVER
M5X14 TAPPING 		8-98184-363-0 04 1 1504- ● ●
155 CLIP; TRIM,QUARTER
(A) 		8-97351-983-0 11 1 1504- ● ●
155 CLIP; TRIM,QUARTER
(B) 		8-98164-677-0 10 1 1504- ● ●
155 CLIP; TRIM,QUARTER
(C) 		8-98217-477-0 09 1 1504- ● ●
158 GROMMET; SCREW,TRIM 8-94152-494-0 04 1 1504- ● ●
175 COVER; TRIM,SIDE
BLACK 		8-97416-610-0 02 1 1504- ● ●
187 SPACER 8-98249-760-0 01 1 1504- ● ●
188 BAR; GUARD
(B) BLACK 		8-97427-709-0 01 1 1504- ● ●
188 BAR; GUARD
(A) BLACK 		8-97427-711-0 01 1 1504- ● ●
195 LID; JACK & TOOL
BLACK 		8-97427-712-0 01 1 1504- ● ●
202 SEAL; CENTER PILLAR
(A) 		8-97350-306-0 02 1 1504- ● ●
202 SEAL; CENTER PILLAR
(C) 		8-98179-381-3 02 1 1504- ● ●
202 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1504- ● ●
226 TRIM ASM; QTR LWR
(B) BLACK 		8-97424-386-2 01 1 1504- ● ●
226 TRIM ASM; QTR LWR
(A) BLACK 		8-97424-387-2 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY 		8-97424-391-2 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY 		8-97424-392-2 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY CHI 		8-97429-716-0 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY CHI 		8-97429-717-0 01 1 1504- ● ●
230 RETAINER; TRIM
(B) GRAY 		8-97416-696-0 04 1 1504- ● ●
230 RETAINER; TRIM
(A) BLACK 		8-97416-808-0 02 1 1504- ● ●
233 COVER; COOLER 8-98231-991-2 01 1 1504- ● ●
234 TRIM; QTR
(B) BLACK 		8-97427-708-0 01 1 1504- ● ●
234 TRIM; QTR
(A) BLACK 		8-97427-710-0 01 1 1504- ● ●

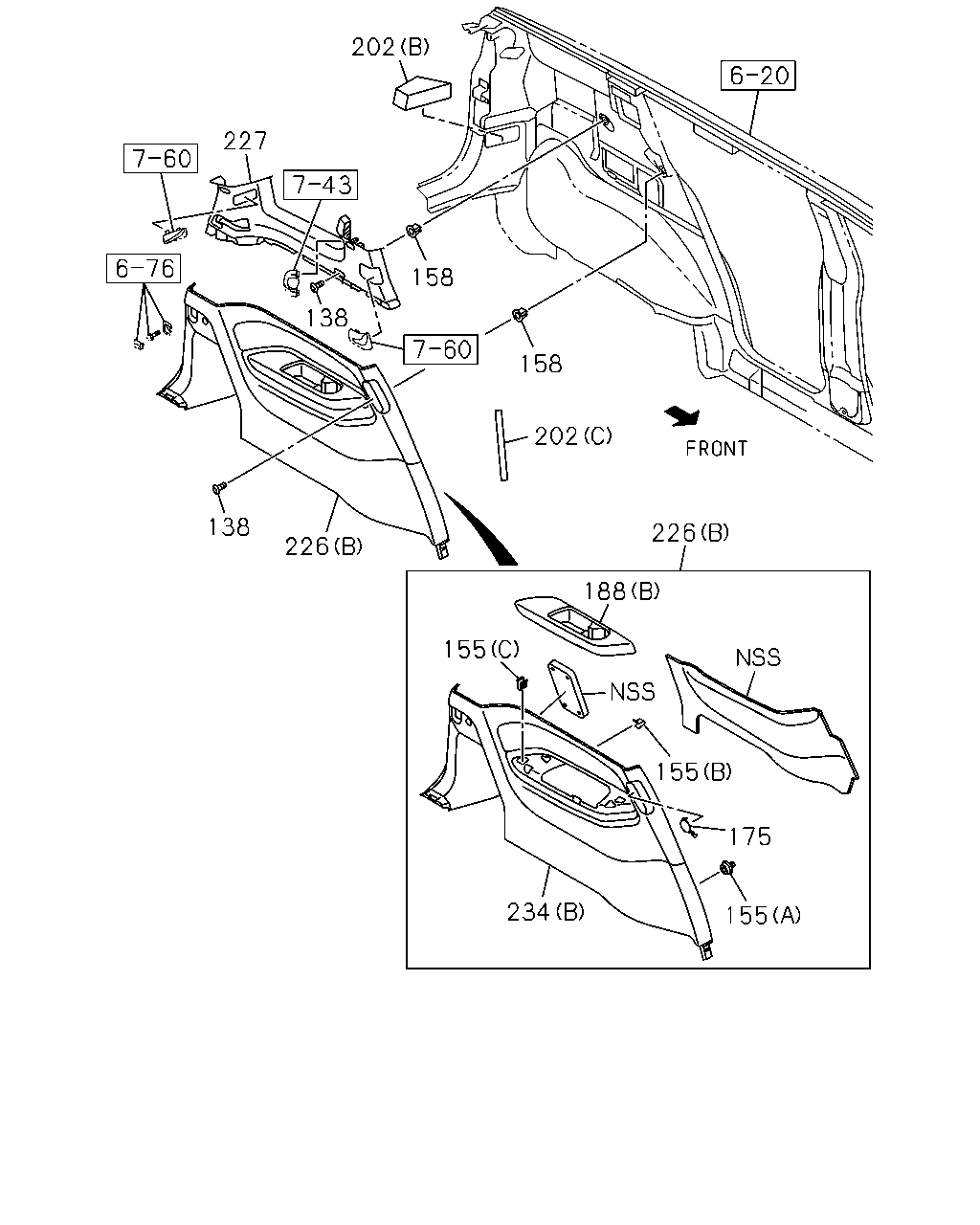

çizim 471551
202 227 158 138 138 226 158 202 226 188 155 155 175 155 234
BalonParca AdiParca NoAdetTipApplied Date A B
138 SCREW; TRIM COVER
M5X14 TAPPING 		8-98184-363-0 04 1 1504- ● ●
155 CLIP; TRIM,QUARTER
(A) 		8-97351-983-0 11 1 1504- ● ●
155 CLIP; TRIM,QUARTER
(B) 		8-98164-677-0 10 1 1504- ● ●
155 CLIP; TRIM,QUARTER
(C) 		8-98217-477-0 09 1 1504- ● ●
158 GROMMET; SCREW,TRIM 8-94152-494-0 04 1 1504- ● ●
175 COVER; TRIM,SIDE
BLACK 		8-97416-610-0 02 1 1504- ● ●
188 BAR; GUARD
(B) BLACK 		8-97427-709-0 01 1 1504- ● ●
188 BAR; GUARD
(A) BLACK 		8-97427-711-0 01 1 1504- ● ●
202 SEAL; CENTER PILLAR
(A) 		8-97350-306-0 02 1 1504- ● ●
202 SEAL; CENTER PILLAR
(C) 		8-98179-381-3 02 1 1504- ● ●
202 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1504- ● ●
226 TRIM ASM; QTR LWR
(B) BLACK 		8-97424-386-2 01 1 1504- ● ●
226 TRIM ASM; QTR LWR
(A) BLACK 		8-97424-387-2 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY 		8-97424-391-2 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY 		8-97424-392-2 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY CHI 		8-97429-716-0 01 1 1504- ● ●
227 TRIM ASM; QTR UPR
EXC. THIRD ROW FOLDING TUMBLE SEAT<8PH> GRAY CHI 		8-97429-717-0 01 1 1504- ● ●
234 TRIM; QTR
(B) BLACK 		8-97427-708-0 01 1 1504- ● ●
234 TRIM; QTR
(A) BLACK 		8-97427-710-0 01 1 1504- ● ●
