◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#160434) — 31 parça

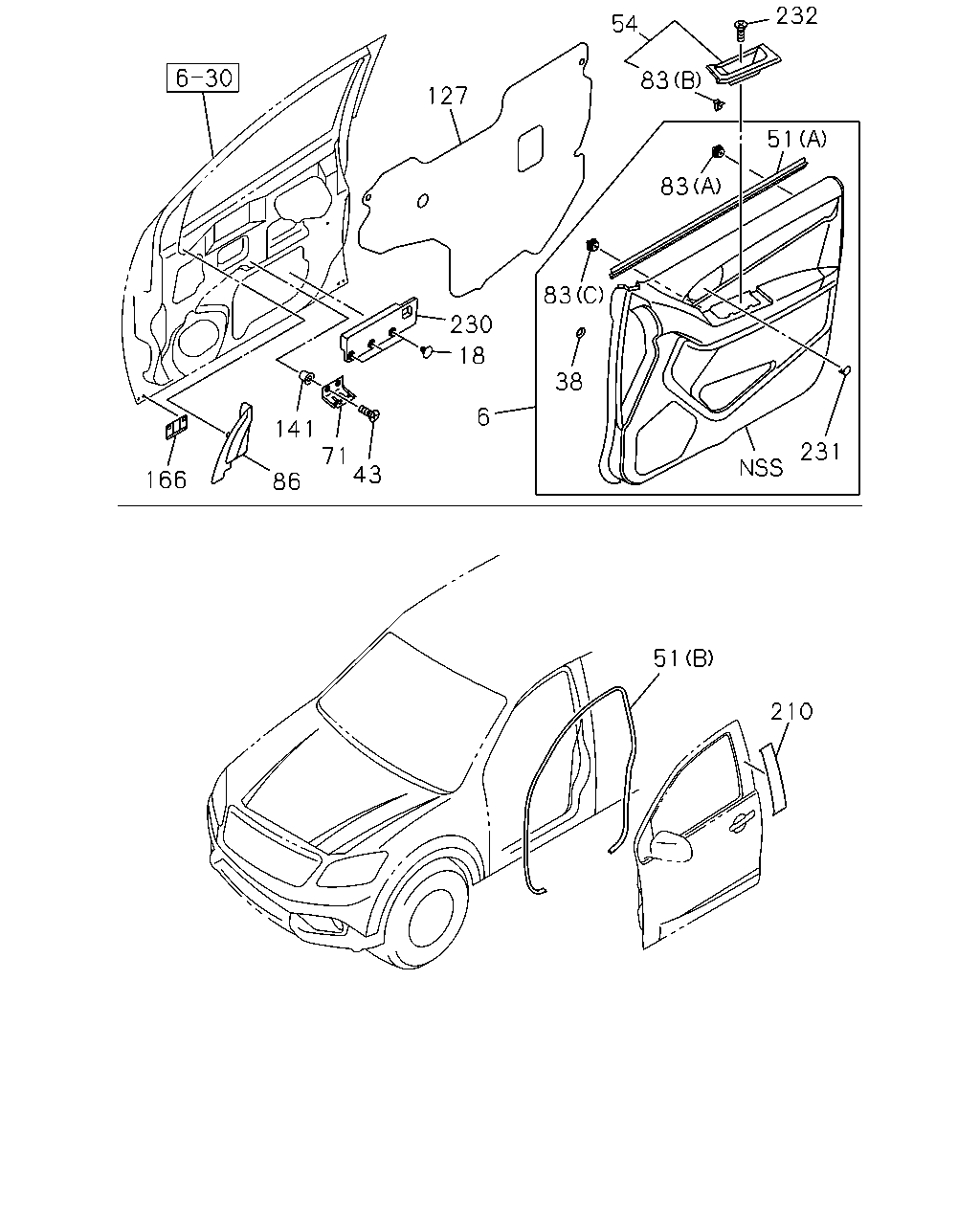

çizim 471529
166 141 86 43 71 6 18 230 127 54 83 232 51 83 83 38 231 51 210
BalonParca AdiParca NoAdetTipApplied Date A B
6 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-722-0 01 1 1504- ● ●
6 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-728-0 01 1 1504- ● ●
6 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-721-0 01 1 1504- ● ●
6 TRIM; DOOR,UPR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-727-0 01 1 1504- ● ●
6 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-723-0 01 1 1504- ● ●
6 TRIM; DOOR,UPR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-729-0 01 1 1504- ● ●
18 CLIP; DOOR PAD
BLACK 		8-94204-281-0 06 1 1504- ● ●
38 STOPPER; DOOR SEAL,FRT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98211-687-0 02 1 1504- ● ●
43 SCREW; DOOR POCKET
M5X14 TAPPING 		8-98184-363-0 04 1 1504- ● ●
51 WEATHERSTRIP; FRONT DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98109-544-3 01 1 1504- ● ●
51 WEATHERSTRIP; FRONT DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98109-545-3 01 1 1504- ● ●
51 WEATHERSTRIP; FRONT DOOR
(B) 		8-98201-892-0 02 1 1504- ● ●
54 BOX; FRT DOOR
BLACK 		8-97416-750-1 01 1 1504- ● ●
54 BOX; FRT DOOR
BLACK 		8-97416-751-1 01 1 1504- ● ●
71 BRACKET; ARM REST 8-98102-215-2 02 1 1504- ● ●
83 CLIP; DOOR TRIM
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98160-729-0 16 1 1504- ● ●
83 CLIP; DOOR TRIM
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) 		8-98166-326-0 02 1 1504- ● ●
83 CLIP; DOOR TRIM
(B) 		8-98164-677-0 02 1 1504- ● ●
86 COVER ASM; DOOR POCKET
BLACK 		8-97416-748-3 01 1 1504- ● ●
86 COVER ASM; DOOR POCKET
BLACK 		8-97416-749-3 01 1 1504- ● ●
127 SEAL; DOOR INNER 8-98192-454-1 01 1 1504- ● ●
127 SEAL; DOOR INNER 8-98192-455-1 01 1 1504- ● ●
141 GROMMET; SCREW,LWR COVER 8-94152-494-0 04 1 1504- ● ●
166 PLUG; HOLE 8-98197-448-0 04 1 1504- ● ●
210 DECAL; DOOR FRAME 8-98190-437-2 01 1 1504- ● ●
210 DECAL; DOOR FRAME 8-98190-438-2 01 1 1504- ● ●
230 PAD; FRT DOOR 8-98156-031-3 01 1 1504- ● ●
230 PAD; FRT DOOR 8-98156-032-3 01 1 1504- ● ●
231 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1504- ● ●
231 COVER; HOLDER,BOLT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97416-610-0 02 1 1504- ● ●
232 BOLT; DOOR TRIM
M5X14 TAPPING 		8-98184-363-0 02 1 1504- ● ●
