6-32 — FRONT DOOR LOCK AND HANDLE (#160433) — 42 parça

175 176 8 175 12 11 36 51 12 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>	8-98231-767-1	01	1	1506-	●	●
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>	8-98231-768-1	01	1	1506-	●	●
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98231-762-1	01	1	1504-1505	●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<AP5>	8-98231-762-1	01	1	1506-	●	●
8	LOCK; DOOR,FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98231-764-1	01	1	1504-1505	●	●
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<AP5>	8-98231-764-1	01	1	1506-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98292-011-0	01	1	1504-1505	●	●
11	ACTUATOR; DOOR LK,FRT REMOTE CONT DOOR LOCK<AP5>	8-98292-011-0	01	1	1506-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98292-012-0	01	1	1504-1505	●	●
11	ACTUATOR; DOOR LK,FRT REMOTE CONT DOOR LOCK<AP5>	8-98292-012-0	01	1	1506-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>	8-98292-021-0	01	1	1506-	●	●
11	ACTUATOR; DOOR LK,FRT PASSIVE ENTRY AND START SYSTEM<AP3>	8-98292-022-0	01	1	1506-	●	●
12	SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-97349-997-0	04	1	1504-	●	●
12	SCREW; DOOR LK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) M6X14.5	8-98004-342-0	06	1	1504-	●	●
36	LINK; DOOR LOCK,OUTSIDE PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98193-692-0	01	1	1504-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-97349-985-0	01	1	1504-	●	●
79	BOLT; DOOR LK ACTUATOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> M6X8 FLANGE	8-98048-996-0	02	1	1504-	●	●
175	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-690-0	01	1	1504-	●	●
175	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-688-0	01	1	1504-	●	●
175	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-98193-689-0	01	1	1504-	●	●
175	CABLE ASM; LOCK CONTROL PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-98193-691-0	01	1	1504-	●	●
176	COVER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-97349-991-0	01	1	1504-	●	●
176	COVER; DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-97349-992-0	01	1	1504-	●	●

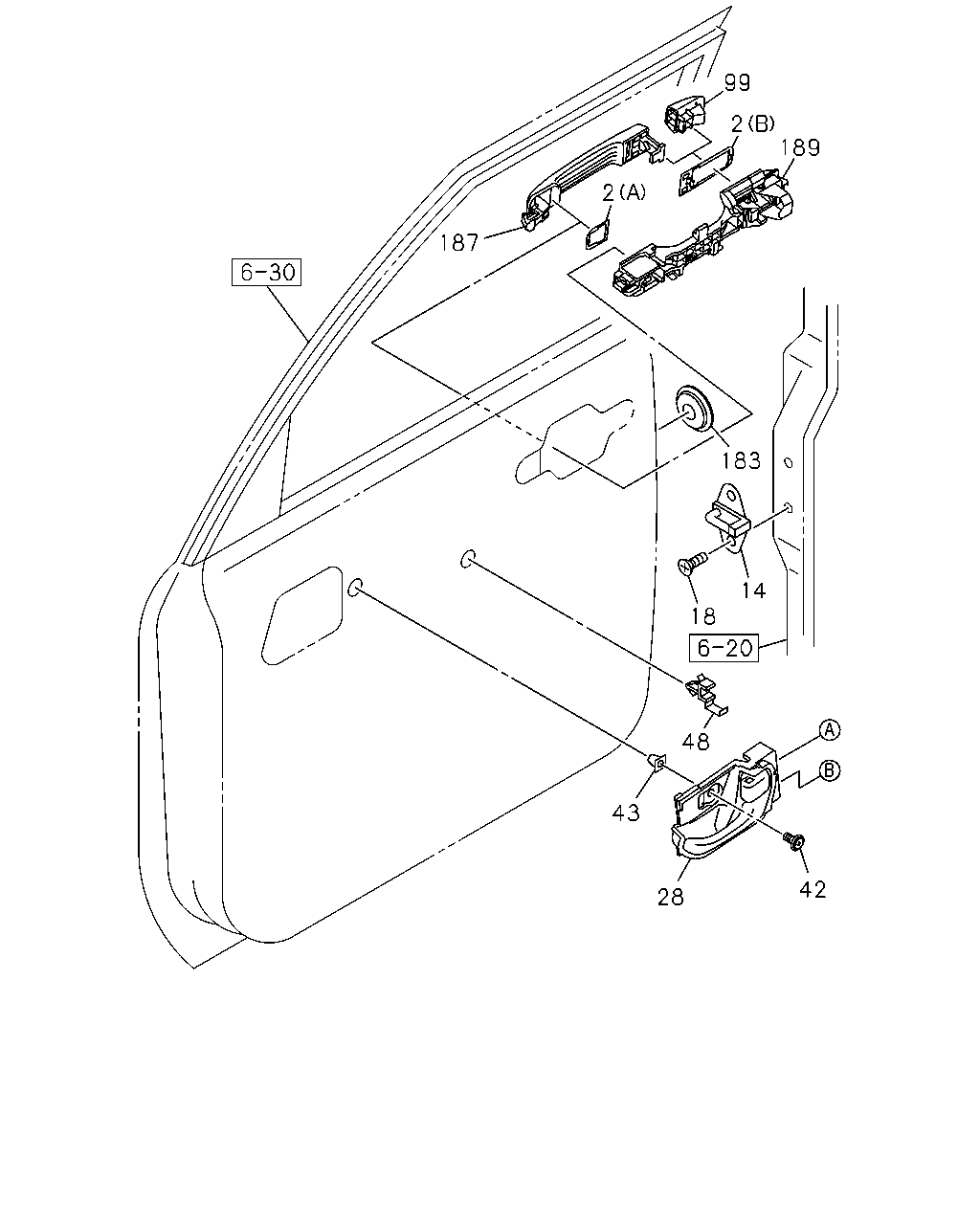

99 2 189 2 187 183 14 18 48 43 28 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; OUTSIDE HANDLE,DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-98176-466-0	01	1	1504-	●	●
2	GASKET; OUTSIDE HANDLE,DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A)	8-98176-466-0	01	1	1504-	●	●
2	GASKET; OUTSIDE HANDLE,DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-98176-467-2	01	1	1504-	●	●
2	GASKET; OUTSIDE HANDLE,DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B)	8-98176-467-2	01	1	1504-	●	●
14	STRIKER; FRT DOOR	8-98012-203-0	02	1	1504-	●	●
18	SCREW; DOOR STRIKER M8X35	8-98049-360-0	04	1	1504-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR BLACK	8-97416-730-3	01	1	1504-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR BLACK	8-97416-732-3	01	1	1504-	●	●
42	SCREW; TAPPING,INSIDE LEVER M5X14 TAPPING	8-98184-363-0	02	1	1504-	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR	8-94152-494-0	02	1	1504-	●	●
48	ANTIRATTLER; DOOR LINK	8-97251-932-0	02	1	1504-	●	●
99	COVER; HOLE DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> PLATED	8-98176-462-1	01	1	1504-	●	●
99	COVER; HOLE DOOR LOCK PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> PLATED	8-98176-465-1	01	1	1504-	●	●
183	GROMMET PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> OD=26	8-94141-484-0	02	1	1504-	●	●
187	GRIP; FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3> PLATED	8-98211-441-0	01	1	1504-	●	●
187	GRIP; FRT DOOR REMOTE CONT DOOR LOCK<AP5> PLATED	8-98176-458-0	01	1	1504-	●	●
187	GRIP; FRT DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> PLATED	8-98176-458-0	01	1	1504-	●	●
189	BRACKET; GRIP,DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98176-469-4	01	1	1504-	●	●
189	BRACKET; GRIP,DOOR PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>	8-98176-471-4	01	1	1504-	●	●
