6-31 — FRONT DOOR GLASS AND REGULATOR (#160432) — 29 parça
çizim 471195
11 91 75 1 27 26 25 22 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR 8-98073-843-2 01 1 1504- ● ●
1 GLASS; FRT DOOR 8-98073-844-2 01 1 1504- ● ●
11 RAIL; RR GUIDE,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98100-795-6 01 1 1504- ● ●
11 RAIL; RR GUIDE,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> 		8-98100-793-5 01 1 1504- ● ●
11 RAIL; RR GUIDE,FRT DOOR 8-98100-792-5 01 1 1504- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98093-553-1 01 1 1504- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98093-556-1 01 1 1504- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98160-723-0 01 1 1504- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98160-726-0 01 1 1504- ● ●
22 SCREW; POWER WINDOW MOTOR 8-98195-236-0 06 1 1504- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1504- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		8-98049-362-0 04 1 1504- ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1504- ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 FLANGE 		8-98048-996-0 02 1 1504- ● ●

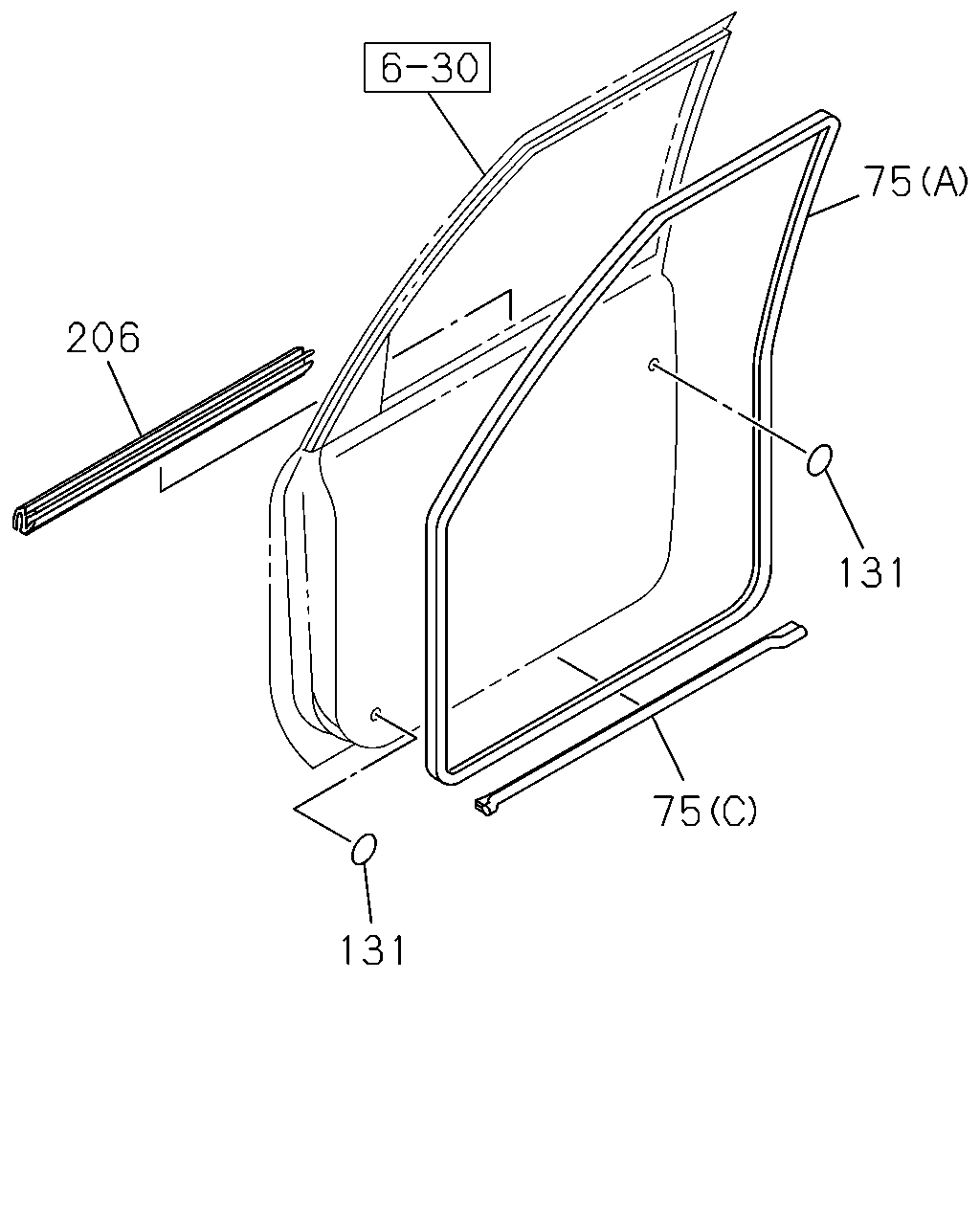

çizim 471876
206 131 75 131 75
BalonParca AdiParca NoAdetTipApplied Date A B
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1504- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1504- ● ●
131 SEAL; FRT DOOR
OD=25 BLACK CHI 		1-76798-019-0 04 1 1504- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS 8-98052-197-2 01 1 1504- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS 8-98052-198-2 01 1 1504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
