6-20 — SIDE PANEL AND STEP (#160430) — 88 parça

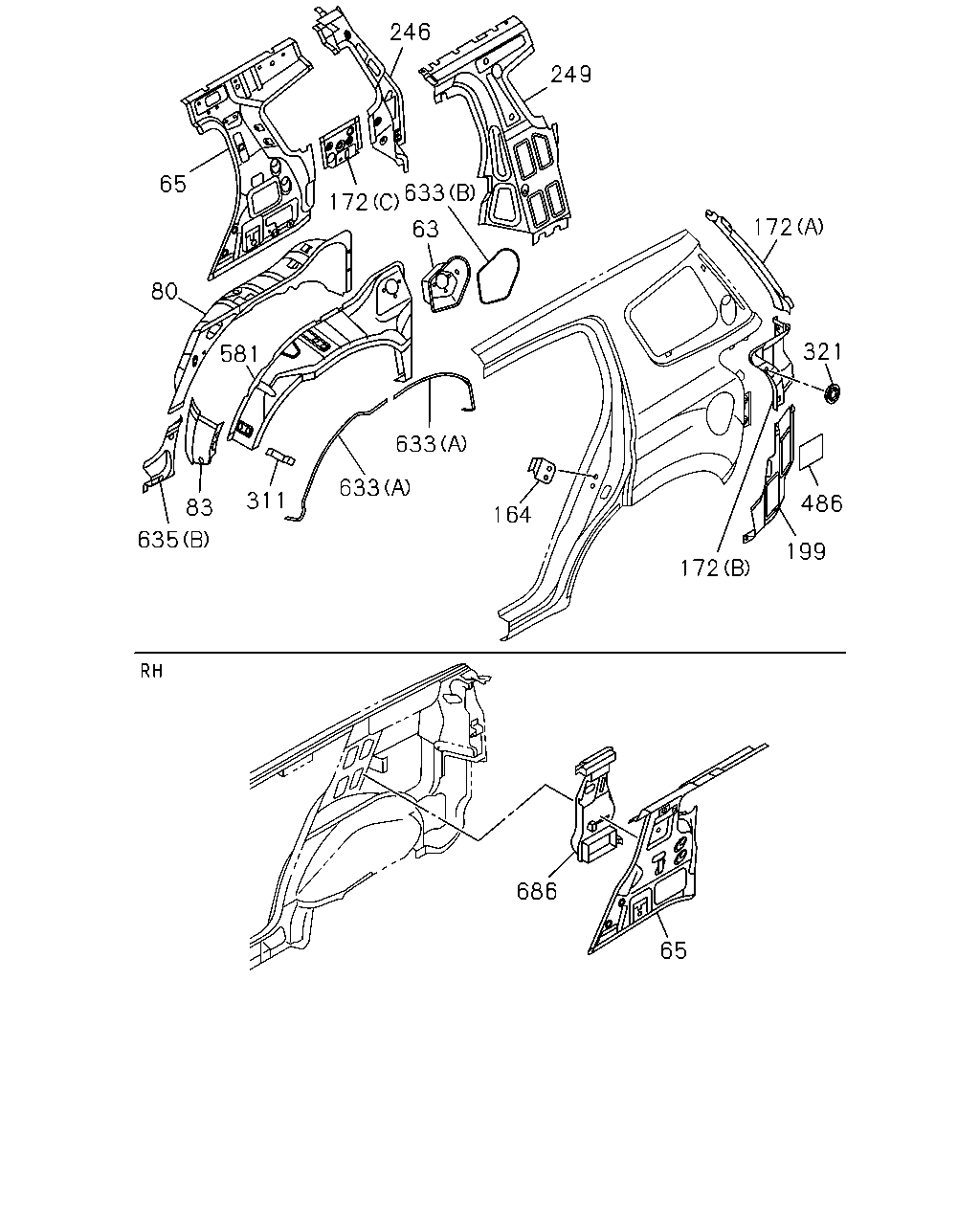

çizim 471511
246 249 172 633 63 65 80 581 172 83 311 633 633 164 321 486 199 172 635 686 65
BalonParca AdiParca NoAdetTipApplied Date A B
63 PANEL; FUEL FILLER RECESS 8-98200-487-0 01 1 1504- ● ●
65 PANEL; QUARTER,INNER 8-98200-563-2 01 1 1504- ● ●
65 PANEL; QUARTER,INNER 8-98200-564-2 01 1 1504- ● ●
80 PANEL; WHEEL HOUSE,INNER 8-98200-427-0 01 1 1504- ● ●
80 PANEL; WHEEL HOUSE,INNER 8-98200-578-2 01 1 1504- ● ●
83 COVER; ROCKER RR 8-98200-432-0 01 1 1504- ● ●
83 COVER; ROCKER RR 8-98200-528-0 01 1 1504- ● ●
164 PLATE; SIDE PNL OUTER 8-98200-523-1 01 1 1504- ● ●
164 PLATE; SIDE PNL OUTER 8-98200-641-1 01 1 1504- ● ●
172 EXTENSION; QUARTER PANEL
(C) 		8-98200-436-0 01 1 1504- ● ●
172 EXTENSION; QUARTER PANEL
(B) 		8-98200-485-0 01 1 1504- ● ●
172 EXTENSION; QUARTER PANEL
(A) 		8-98200-489-1 01 1 1504- ● ●
172 EXTENSION; QUARTER PANEL
(C) 		8-98200-529-3 01 1 1504- ● ●
172 EXTENSION; QUARTER PANEL
(A) 		8-98200-530-1 01 1 1504- ● ●
172 EXTENSION; QUARTER PANEL
(B) 		8-98200-531-0 01 1 1504- ● ●
199 PANEL; RR SIDE 8-98200-484-0 01 1 1504- ● ●
199 PANEL; RR SIDE 8-98200-536-0 01 1 1504- ● ●
246 PANEL; RR PILLAR,INNER 8-98200-568-5 01 1 1504- ● ●
246 PANEL; RR PILLAR,INNER 8-98200-569-6 01 1 1504- ● ●
249 REINFORCEMENT; RR PILLAR 8-98200-425-2 01 1 1504- ● ●
249 REINFORCEMENT; RR PILLAR 8-98200-627-2 01 1 1504- ● ●
311 SEAL; WHEEL HOUSE 8-98200-636-0 01 1 1504- ● ●
311 SEAL; WHEEL HOUSE 8-98200-636-0 01 1 1504- ● ●
321 PLUG; HOLE
OD=15.0 CHI 		8-94279-040-0 02 1 1504- ● ●
486 SEAL; BODY SIDE 8-98317-385-0 01 1 1506- ● ●
581 PANEL; WHEEL HOUSE,OUTER 8-98200-433-1 01 1 1504- ● ●
581 PANEL; WHEEL HOUSE,OUTER 8-98200-579-2 01 1 1504- ● ●
633 SEALER
(B) 		8-98200-488-1 01 1 1504- ● ●
633 SEALER
(A) 		8-98200-638-2 02 1 1504- ● ●
633 SEALER
(A) 		8-98200-638-2 02 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(B) 		8-98200-431-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(A) 		8-98200-614-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(A) 		8-98200-615-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(B) 		8-98200-632-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(C) 		8-98206-306-1 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(C) 		8-98206-307-1 01 1 1504- ● ●
686 DUCT; AIR OUTLET 8-98192-299-1 01 1 1504- ● ●

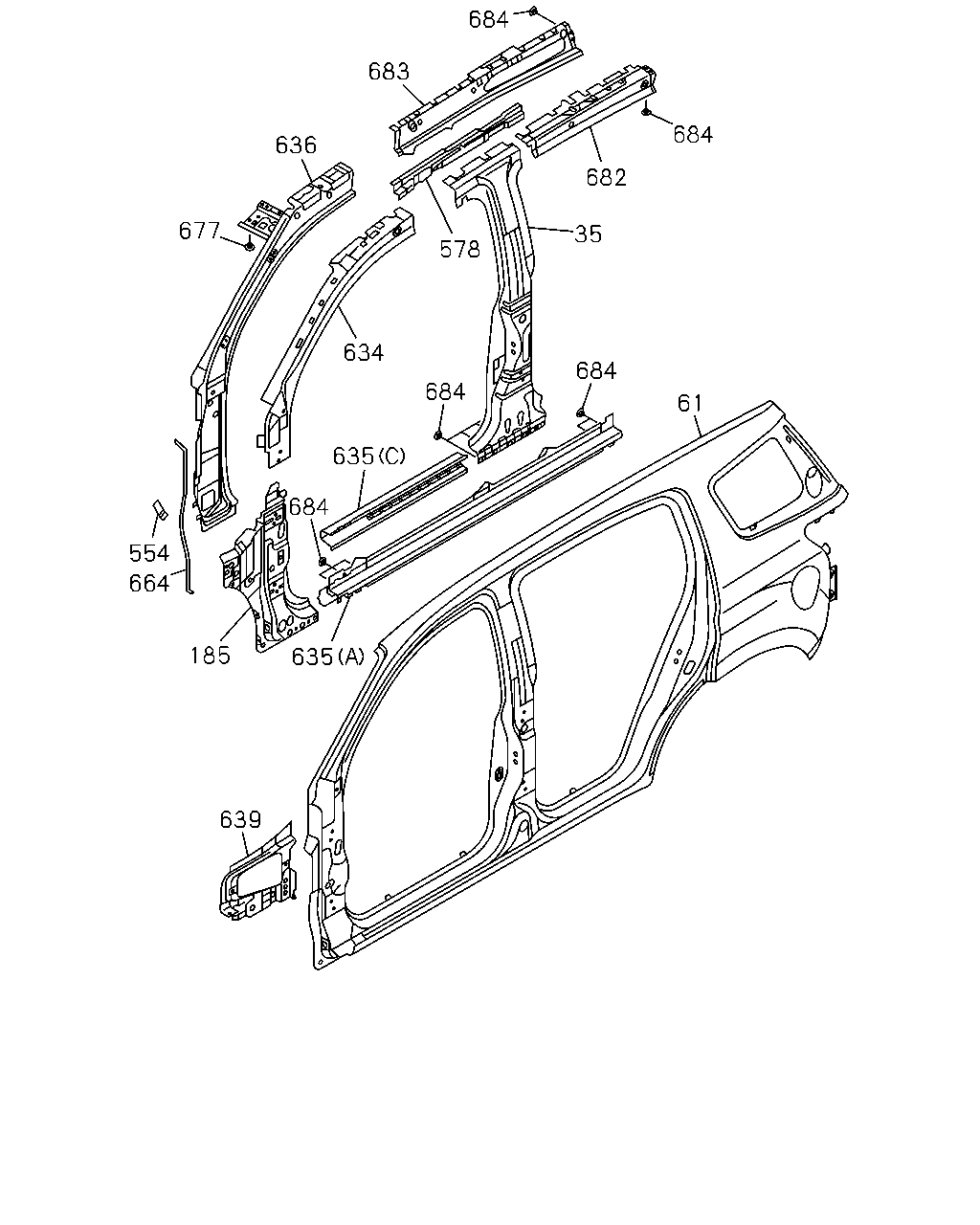

çizim 471652
554 664 185 635 639 635 684 677 636 683 684 684 682 35 578 634 684 684 61
BalonParca AdiParca NoAdetTipApplied Date A B
35 PANEL; CENTER PILLAR,INNER 8-98200-511-0 01 1 1504- ● ●
35 PANEL; CENTER PILLAR,INNER 8-98200-542-0 01 1 1504- ● ●
61 PANEL; SIDE OUTER
CHI 		8-98270-407-1 01 1 1504- ● ●
61 PANEL; SIDE OUTER
CHI 		8-98270-408-1 01 1 1504- ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98214-680-0 01 1 1504- ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98214-681-0 01 1 1504- ● ●
554 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1504- ● ●
578 PATCH; REINF,ROCKER OUTER 8-98206-330-0 01 1 1504- ● ●
578 PATCH; REINF,ROCKER OUTER 8-98206-331-0 01 1 1504- ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98206-296-2 01 1 1504- ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98206-297-2 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(B) 		8-98200-431-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(A) 		8-98200-614-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(A) 		8-98200-615-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(B) 		8-98200-632-0 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(C) 		8-98206-306-1 01 1 1504- ● ●
635 REINFORCEMENT; ROCKER
(C) 		8-98206-307-1 01 1 1504- ● ●
636 PANEL; FRONT PILLAR INNER
CHI 		8-98270-678-2 01 1 1504- ● ●
636 PANEL; FRONT PILLAR INNER
CHI 		8-98270-679-2 01 1 1504- ● ●
639 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1504- ● ●
639 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1504- ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1504- ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1504- ● ●
677 RIVET; PANEL 8-98057-864-0 08 1 1504- ● ●
682 REINFORCEMENT; ROOF SIDE 8-98200-633-0 01 1 1504- ● ●
682 REINFORCEMENT; ROOF SIDE 8-98200-634-0 01 1 1504- ● ●
683 PANEL; HEADER 8-98200-574-0 01 1 1504- ● ●
683 PANEL; HEADER 8-98200-575-0 01 1 1504- ● ●
684 FASTENER 8-98057-864-0 14 1 1504- ● ●
684 FASTENER 8-98057-864-0 14 1 1504- ● ●

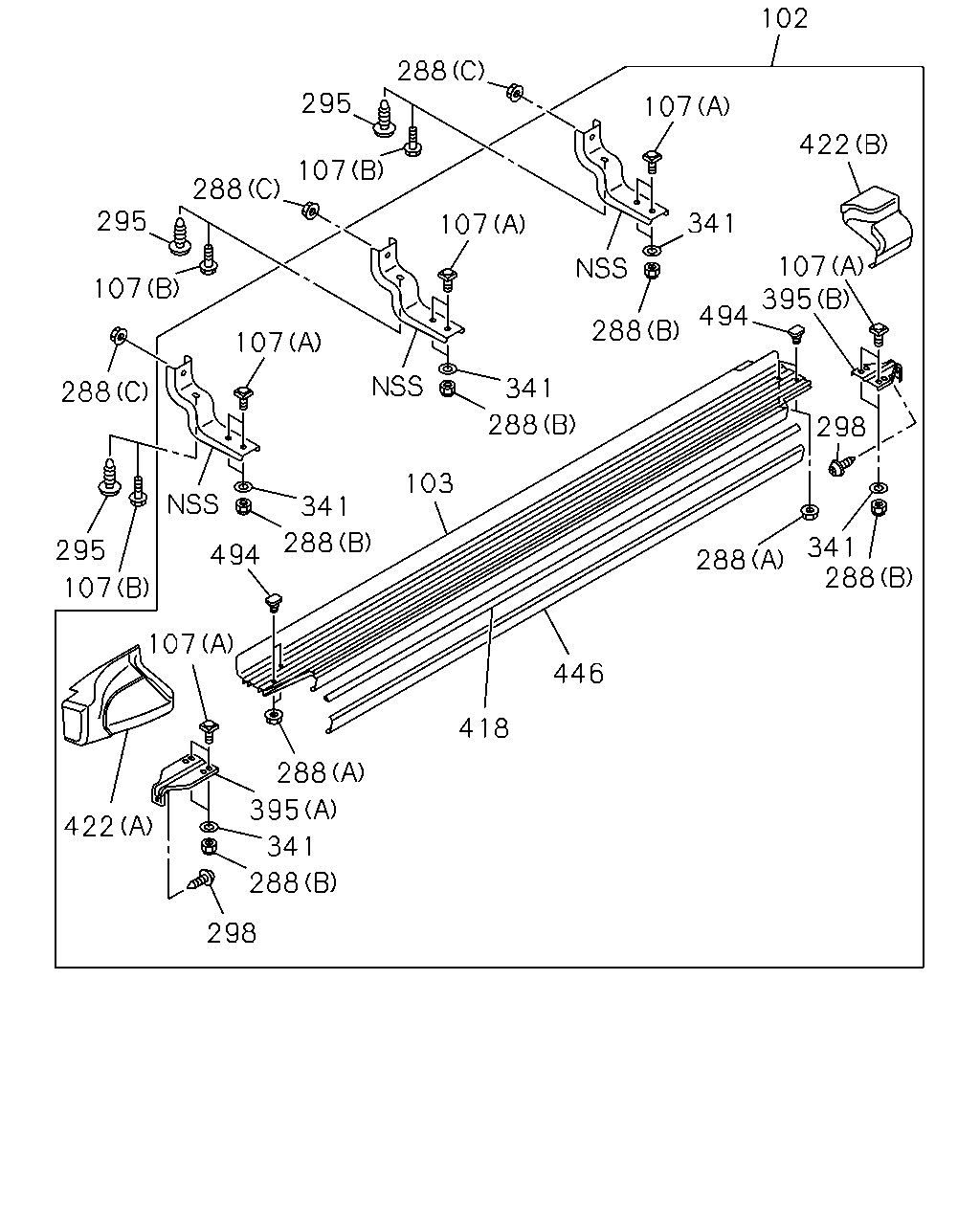

çizim 471776
107 107 295 288 288 494 395 107 422 102 107 341 298 341 288 288 446 418 288 395 341 288 298 422 107 494 341 288 103 341 288 288 295 107 107 295 107 288
BalonParca AdiParca NoAdetTipApplied Date A B
102 STEP; BODY SIDE
PRIMER 		8-98253-444-1 01 1 1504- ● ●
102 STEP; BODY SIDE
PRIMER 		8-98253-445-1 01 1 1504- ● ●
103 PLATE; STEP 8-98251-434-0 01 1 1504- ● ●
103 PLATE; STEP 8-98251-435-0 01 1 1504- ● ●
107 BOLT; SIDE STEP
(B) M8X25 FLANGE 		8-98048-998-0 06 1 1504- ● ●
107 BOLT; SIDE STEP
(A) 		8-98251-460-0 20 1 1504- ● ●
288 NUT; STEP
(A) M6 FLANGE 		0-91180-106-0 08 1 1504- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 20 1 1504- ● ●
288 NUT; STEP
(C) M8 FLANGE CHI 		0-91180-208-0 06 1 1504- ● ●
295 CLIP; BODY SIDE STEP
OD=18 CHI 		8-94269-290-0 06 1 1504- ● ●
298 SCREW; SIDE STEP
M5X16 		8-98073-081-0 04 1 1504- ● ●
341 WASHER; PL,STEP
ID=8.4 OD=18 CHI 		0-91614-608-0 20 1 1504- ● ●
395 BRACKET; SIDE STEP
(A) FRONT 		8-98251-452-0 02 1 1504- ● ●
395 BRACKET; SIDE STEP
(B) REAR 		8-98251-453-0 02 1 1504- ● ●
418 RUBBER; STEP 8-98251-462-1 02 1 1504- ● ●
422 COVER; SIDE STEP
(A) FRONT PRIMER 		8-98253-375-1 01 1 1504- ● ●
422 COVER; SIDE STEP
(B) REAR PRIMER 		8-98253-377-1 01 1 1504- ● ●
422 COVER; SIDE STEP
(A) FRONT PRIMER 		8-98253-376-1 01 1 1504- ● ●
422 COVER; SIDE STEP
(B) REAR PRIMER 		8-98253-378-1 01 1 1504- ● ●
446 FINISHER; STEP
PRIMER 		8-98253-379-0 02 1 1504- ● ●
494 STUD; BRKT 8-98056-035-0 08 1 1504- ● ●
