6-03 — RADIATOR GRILLE (#160425) — 17 parça

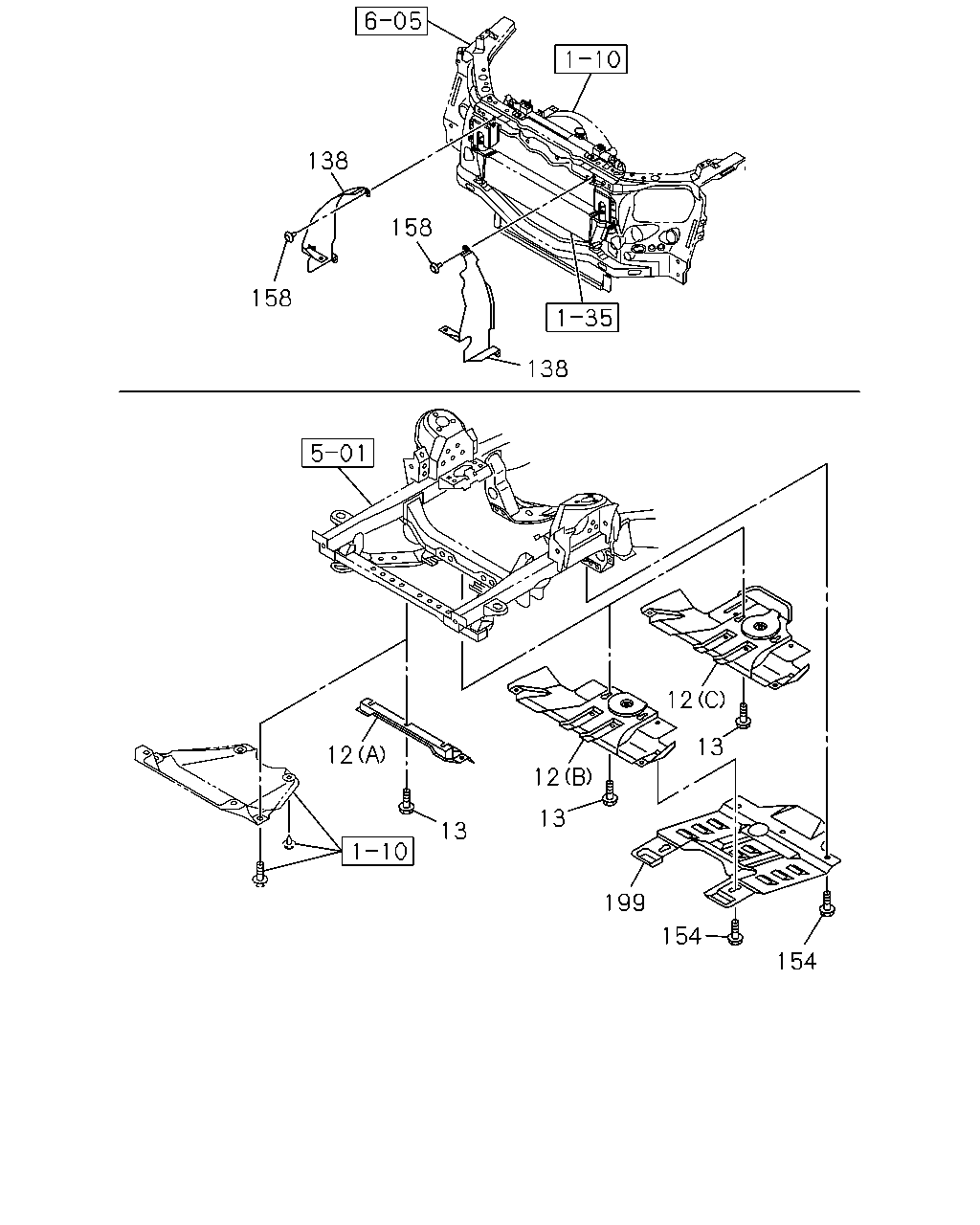

çizim 471278
138 158 138 158 12 13 12 13 12 13 199 154 154
BalonParca AdiParca NoAdetTipApplied Date A B
12 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) 		8-98229-406-0 01 1 1504- ●
12 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1504- ●
12 PLATE; SKID,RAD
EXC. UNDER FRT GUARD<6RJ> (C) 		8-98102-131-2 01 1 1504- ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1504- ●
138 GUIDE; AIR 8-98137-586-1 01 1 1504- ● ●
138 GUIDE; AIR 8-98137-587-1 01 1 1504- ● ●
154 BOLT; COVER
UNDER FRT GUARD<6RJ> M12X25 FLANGE 		8-98230-015-0 04 1 1504- ●
158 CLIP; PROTECTOR
OD=22 L=10.7 CHI 		8-94215-211-0 06 1 1504- ● ●
199 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> 		8-98229-404-0 01 1 1504- ●

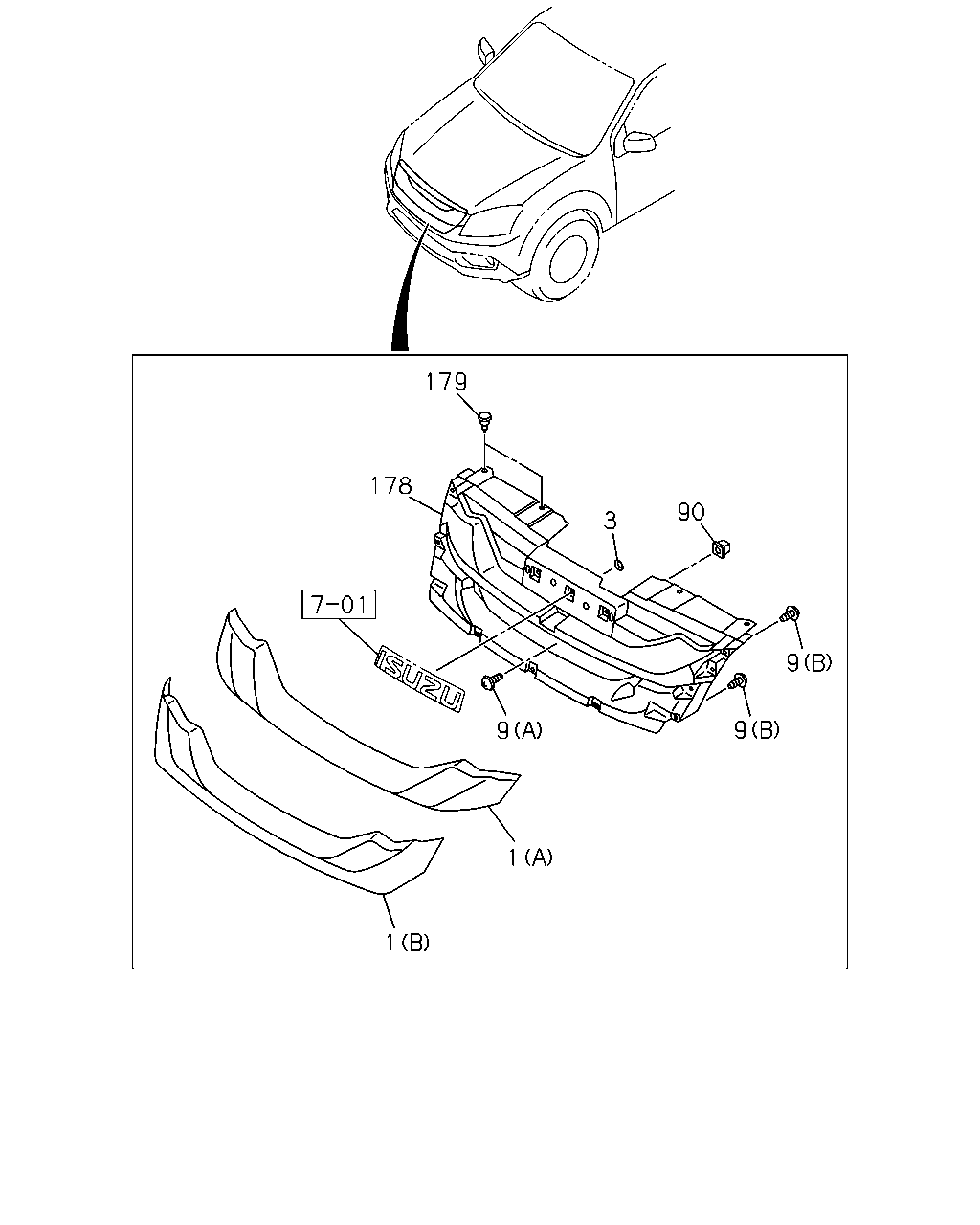

çizim 471729
179 178 3 90 9 9 9 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
(A) PLATED 		8-98249-946-0 01 1 1504- ● ●
1 GRILLE; RAD
(B) PLATED 		8-98249-949-0 01 1 1504- ● ●
3 CLIP; GRILLE 8-98211-687-0 03 1 1504- ● ●
9 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 01 1 1504- ● ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 11 1 1504- ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 CHI 		8-94291-927-0 01 1 1504- ● ●
178 GRILLE; INNER,RAD 8-98249-943-1 01 1 1504- ● ●
179 RETAINER; GRILLE,RAD 8-97301-188-0 04 1 1504- ● ●
