◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#160424) — 21 parça

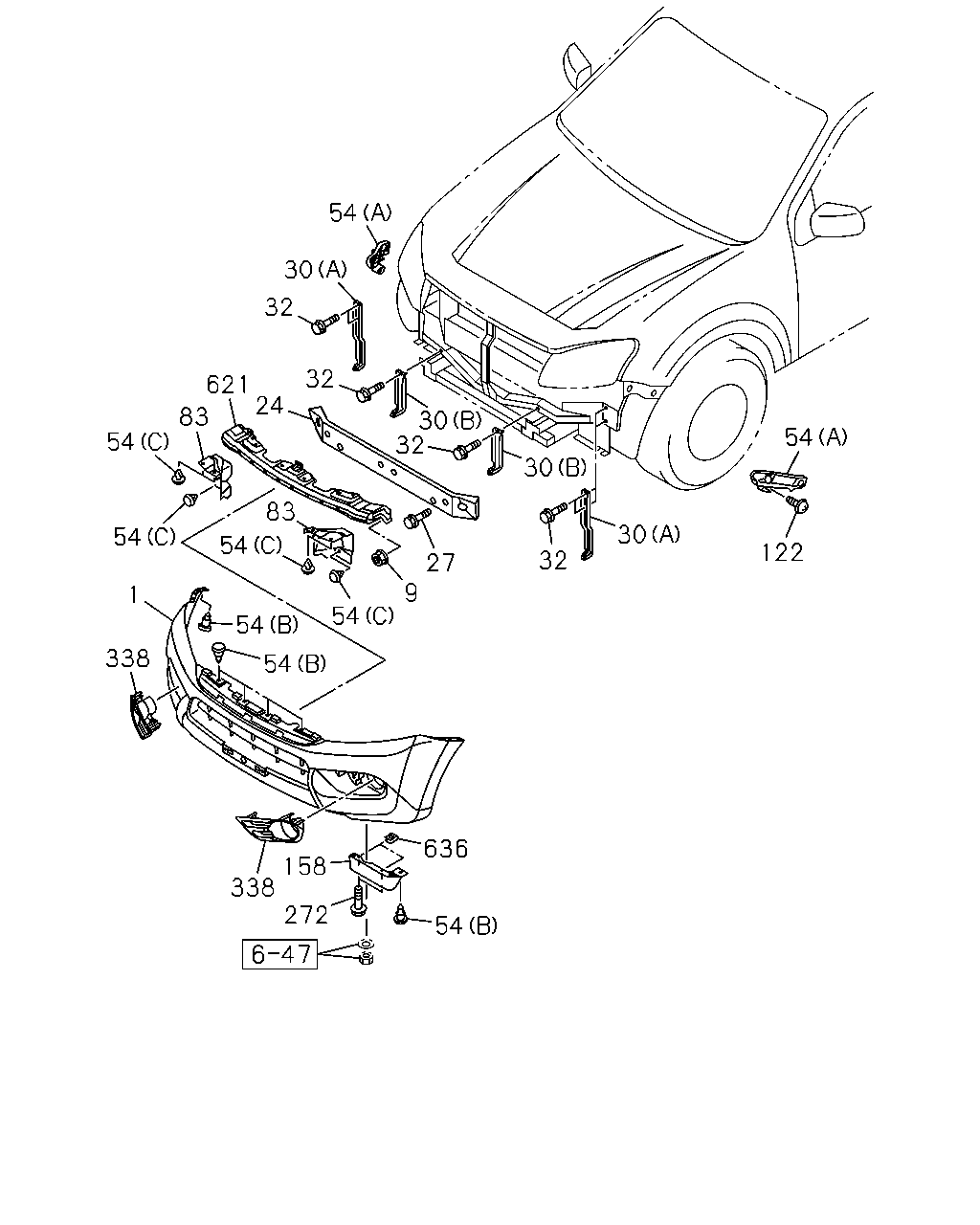

çizim 471631
54 30 32 32 30 32 30 54 122 30 32 27 9 54 83 54 54 621 83 54 24 54 54 338 1 158 338 636 54 272
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
PRIMER 		8-98249-950-2 01 1 1504- ● ●
9 NUT; REINF,FRT BUMPER
M6 FLANGE 		0-91180-106-0 06 1 1504- ● ●
24 BAR; FRT BUMPER 8-98165-112-1 01 1 1504- ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1504- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1504- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1504- ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE 		0-28650-616-0 06 1 1504- ● ●
54 RETAINER; FRT BUMPER
(B) 		8-97301-188-0 10 1 1504- ● ●
54 RETAINER; FRT BUMPER
(C) 		8-98050-462-0 06 1 1504- ● ●
54 RETAINER; FRT BUMPER
(A) 		8-98210-025-0 01 1 1504- ● ●
54 RETAINER; FRT BUMPER
(A) 		8-98210-026-0 01 1 1504- ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1504- ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1504- ● ●
122 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1504- ● ●
158 EXTENSION; FRT BUMPER 8-98101-950-0 01 1 1504- ● ●
158 EXTENSION; FRT BUMPER 8-98101-951-0 01 1 1504- ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1504- ● ●
338 BEZEL; FOG LAMP
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> 		8-98187-265-0 01 1 1504- ● ●
338 BEZEL; FOG LAMP
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> 		8-98187-266-0 01 1 1504- ● ●
621 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1504- ● ●
636 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1504- ● ●
