5-01 — FRAME AND OTHER PARTS (#160418) — 42 parça

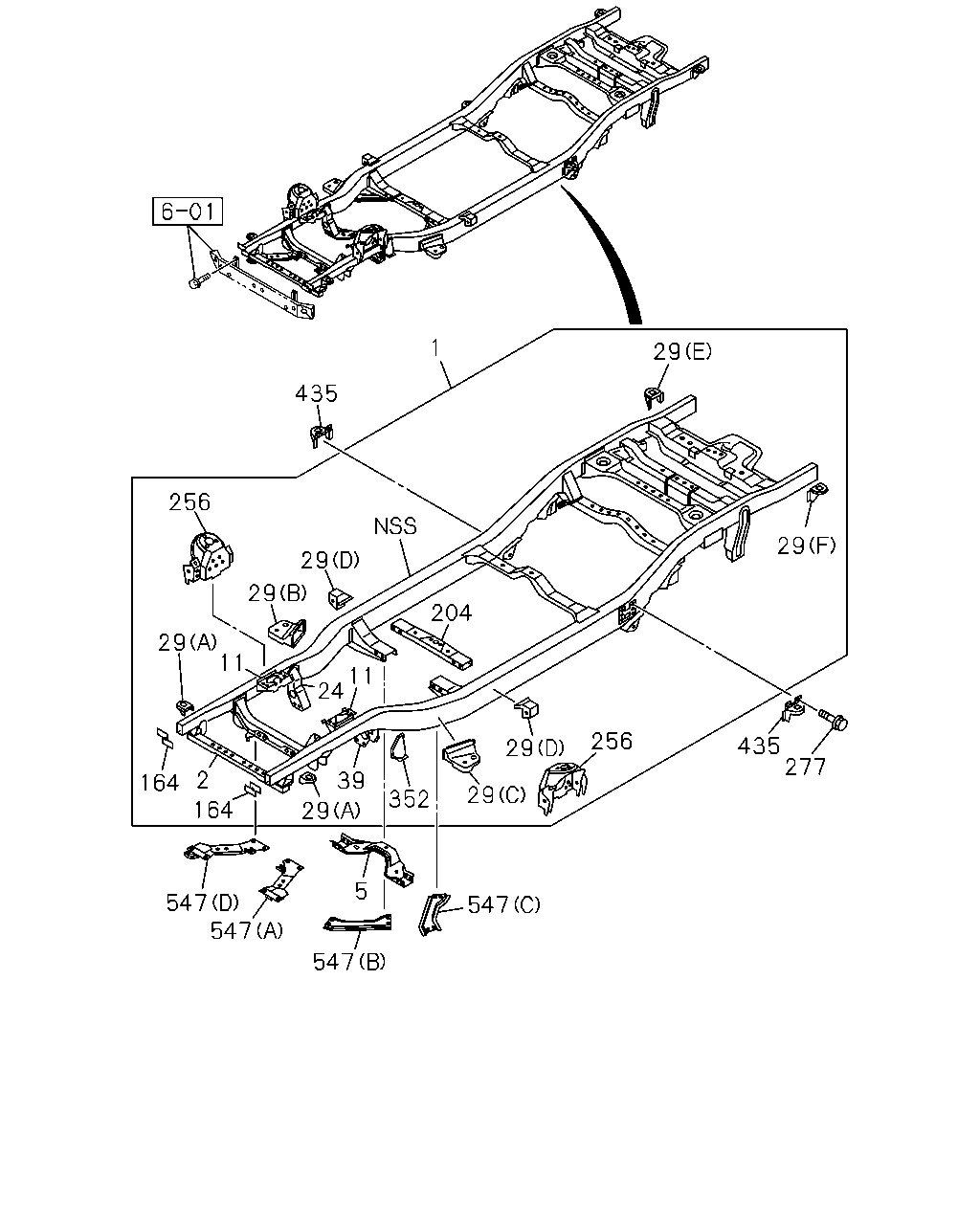

çizim 471486
1 435 256 29 11 29 29 204 11 24 2 164 164 547 547 5 547 547 29 352 29 39 29 256 435 277 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM
A/T 5 SPEED-AISIN(MA1) CHI 		8-98270-977-0 01 1 1504- ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ) CHI 		8-98270-976-0 01 1 1504- ●
1 FRAME ASM
A/T 5 SPEED-AISIN(MA1) CHI 		8-98270-979-0 01 1 1504- ●
1 FRAME ASM
M/T MUX 5 SPEED 5S(MZJ) CHI 		8-98270-978-0 01 1 1504- ●
2 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1504- ● ●
5 MEMBER; CROSS,SUSPENSION 8-98173-915-1 01 1 1504- ●
5 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1504- ●
11 BRACKET; ENG MTG 8-98106-794-2 01 1 1504- ● ●
11 BRACKET; ENG MTG 8-98106-796-2 01 1 1504- ● ●
24 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1504- ● ●
29 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1504- ● ●
29 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1504- ● ●
29 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1504- ● ●
29 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1504- ● ●
29 BRACKET; CAB MTG
(E) 		8-98217-263-0 01 1 1504- ● ●
29 BRACKET; CAB MTG
(F) 		8-98217-264-0 01 1 1504- ● ●
39 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1504- ● ●
164 PLATE; FRT 8-98106-814-0 01 1 1504- ● ●
164 PLATE; FRT 8-98106-815-0 01 1 1504- ● ●
204 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98204-865-1 01 1 1504- ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ) CHI 		8-98270-980-0 01 1 1504- ●
204 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98204-867-1 01 1 1504- ●
204 MEMBER; CROSS,TRANS MTG
M/T MUX 5 SPEED 5S(MZJ) 		8-98204-866-1 01 1 1504- ●
256 BRACKET; S/ABS 8-98106-801-6 01 1 1504- ● ●
256 BRACKET; S/ABS 8-98106-803-4 01 1 1504- ● ●
277 BOLT; CAB MTG BRKT 8-98196-741-0 12 1 1504- ● ●
352 BRACKET; BUMPER RUBBER 8-98106-835-3 01 1 1504- ● ●
352 BRACKET; BUMPER RUBBER 8-98106-836-3 01 1 1504- ● ●
435 BRACKET; CAB MTG 8-98205-085-0 02 1 1504- ● ●
547 BRACE; C/MBR
(B) 		8-98173-913-0 01 1 1504- ●
547 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1504- ●
547 BRACE; C/MBR
(D) 		8-98177-568-3 01 1 1504- ●
547 BRACE; C/MBR
(A) 		8-98177-569-1 01 1 1504- ●
547 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1504- ●
547 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1504- ●
547 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1504- ●
547 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1504- ●
çizim 472072
497 497 497 497 485
BalonParca AdiParca NoAdetTipApplied Date A B
485 NUT; TRANS MTG MBR,FRAME
M10 FLANGE 		0-91180-210-0 04 1 1504- ● ●
497 BOLT; C/MBR
(B) M10X120 FLANGE 		0-28066-012-0 04 1 1504- ● ●
497 BOLT; C/MBR
(D) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1504- ●
497 BOLT; C/MBR
(C) M12X30 FLANGE 		0-28651-230-0 08 1 1504- ● ●
497 BOLT; C/MBR
(A) M10X35 FLANGE 		0-28661-035-0 06 1 1504- ● ●
