Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

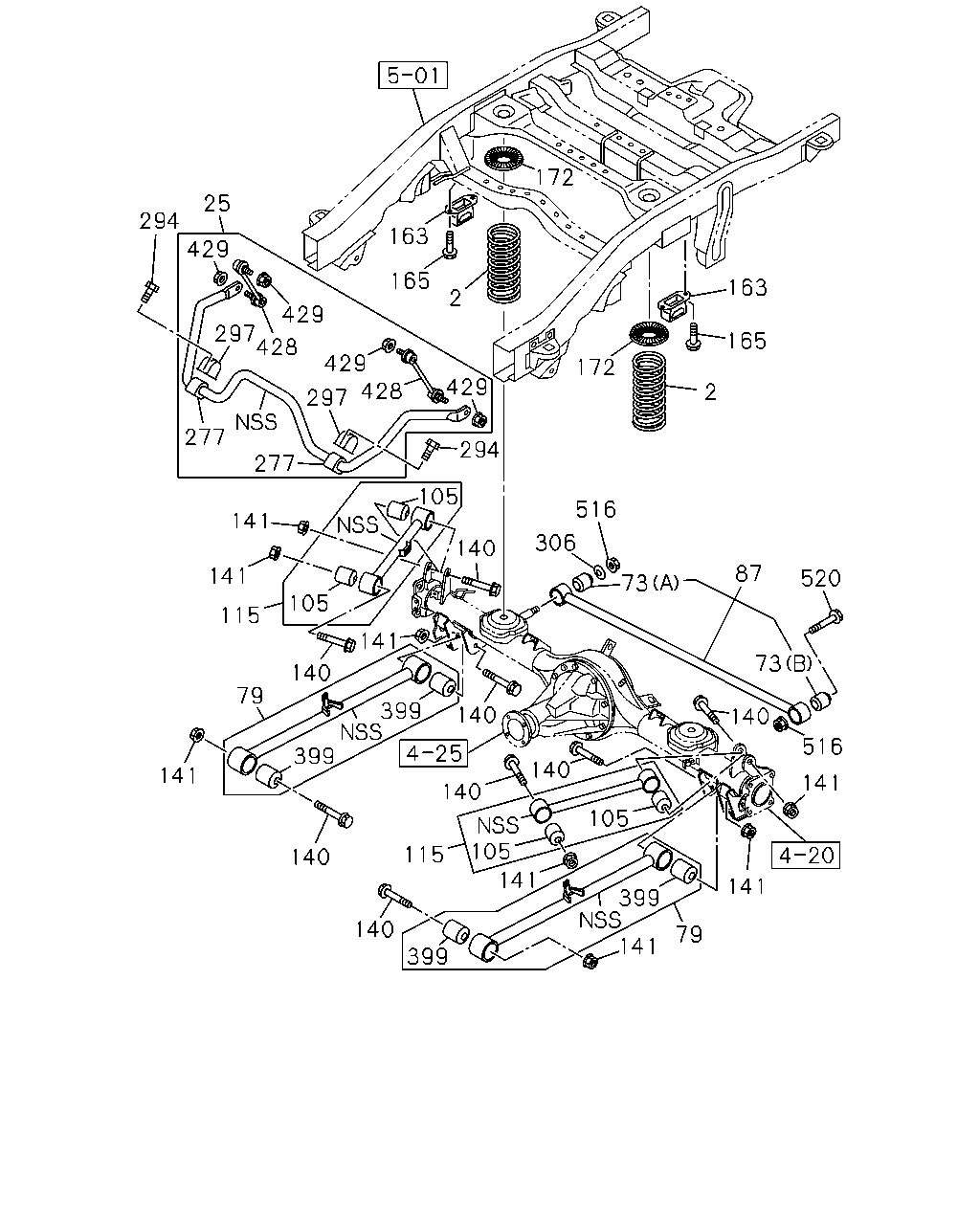

4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#160415) — 22 parça
Tümü
A - UCB6VC
B - UCS6VC
25
294
429
297
428
429
429
297
428
277
277
141
141
115
140
79
141
140
399
399
141
105
105
140
294
429
165
163
2
172
172
163
165
2
516
306
73
87
520
73
516
140
141
141
79
141
399
105
140
140
140
105
141
115
140
399
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SPRING; COIL,RR SUSP
8-97947-799-2
02
1
1504-
●
●
25
BAR ASM; STAB,RR SUSP
8-97947-792-0
01
1
1504-
●
●
73
BUSHING; LATERAL ROD,RR SUSP
(A)
8-97947-785-1
01
1
1504-
●
●
73
BUSHING; LATERAL ROD,RR SUSP
(B)
8-97947-786-0
01
1
1504-
●
●
79
LINK; TRAILING,RR SUSP
8-97947-369-0
02
1
1504-
●
●
87
LINK; LATERAL,RR SUSP
8-97947-365-2
01
1
1504-
●
●
105
BUSHING; UPR LINK
8-97947-787-0
04
1
1504-
●
●
115
LINK; UPR,W/BUSHING
8-97947-367-1
02
1
1504-
●
●
140
BOLT; CONT ARM TO BODY
8-97947-834-0
08
1
1504-
●
●
141
NUT; CONT ARM TO BODY
8-98217-474-0
08
1
1504-
●
●
163
RUBBER; HELPER,RR SPR
8-97947-790-0
02
1
1504-
●
●
165
BOLT; HELPER RUBBER
M10X25 FLANGE
0-28661-025-0
04
1
1504-
●
●
172
INSULATOR; RR SPR UPR
8-97947-789-0
02
1
1504-
●
●
277
BUSHING; STAB,RR UPR
8-97247-083-0
02
1
1504-
●
●
294
BOLT; STAB BAR TO RR AXLE
M8X20 FLANGE
0-28650-820-0
04
1
1504-
●
●
297
CAP; STAB BAR
8-97947-948-0
02
1
1504-
●
●
306
WASHER; ROD
8-97947-826-0
01
1
1504-
●
●
399
BUSHING; TRAILING ROD
8-97947-788-0
04
1
1504-
●
●
428
LINK; RR STABILIZER
8-97947-794-0
02
1
1504-
●
●
429
NUT; LINK
M12 LOCK NUT FLANGE
0-91380-012-0
04
1
1504-
●
●
516
NUT; ROD
8-98217-474-0
02
1
1504-
●
●
520
BOLT; ROD
0-29261-490-0
01
1
1504-
●
●
