1-31 — AIR DUCT (#16041) — 111 parça

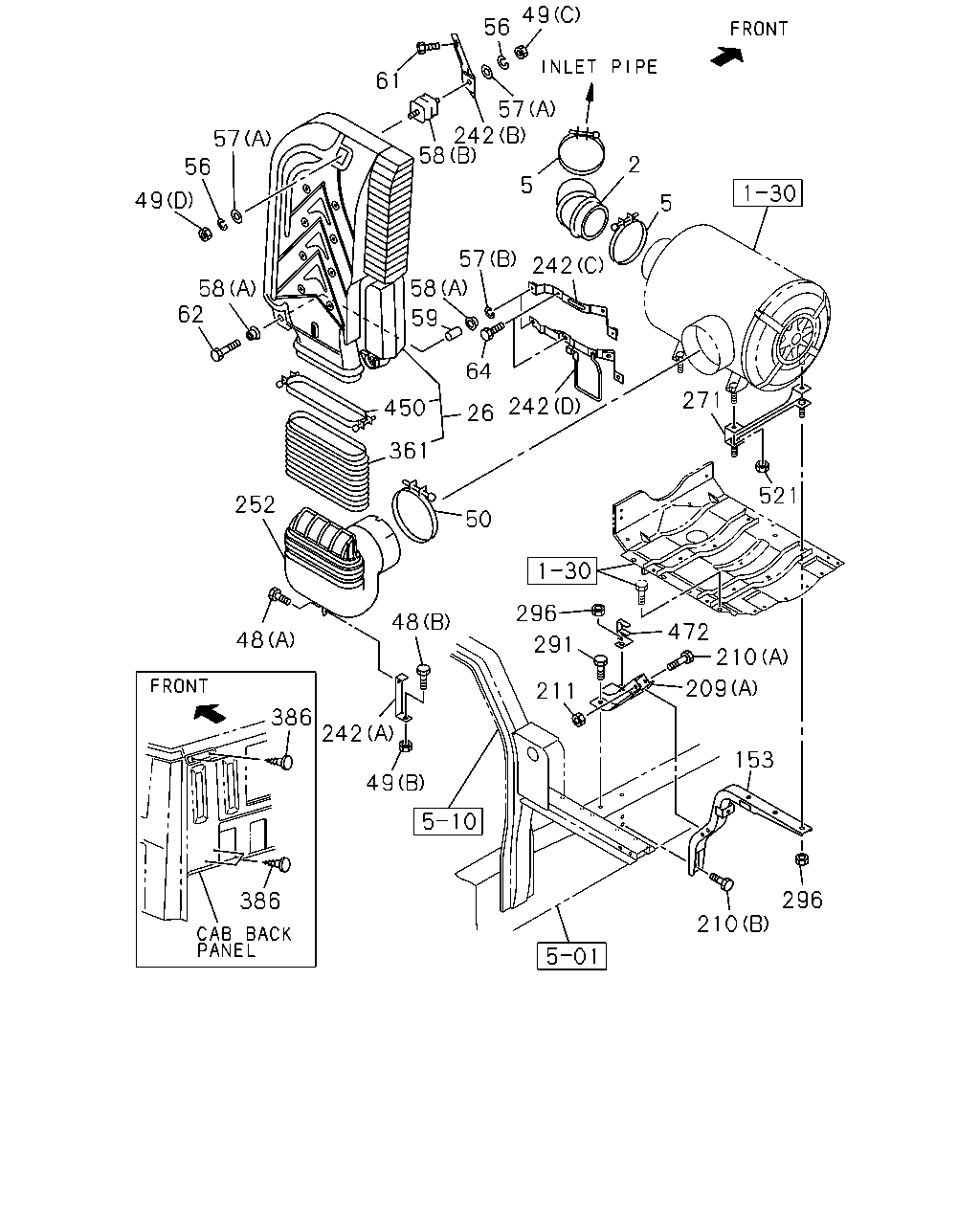

49 56 61 57 242 58 57 56 2 5 49 5 57 242 58 58 62 59 64 271 242 450 26 361 521 252 50 296 48 472 210 48 291 209 211 386 242 153 49 296 386 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	0904-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0904-
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-202-2	01	1	1002-1003
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1004-
26	DUCT; AIR INT	1-14219-258-1	01	1	0904-1001
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1002-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0904-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0904-
48	BOLT; AIR DUCT (C) M10X60	1-09030-044-1	02	1	0904-1001
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1002-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1002-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	01	1	1002-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0904-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	04	1	0904-1001
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	1002-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0904-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1002-
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	0904-1001
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1002-
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1002-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	1002-
57	WASHER; PL,AIR INT DUCT (A) ID=8.4 OD=22	1-09985-188-0	04	1	0904-1001
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	1002-
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	8-98125-944-1	01	1	1002-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1002-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	1002-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0904-
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1002-
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	1002-
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1002-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0904-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0904-
209	BRACKET; ACL (B)	8-98115-405-1	01	1	0904-1001
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1002-
209	BRACKET; ACL (C)	1-79990-045-2	01	1	0904-1001
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1002-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0904-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0904-
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0904-
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	8-98113-588-1	01	1	1002-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1002-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (D)	8-98041-993-1	01	1	1002-
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0904-
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	1002-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0904-
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	0904-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0904-
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	1002-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0904-
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	1002-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0904-
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0904-

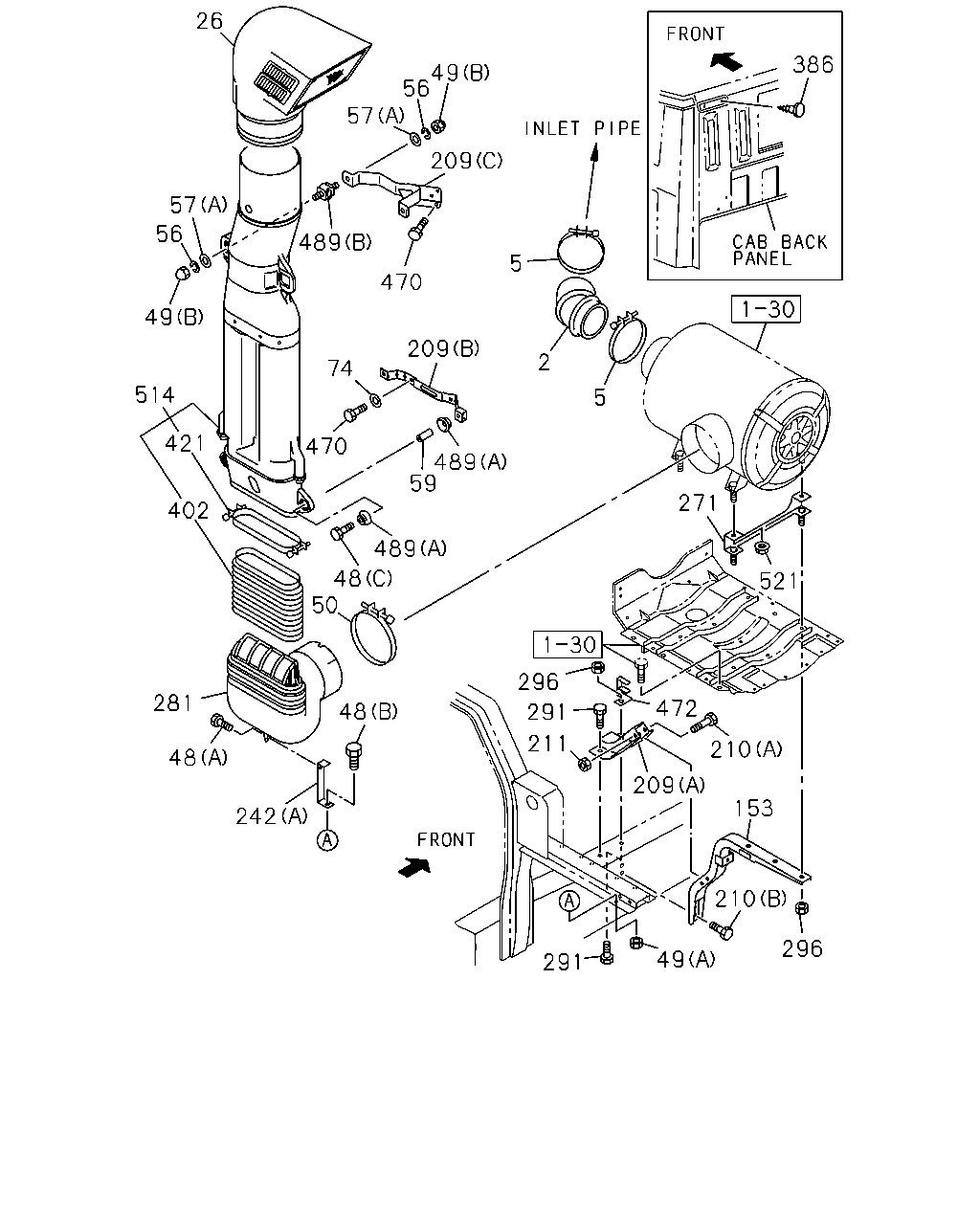

26 386 49 56 57 209 57 56 489 5 470 49 209 2 74 514 5 421 470 489 59 271 402 489 48 50 521 296 281 472 48 291 211 210 48 209 153 242 210 296 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	0904-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0904-
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-202-2	01	1	1002-1003
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1004-
26	DUCT; AIR INT	1-14219-258-1	01	1	0904-1001
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1002-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0904-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0904-
48	BOLT; AIR DUCT (C) M10X60	1-09030-044-1	02	1	0904-1001
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1002-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1002-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	01	1	1002-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0904-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	04	1	0904-1001
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	1002-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0904-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1002-
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	0904-1001
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1002-
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1002-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	1002-
57	WASHER; PL,AIR INT DUCT (A) ID=8.4 OD=22	1-09985-188-0	04	1	0904-1001
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	1002-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0904-
74	WASHER; PL,ACL ID=8.4 OD=22	1-09985-188-0	01	1	0904-1001
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	1002-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0904-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0904-
209	BRACKET; ACL (B)	8-98115-405-1	01	1	0904-1001
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1002-
209	BRACKET; ACL (C)	1-79990-045-2	01	1	0904-1001
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1002-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0904-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0904-
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0904-
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	8-98113-588-1	01	1	1002-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1002-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (D)	8-98041-993-1	01	1	1002-
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0904-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0904-
281	DUCT; AIR,VERTICAL INT	1-14230-194-0	01	1	0904-1001
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	1002-
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	0904-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0904-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0904-
402	GASKET; RUBBER	1-14230-149-2	01	1	0904-1001
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-2	01	1	1002-
421	CLAMP; AIR DUCT	1-14239-237-0	01	1	0904-1001
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	1002-
470	BOLT; BRKT M8X25 FLANGE	8-98074-570-0	04	1	0904-1001
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	1002-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0904-
489	RUBBER; SUPPORT (A) OD=40 T=18.5	1-14119-267-0	04	1	0904-1001
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1002-
489	RUBBER; SUPPORT (B)	8-97080-149-0	02	1	0904-1001
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	1002-
514	DUCT; PRE CLEANER	1-14230-170-1	01	1	0904-1001
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	1002-
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0904-
