◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#160408) — 30 parça
çizim 471262
103 236 102 306 140 105 306 102 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98226-629-1 01 1 1504- ● ●
5 COLUMN; STRG
REMOTE CONT DOOR LOCK<AP5> 		8-98273-329-0 01 1 1504- ● ●
102 LOCK ASM; STRG
A/T 5 SPEED-AISIN(MA1) REMOTE CONT DOOR LOCK<AP5> (A) 		8-98076-120-0 01 1 1504- ● ●
102 LOCK ASM; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98226-269-0 01 1 1504- ● ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ) REMOTE CONT DOOR LOCK<AP5> (A) 		8-98076-117-0 01 1 1504- ●
102 LOCK ASM; STRG
M/T MUX 5 SPEED 5S(MZJ) REMOTE CONT DOOR LOCK<AP5> (A) 		8-98076-117-0 01 1 1504- ●
103 SWITCH; IGNITION
REMOTE CONT DOOR LOCK<AP5> 		8-98132-719-0 01 1 1504- ● ●
105 SCREW; IGN SW
REMOTE CONT DOOR LOCK<AP5> 		8-98192-449-0 02 1 1504- ● ●
140 BRACKET; STRG COWL
REMOTE CONT DOOR LOCK<AP5> 		8-98134-652-0 01 1 1504- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK
REMOTE CONT DOOR LOCK<AP5> 		8-98132-720-0 01 1 1504- ● ●
306 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF 		8-97945-749-0 01 1 1504- ● ●
306 BOLT; STRG SHAFT
REMOTE CONT DOOR LOCK<AP5> (A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1504- ● ●
306 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1504- ● ●

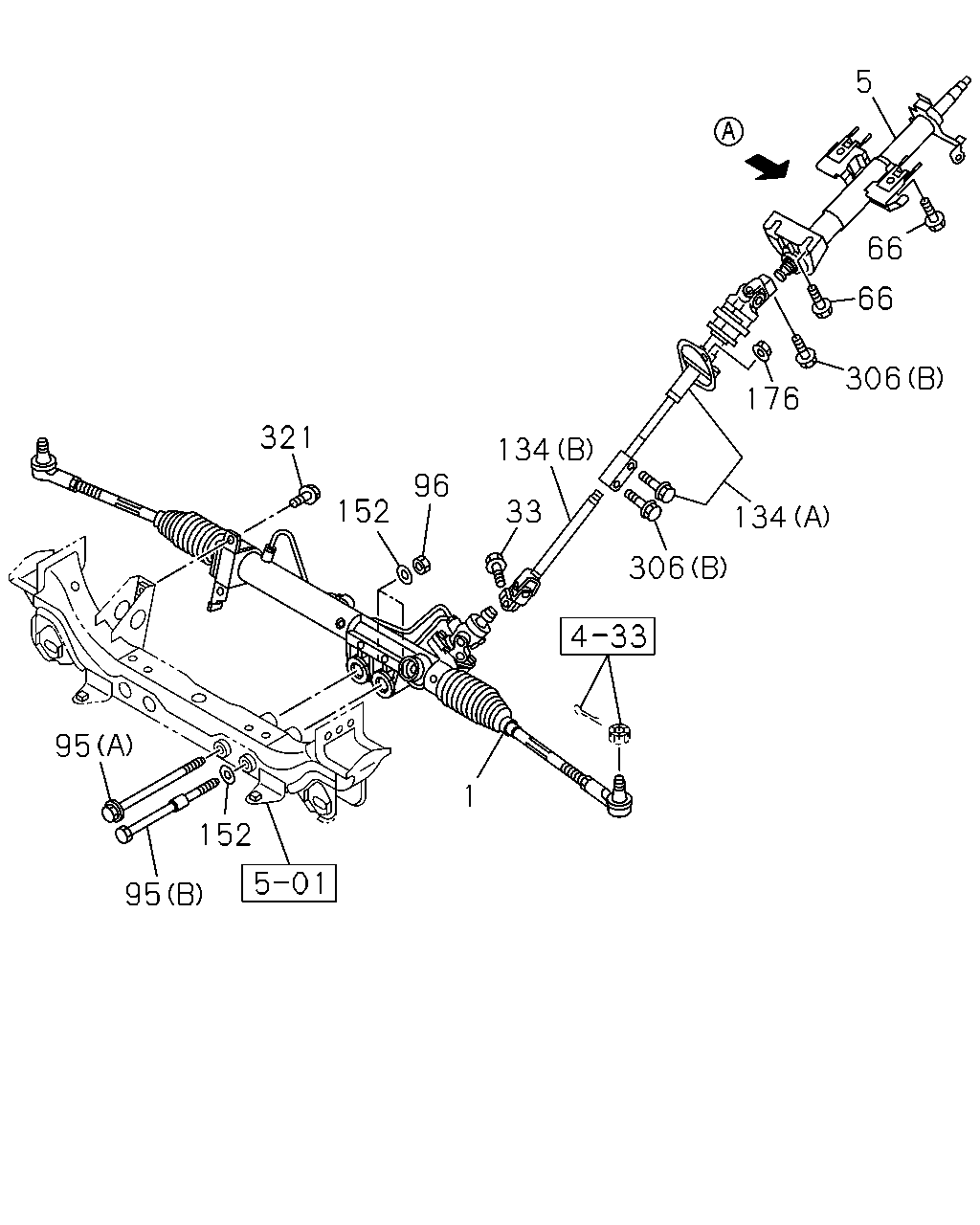

çizim 471548
66 5 66 176 306 306 33 134 96 152 321 95 152 95 1 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98231-300-0 01 1 1504- ● ●
5 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98226-629-1 01 1 1504- ● ●
5 COLUMN; STRG
REMOTE CONT DOOR LOCK<AP5> 		8-98273-329-0 01 1 1504- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE 		8-97249-320-0 01 1 1504- ● ●
66 BOLT; STRG COLUMN
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> M8X25 FLANGE CHI 		0-28650-825-0 04 1 1504- ● ●
95 BOLT; STRG UNIT
(B) M16X186.5 		8-97947-503-0 01 1 1504- ● ●
95 BOLT; STRG UNIT
(A) M16X186.5 W/PL WASHER 		8-98162-884-1 01 1 1504- ● ●
96 NUT; STRG UNIT
M16 		0-91110-516-0 02 1 1504- ● ●
134 SHAFT; STRG,2ND
(A) 		8-97946-128-1 01 1 1504- ● ●
134 SHAFT; STRG,2ND
(B) 		8-97946-136-0 01 1 1504- ● ●
152 WASHER; LK,STRG UNIT
ID=17 		8-97947-501-0 03 1 1504-1504 ● ●
152 WASHER; LK,STRG UNIT
ID=17 		8-98296-670-0 03 1 1505- ● ●
176 NUT; STRG
M6 FLANGE 		0-91180-106-0 02 1 1504- ● ●
306 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) M8X18.5 TWISTED OFF 		8-97945-749-0 01 1 1504- ● ●
306 BOLT; STRG SHAFT
REMOTE CONT DOOR LOCK<AP5> (A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1504- ● ●
306 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1504- ● ●
321 BOLT; BRKT,STRG
M12X30 FLANGE 		0-28661-230-0 02 1 1504- ● ●
