Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

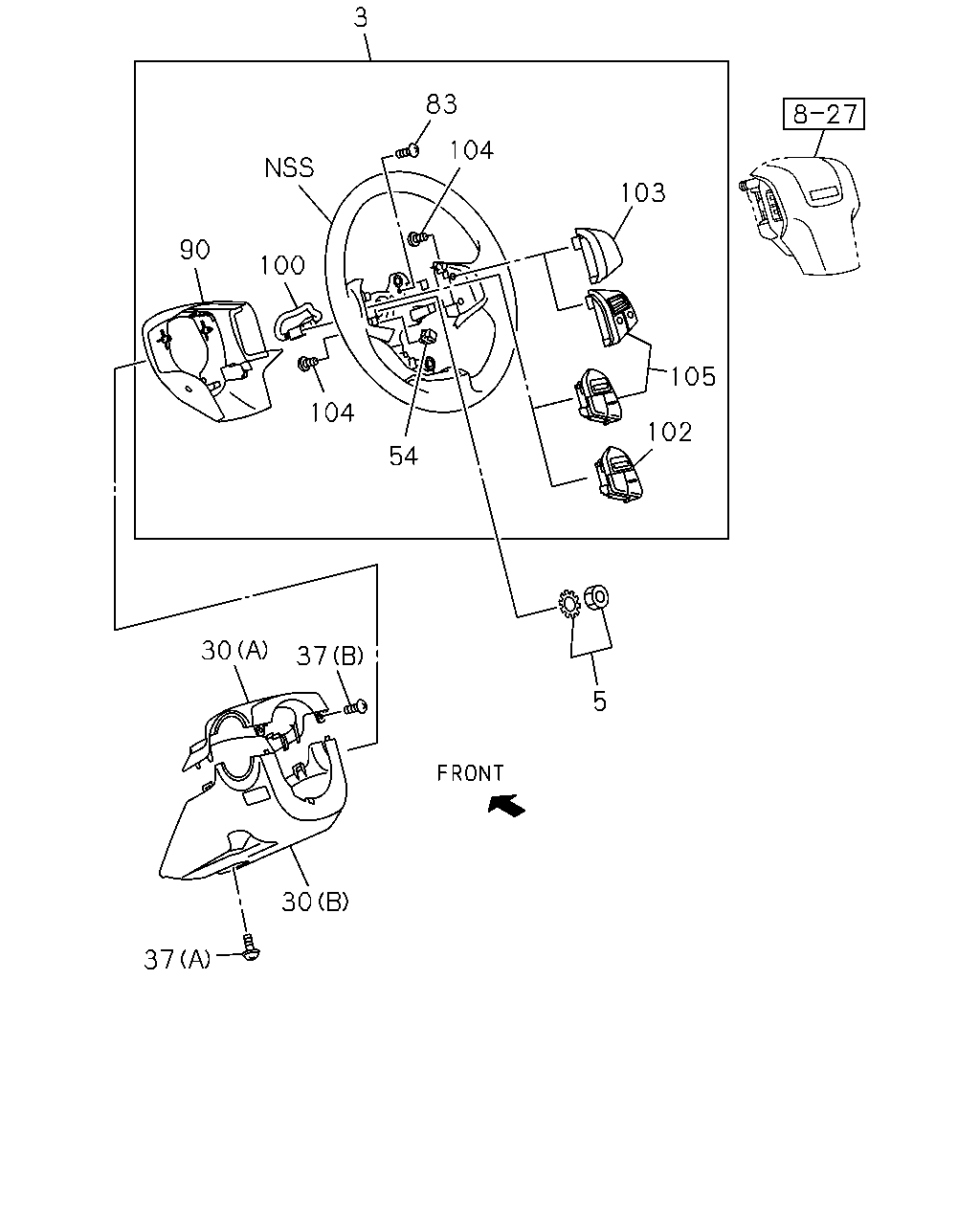

4-30 — STEERING WHEEL AND COWL
(#160407) — 17 parça
Tümü
A - UCB6VC
B - UCS6VC
3
83
104
103
105
102
54
104
100
90
30
37
30
37
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
WHEEL; STRG
AUTO CRUISE CONT<K30> BLACK
8-97424-482-0
01
1
1504-
●
●
3
WHEEL; STRG
EXC. AUTO CRUISE CONT<K30> BLACK
8-97424-481-0
01
1
1504-
●
●
5
NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
1504-
●
●
30
COWL; STEERING
PASSIVE ENTRY AND START SYSTEM<AP3> (B) BLACK
8-97427-834-0
01
1
1504-
●
●
30
COWL; STEERING
REMOTE CONT DOOR LOCK<AP5> (B) BLACK
8-97417-527-6
01
1
1504-
●
●
30
COWL; STEERING
(A) BLACK
8-97416-863-4
01
1
1504-
●
●
37
SCREW; STRG COWL UPR
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (A) M4X12 W/PL WASHER
0-36210-412-0
01
1
1504-
●
●
37
SCREW; STRG COWL UPR
(B) M5X16 TAPPING
8-98167-449-0
02
1
1504-
●
●
54
CLIP; HARNESS
8-98165-703-0
01
1
1504-
●
●
83
SCREW; LWR COVER TO WHEEL
M4X10 TAPPING
0-71240-410-0
02
1
1504-
●
●
90
COVER ASM; STRG WHEEL,LWR
BLACK
8-97416-856-1
01
1
1504-
●
●
100
HARNESS; STRG WHEEL
AUTO CRUISE CONT<K30>
8-98108-694-0
01
1
1504-
●
●
100
HARNESS; STRG WHEEL
EXC. AUTO CRUISE CONT<K30>
8-98108-695-0
01
1
1504-
●
●
102
SWITCH ASM; AUDIO CONT,STRG WHEEL
EXC. AUTO CRUISE CONT<K30>
8-98196-493-0
01
1
1504-
●
●
103
BEZEL; COVER,SWITCH HOLE
EXC. AUTO CRUISE CONT<K30>
8-98196-497-0
01
1
1504-
●
●
104
SCREW; SWITCH AND BEZEL
M4X10 TAPPING
0-71240-410-0
04
1
1504-
●
●
105
SWITCH ASM; AUDIO & AUTO CRUISE
AUTO CRUISE CONT<K30>
8-98196-492-0
01
1
1504-
●
●
