◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#160400) — 72 parça
çizim 471212
300 9 125 103 17 9 17 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-770-0 01 1 1504- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1504- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-97947-642-0 03 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-97947-645-0 02 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1504- ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1504- ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1504- ●
103 BOOT; PROP SHAFT
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-639-0 01 1 1504- ●
103 BOOT; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97940-114-0 01 1 1504- ●
103 BOOT; PROP SHAFT
(A) 		8-97940-114-0 01 1 1504- ●
103 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-631-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
(B) 		8-97947-663-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-629-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
(A) 		8-97947-630-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) L=1480.5 		8-97948-752-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) L=1596.5 		8-97948-745-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B) L=1220 		8-97948-767-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1142 		8-97948-765-0 01 1 1504- ●
çizim 471213
300 125 103 125 218 20 59 9 9 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-770-0 01 1 1504- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1504- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-97947-642-0 03 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-97947-645-0 02 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1504- ●
20 BEARING ASM; CTR,PROP SHAFT
NSK 		8-97947-655-0 01 1 1504- ●
20 BEARING ASM; CTR,PROP SHAFT
NTN 		8-97947-656-0 01 1 1504- ●
59 NUT; RET TO SUPPORT 8-97947-557-0 01 1 1504- ●
103 BOOT; PROP SHAFT
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-639-0 01 1 1504- ●
103 BOOT; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97940-114-0 01 1 1504- ●
103 BOOT; PROP SHAFT
(A) 		8-97940-114-0 01 1 1504- ●
103 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-631-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
(B) 		8-97947-663-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97947-629-0 01 1 1504- ●
125 YOKE ASM; SPLINED,PROP SHAFT
(A) 		8-97947-630-0 01 1 1504- ●
218 WASHER; PL,PROP SHAFT
ID=30 H=40 L=35 		8-97192-641-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) L=1480.5 		8-97948-752-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) L=1596.5 		8-97948-745-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B) L=1220 		8-97948-767-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1142 		8-97948-765-0 01 1 1504- ●
çizim 471848
103 301 220 9 8 17 9 8 17 106
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-770-0 01 1 1504- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97948-771-0 01 1 1504- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		8-97948-772-0 02 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-97947-642-0 03 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-97947-645-0 02 1 1504- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-97947-582-0 02 1 1504- ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1504- ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 1504- ●
103 BOOT; PROP SHAFT
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) 		8-97947-639-0 01 1 1504- ●
103 BOOT; PROP SHAFT
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97940-114-0 01 1 1504- ●
103 BOOT; PROP SHAFT
(A) 		8-97940-114-0 01 1 1504- ●
103 BOOT; PROP SHAFT
(B) 		8-97943-053-0 01 1 1504- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1504- ●
220 YOKE; SPLINED
A/T 5 SPEED-AISIN(MA1) 		8-97945-105-0 01 1 1504- ●
220 YOKE; SPLINED
M/T MUX 5 SPEED 5S(MZJ) 		8-97943-050-0 01 1 1504- ●
301 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97948-762-0 01 1 1504- ●
301 SHAFT ASM; PROP,FRT
M/T MUX 5 SPEED 5S(MZJ) L=710 		8-97948-761-0 01 1 1504- ●

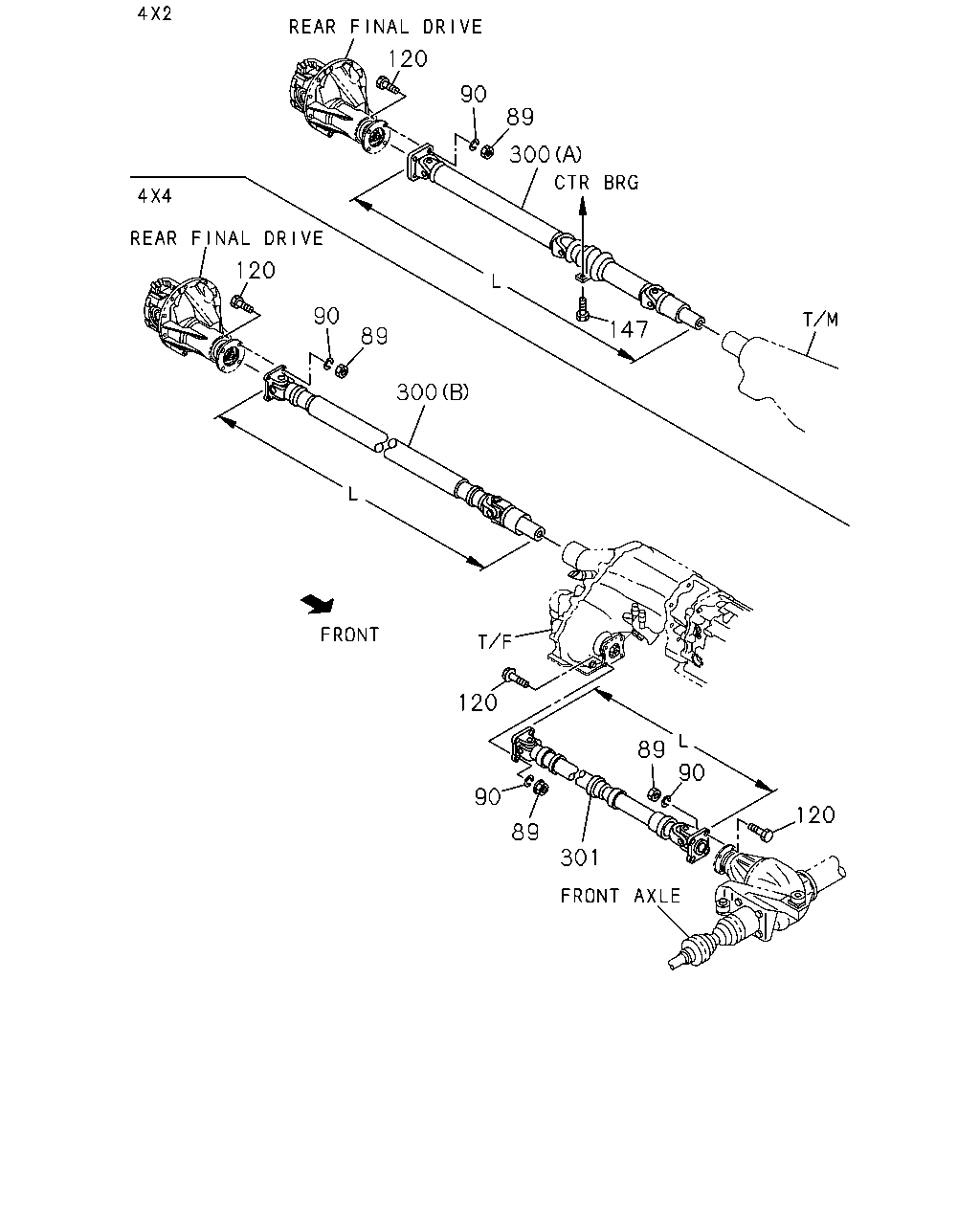

çizim 471936
300 89 90 120 120 300 89 90 89 90 120 301 89 90 120 147
BalonParca AdiParca NoAdetTipApplied Date A B
89 NUT; YOKE TO RR AXLE
M10 FLANGE 		8-97246-900-0 04 1 1504- ● ●
89 NUT; YOKE TO RR AXLE
M10 FLANGE 		8-97246-900-0 08 1 1504- ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.1 		8-97246-901-0 04 1 1504- ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.1 		8-97246-901-0 08 1 1504- ●
120 BOLT; YOKE TO RR AXLE
M10X29 		8-97246-859-0 04 1 1504- ● ●
120 BOLT; YOKE TO RR AXLE
M10X29 		8-97246-859-0 08 1 1504- ●
147 BOLT; CENTER BRG MTG
M12X25 FLANGE 		0-28661-225-0 02 1 1504- ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) (A) L=1480.5 		8-97948-752-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) L=1596.5 		8-97948-745-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B) L=1220 		8-97948-767-0 01 1 1504- ●
300 SHAFT ASM; PROP,RR
A/T 5 SPEED-AISIN(MA1) (B) L=1142 		8-97948-765-0 01 1 1504- ●
301 SHAFT ASM; PROP,FRT
A/T 5 SPEED-AISIN(MA1) L=789 		8-97948-762-0 01 1 1504- ●
301 SHAFT ASM; PROP,FRT
M/T MUX 5 SPEED 5S(MZJ) L=710 		8-97948-761-0 01 1 1504- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
