Isuzu WW
▶
SUV
▶
UCR
▶
51617 - UCR/S JIANGXI
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#160397) — 61 parça
Tümü
A - UCB6VC
B - UCS6VC
◀

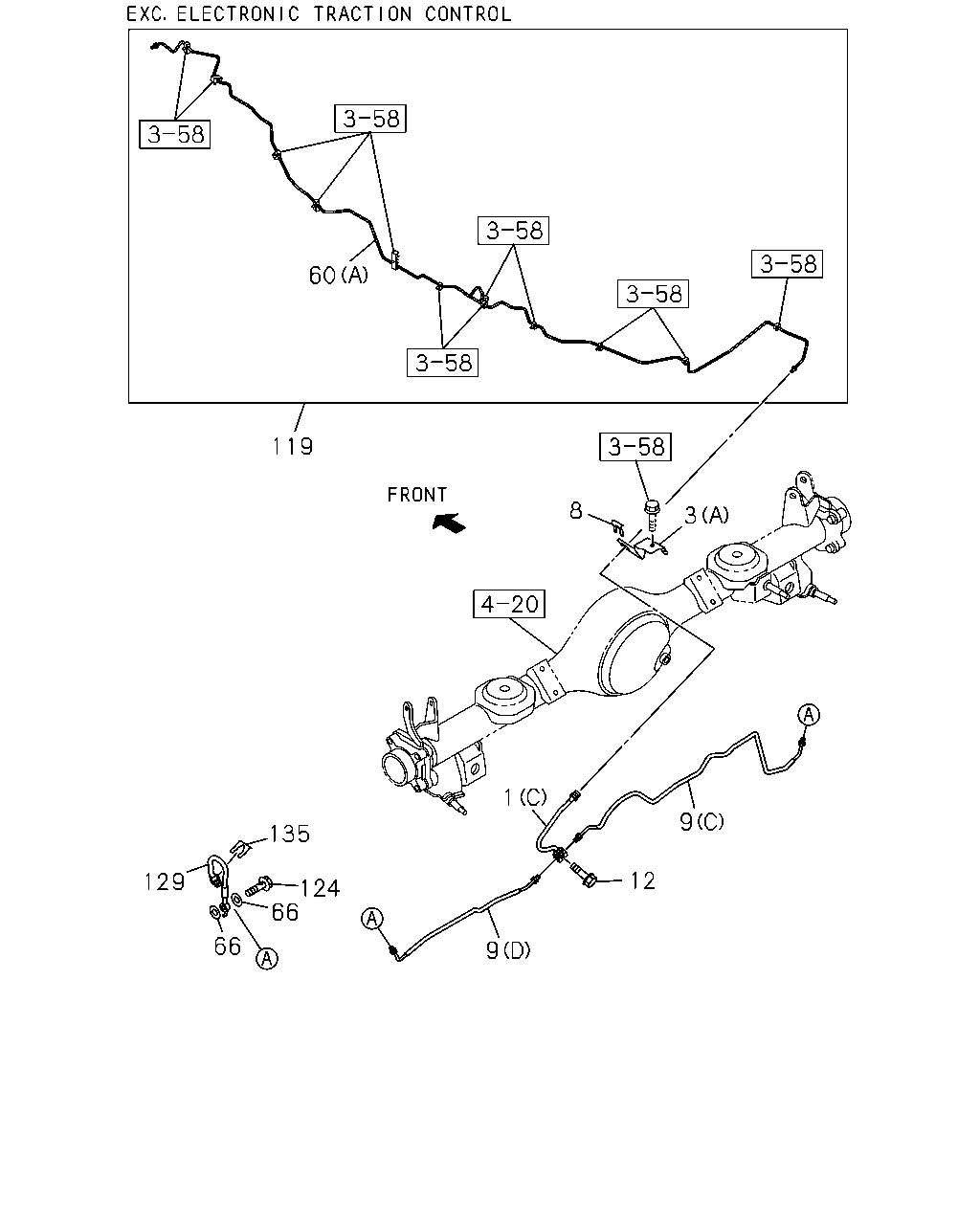

[355A] PIPING(NO.1) (23 parça)

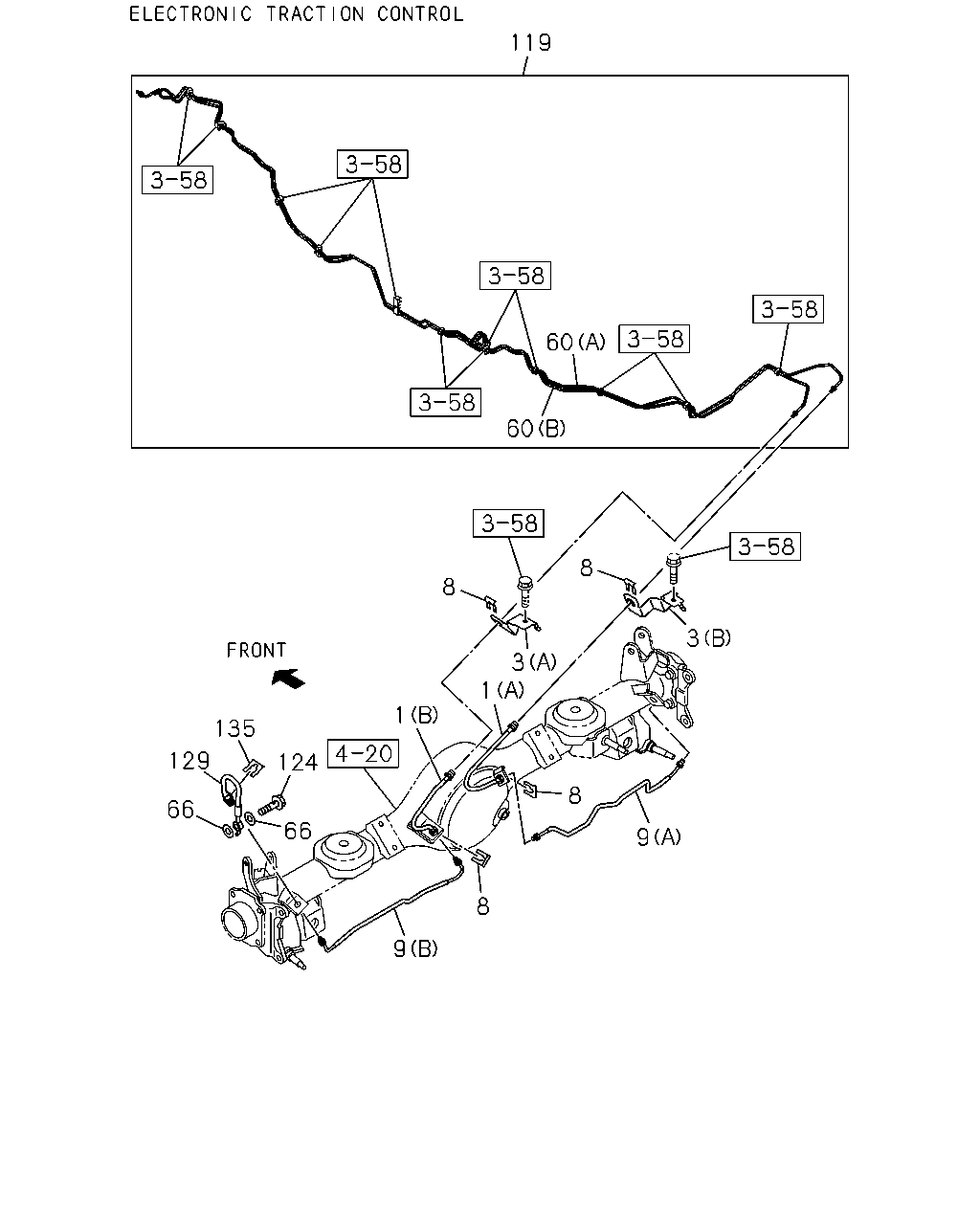

[355A] PIPING(NO.2) (22 parça)
[355A] CONNECTOR(NO.1) (8 parça)
[355A] CONNECTOR(NO.2) (8 parça)
▶
60
119
8
3
1
9
12
9
124
135
129
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98198-321-0
01
1
1504-
●
●
1
HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98198-322-0
01
1
1504-
●
●
1
HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C)
8-98198-320-0
01
1
1504-
●
●
3
BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98198-325-0
01
1
1504-
●
●
3
BRACKET; FLEX HOSE,RR BRK
(A)
8-98198-326-0
01
1
1504-
●
●
8
CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9>
8-97360-054-0
04
1
1504-
●
●
8
CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-97360-054-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98191-433-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98191-434-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C)
8-98191-435-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)
8-98191-436-0
01
1
1504-
●
●
12
BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE
0-28650-830-0
01
1
1504-
●
●
60
PIPE ASM; BRK
(A)
8-98197-852-0
01
1
1504-
●
●
60
PIPE ASM; BRK
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98197-851-0
01
1
1504-
●
60
PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98197-851-0
01
1
1504-
●
66
GASKET; BRK HOSE
ID=10.2 OD=16.0
9-09571-410-0
04
1
1504-
●
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
124
BOLT; EYE,FLEX HOSE,RR BRK
M10X22
8-98014-005-0
02
1
1504-
●
●
129
HOSE; FLEX,RR DISC
8-98198-323-0
02
1
1504-
●
●
135
CLIP; FLEX HOSE
8-97360-054-0
02
1
1504-
●
●
119
60
60
8
8
3
1
3
1
135
129
66
66
8
8
9
9
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98198-321-0
01
1
1504-
●
●
1
HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98198-322-0
01
1
1504-
●
●
1
HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C)
8-98198-320-0
01
1
1504-
●
●
3
BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98198-325-0
01
1
1504-
●
●
3
BRACKET; FLEX HOSE,RR BRK
(A)
8-98198-326-0
01
1
1504-
●
●
8
CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9>
8-97360-054-0
04
1
1504-
●
●
8
CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-97360-054-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98191-433-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98191-434-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (C)
8-98191-435-0
01
1
1504-
●
●
9
PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)
8-98191-436-0
01
1
1504-
●
●
60
PIPE ASM; BRK
(A)
8-98197-852-0
01
1
1504-
●
●
60
PIPE ASM; BRK
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98197-851-0
01
1
1504-
●
60
PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98197-851-0
01
1
1504-
●
66
GASKET; BRK HOSE
ID=10.2 OD=16.0
9-09571-410-0
04
1
1504-
●
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
124
BOLT; EYE,FLEX HOSE,RR BRK
M10X22
8-98014-005-0
02
1
1504-
●
●
129
HOSE; FLEX,RR DISC
8-98198-323-0
02
1
1504-
●
●
135
CLIP; FLEX HOSE
8-97360-054-0
02
1
1504-
●
●
119
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
CONNECTOR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98099-785-1
01
1
1504-
●
25
CONNECTOR
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98099-785-1
01
1
1504-
●
25
CONNECTOR
4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98099-784-1
01
1
1504-
●
25
CONNECTOR
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98099-784-1
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
119
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
CONNECTOR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98099-785-1
01
1
1504-
●
25
CONNECTOR
ELECTRONIC TRACTION CONTROL<NW9> (B)
8-98099-785-1
01
1
1504-
●
25
CONNECTOR
4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98099-784-1
01
1
1504-
●
25
CONNECTOR
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98099-784-1
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9>
8-98197-850-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
119
PIPE; BRK,2WAY TO RR
EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98197-849-0
01
1
1504-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
