3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#160395) — 73 parça

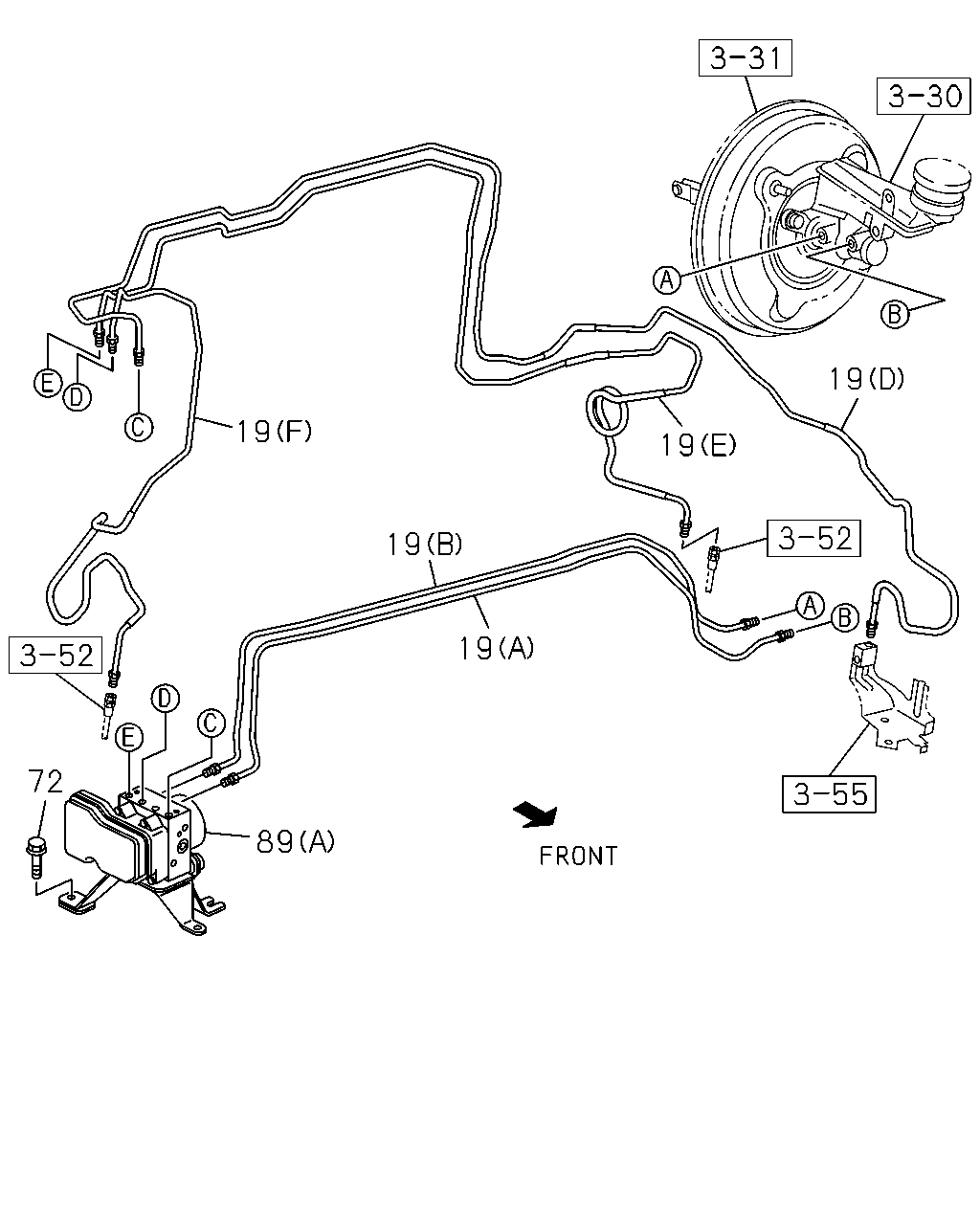

19 19 19 89 72 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1504-		●
72	BOLT; BRKT TO BODY M6X16 FLANGE	0-28650-616-0	03	1	1504-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98197-807-1	01	1	1504-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98250-548-0	01	1	1504-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-803-0	01	1	1504-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-188-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-804-0	01	1	1504-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-189-0	01	1	1509-		●

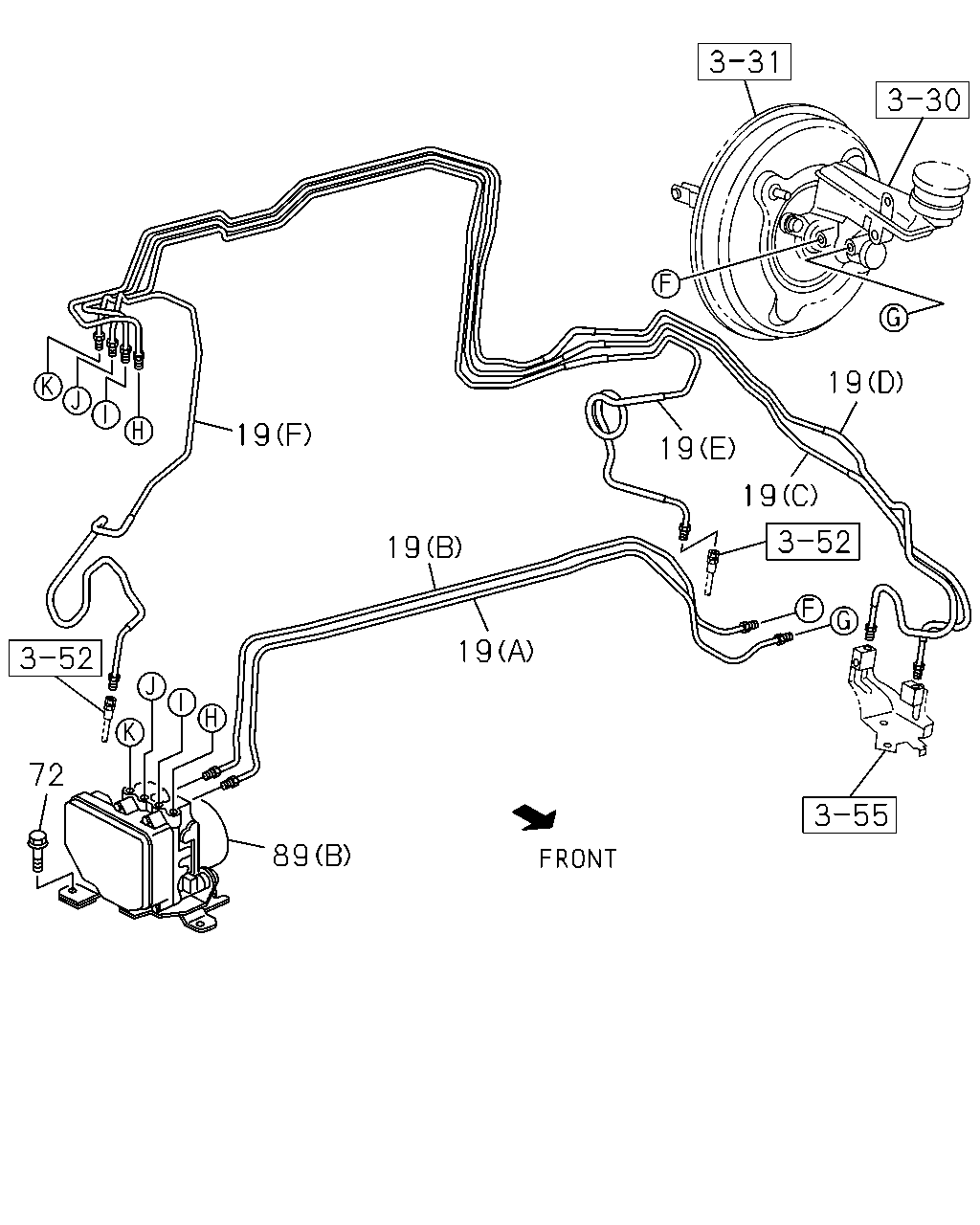

19 19 19 89 72 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-746-2	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-747-2	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-749-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (C)	8-98099-752-3	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98203-949-0	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98203-951-0	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (D)	8-98099-751-0	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98099-756-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98099-757-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (E)	8-98159-941-1	01	1	1504-		●
19	PIPE; BRK,M/CYL TO UNION 4JK1-TCX ENG(LR0) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1504-	●
19	PIPE; BRK,M/CYL TO UNION EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98202-432-0	01	1	1504-		●
72	BOLT; BRKT TO BODY M6X16 FLANGE	0-28650-616-0	03	1	1504-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98197-807-1	01	1	1504-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK ELECTRONIC TRACTION CONTROL<NW9> (B)	8-98250-548-0	01	1	1504-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-803-0	01	1	1504-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-188-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98197-804-0	01	1	1504-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (A)	8-98285-189-0	01	1	1509-		●

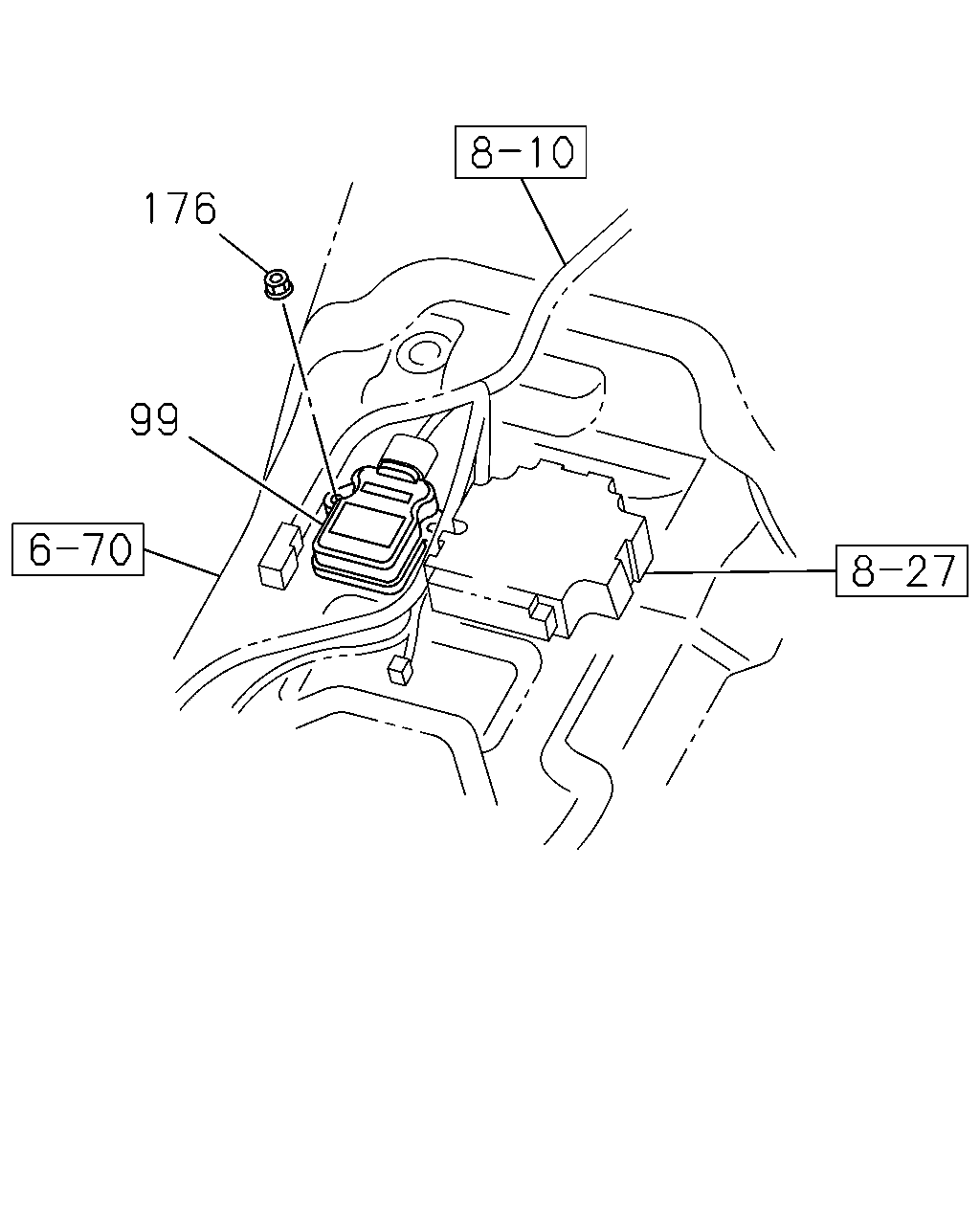

99 176

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	99	SENSOR; DECELERATION ELECTRONIC TRACTION CONTROL<NW9>	8-98052-116-1	01	1	1504-	●	●
	176	NUT; SENSOR ELECTRONIC TRACTION CONTROL<NW9> M6 FLANGE	0-91180-106-0	02	1	1504-	●	●

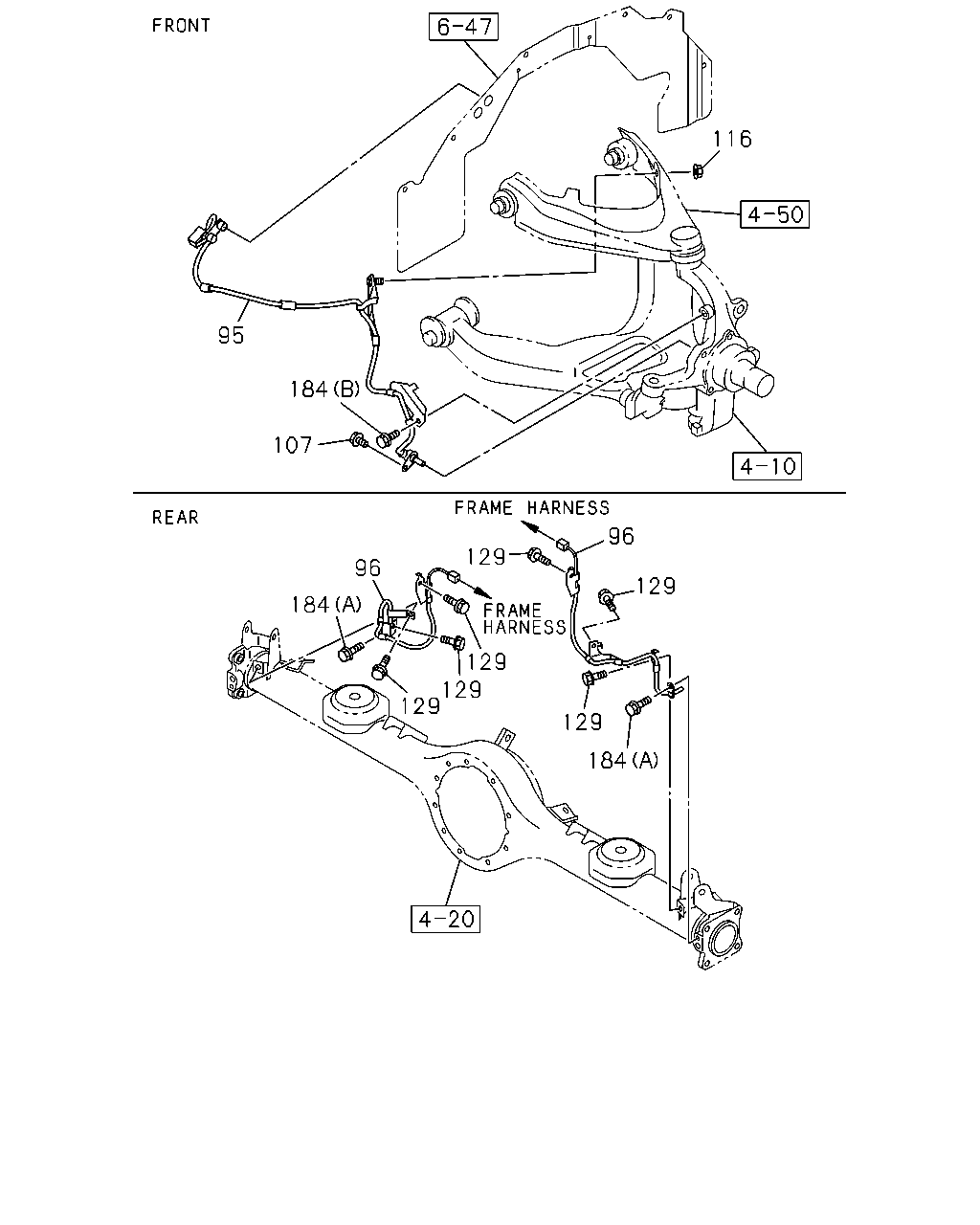

95 184 107 116 96 129 129 184 129 129 129 184 96 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1504-1509	●	●
95	SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-	●	●
95	SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1504-1509	●	●
95	SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-	●	●
96	SENSOR; SPD,RR WHEEL	8-98196-302-0	01	1	1504-	●	●
96	SENSOR; SPD,RR WHEEL	8-98196-303-0	01	1	1504-	●	●
107	BOLT; WHEEL SPD SENSOR M6X10 FLANGE	0-28050-610-0	02	1	1504-1509	●	●
107	BOLT; WHEEL SPD SENSOR M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●
116	NUT M8 FLANGE	0-91180-108-0	02	1	1504-	●	●
129	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	06	1	1504-	●	●
184	BOLT; CLIP (B) M6X10 FLANGE	0-28050-610-0	02	1	1504-1509	●	●
184	BOLT; CLIP (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●
184	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	02	1	1504-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
