◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#160393) — 9 parça

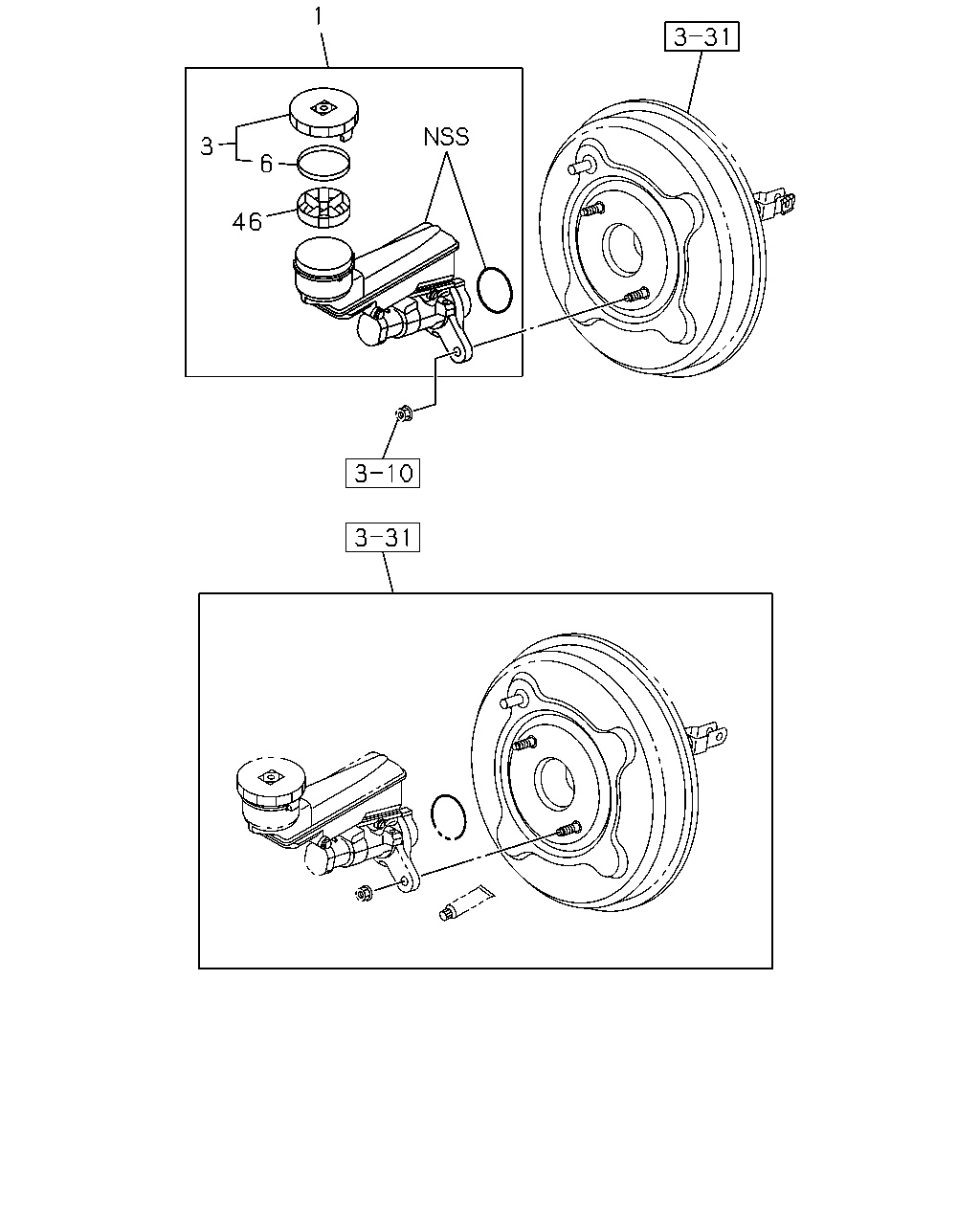

çizim 471251
1 3 6 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-230-0 01 1 1504- ● ●
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-228-0 01 1 1504- ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-229-0 01 1 1504- ●
1 CYLINDER ASM; BRK MASTER
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-229-0 01 1 1504- ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-227-0 01 1 1504- ●
1 CYLINDER ASM; BRK MASTER
M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98163-227-0 01 1 1504- ●
3 CAP; OIL TANK 8-98047-704-0 01 1 1504- ● ●
6 DIAPHRAGM; BRK M/CYL 8-98047-706-0 01 1 1504- ● ●
46 FILTER; OIL TANK,M/CYL 8-98047-702-0 01 1 1504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
