3-10 — BRAKE PEDAL AND CONTROL (#160391) — 13 parça

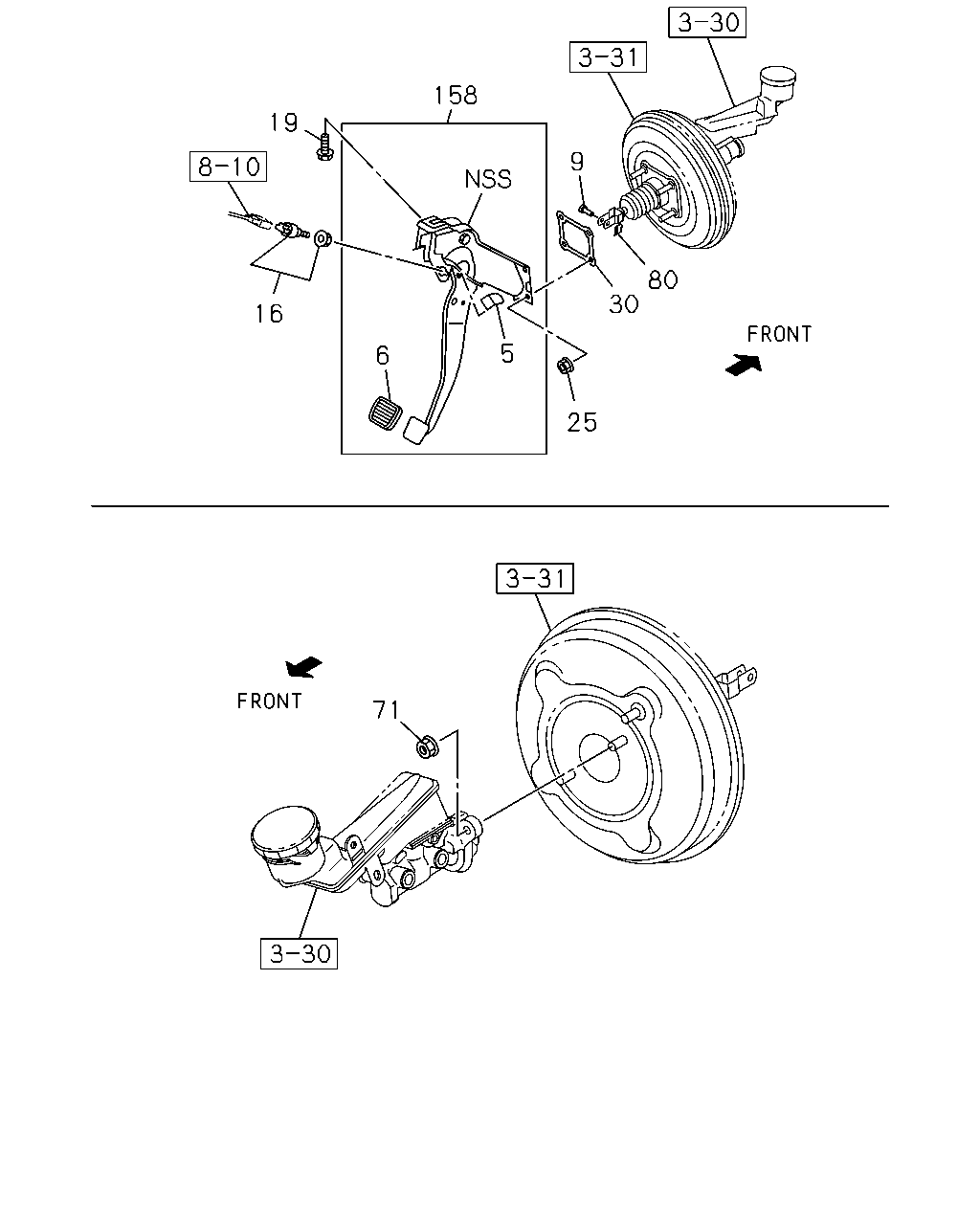

çizim 471275
71 25 5 6 16 19 158 9 80 30
BalonParca AdiParca NoAdetTipApplied Date A B
5 STOPPER; BRK PEDAL 8-98029-187-0 01 1 1504- ● ●
6 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1504- ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 1504- ● ●
9 PIN; JAW JOINT 8-97311-602-0 01 1 1504- ● ●
16 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1504- ● ●
16 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1504- ● ●
19 BOLT; BRKT
M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1504- ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 1504- ● ●
30 GASKET; M/VAC TO BODY 8-97943-457-0 01 1 1504- ● ●
71 NUT; BRK M/CYL 8-98031-675-0 02 1 1504- ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1504- ● ●
158 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-820-0 01 1 1504- ● ●
158 PEDAL ASM; BRK
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-98061-819-0 01 1 1504- ● ●
