2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#160385) — 26 parça

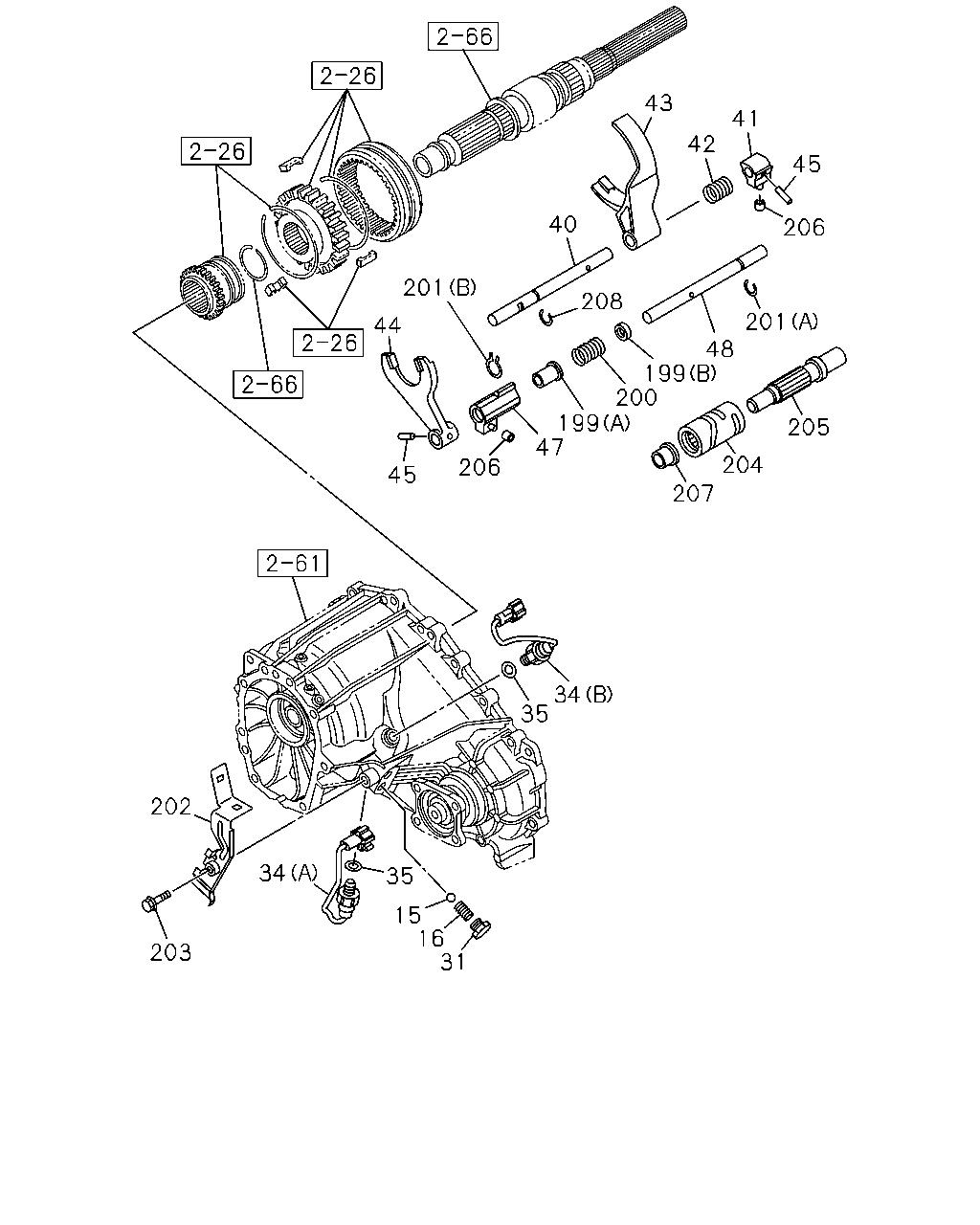

çizim 471607
41 42 43 206 201 48 205 204 207 200 199 199 47 206 45 208 40 45 201 44 34 35 31 16 15 34 35 203 202
BalonParca AdiParca NoAdetTipApplied Date
15 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 1504-
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4 		8-97145-374-0 02 1 1504-
31 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 1504-
34 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-233-0 01 1 1504-
34 SWITCH; TRANSFER INDICATOR
(B) 		8-98181-234-0 01 1 1504-
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 02 1 1504-
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 1504-
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 1504-
42 SPRING; GEAR LOCK RELEASE,TRANSFER 8-97239-010-1 01 1 1504-
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 1504-
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 1504-
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 1504-
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1504-
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 1504-
199 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 1504-
199 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 1504-
200 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 1504-
201 RING; SNAP,SHIFT
(A) ID=12 		8-94460-357-0 01 1 1504-
201 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 1504-
202 BRACKET; SWITCH 8-98118-922-1 01 1 1504-
203 BOLT; BRACKET,SWITCH
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1504-
204 DRUM; SHIFT 8-98158-123-0 01 1 1504-
205 SHAFT; SHIFT DRUM 8-98063-364-1 01 1 1504-
206 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 1504-
207 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1504-
208 RING; SNAP,SHIFT
ID=12 		8-94460-357-0 01 1 1504-
