◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55 - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER (#160381) — 19 parça

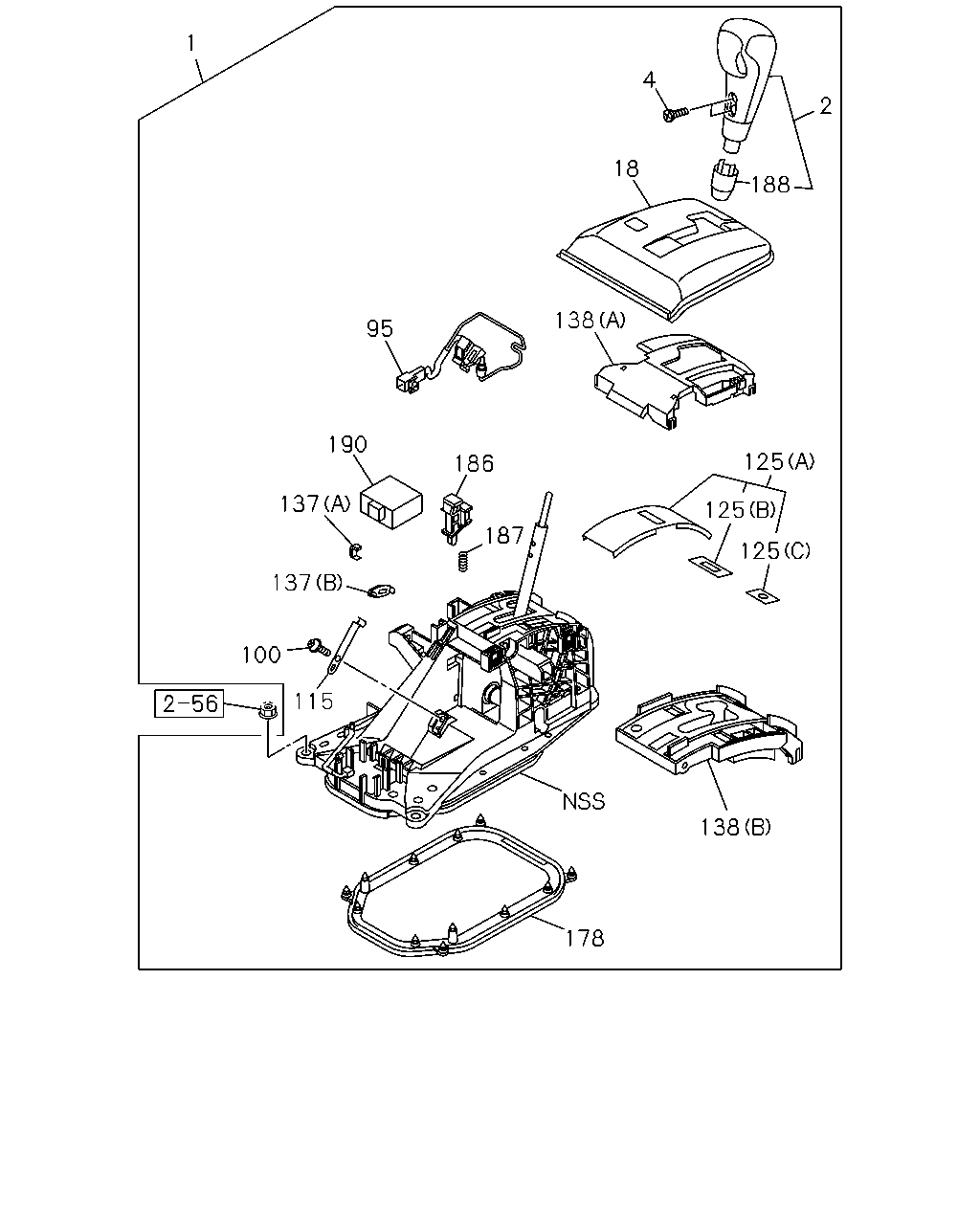

çizim 471581
1 95 190 137 137 100 115 186 187 178 138 125 125 125 138 18 4 188 2
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
SILVER 		8-97427-694-0 01 1 1504-
2 KNOB ASM; AUTO CONT LEVER
SILVER 		8-97421-017-0 01 1 1504-
4 SCREW; KNOB TO LEVER 8-98163-219-0 02 1 1504-
18 COVER; INDICATOR,UPR
SILVER 		8-97425-357-1 01 1 1504-
95 LAMP; INDICATOR 8-98173-050-0 01 1 1504-
100 SCREW 8-98163-221-0 01 1 1504-
115 PLATE; SPR,LEVER 8-98163-220-0 01 1 1504-
125 COVER; SHIFT LEVER
(A) 		8-98163-185-0 01 1 1504-
125 COVER; SHIFT LEVER
(C) 		8-98163-186-0 01 1 1504-
125 COVER; SHIFT LEVER
(B) 		8-98163-187-0 01 1 1504-
137 CUSHION
(A) 		8-98163-222-0 01 1 1504-
137 CUSHION
(B) 		8-98163-223-0 01 1 1504-
138 BOX; LAMP
(B) 		8-98173-053-0 01 1 1504-
138 BOX; LAMP
(A) 		8-98242-512-0 01 1 1504-
178 SHEET; SHIFT LEVER 8-98163-225-0 01 1 1504-
186 BUTTON; SHIFT LOCK
BLACK 		8-97421-016-0 01 1 1504-
187 SPRING; RETURN,SHIFT 8-98163-182-0 01 1 1504-
188 COVER; KNOB 8-98163-209-0 01 1 1504-
190 CONTROLLER; INTERLOCK 8-98163-217-0 01 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
