◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH ▶
2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#160378) — 76 parça

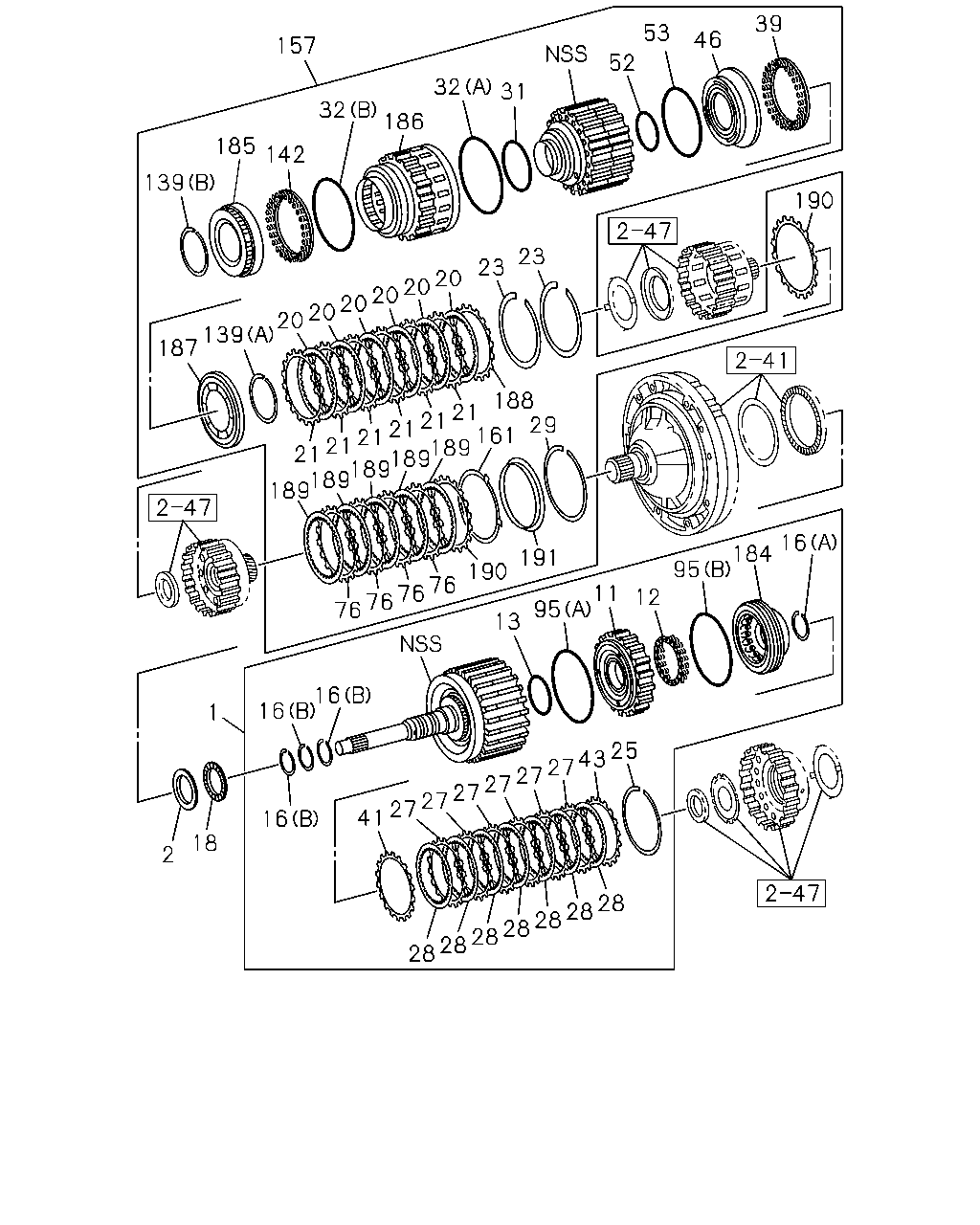

çizim 472047
39 46 53 52 31 32 186 32 157 185 139 142 23 23 20 20 20 20 20 20 139 187 190 29 188 21 21 21 21 21 21 189 189 189 189 189 161 76 190 76 76 76 191 1 18 2 16 16 16 13 12 11 95 95 184 16 41 27 27 27 27 27 27 43 25 28 28 28 28 28 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T
4JK1-TCX ENG(LR0) 		8-98189-762-0 01 1 1504-
1 HUB ASM; CLU,INPUT SHAFT,A/T
4JJ1-TCX ENG(LS0) 		8-98189-510-0 01 1 1504-
2 RACE; THRUST BRG,A/T 8-98189-534-0 01 1 1504-
11 PISTON ASM; CLU,A/T
4JK1-TCX ENG(LR0) 		8-98189-764-0 01 1 1504-
11 PISTON ASM; CLU,A/T
4JJ1-TCX ENG(LS0) 		8-98189-512-0 01 1 1504-
12 SPRING; CLU RETURN,A/T 8-98189-515-0 01 1 1504-
13 GASKET; INNER,CLU,A/T
ID=40 		8-98189-513-0 01 1 1504-
16 RING; SNAP,CLU,A/T
(A) ID=35 		8-98189-518-0 01 1 1504-
16 RING; SNAP,CLU,A/T
(B) ID=29 		8-98189-533-0 03 1 1504-
18 BEARING; THRUST,CLU,A/T 8-98189-535-0 01 1 1504-
20 DISC; CLU,A/T
4JK1-TCX ENG(LR0) OD=162 		8-98189-559-0 05 1 1504-
20 DISC; CLU,A/T
4JJ1-TCX ENG(LS0) OD=162 		8-98189-559-0 06 1 1504-
21 DISC ASM; CLU & FACING,A/T
4JK1-TCX ENG(LR0) ID=149 		8-98189-558-0 05 1 1504-
21 DISC ASM; CLU & FACING,A/T
4JJ1-TCX ENG(LS0) ID=149 		8-98189-558-0 06 1 1504-
23 RING; RET,CLU,A/T
ID=160 		8-98189-576-0 02 1 1504-
25 RING; RET,BACKING PLATE,A/T
ID=115 		8-98189-532-0 01 1 1504-
27 DISC ASM; CLU & FACING,A/T
4JK1-TCX ENG(LR0) T=1.8 		8-98189-520-0 05 1 1504-
27 DISC ASM; CLU & FACING,A/T
4JJ1-TCX ENG(LS0) T=1.8 		8-98189-520-0 06 1 1504-
28 DISC; CLU,A/T
4JK1-TCX ENG(LR0) OD=120 		8-98189-519-0 06 1 1504-
28 DISC; CLU,A/T
4JJ1-TCX ENG(LS0) OD=120 		8-98189-519-0 07 1 1504-
29 RING; SNAP,CLU,A/T
ID=171 		8-98189-597-0 01 1 1504-
31 GASKET; CLU,INNER,A/T
ID=101 		8-98189-586-0 01 1 1504-
32 GASKET; CLU,OUTER,A/T
(A) ID=142 		8-98189-582-0 01 1 1504-
32 GASKET; CLU,OUTER,A/T
(B) ID=140 		8-98189-585-0 01 1 1504-
39 SPRING; DIRECT CLU RETURN 8-98189-543-0 01 1 1504-
41 FLANGE; DIRECT CLU
T=3.0 		8-98189-521-0 01 1 1504-
43 FLANGE; FWD CLU
T=3.0 		8-98189-521-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.1 		8-98189-522-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.2 		8-98189-523-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.3 		8-98189-524-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.4 		8-98189-525-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.5 		8-98189-526-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.6 		8-98189-527-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.7 		8-98189-528-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.8 		8-98189-529-0 AR 1 1504-
43 FLANGE; FWD CLU
T=3.9 		8-98189-530-0 AR 1 1504-
43 FLANGE; FWD CLU
T=4.0 		8-98189-531-0 AR 1 1504-
46 PISTON; DIRECT CLU,A/T
4JK1-TCX ENG(LR0) 		8-98189-766-0 01 1 1504-
46 PISTON; DIRECT CLU,A/T
4JJ1-TCX ENG(LS0) 		8-98189-540-0 01 1 1504-
52 GASKET; PISTON INNER,DIRECT CLU,A/T
ID=75 		8-98189-542-0 01 1 1504-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T
ID=126.7 		8-98189-541-0 01 1 1504-
76 PLATE; 3RD CLU
T=2.4 		8-98189-591-0 04 1 1504-
95 GASKET; CLU HUB
(A) ID=108 		8-98189-514-0 01 1 1504-
95 GASKET; CLU HUB
(B) ID=107 		8-98189-517-0 01 1 1504-
139 RING; SNAP
(A) ID=64 		8-98189-557-0 01 1 1504-
139 RING; SNAP
(B) ID=79 		8-98189-589-0 01 1 1504-
142 SPRING; CLU 8-98189-587-0 01 1 1504-
157 CLUTCH ASM; A/T
4JK1-TCX ENG(LR0) 		8-98189-765-0 01 1 1504-
157 CLUTCH ASM; A/T
4JJ1-TCX ENG(LS0) 		8-98189-538-0 01 1 1504-
161 PLATE; CLU
T=1.5 		8-98189-595-0 01 1 1504-
184 BALANCER; CLUTCH NO 1 8-98189-516-0 01 1 1504-
185 BALANCER; CLUTCH NO 3 8-98189-588-0 01 1 1504-
186 PISTON; REVERSE CLUTCH 8-98189-579-0 01 1 1504-
187 BALANCER; CLUTCH NO 2 8-98189-556-0 01 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.0 		8-98189-560-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.1 		8-98189-561-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.2 		8-98189-562-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.3 		8-98189-563-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.4 		8-98189-564-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.5 		8-98189-565-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.6 		8-98189-566-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.7 		8-98189-568-0 AR 1 1504-
188 FLANGE; REVERSE CLUTCH
T=3.8 		8-98189-572-0 AR 1 1504-
189 DISC; CLUTCH NO 3
OD=162 		8-98189-590-0 05 1 1504-
190 FLANGE; CLUTCH
T=3.0 		8-98189-560-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.1 		8-98189-561-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.2 		8-98189-562-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.3 		8-98189-563-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.4 		8-98189-564-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.5 		8-98189-565-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.6 		8-98189-566-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.7 		8-98189-568-0 AR 1 1504-
190 FLANGE; CLUTCH
T=3.8 		8-98189-572-0 AR 1 1504-
190 FLANGE; CLUTCH
T=2.8 		8-98189-592-0 AR 1 1504-
190 FLANGE; CLUTCH
T=2.9 		8-98189-594-0 AR 1 1504-
191 SLEEVE; CLUTCH 8-98189-596-0 01 1 1504-
