◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51617 - UCR/S JIANGXI ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#160377) — 54 parça

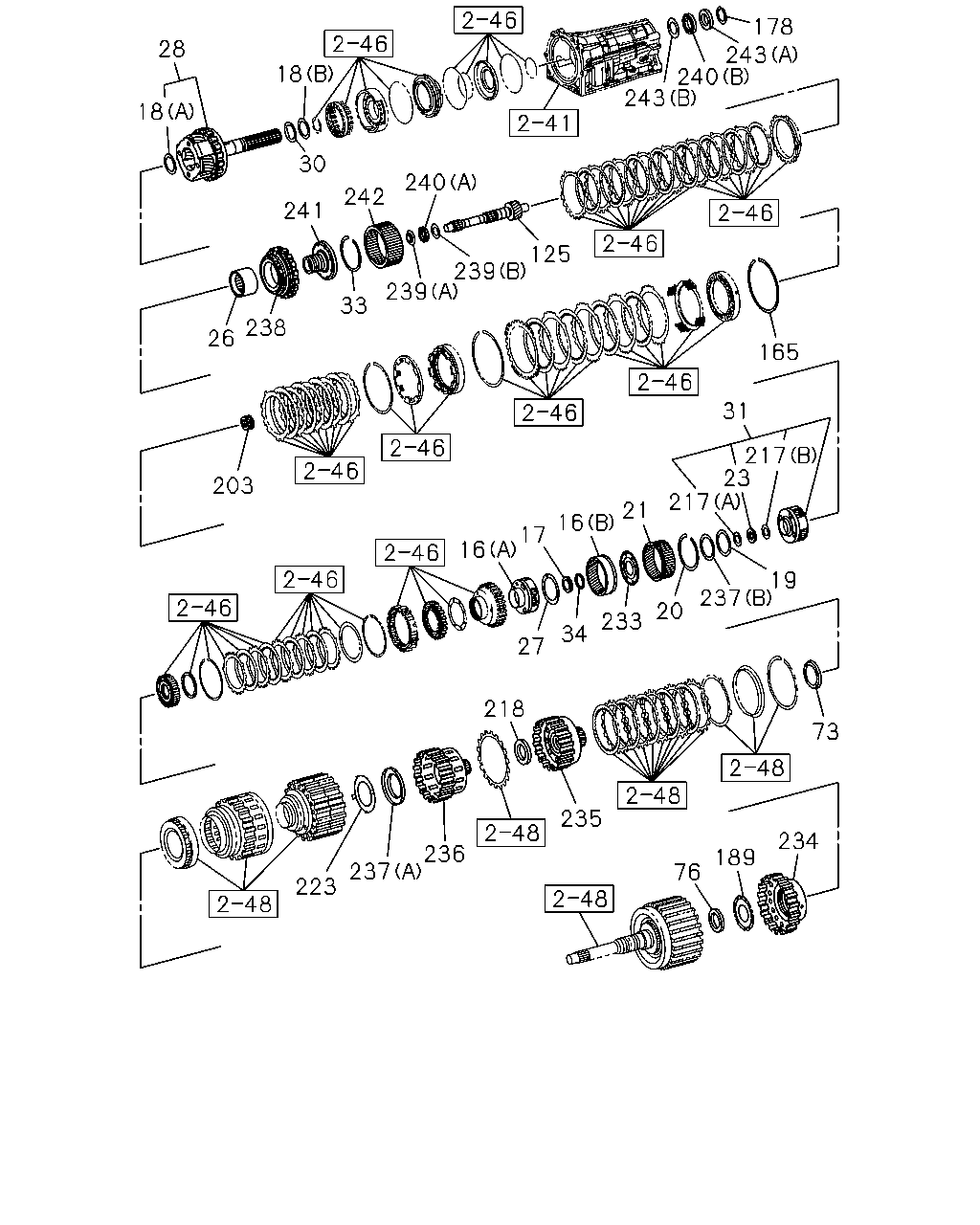

çizim 471963
178 243 240 243 18 30 18 28 241 242 240 125 239 239 33 238 26 203 165 31 217 23 217 21 16 17 16 27 34 233 19 237 20 218 73 235 236 237 223 76 234 189
BalonParca AdiParca NoAdetTipApplied Date
16 GEAR ASM; FRT PLANETARY,A/T
(A) 		8-98189-682-0 01 1 1504-
16 GEAR ASM; FRT PLANETARY,A/T
(B) 		8-98189-686-0 01 1 1504-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
ID=38 		8-98189-684-0 01 1 1504-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) 		8-98189-708-0 01 1 1504-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) 		8-98189-712-0 01 1 1504-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-98189-692-0 01 1 1504-
20 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-691-0 01 1 1504-
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98189-688-0 01 1 1504-
23 BEARING; THRUST,PLANETARY SHAFT,A/T 8-98189-695-0 01 1 1504-
26 RACE; ONEWAY CLU,A/T 8-98189-701-0 01 1 1504-
27 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 		8-98189-683-0 01 1 1504-
28 GEAR ASM; RR PLANETARY,A/T
4X2(UCB***) 		8-98189-707-0 01 1 1504-
28 GEAR ASM; RR PLANETARY,A/T
4X4(UCS***) 		8-98189-784-0 01 1 1504-
30 RACE; THRUST BRG,RR PLANETARY FLANGE 8-98189-711-0 01 1 1504-
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-98189-694-0 01 1 1504-
33 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-710-0 01 1 1504-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/ 8-98189-685-0 01 1 1504-
73 WASHER; THRUST,CARRIER
ID=74 		8-98189-679-0 01 1 1504-
76 BEARING; THRUST,CARRIER 8-98189-673-0 01 1 1504-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR 8-98189-698-0 01 1 1504-
165 RING; RET
ID=151 		8-98189-702-0 01 1 1504-
178 RING; RET
4X2(UCB***) ID=34 		8-98189-730-0 01 1 1504-
189 RACE; INNER,LOW CLU
ID=23 		8-98189-670-0 01 1 1504-
203 GEAR; SUN
Z=31 		8-98189-699-0 01 1 1504-
217 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-98189-696-0 01 1 1504-
217 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-98189-697-0 01 1 1504-
218 BEARING; THRUST,INTERNAL GEAR 8-98189-680-0 01 1 1504-
223 RACE; BRG,CARRIER 8-98189-675-0 01 1 1504-
233 FLANGE; FR PLANETARY 8-98189-687-0 01 1 1504-
234 HUB; FORWARD CLUTCH 8-98189-674-0 01 1 1504-
235 HUB; REVERSE CLUTCH 8-98189-681-0 01 1 1504-
236 HUB; CLUTCH 8-98189-678-0 01 1 1504-
237 BEARING; THRUST
(A) 		8-98189-676-0 01 1 1504-
237 BEARING; THRUST
(B) 		8-98189-693-0 01 1 1504-
238 CLUTCH ASM; 1WAY 8-98189-700-0 01 1 1504-
239 RACE; INTERMEDIATE SHAFT
(A) 		8-98189-703-0 01 1 1504-
239 RACE; INTERMEDIATE SHAFT
(B) 		8-98189-704-0 01 1 1504-
240 BEARING; THRUST NEEDLE ROLLER
4X2(UCB***) (B) 		8-98189-729-0 01 1 1504-
240 BEARING; THRUST NEEDLE ROLLER
(A) 		8-98189-705-0 01 1 1504-
241 FLANGE; RR PLANETARY 8-98189-706-0 01 1 1504-
242 GEAR; RR PLANETARY 8-98189-709-0 01 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.8 		8-98189-716-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.9 		8-98189-717-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.0 		8-98189-718-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.1 		8-98189-719-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.2 		8-98189-720-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.85 		8-98189-721-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=3.95 		8-98189-722-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.05 		8-98189-723-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.15 		8-98189-724-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.25 		8-98189-725-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.30 		8-98189-726-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (A) T=4.35 		8-98189-727-0 AR 1 1504-
243 RACE; THRUST BEARING
4X2(UCB***) (B) T=2.0 		8-98189-728-0 01 1 1504-
